2022 XCMG XE380DK

1/6

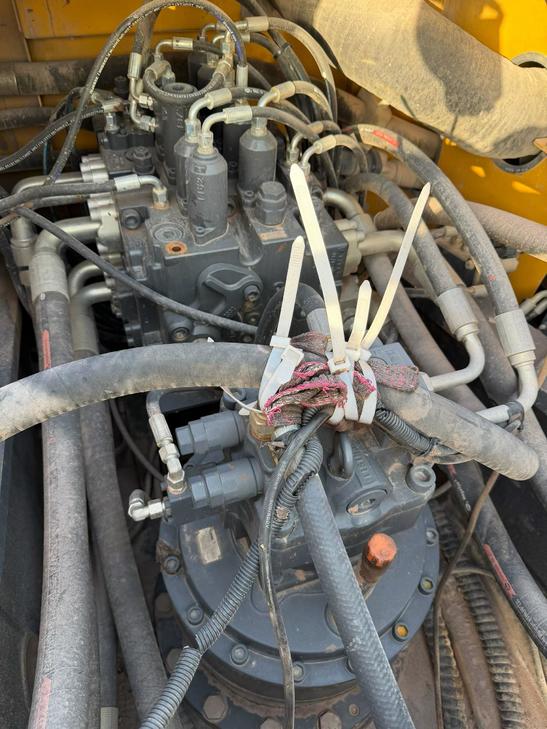

Buy XCMG XE380DK Used Excavator / 1
Buy XCMG XE380DK Used Excavator / 2
Buy XCMG XE380DK Used Excavator / 3
Buy XCMG XE380DK Used Excavator / 4
Buy XCMG XE380DK Used Excavator / 5
Buy XCMG XE380DK Used Excavator / 6

Product Description

Built for serious earthmoving, the 2022 XCMG XE380DK delivers 38-ton class performance at a fraction of new-unit pricing. Powered by a Cummins QSL9 engine producing 214 kW at 2,100 rpm — 6-cylinder, 8.9L displacement, water-cooled, turbocharged EFI — this machine brings proven reliability to demanding job sites without the capital outlay of a new purchase.

Available now in Chongqing, China, this unit offers immediate value for contractors, fleet operators, and equipment resellers looking to maximize return on investment.

  • Operating weight: 38,200 kg | Bucket capacity: 1.9–2.3 m³
  • Bucket digging force: 292 kN | Arm digging force: 209 kN
  • Max digging depth: 7,147 mm | Max digging radius: 10,968 mm
  • Max unloading height: 7,300 mm
  • Max tractive force: 285 kN | Gradeability: 35%
  • Travel speed: 5.6 / 3.3 km/h | Ground pressure: 69 kPa
  • Fuel tank: 660 L | Hydraulic tank: 350 L
  • Transport dimensions: 11,437 × 3,225 × 3,715 mm

Purchasing used means acquiring full-spec, high-capacity equipment — inspected, documented, and ready to work — while keeping capital free for operations. Contact Fair Trade Machinery for availability and pricing on this XE380DK.

SpecificationsValue
No.1073124
Tonnage (tons)38
Working weight (kg)38200
Bucket capacity (m³)1.9-2.3
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSL9
Rated power (kw/rpm)214/2100
Cooling modewater-cooling
Number of cylinders (PCS)6
Displacement (L)8.9
Working formEfi, 4-stroke, turbocharged, air-to-air cold
Ground specific pressure (Kpa)69
Rotation speed (rpm)9.6
Climbing ability (%)35
Bucket digging force (kN)292
Rod digging force (kN)209
Maximum tractive force (kN)285
Travel speed (km/h)5.6/3.3
Fuel Tank (L)660
Hydraulic Tank (L)350
Engine Oil changes (L)30
Total transport length (mm)11437
Total transport width (mm)3225
Total transport height (mm)3715
Full cab height (mm)3050
Counterweight ground clearance (mm)1227
Minimum ground clearance (mm)505
Minimum turning radius of front working device (mm)4560
Back end turning radius (mm)3700
Total track length (mm)5035
Track gauge (mm)2590
Total track width (mm)600
Maximum digging radius (mm)10968
Maximum digging depth (mm)7147
Maximum excavation height (mm)10508
Maximum unloading height (mm)7300
Maximum vertical digging depth (mm)6542
see more

Overview

No.1073124

Brand Name:

XCMG

Model Number:

XE380DK

Year:

2022

Location:

Chongqing China

Pub Date
