Product Description

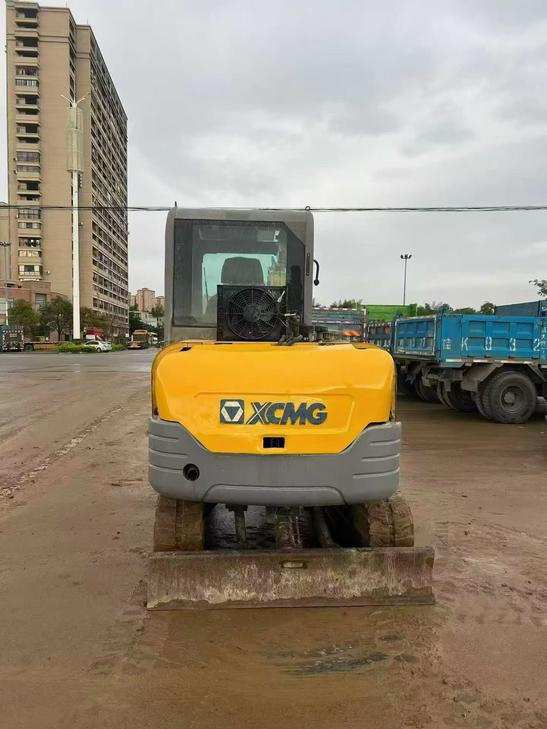

Discover the 2020 XCMG XE40, a robust and reliable excavator currently available in Guangxi, China. This used machine is offered at a competitive price, making it an excellent choice for businesses looking to enhance their fleet without compromising on quality. Known for its durability and efficiency, the XE40 is ideal for various construction and excavation tasks. With detailed video and images available, you can thoroughly assess the condition and performance of this machine before making your purchase decision.
- Year: 2020
- Brand: XCMG
- Model: XE40
- Location: Guangxi, China
- Comprehensive video and image documentation provided
| Specifications | Value |
|---|---|
| No. | 1080526 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4050 |
| Bucket capacity (m³) | 0.14 |
| Boom length (mm) | 2795 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV88 |
| Rated power (kw/rpm) | 27.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.19 |
| Ground specific pressure (Kpa) | 23.6 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 23.2 |
| Rod digging force (kN) | 19.3 |
| Travel speed (km/h) | 4.2/2.6 |
| Main overflow set pressure (Mpa) | 21 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*110+11 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 21 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 65 |
| Engine Oil changes (L) | 7.4 |
| Hydraulic System (L) | 70 |
| Total transport length (mm) | 5455 |
| Total transport width (mm) | 1650 |
| Total transport height (mm) | 2440 |
| Counterweight ground clearance (mm) | 578 |
| Minimum ground clearance (mm) | 350 |
| Minimum turning radius of front working device (mm) | 2385 |
| Back end turning radius (mm) | 1490 |
| Track gauge (mm) | 1335 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1721 |
| Maximum digging radius (mm) | 5810 |
| Maximum digging depth (mm) | 3600 |
| Maximum excavation height (mm) | 5320 |
| Maximum unloading height (mm) | 3700 |
| Maximum vertical digging depth (mm) | 2250 |
| Bulldozer lift or depth (mm) | 267/365 |
| Dodging plate width × height (mm) | 1650 x 300 |
