Product Description

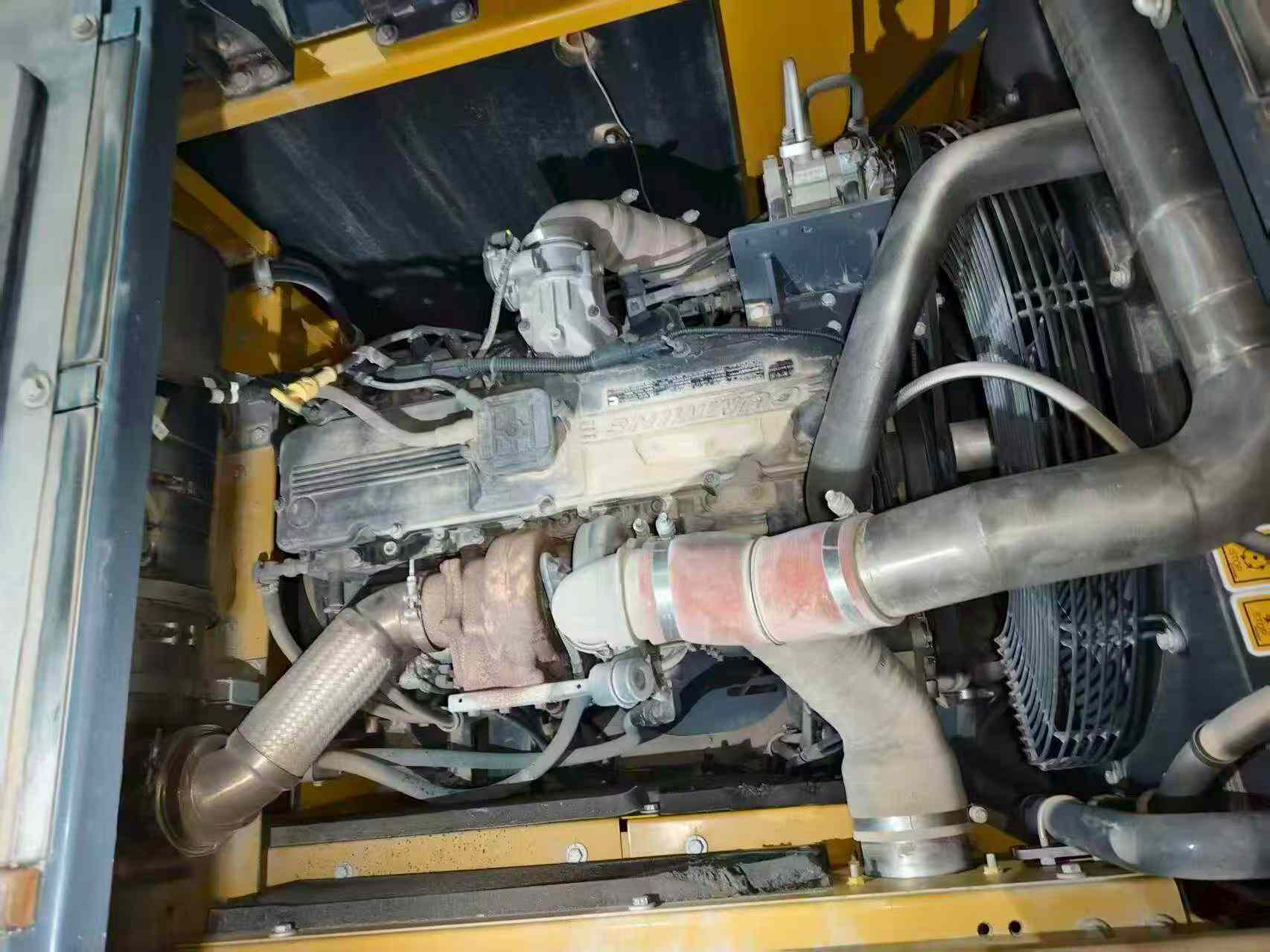

Built for demanding jobsites, this 2024 XCMG XE40 mini excavator delivers proven performance in a compact 4-ton package. Powered by a reliable Yanmar 4TNV88 engine producing 27.1kW, this workhorse combines Japanese precision with robust Chinese manufacturing standards. Operating weight of 4,050kg provides exceptional stability while maintaining a minimal ground pressure of just 23.6 Kpa, protecting sensitive surfaces without compromising digging power.

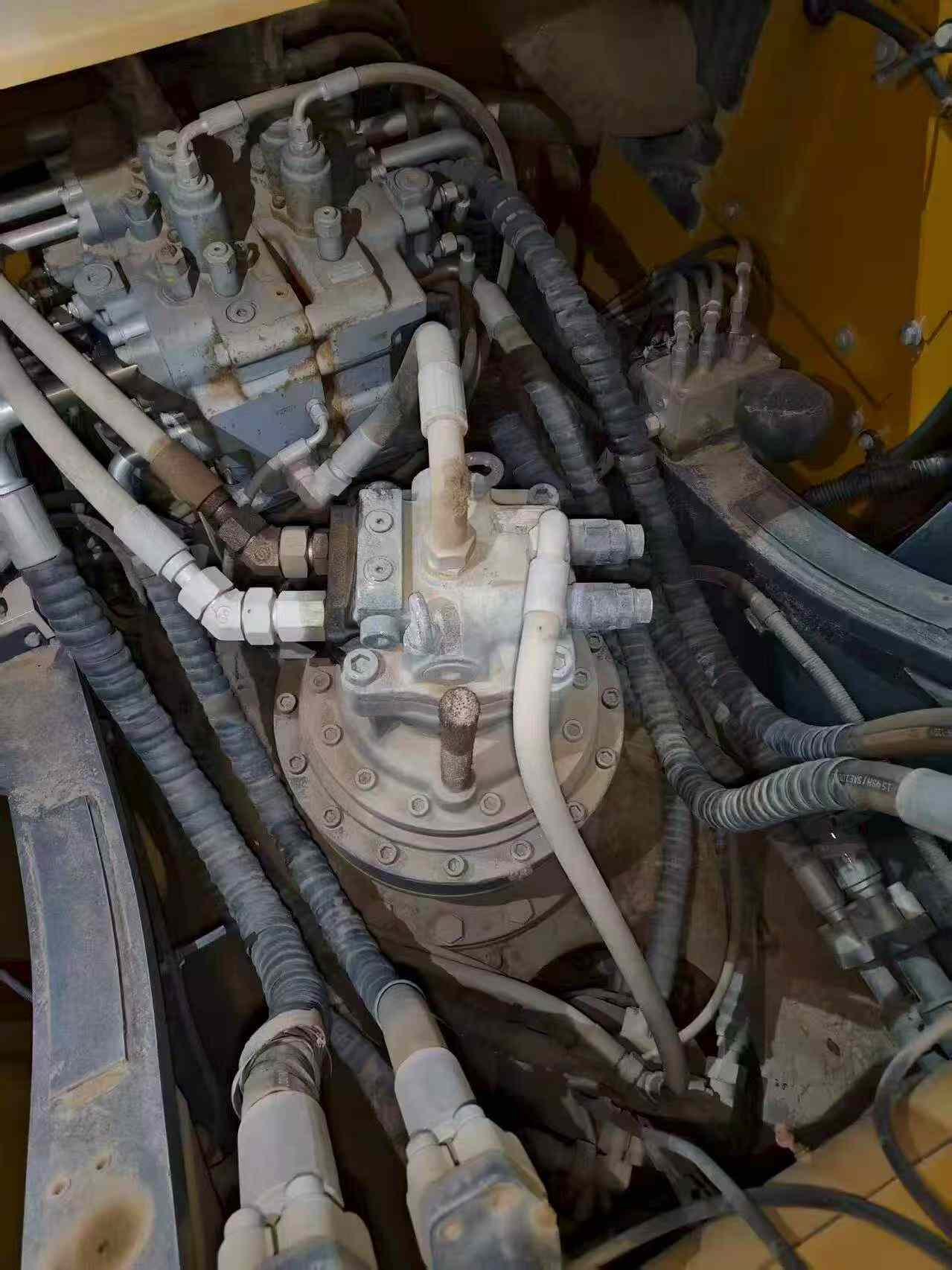

Engineered for longevity, the XE40 features a Japan Fujikoshi variable pump hydraulic system and plunger hydraulic motors throughout—components selected for their proven durability. With 23.2kN bucket digging force and a maximum reach of 5,810mm, this machine tackles excavation tasks with authority. The water-cooled 4-cylinder engine ensures consistent performance across extended operating hours, while the 70L hydraulic system capacity supports sustained productivity.
Currently located in Shaoxing, Zhejiang, this excavator represents XCMG's commitment to building machines that withstand the test of time. Compact dimensions (5,455mm length) enable access to confined spaces, while the 30° climbing ability and 13.5 rpm rotation speed maintain operational efficiency across
| Specifications | Value |
|---|---|
| No. | 1006156 |
| Tonnage (tons) | 4 |
| Working weight (kg) | 4050 |
| Bucket capacity (m³) | 0.14 |
| Boom length (mm) | 2795 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar Yanmar 4TNV88 |
| Rated power (kw/rpm) | 27.1/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.19 |
| Ground specific pressure (Kpa) | 23.6 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 23.2 |
| Rod digging force (kN) | 19.3 |
| Travel speed (km/h) | 4.2/2.6 |
| Main overflow set pressure (Mpa) | 21 |
| Rotary hydraulic motor type | Plunger hydraulic motor |
| Type of walking hydraulic motor | Plunger hydraulic motor |
| Maximum flow of main pump (l/min) | 1*110+11 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 21 |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Japan Fujikoshi variable pump ×1+ gear pump ×1 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 65 |
| Engine Oil changes (L) | 7.4 |
| Hydraulic System (L) | 70 |
| Total transport length (mm) | 5455 |
| Total transport width (mm) | 1650 |
| Total transport height (mm) | 2440 |
| Counterweight ground clearance (mm) | 578 |
| Minimum ground clearance (mm) | 350 |
| Minimum turning radius of front working device (mm) | 2385 |
| Back end turning radius (mm) | 1490 |
| Track gauge (mm) | 1335 |
| Track plate width (mm) | 300 |
| Track ground length (mm) | 1721 |
| Maximum digging radius (mm) | 5810 |
| Maximum digging depth (mm) | 3600 |
| Maximum excavation height (mm) | 5320 |
| Maximum unloading height (mm) | 3700 |
| Maximum vertical digging depth (mm) | 2250 |
| Bulldozer lift or depth (mm) | 267/365 |
| Dodging plate width × height (mm) | 1650 x 300 |
