Product Description
Engineered for extreme-scale mining and quarry operations, this 400-ton hydraulic excavator delivers commanding performance where precision meets raw power. Operators benefit from exceptional stability during high-reach work, with a maximum digging radius of 18,050mm and digging depth extending to 8,340mm. The reinforced undercarriage and 384,000kg working weight provide rock-solid balance across uneven terrain, reducing fatigue during extended shifts.

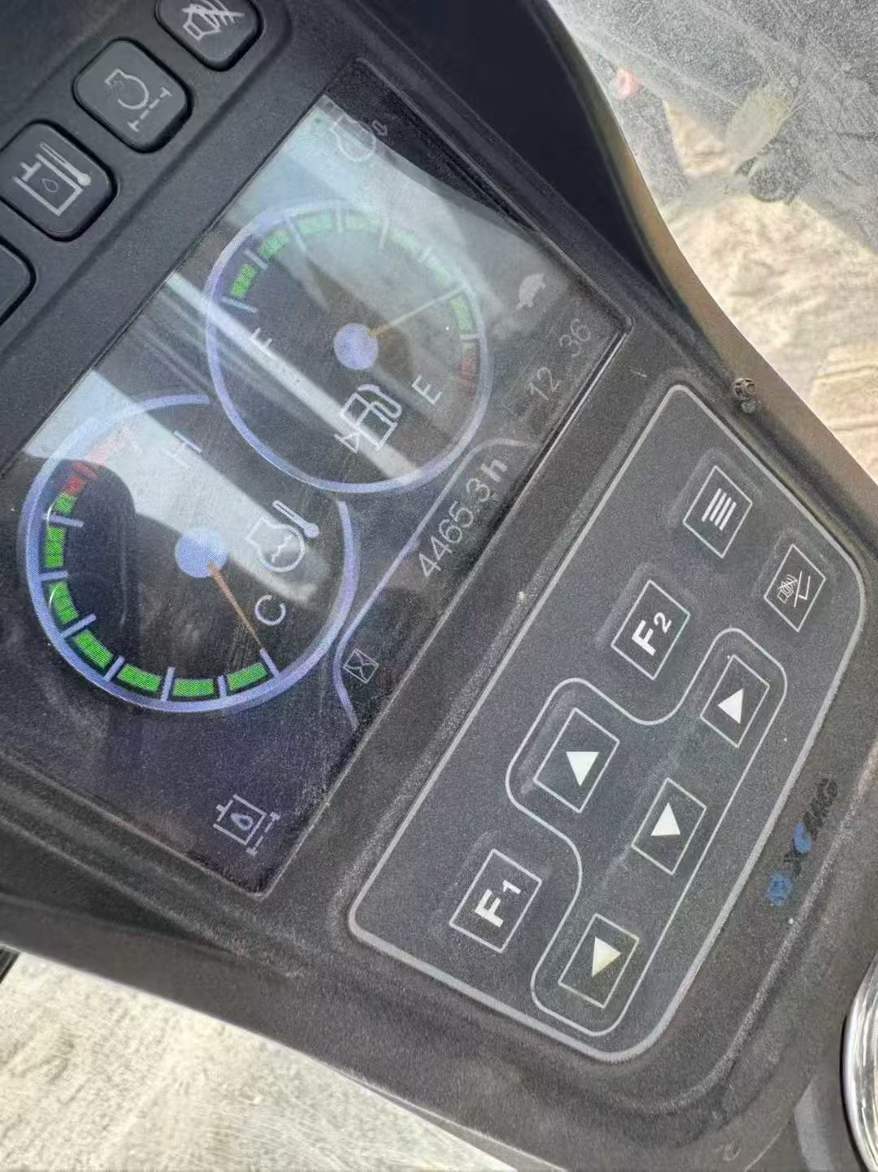

Cabin design prioritizes all-around visibility for safer operation when maneuvering the 15-23m³ backhoe bucket. Responsive hydraulics translate joystick inputs into controlled movements, backed by 1,057kN bucket digging force and 961kN rod digging force. The 1491kw power plant maintains consistent performance under continuous loading cycles, while dual travel speeds (1.6/2.3 km/h) offer flexibility between job sites and positioning tasks.
- Working Weight: 384,000kg
- Rated Power: 1491kw @ 1800rpm
- Max Digging Height: 17,140mm
- Swing Speed: 3.1 rpm
- Location: Xuzhou, Jiangsu
| Specifications | Value |
|---|---|
| No. | 1011610 |
| Tonnage (tons) | 400 |
| Working weight (kg) | 384000 |
| Bucket capacity (m³) | 15-23 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 1491/1800 |
| Rotation speed (rpm) | 3.1 |
| Bucket digging force (kN) | 1057 |
| Rod digging force (kN) | 961 |
| Travel speed (km/h) | 1.6/2.3 |
| Maximum digging radius (mm) | 18050 |
| Maximum digging depth (mm) | 8340 |
| Maximum excavation height (mm) | 17140 |
