Product Description

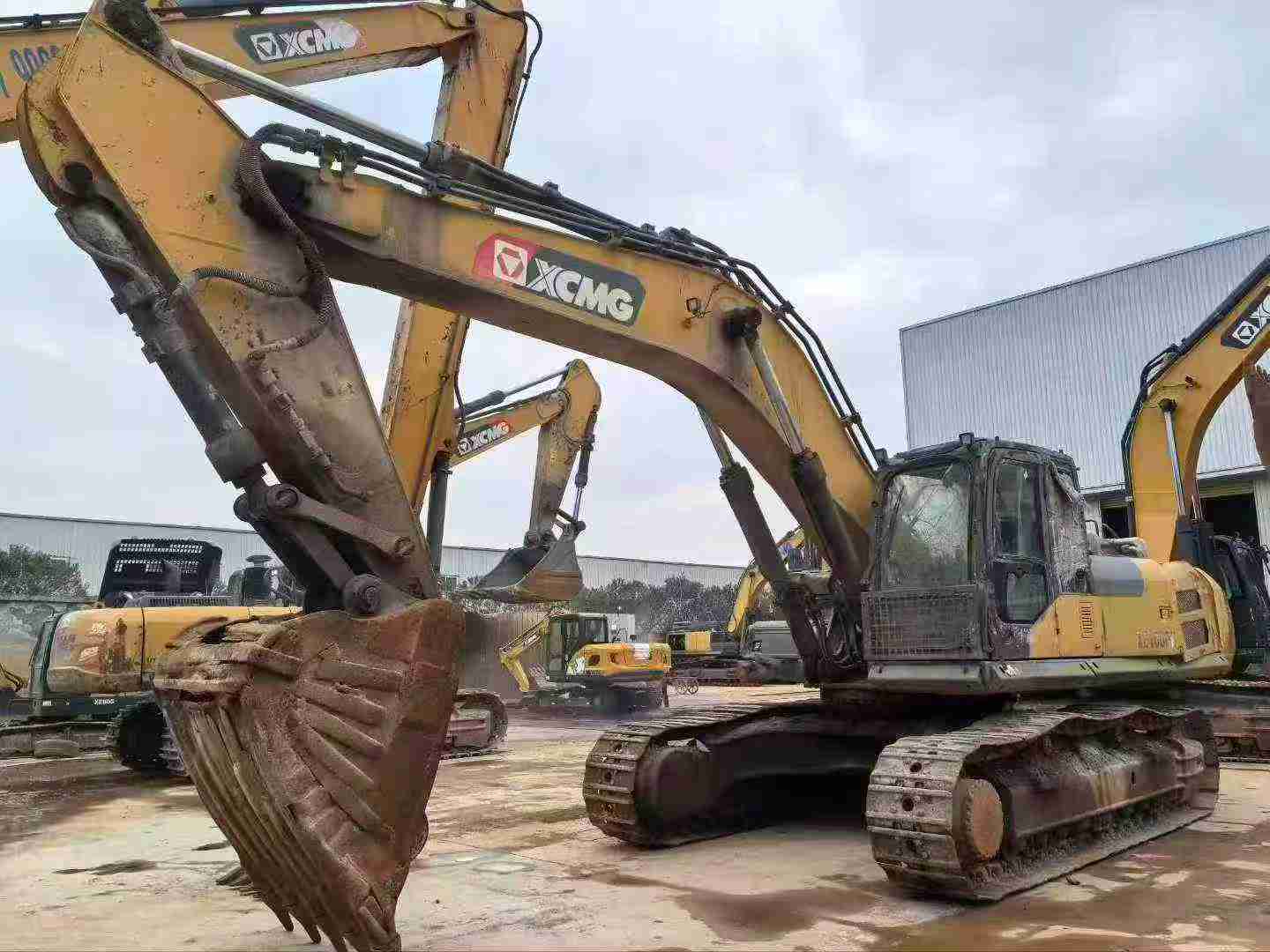

Powered by a proven Cummins QSL9 engine delivering 222kW at 2100rpm, this 40-ton excavator combines industrial-grade performance with the parts availability and dealer network that define XCMG's global footprint. Operating weight of 39,400kg and a robust 2.0-2.2m³ bucket capacity make short work of demanding earthmoving projects, while the 310kN bucket digging force ensures consistent productivity in hard-packed conditions.
- Maximum digging reach: 10,385mm with 6,660mm depth capability
- Water-cooled 6-cylinder turbocharged diesel with air-to-air intercooling
- 660L fuel tank for extended operating shifts
- 9.6rpm swing speed with 3,700mm rear turning radius
- Currently located in Luzhou, Sichuan
XCMG parts remain readily available through established supply chains across Asia, Europe, and the Americas—critical for controlling lifecycle costs on pre-owned equipment. Strong residual values and straightforward maintenance protocols make this machine a strategic acquisition for contractors requiring proven reliability without the new-equipment premium.
| Specifications | Value |
|---|---|
| No. | 1033183 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 39400 |
| Bucket capacity (m³) | 2.0-2.2 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

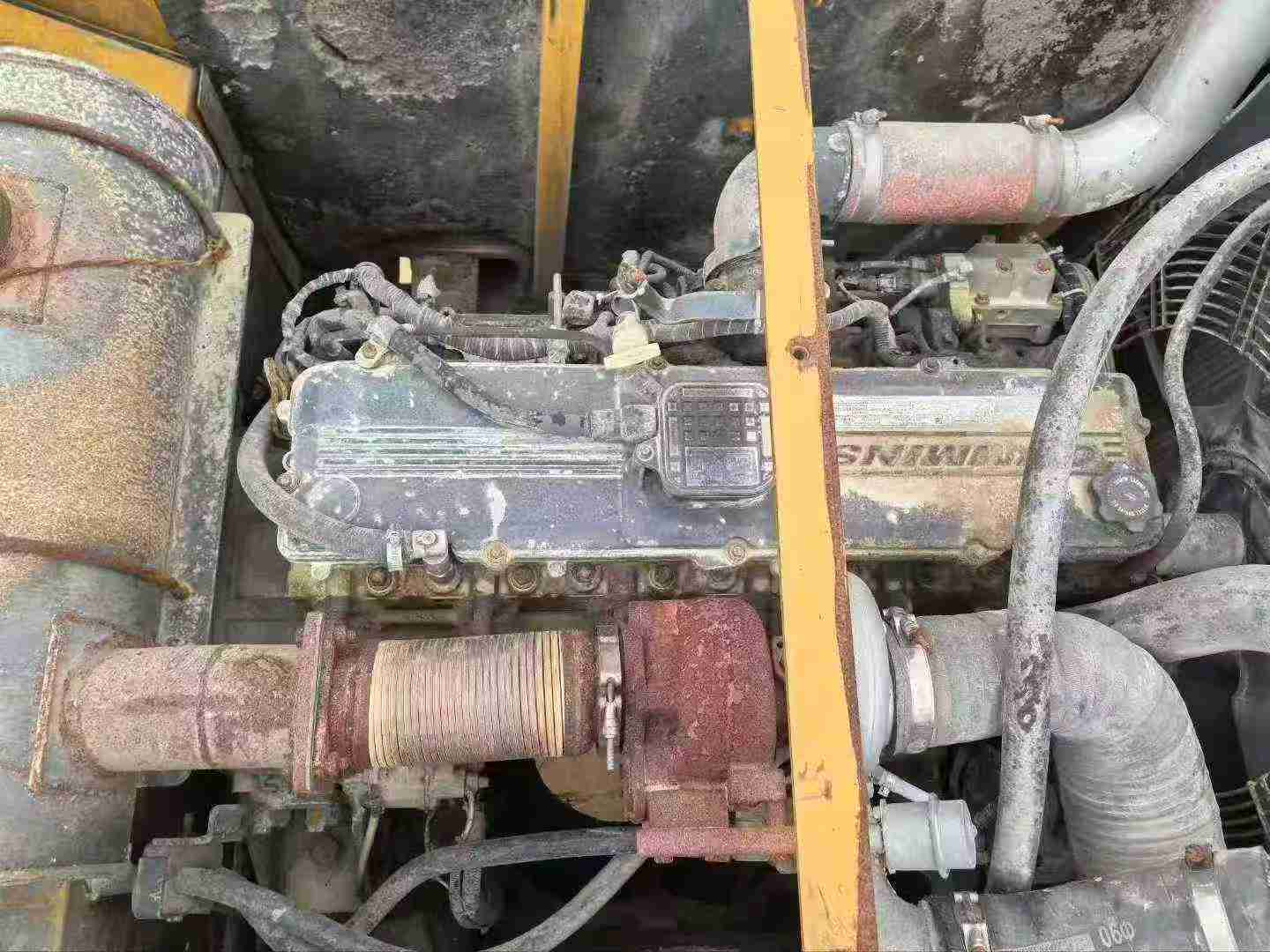

| Engine type | Cummins QSL9 |
| Rated power (kw/rpm) | 222/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 310 |
| Rod digging force (kN) | 227 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11300 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3760 |
| Counterweight ground clearance (mm) | 1272 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4445 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5290 |
| Track gauge (mm) | 2740 |
| Total track width (mm) | 600 |
| Maximum height at minimum turning radius (mm) | 1146 |
| Maximum digging radius (mm) | 10385 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9946 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 4725 |
