Product Description

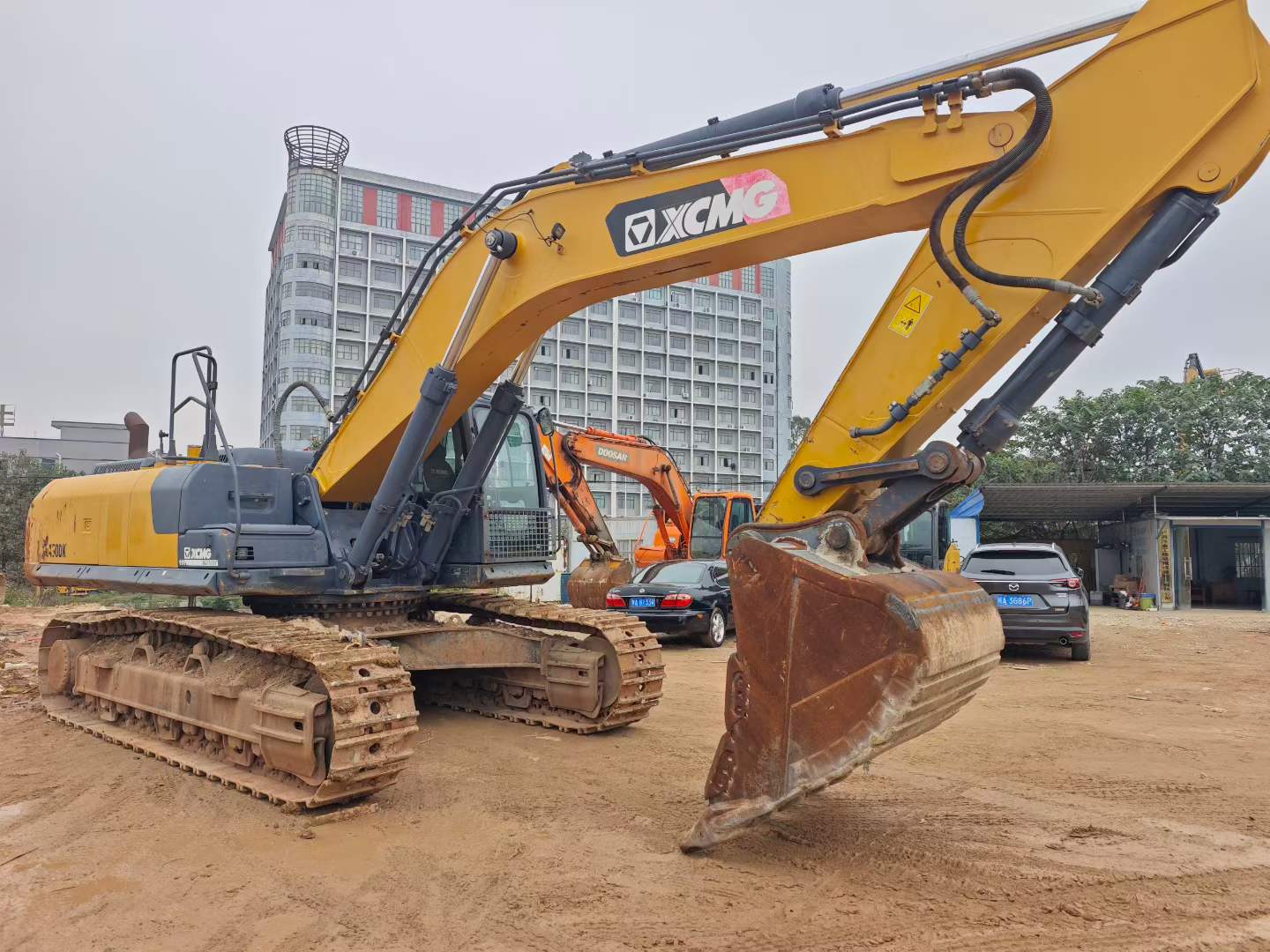

Built for demanding construction environments, this 2020 XCMG XE400DK excavator delivers proven 40-ton performance with exceptional operational reliability. Powered by a robust Cummins QSL9 engine generating 222kW at 2100 rpm, this machine combines Chinese manufacturing efficiency with globally recognized component quality.
XCMG's established market presence ensures superior parts availability and competitive resale values compared to lesser-known brands. With maximum digging reach of 10,385mm and bucket capacity up to 2.2m³, this excavator handles heavy-duty applications while maintaining fuel efficiency through its 660L tank capacity.
- Cummins QSL9 turbocharged engine with proven durability
- 310kN bucket digging force for challenging excavation tasks
- Comprehensive service network across China and international markets
- Strong resale value retention due to XCMG's market leadership
- Located in Nanning, Guangxi for convenient inspection and delivery
XCMG's reputation as China's leading construction machinery manufacturer translates to lower long-term ownership costs and reliable parts sourcing, making this XE400DK a strategic investment for contractors seeking depen
| Specifications | Value |
|---|---|
| No. | 991558 |
| Tonnage (tons) | 40 |
| Working weight (kg) | 39400 |
| Bucket capacity (m³) | 2.0-2.2 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins QSL9 |
| Rated power (kw/rpm) | 222/2100 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 8.9 |
| Working form | Efi, 4-stroke, turbocharged, air-to-air cold |
| Ground specific pressure (Kpa) | 68 |
| Rotation speed (rpm) | 9.6 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 310 |
| Rod digging force (kN) | 227 |
| Maximum tractive force (kN) | 330 |
| Travel speed (km/h) | 5.6/3.3 |
| Fuel Tank (L) | 660 |
| Hydraulic Tank (L) | 350 |
| Engine Oil changes (L) | 30 |
| Total transport length (mm) | 11300 |
| Total transport width (mm) | 3340 |
| Total transport height (mm) | 3760 |
| Counterweight ground clearance (mm) | 1272 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4445 |
| Back end turning radius (mm) | 3700 |
| Total track length (mm) | 5290 |
| Track gauge (mm) | 2740 |
| Total track width (mm) | 600 |
| Maximum height at minimum turning radius (mm) | 1146 |
| Maximum digging radius (mm) | 10385 |
| Maximum digging depth (mm) | 6660 |
| Maximum excavation height (mm) | 9946 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 4725 |
