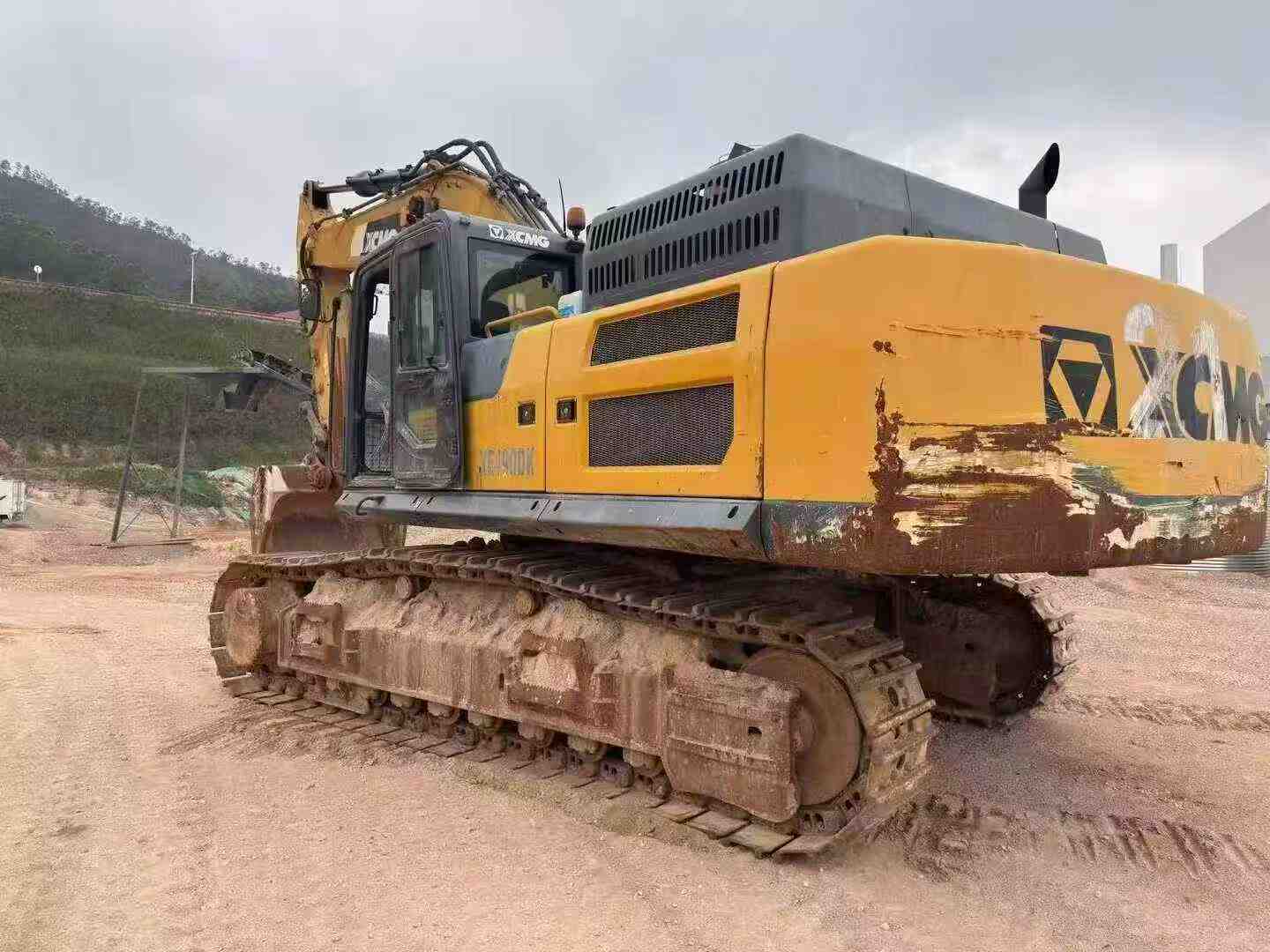

2019 XCMG XE490D

1/5
Buy XCMG XE490D Used Excavator / 1
Buy XCMG XE490D Used Excavator / 2
Buy XCMG XE490D Used Excavator / 3
Buy XCMG XE490D Used Excavator / 4
Buy XCMG XE490D Used Excavator / 5

Product Description

Built for relentless performance, this 2019 XCMG XE490D excavator delivers proven reliability across demanding job sites. Operating at 49 tons with a robust 48,100 kg working weight, this Chinese-manufactured powerhouse combines substantial digging force with exceptional fuel efficiency. Powered by a QSM111 engine producing 280 kW at 2050 rpm, it tackles heavy excavation with a maximum digging depth of 6,985 mm and an impressive 11,085 mm reach radius.

Key specifications demonstrate its workhorse credentials:

  • Bucket capacity: 2.5 m³ (adaptable 2.3-3.1 m³ range)
  • Bucket digging force: 305 kN with 275 kN rod force
  • Dual plunger pumps: 2 × 360 l/min maximum flow
  • Water-cooled 6-cylinder engine: 11L displacement, 1,898 N.m torque
  • 35% climbing ability with 338 kN maximum tractive force
  • 725L fuel capacity for extended operation

Currently located in Luzhou, Sichuan, this proven machine represents tested durability from a manufacturer committed to heavy-duty construction equipment. Comprehensive hydraulic systems and robust undercarriage design ensure continued productivity for years ahead.

SpecificationsValue
No.1050249
Tonnage (tons)49
Working weight (kg)48100
Bucket capacity (m³)2.5 (2.3-3.1)
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM111
Rated power (kw/rpm)280 / 2050
Cooling modewater-cooling
Maximum torque (N.m)1898 / 1300
Number of cylinders (PCS)6
Displacement (L)11
Working formDirect injection, 4-stroke, turbocharged, air-to-air cooling
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)35
Bucket digging force (kN)305
Rod digging force (kN)275
Maximum tractive force (kN)338
Travel speed (km/h)5.4 / 3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11630
Total transport width (mm)3582
Total transport height (mm)3705
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Back end turning radius (mm)3800
Onboard width (mm)3095
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Track ground length (mm)4292
Maximum digging radius (mm)11085
Maximum digging depth (mm)6985
Maximum excavation height (mm)10050
Maximum unloading height (mm)6940
Maximum vertical digging depth (mm)4400
Maximum excavation radius of stop surface (mm)10860
see more

Overview

No.1050249

Brand Name:

XCMG

Model Number:

XE490D

Year:

2019

Location:

Sichuan China

Pub Date
