HOME>>XCMG>>XCMG XE490D

2020 XCMG XE490D

1/6

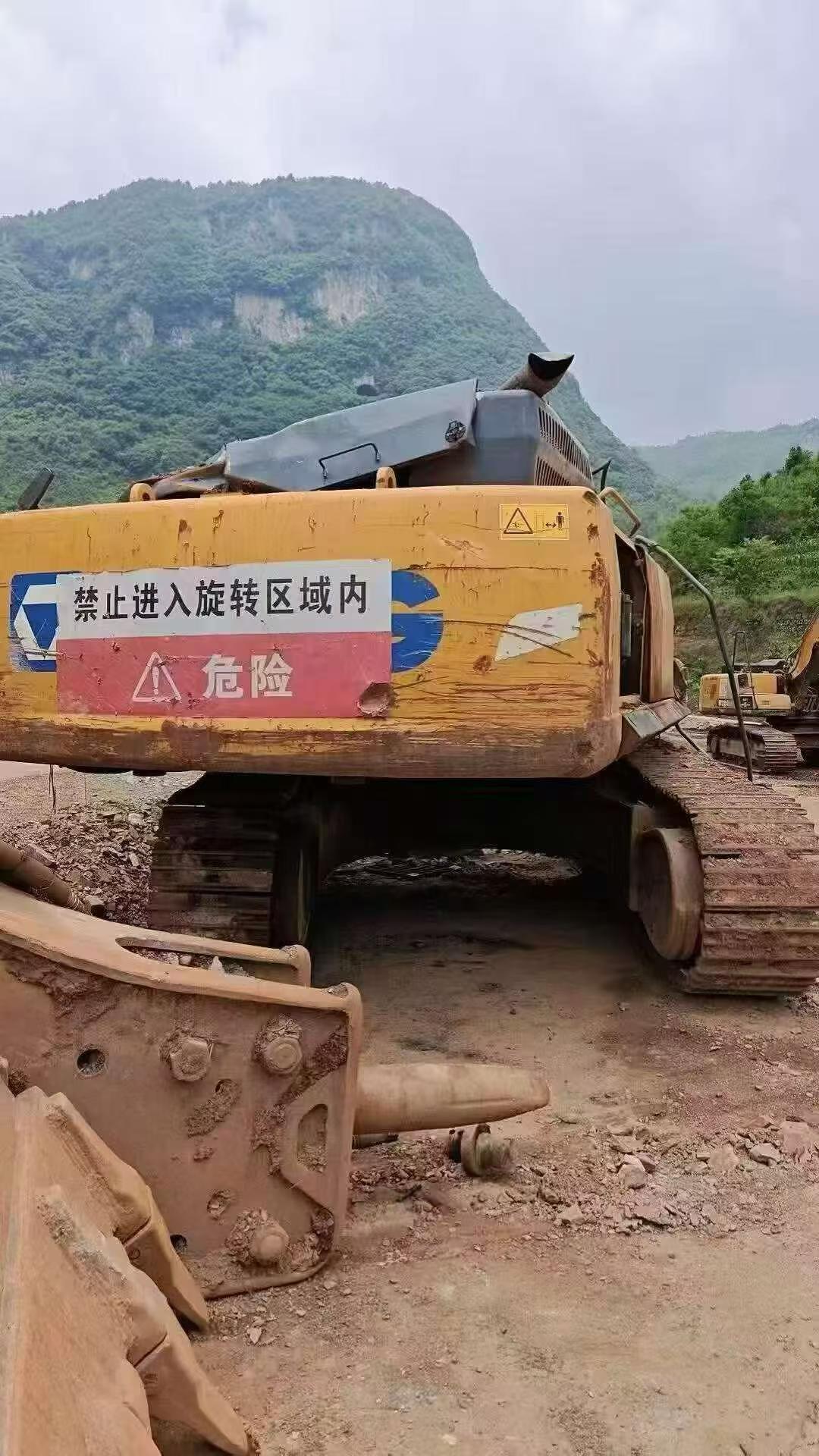

Buy XCMG XE490D Used Excavator / 1

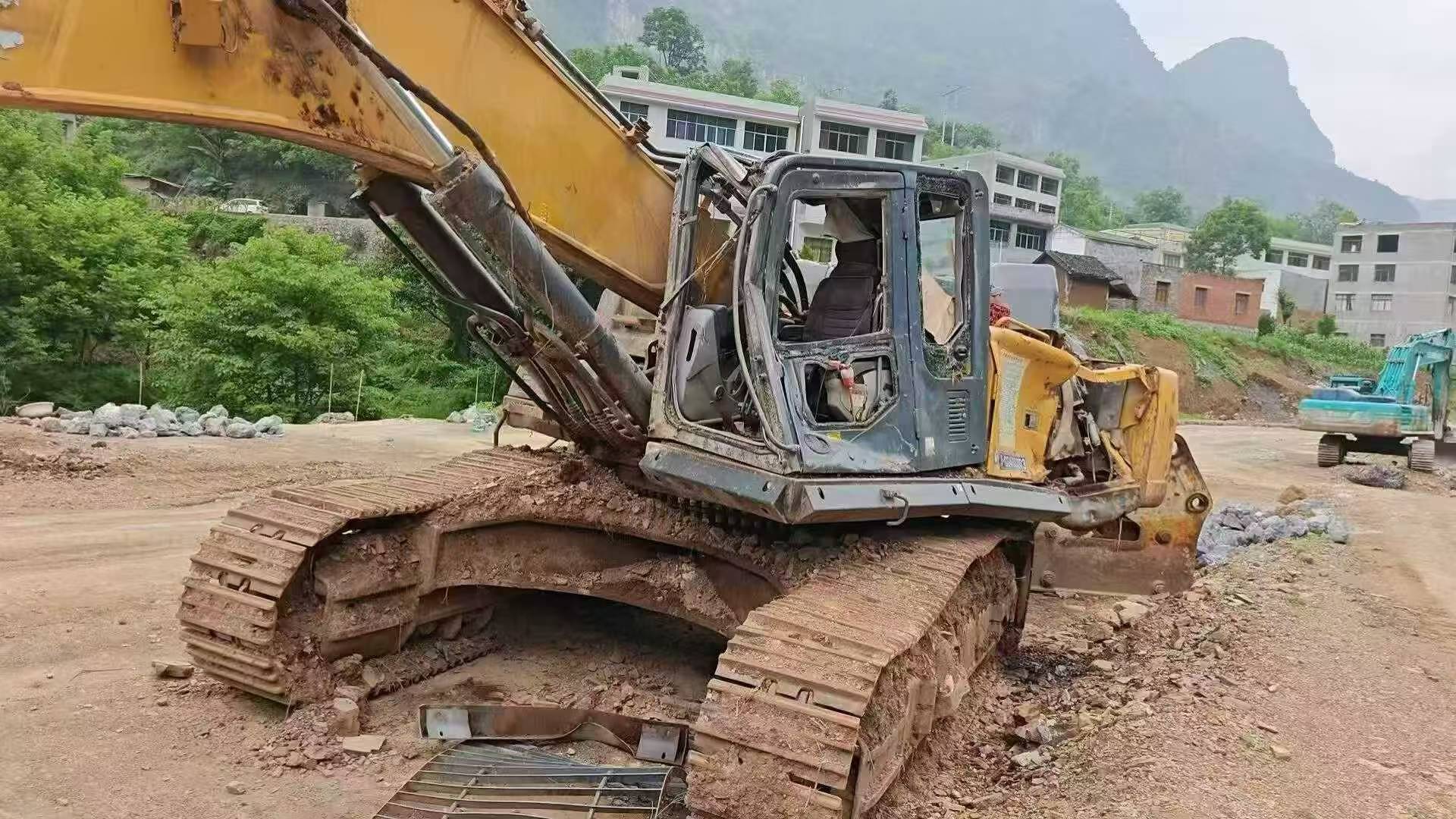

Buy XCMG XE490D Used Excavator / 2

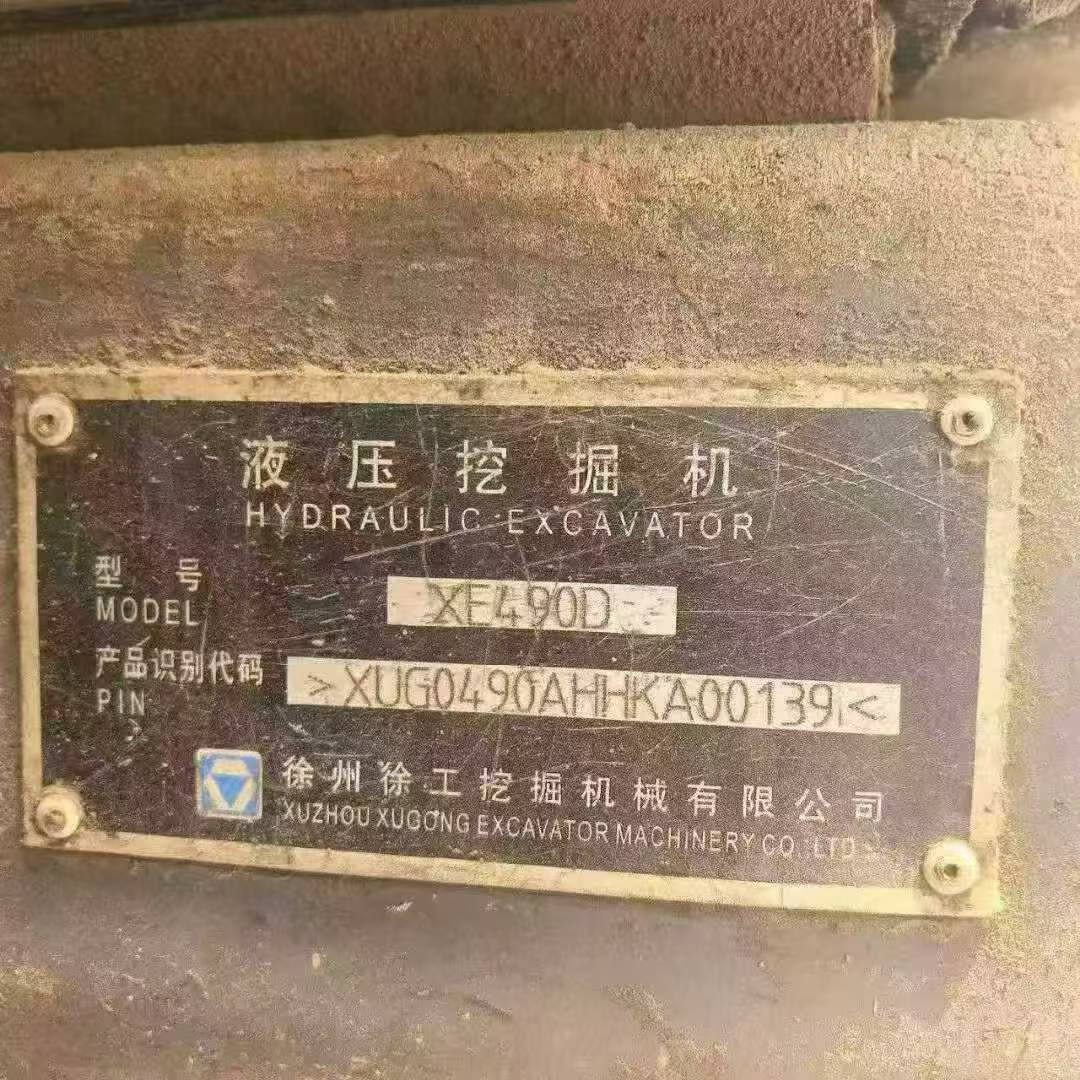

Buy XCMG XE490D Used Excavator / 3

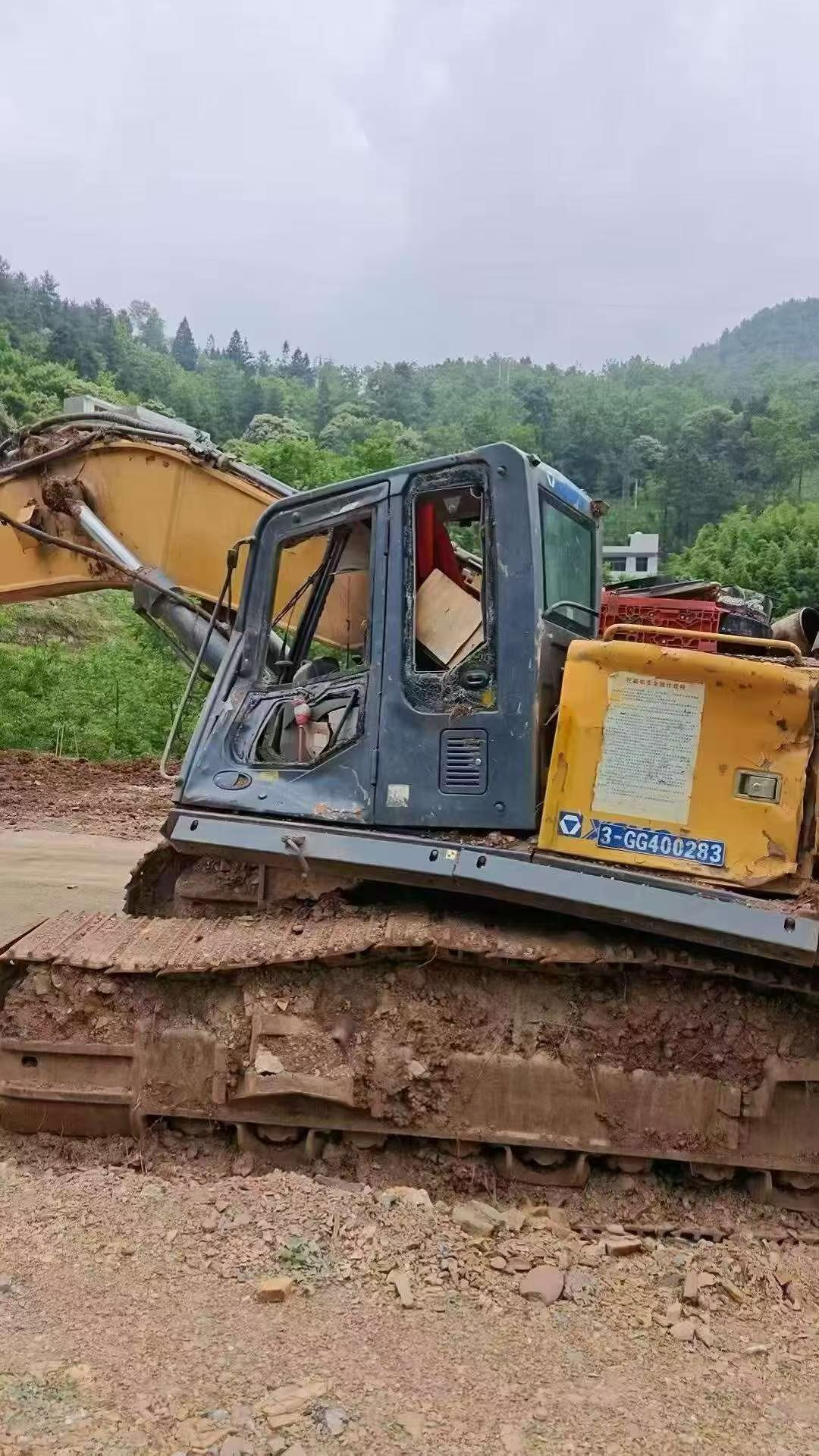

Buy XCMG XE490D Used Excavator / 4

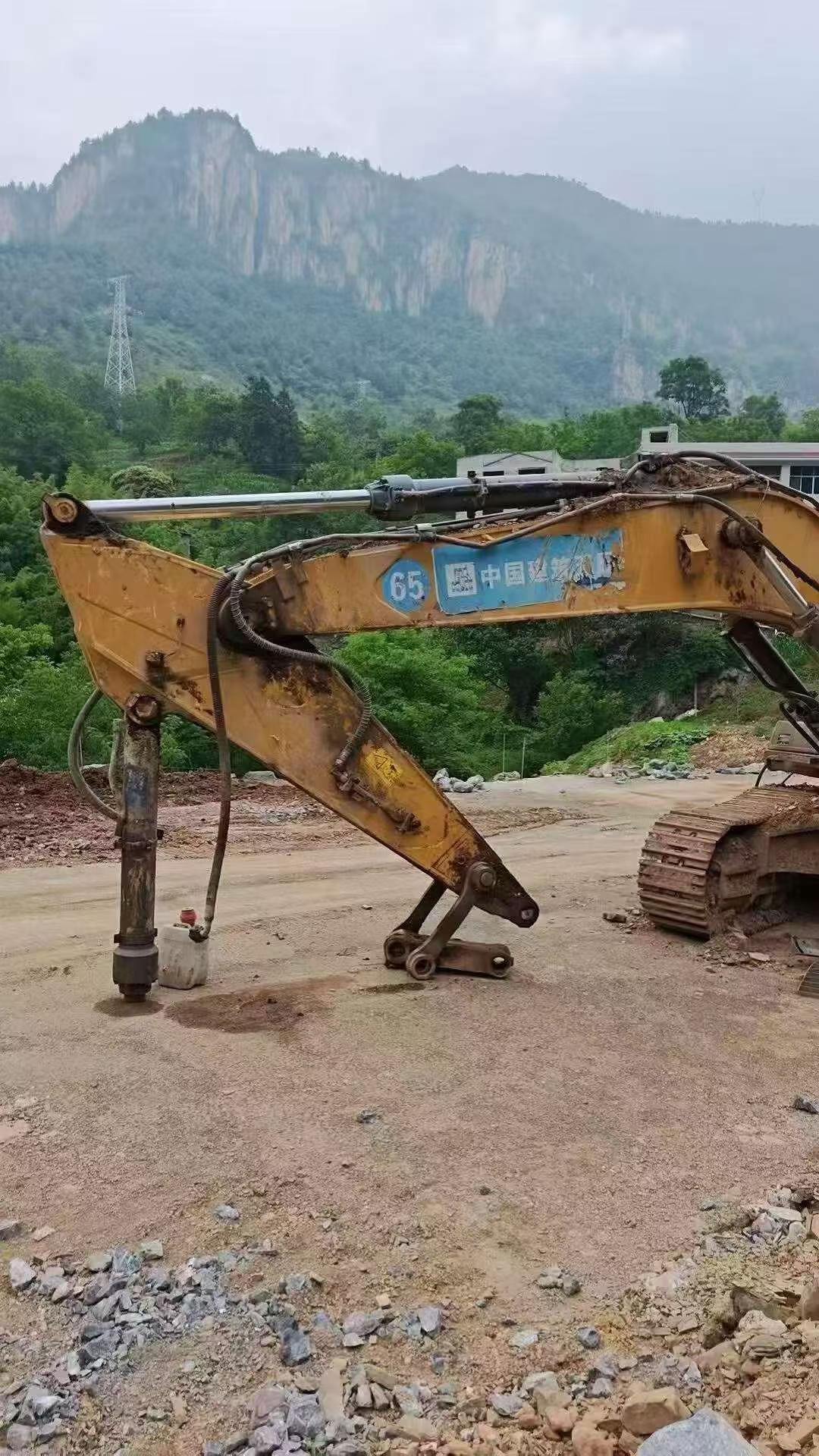

Buy XCMG XE490D Used Excavator / 5

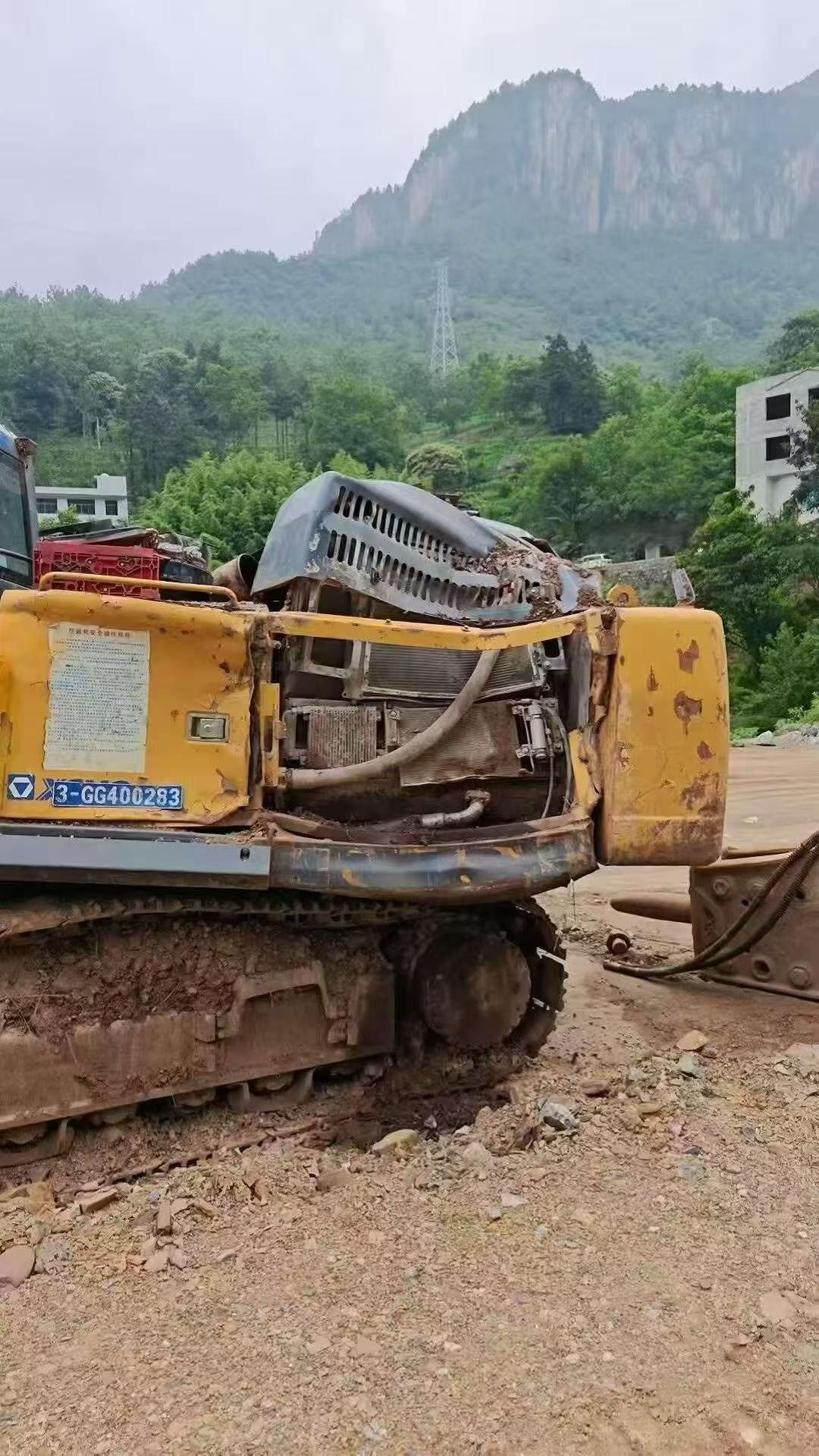

Buy XCMG XE490D Used Excavator / 6

Product Description

2020 XCMG XE490D hydraulic excavator available from Fujian, China. This 49-ton class machine represents first-owner equipment from a global fleet. The unit has sustained accident damage and is offered as-is for repair or parts recovery. XCMG's XE490D series features a Cummins engine, robust undercarriage, and hydraulic systems designed for demanding excavation applications.

Key specifications:

  • Operating weight: approximately 49,000 kg
  • Engine: Cummins QSM11 or equivalent tier
  • Bucket capacity: 2.0-3.0 m³ range
  • Hydraulic system: load-sensing variable displacement pumps

This machine is priced competitively for its condition. Suitable for operators seeking cost-effective repair projects or component salvage. Inspection welcomed. Export documentation can be arranged. Contact for detailed damage assessment and logistics coordination.

SpecificationsValue
No.1083076
Tonnage (tons)49
Working weight (kg)48100
Bucket capacity (m³)2.5 (2.3-3.1)
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM111
Rated power (kw/rpm)280 / 2050
Cooling modewater-cooling
Maximum torque (N.m)1898 / 1300
Number of cylinders (PCS)6
Displacement (L)11
Working formDirect injection, 4-stroke, turbocharged, air-to-air cooling
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)35
Bucket digging force (kN)305
Rod digging force (kN)275
Maximum tractive force (kN)338
Travel speed (km/h)5.4 / 3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11630
Total transport width (mm)3582
Total transport height (mm)3705
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Back end turning radius (mm)3800
Onboard width (mm)3095
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Track ground length (mm)4292
Maximum digging radius (mm)11085
Maximum digging depth (mm)6985
Maximum excavation height (mm)10050
Maximum unloading height (mm)6940
Maximum vertical digging depth (mm)4400
Maximum excavation radius of stop surface (mm)10860
see more

Overview

No.1083076

Brand Name:

XCMG

Model Number:

XE490D

Year:

2020

Location:

Fujian China

Pub Date
