2020 XCMG XE490D

1/9
Buy XCMG XE490D Used Excavator / 1
Buy XCMG XE490D Used Excavator / 2
Buy XCMG XE490D Used Excavator / 3
Buy XCMG XE490D Used Excavator / 4
Buy XCMG XE490D Used Excavator / 5
Buy XCMG XE490D Used Excavator / 6
Buy XCMG XE490D Used Excavator / 7
Buy XCMG XE490D Used Excavator / 8
Buy XCMG XE490D Used Excavator / 9

Product Description

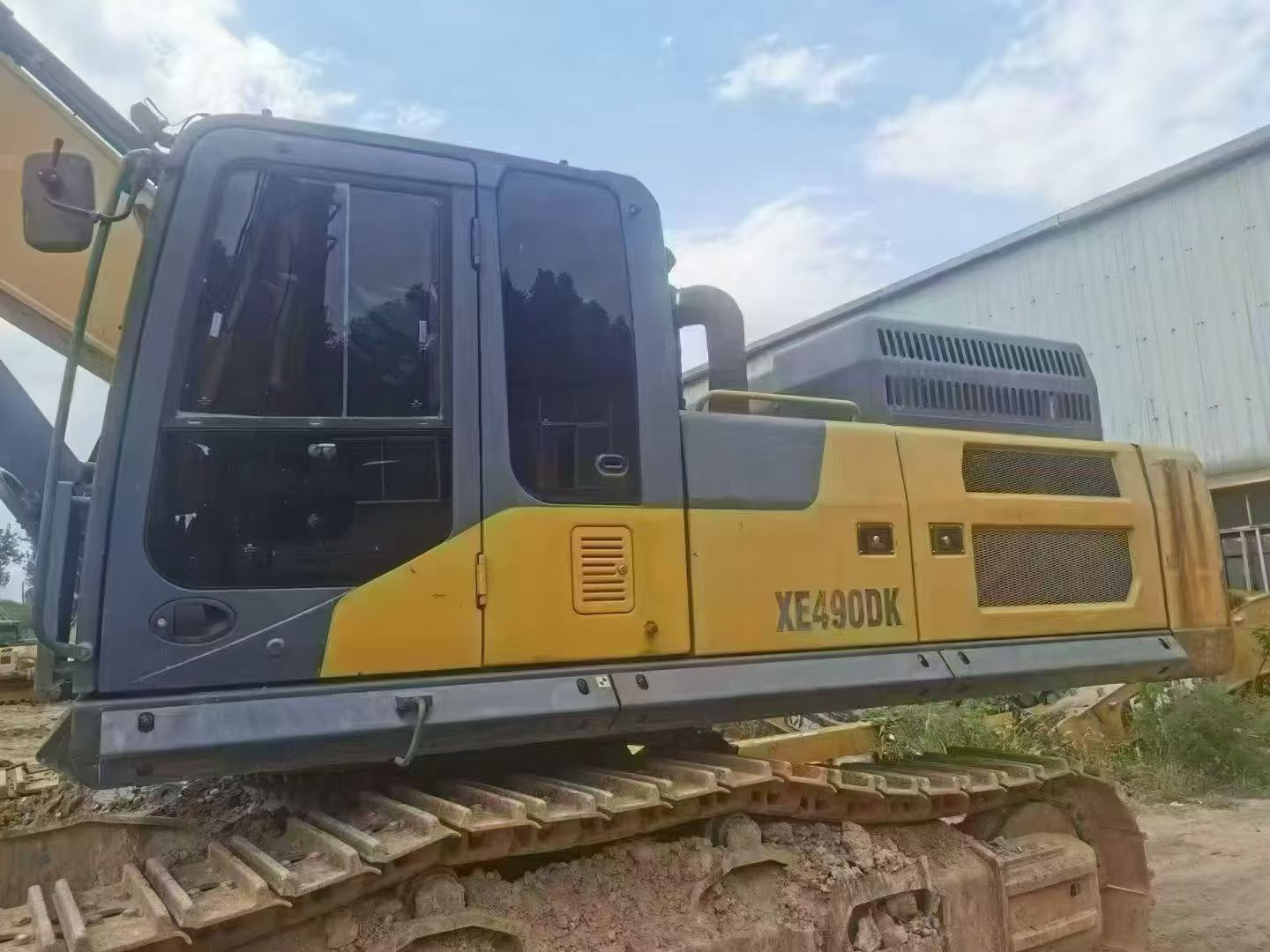

Discover the 2020 XCMG XE490D, a robust and reliable excavator, available for immediate acquisition from Hunan, China. This machine is equipped with a super arm, enhancing its reach and lifting capacity, making it ideal for a variety of heavy-duty construction and excavation tasks. Additionally, it comes fitted with a Decco 190 hammer, significantly boosting its versatility and efficiency in demolition and rock-breaking operations. Priced at 470,000 CNY, this used XE490D offers an excellent balance of performance and cost-effectiveness, ensuring a solid return on investment for your project needs.

  • Year: 2020
  • Brand: XCMG
  • Model: XE490D
  • Location: Hunan, China

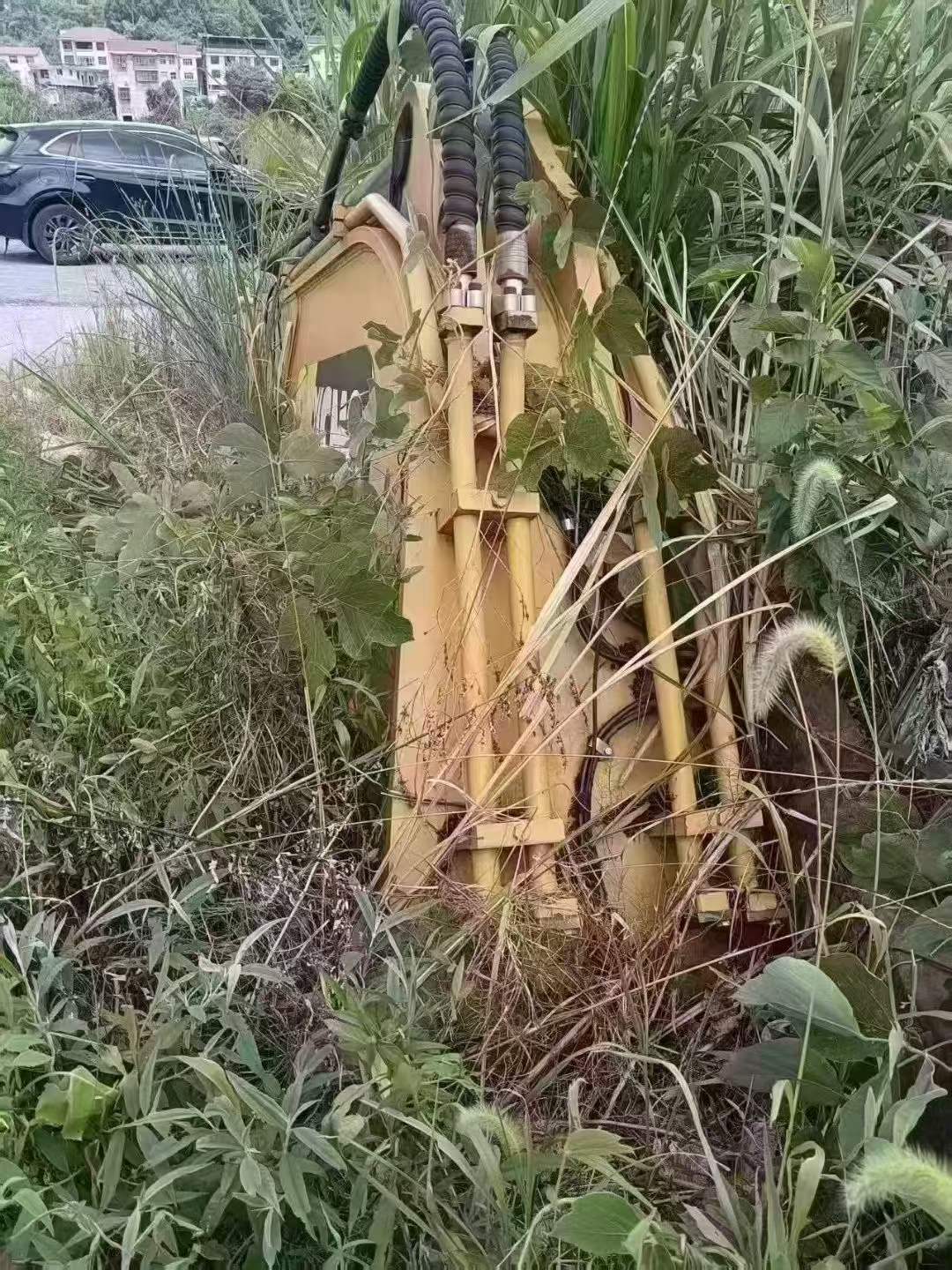

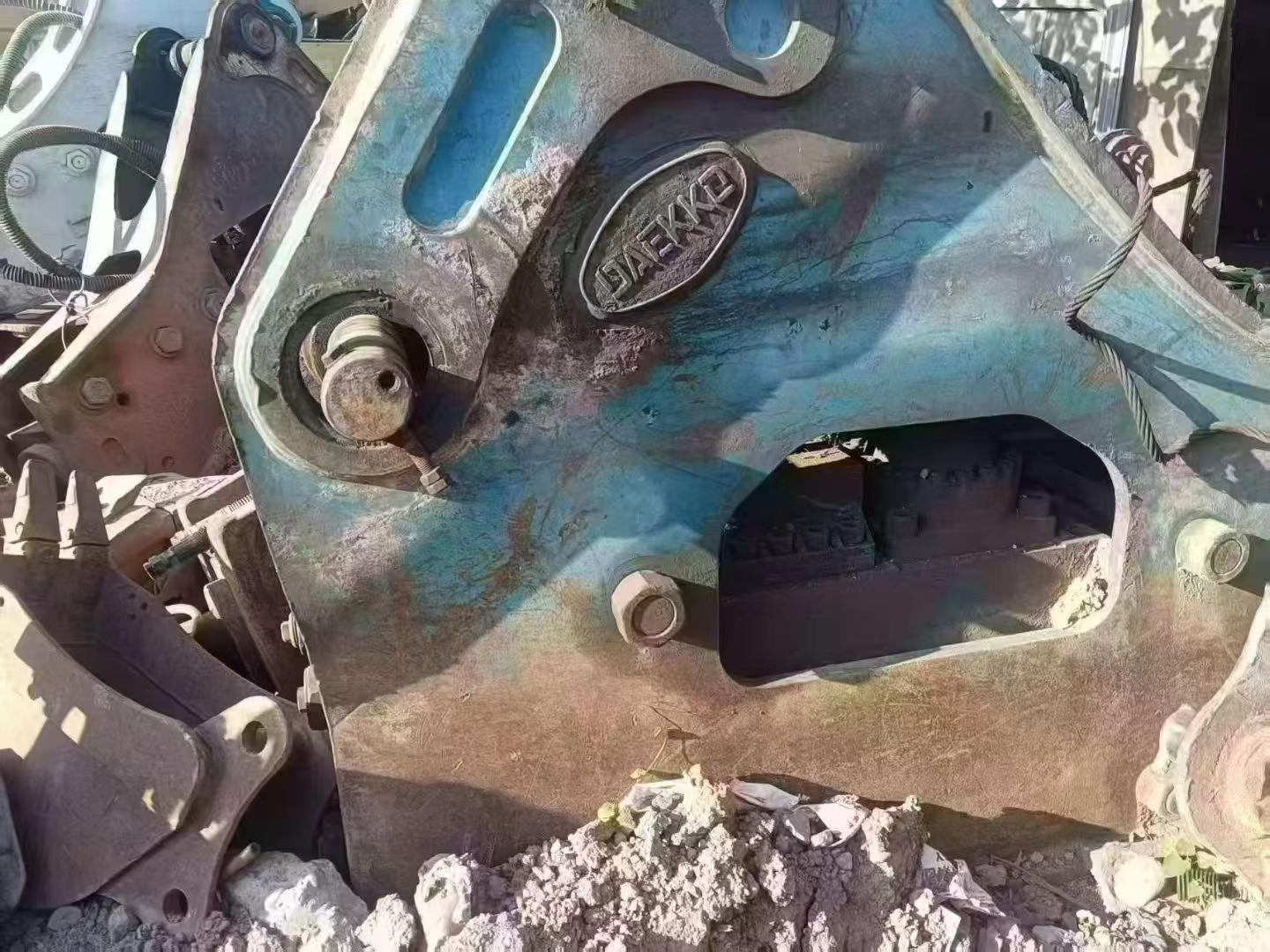

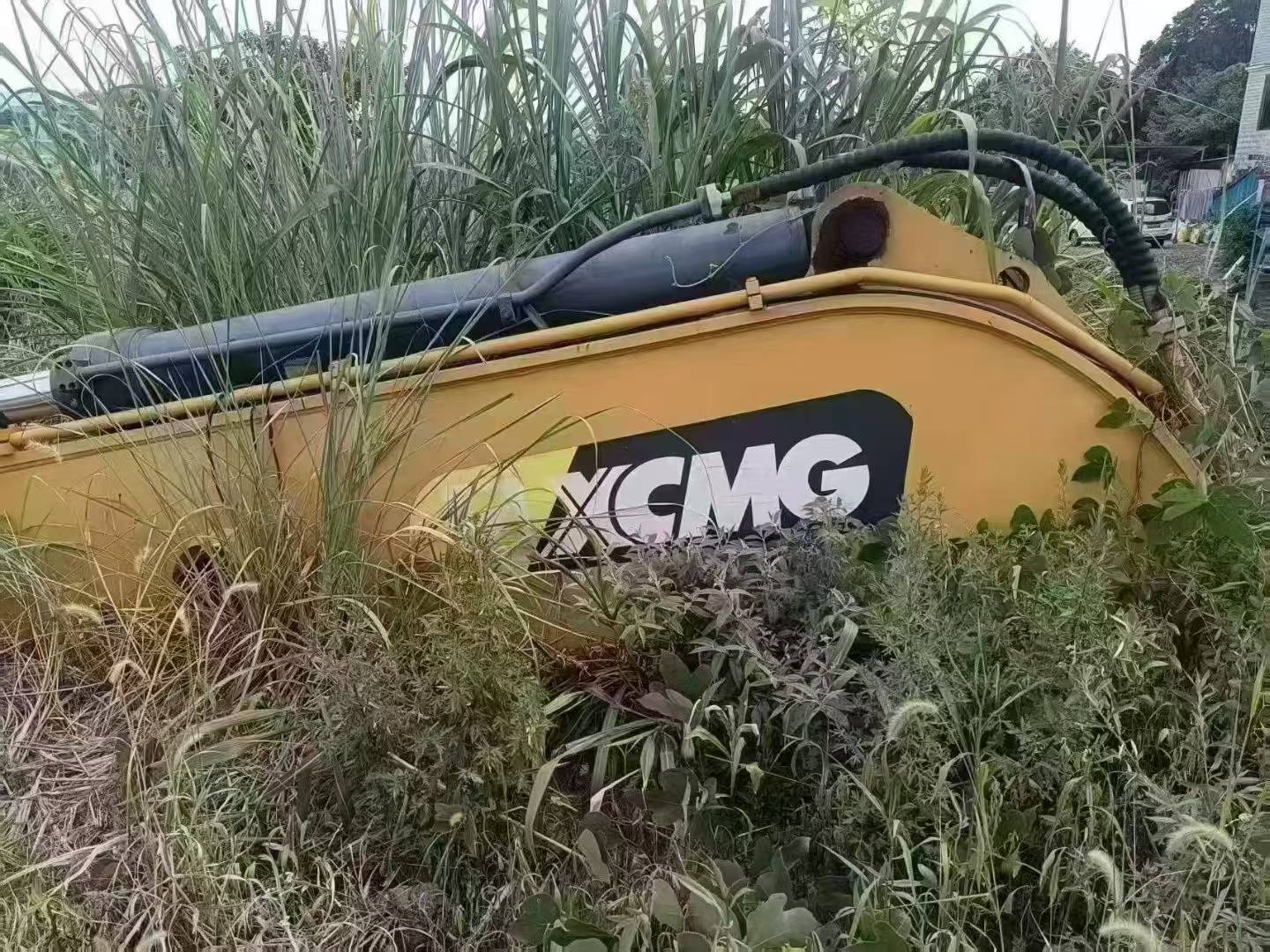

  • Attachments: Super Arm, Decco 190 Hammer
  • Price: 470,000 CNY
SpecificationsValue
No.1120067
Tonnage (tons)49
Working weight (kg)48100
Bucket capacity (m³)2.5 (2.3-3.1)
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM111
Rated power (kw/rpm)280 / 2050
Cooling modewater-cooling
Maximum torque (N.m)1898 / 1300
Number of cylinders (PCS)6
Displacement (L)11
Working formDirect injection, 4-stroke, turbocharged, air-to-air cooling
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)35
Bucket digging force (kN)305
Rod digging force (kN)275
Maximum tractive force (kN)338
Travel speed (km/h)5.4 / 3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11630
Total transport width (mm)3582
Total transport height (mm)3705
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Back end turning radius (mm)3800
Onboard width (mm)3095
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Track ground length (mm)4292
Maximum digging radius (mm)11085
Maximum digging depth (mm)6985
Maximum excavation height (mm)10050
Maximum unloading height (mm)6940
Maximum vertical digging depth (mm)4400
Maximum excavation radius of stop surface (mm)10860
