Product Description

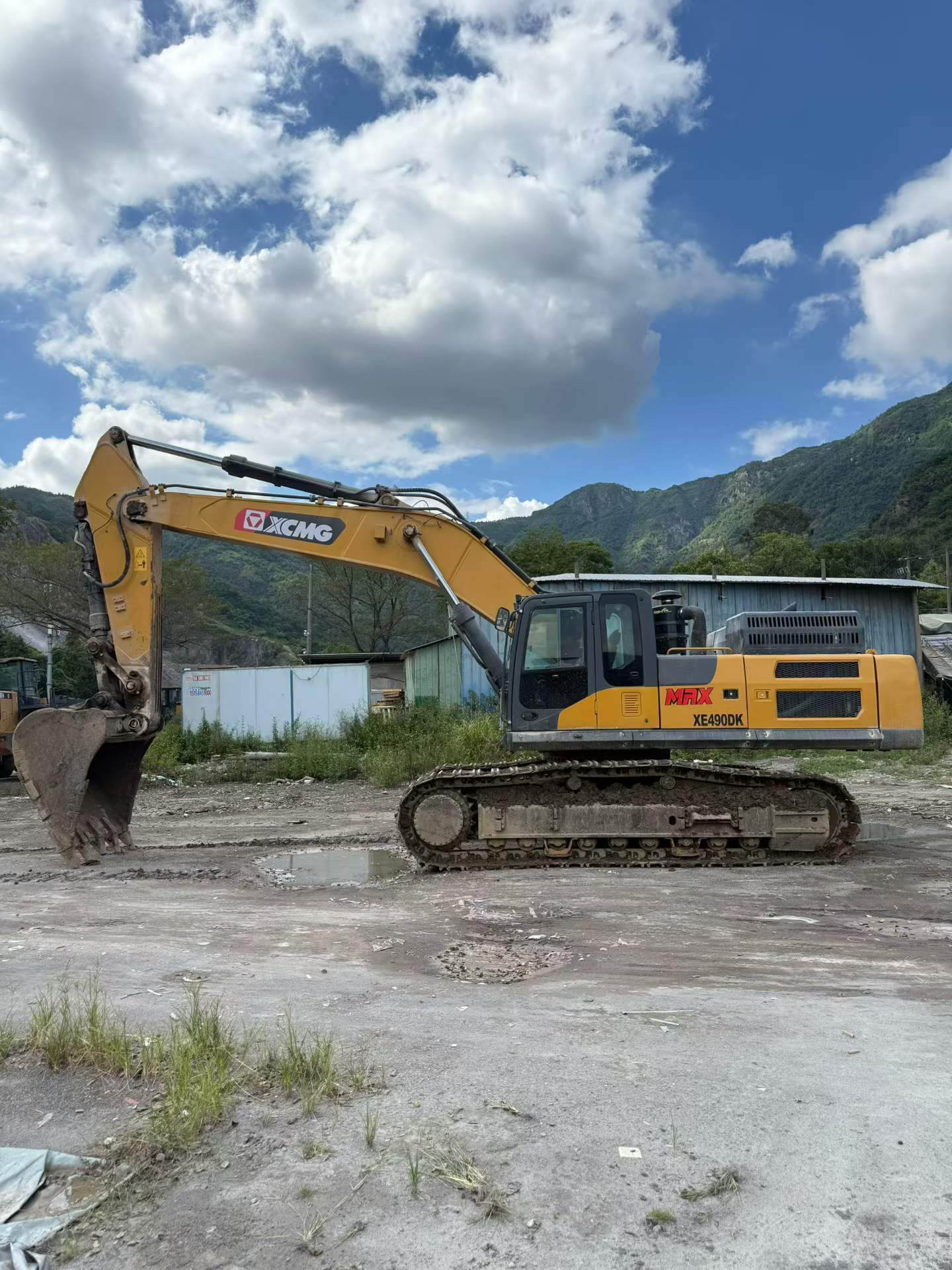

Proven performance meets long-term value in this 2021 XCMG XE490D excavator, a 49-ton powerhouse engineered for demanding earthmoving operations. Equipped with a Cummins QSM11 engine delivering 280 kW at 2050 rpm and dual plunger pumps providing 720 L/min combined flow, this machine handles high-production excavation with consistent reliability. Maximum digging depth reaches 6,985 mm with a bucket capacity range of 2.3-3.1 m³, while 305 kN bucket digging force tackles dense materials efficiently.
XCMG's position as China's largest construction machinery manufacturer ensures critical advantages for used equipment buyers:
- Global parts network with readily available components reduces downtime
- Strong resale values backed by proven durability in international markets
- Comprehensive service documentation and technical support infrastructure
- Water-cooled engine with 1,898 N.m maximum torque ensures sustained performance
Currently located in Wenzhou, Zhejiang, this XE490D represents a strategic investment for contractors requiring dependable production capacity without the premium cost of new equipment. Operating weight of 48,100 kg provides stability for precision work across
| Specifications | Value |
|---|---|
| No. | 1029845 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100 |
| Bucket capacity (m³) | 2.5 (2.3-3.1) |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSM111 |
| Rated power (kw/rpm) | 280 / 2050 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1898 / 1300 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Working form | Direct injection, 4-stroke, turbocharged, air-to-air cooling |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 305 |
| Rod digging force (kN) | 275 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4 / 3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |

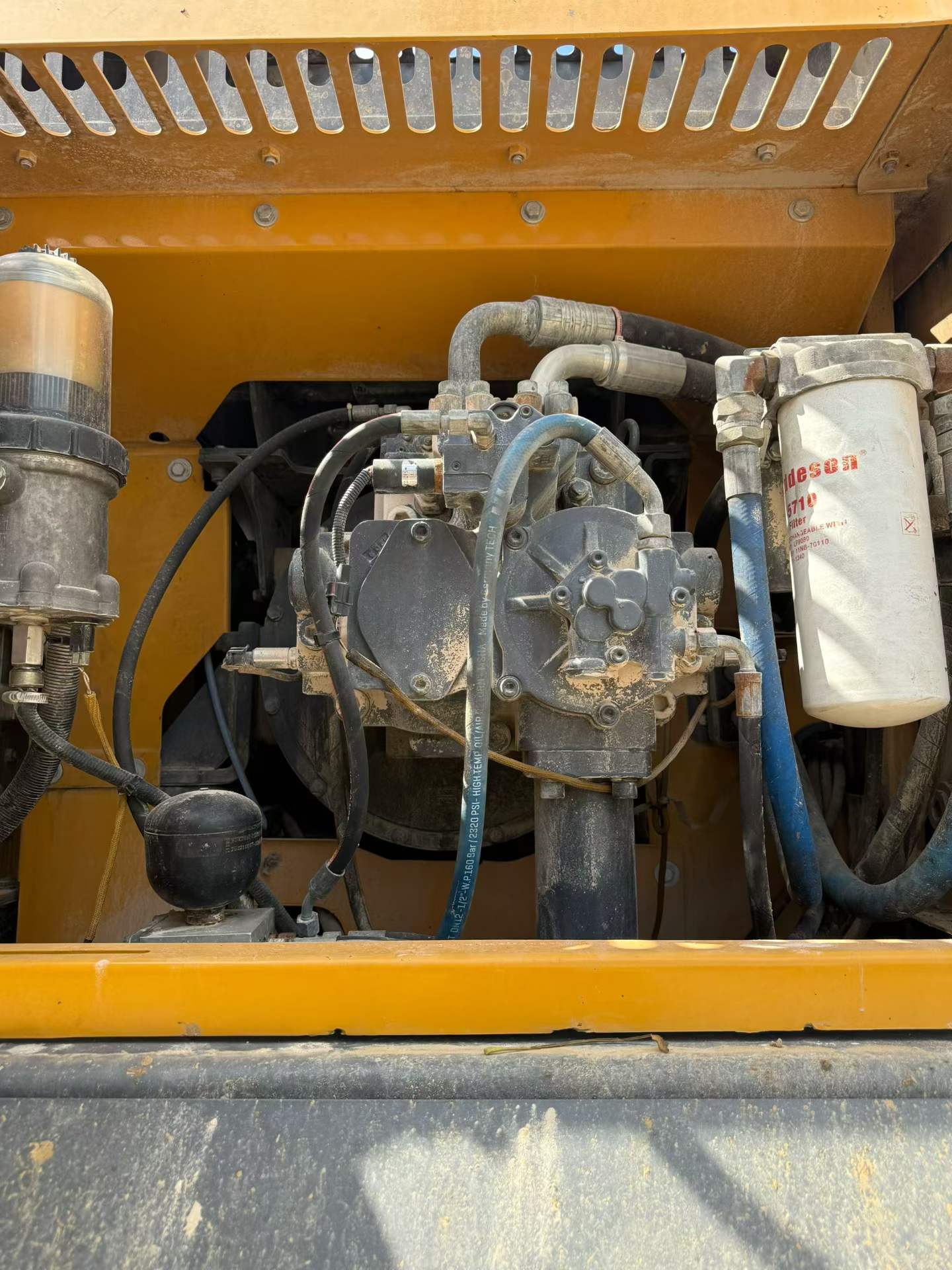

| Main pump type | 2 plunger pumps |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11630 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3705 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Back end turning radius (mm) | 3800 |
| Onboard width (mm) | 3095 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4292 |
| Maximum digging radius (mm) | 11085 |
| Maximum digging depth (mm) | 6985 |
| Maximum excavation height (mm) | 10050 |
| Maximum unloading height (mm) | 6940 |
| Maximum vertical digging depth (mm) | 4400 |
| Maximum excavation radius of stop surface (mm) | 10860 |
