HOME>>XCMG>>XCMG XE490D

2021 XCMG XE490D

1/9
Buy XCMG XE490D Used Excavator / 1
Buy XCMG XE490D Used Excavator / 2
Buy XCMG XE490D Used Excavator / 3
Buy XCMG XE490D Used Excavator / 4

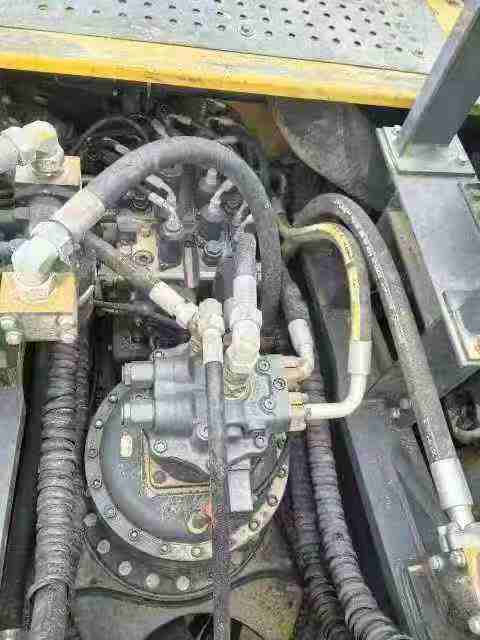

Buy XCMG XE490D Used Excavator / 5

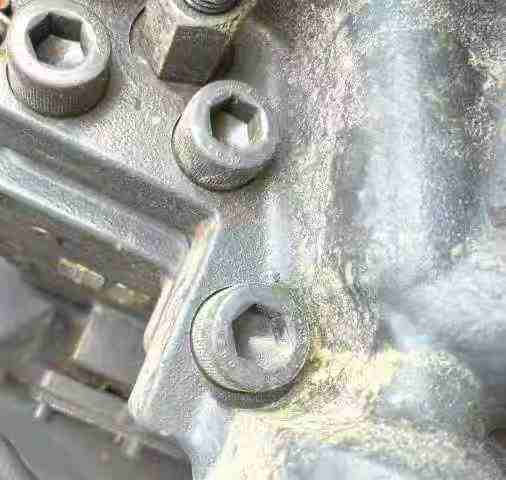

Buy XCMG XE490D Used Excavator / 6

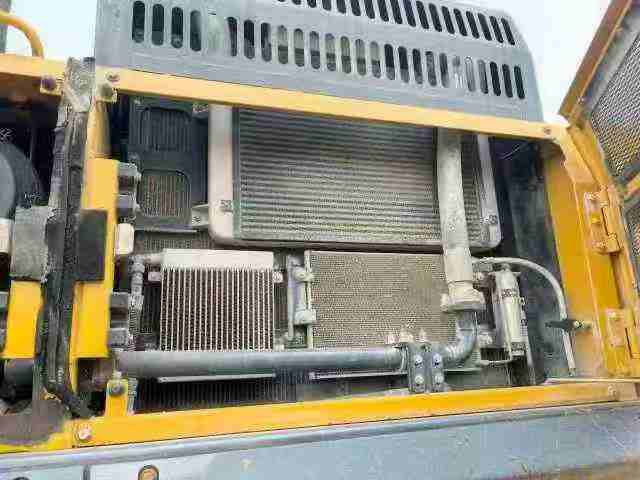

Buy XCMG XE490D Used Excavator / 7
Buy XCMG XE490D Used Excavator / 8
Buy XCMG XE490D Used Excavator / 9

Product Description

This 2021 XCMG XE490D hydraulic excavator represents exceptional value for heavy-duty earthmoving operations. Sourced from Hunan, China, this well-maintained machine is job-site ready with verified operational status. The XE490D is engineered for demanding excavation, trenching, and material handling applications in construction, mining, and infrastructure projects.

Key features include:

  • Low operational hours with documented service history
  • Powerful hydraulic system for efficient digging performance
  • Robust undercarriage designed for extended service life
  • Operator-focused cab with ergonomic controls
  • Clean mechanical condition throughout
  • Immediate deployment capability

XCMG's reputation for durability and reliability makes this excavator an intelligent investment for contractors seeking proven performance. Currently located in Hunan, China, with competitive pricing at CNY 356,000. Suitable for international shipping and export arrangements available upon request.

SpecificationsValue
No.1087489
Tonnage (tons)49
Working weight (kg)48100
Bucket capacity (m³)2.5 (2.3-3.1)
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM111
Rated power (kw/rpm)280 / 2050
Cooling modewater-cooling
Maximum torque (N.m)1898 / 1300
Number of cylinders (PCS)6
Displacement (L)11
Working formDirect injection, 4-stroke, turbocharged, air-to-air cooling
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)35
Bucket digging force (kN)305
Rod digging force (kN)275
Maximum tractive force (kN)338
Travel speed (km/h)5.4 / 3.2
Maximum flow of main pump (l/min)2 x 360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump type2 plunger pumps
Pilot Oil Circuit (MPa)3.9
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11630
Total transport width (mm)3582
Total transport height (mm)3705
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Back end turning radius (mm)3800
Onboard width (mm)3095
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Track ground length (mm)4292
Maximum digging radius (mm)11085
Maximum digging depth (mm)6985
Maximum excavation height (mm)10050
Maximum unloading height (mm)6940
Maximum vertical digging depth (mm)4400
Maximum excavation radius of stop surface (mm)10860
see more

Overview

No.1087489

Brand Name:

XCMG

Model Number:

XE490D

Year:

2021

Location:

Hunan China

Pub Date

Are you interested in this machine?

Please contact us
