Product Description

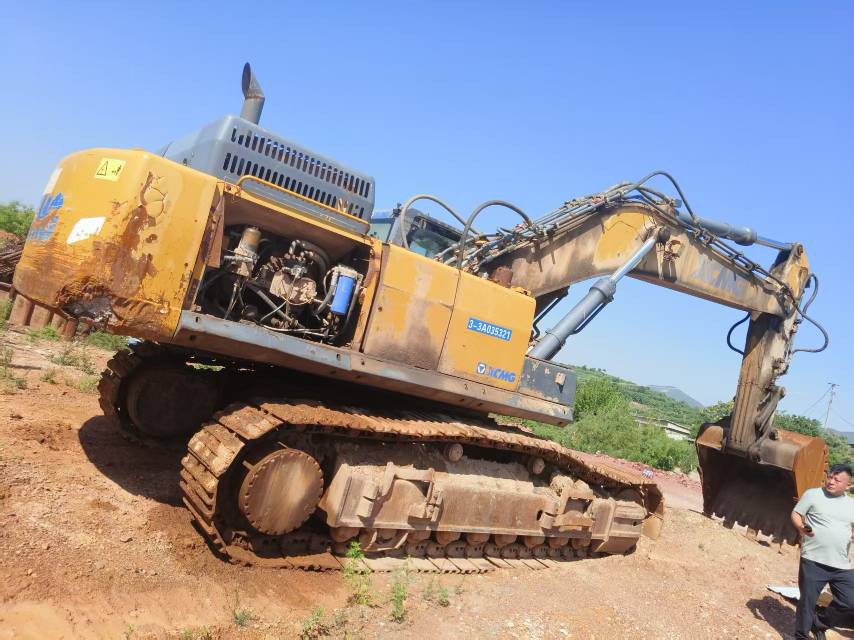

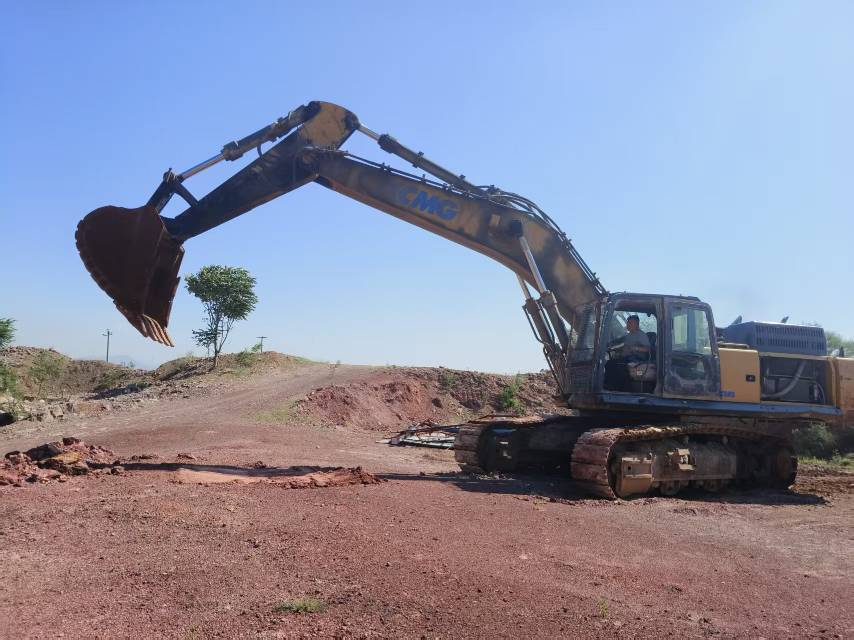

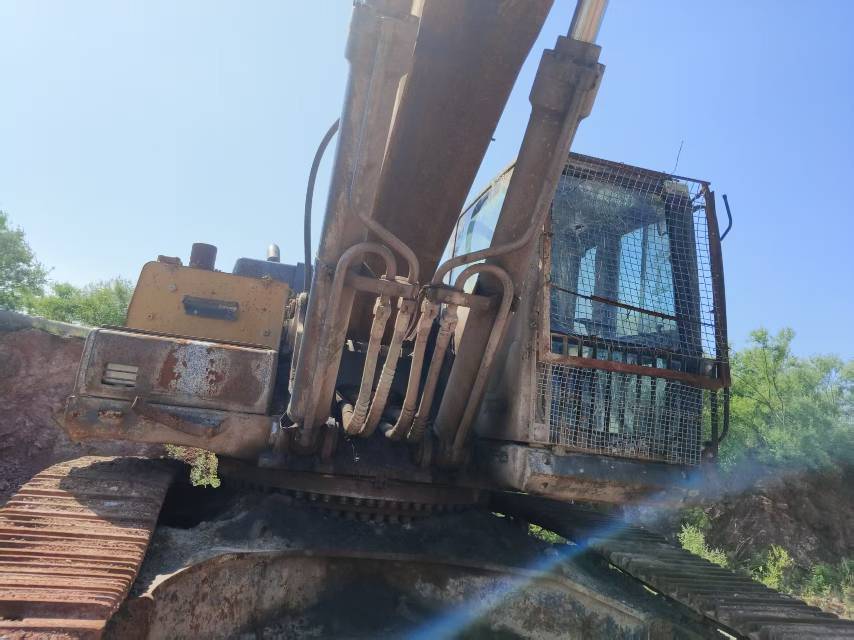

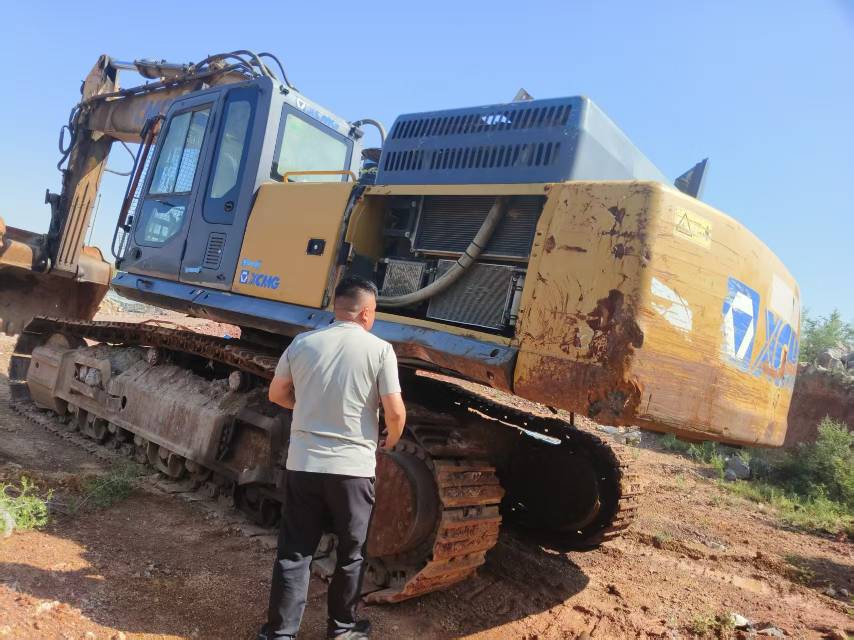

This 2017 XCMG XE490DK excavator represents a reliable choice for heavy earthmoving operations. As a single-owner machine with verified performance, this unit has been maintained to operational standards throughout its service life. The XE490DK series is known for its robust hydraulic system and proven durability in demanding jobsite conditions.
Currently located in Hebei, China, this excavator is available for immediate inspection and deployment. The machine's documented history and well-maintained condition make it suitable for contractors seeking dependable heavy equipment without the premium of new machinery.

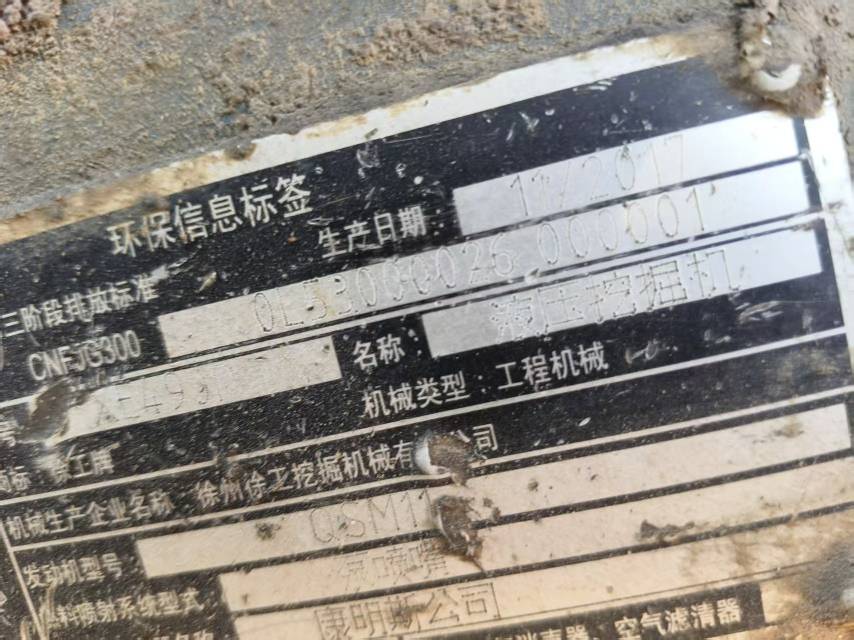

- Year of Manufacture: 2017
- Manufacturer: XCMG

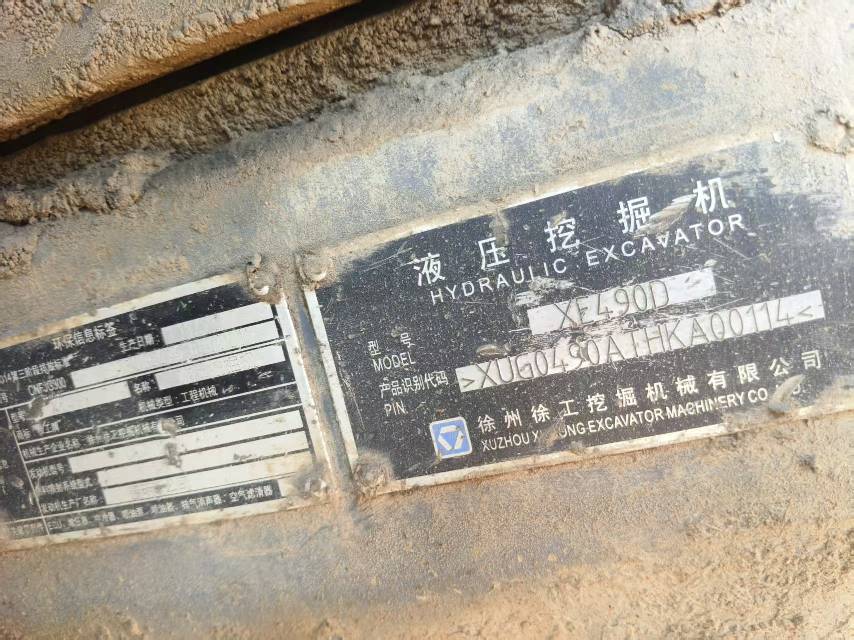

- Model: XE490DK
- Ownership: Single owner from new
- Operational Status: Fully functional
- Location: Hebei Province, China
| Specifications | Value |
|---|---|
| No. | 1082991 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100-49500 |
| Bucket capacity (m³) | 2.3-3.1 |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

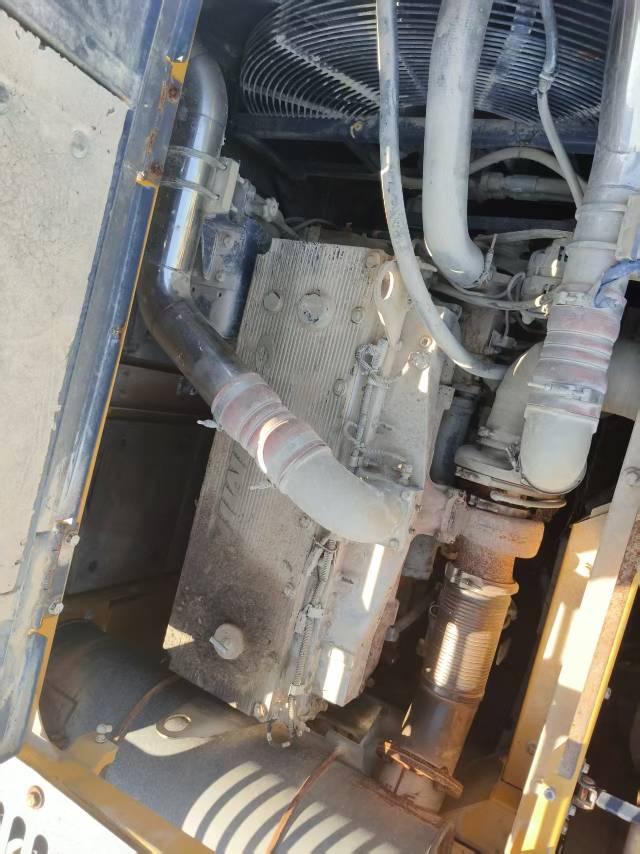

| Engine type | QSM11 |
| Rated power (kw/rpm) | 280/2000 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 301 |
| Rod digging force (kN) | 248 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |

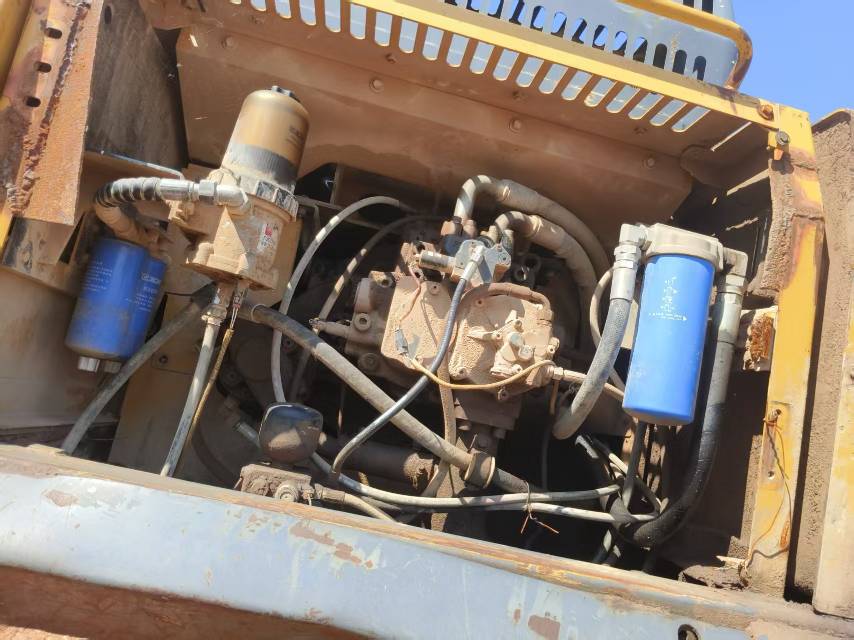

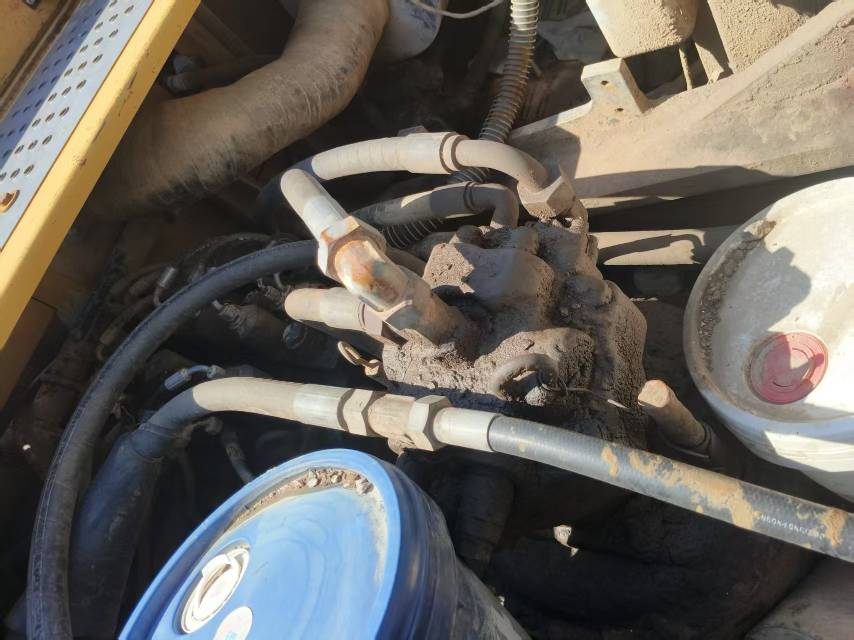

| Main pump type | Two plunger pumps |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11808 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3890 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Minimum turning radius of front working device (mm) | 4580 |
| Back end turning radius (mm) | 3800 |

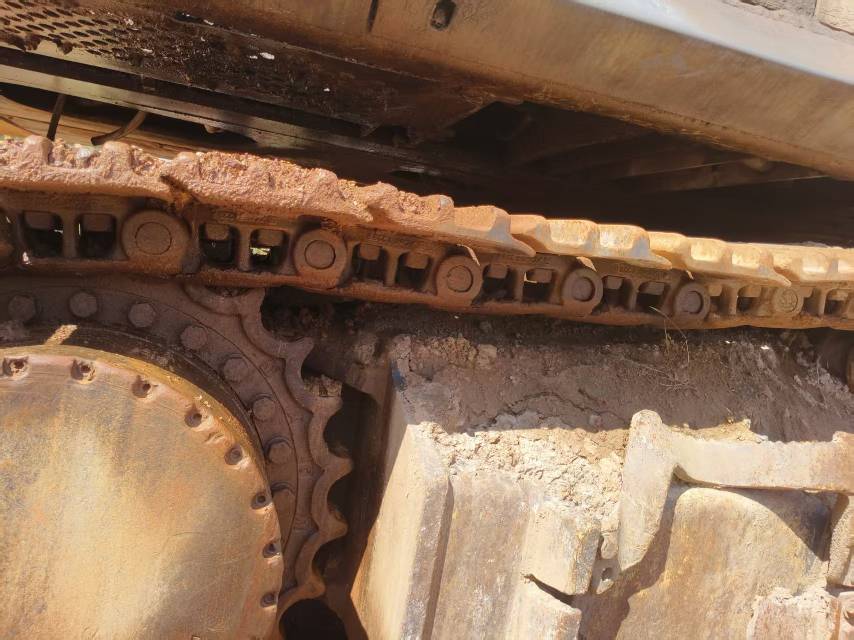

| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10855 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9855 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 4500 |
| Maximum effective digging depth (mm) | 6900 |
