Product Description

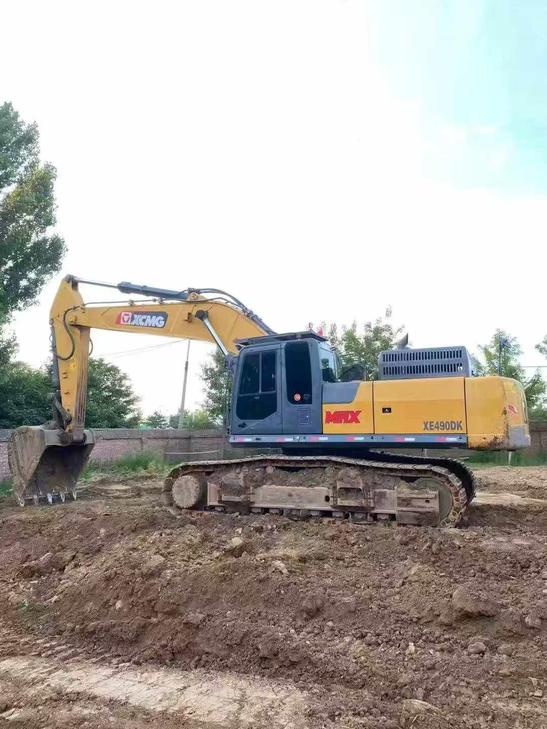

Built to endure the most demanding jobsites, this 2020 XCMG XE490DK large hydraulic excavator stands as a proven workhorse with six years of demonstrated reliability behind its design. Sourced directly from Beijing, China, this 49-ton machine delivers consistent, heavy-duty performance backed by a Cummins QSM11 engine producing 280 kW — engineering built to last through project after project.
Rated at a working weight of up to 49,500 kg, this excavator combines raw digging power with precision hydraulic control, making it a dependable asset for large-scale earthmoving, mining, and infrastructure operations worldwide.
- Engine: Cummins QSM11 | 280 kW / 2,000 RPM
- Operating Weight: 48,100 – 49,500 kg
- Bucket Capacity: 2.3 – 3.1 m³ (backhoe configuration)
- Bucket Digging Force: 301 kN | Rod Digging Force: 248 kN
- Maximum Digging Depth: 7,000 mm
- Maximum Digging Radius: 10,855 mm
- Maximum Unloading Height: 6,890 mm
- Maximum Tractive Force: 338 kN
- Climbing Ability: 70%
- Travel Speed: 5.4 / 3.2 km/h
- Main Pump: Two plunger pumps | 2 × 360 L/min
- Fuel Tank Capacity: 725 L
- Track Plate Width: 600 mm | Ground Pressure: 85 kPa
- Location: Beijing, China | Year: 2020
| Specifications | Value |
|---|---|
| No. | 1080484 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100-49500 |
| Bucket capacity (m³) | 2.3-3.1 |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | QSM11 |
| Rated power (kw/rpm) | 280/2000 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 301 |
| Rod digging force (kN) | 248 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |
| Main pump type | Two plunger pumps |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11808 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3890 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Minimum turning radius of front working device (mm) | 4580 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10855 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9855 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 4500 |
| Maximum effective digging depth (mm) | 6900 |
