2020 XCMG XE490DK

1/5

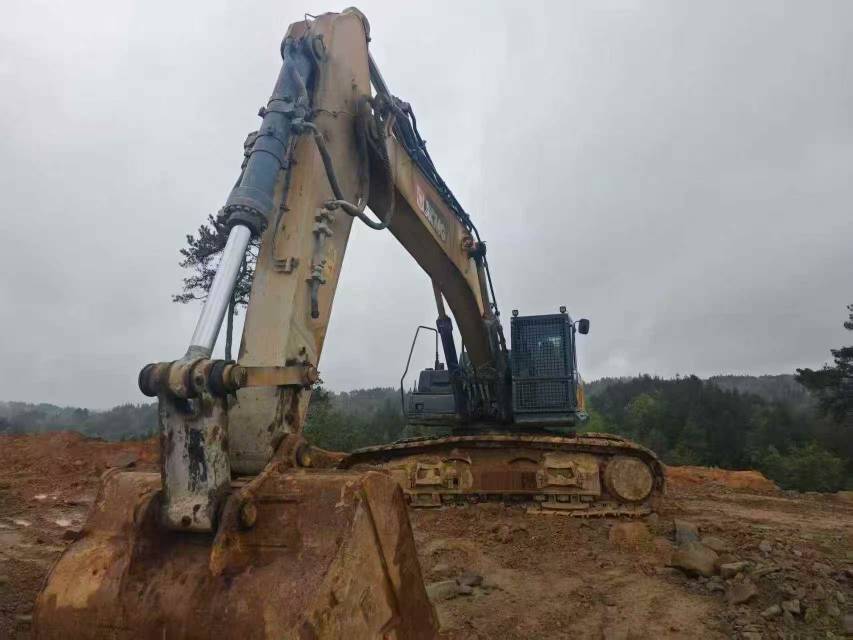

Buy XCMG XE490DK Used Excavator / 1

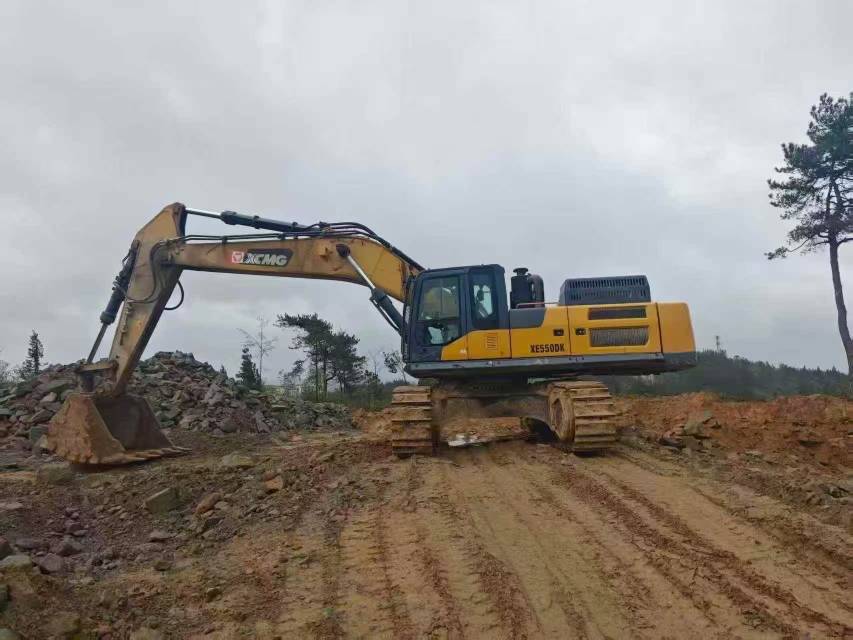

Buy XCMG XE490DK Used Excavator / 2
Buy XCMG XE490DK Used Excavator / 3

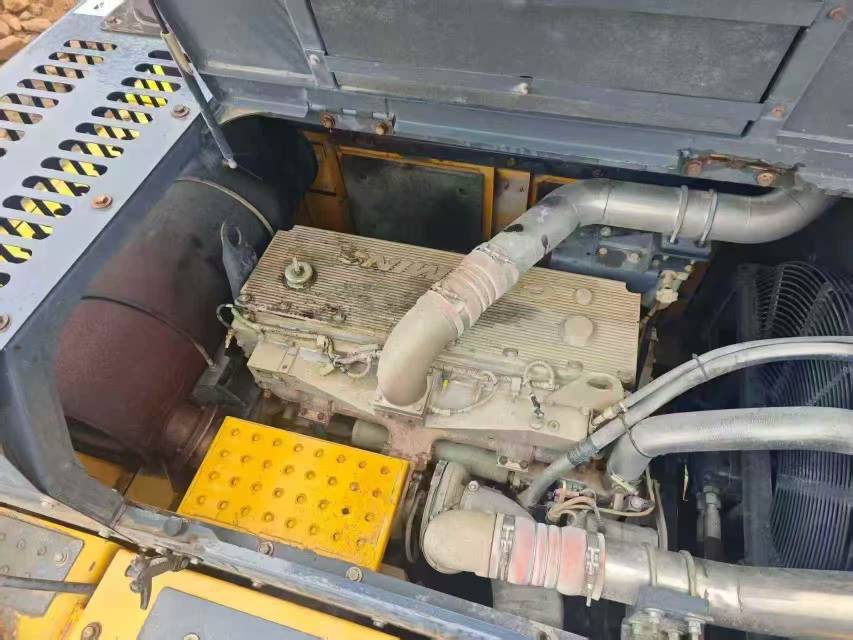

Buy XCMG XE490DK Used Excavator / 4

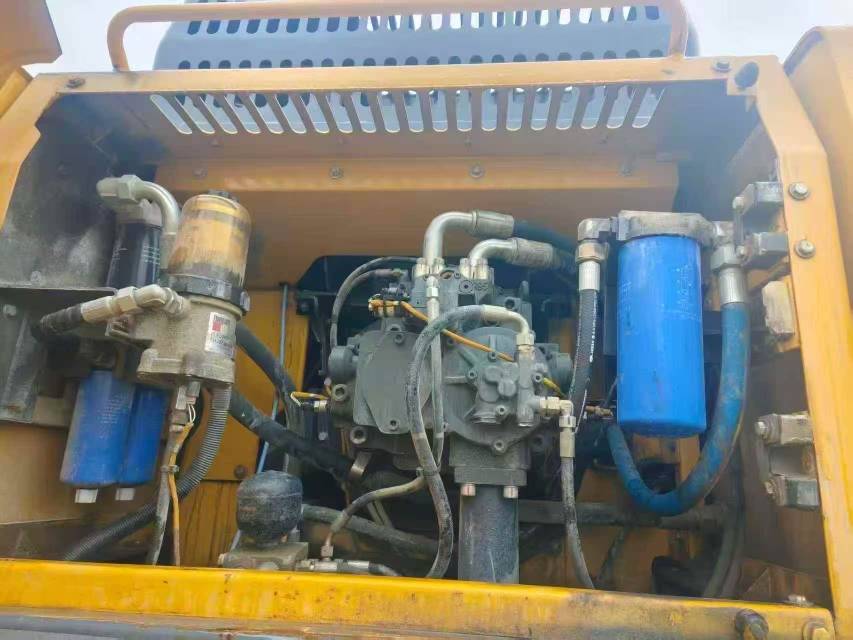

Buy XCMG XE490DK Used Excavator / 5

Product Description

Discover the 2020 XCMG XE490DK, a robust and reliable 50-ton class excavator, currently available in Sichuan, China. This machine represents an excellent value proposition, combining high performance with cost-effectiveness, making it a preferred choice for demanding construction and mining applications. Built to withstand tough conditions, the XE490DK delivers consistent and efficient operation, ensuring productivity and durability on your worksite.

  • Year: 2020
  • Brand: XCMG
  • Model: XE490DK
  • Class: 50-ton
  • Location: Sichuan, China
SpecificationsValue
No.1119489
Tonnage (tons)49
Working weight (kg)48100-49500
Bucket capacity (m³)2.3-3.1
Boom length (mm)6670
Rod length (mm)2900
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeQSM11
Rated power (kw/rpm)280/2000
Ground specific pressure (Kpa)85
Rotation speed (rpm)9.2
Climbing ability (%)70
Bucket digging force (kN)301
Rod digging force (kN)248
Maximum tractive force (kN)338
Travel speed (km/h)5.4/3.2
Maximum flow of main pump (l/min)2*360
Traveling Hydraulic Circuit (Mpa)34.3
Rotary Hydraulic Circuit (Mpa)31
Main pump typeTwo plunger pumps
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)38
Total transport length (mm)11808
Total transport width (mm)3582
Total transport height (mm)3890
Counterweight ground clearance (mm)1324
Minimum ground clearance (mm)519
Minimum turning radius of front working device (mm)4580
Back end turning radius (mm)3800
Total track length (mm)5353
Track gauge (mm)2750
Track plate width (mm)600
Maximum digging radius (mm)10855
Maximum digging depth (mm)7000
Maximum excavation height (mm)9855
Maximum unloading height (mm)6890
Maximum vertical digging depth (mm)4500
Maximum effective digging depth (mm)6900
see more

Overview

No.1119489

Brand Name:

XCMG

Model Number:

XE490DK

Year:

2020

Location:

Sichuan China

Pub Date
