Product Description

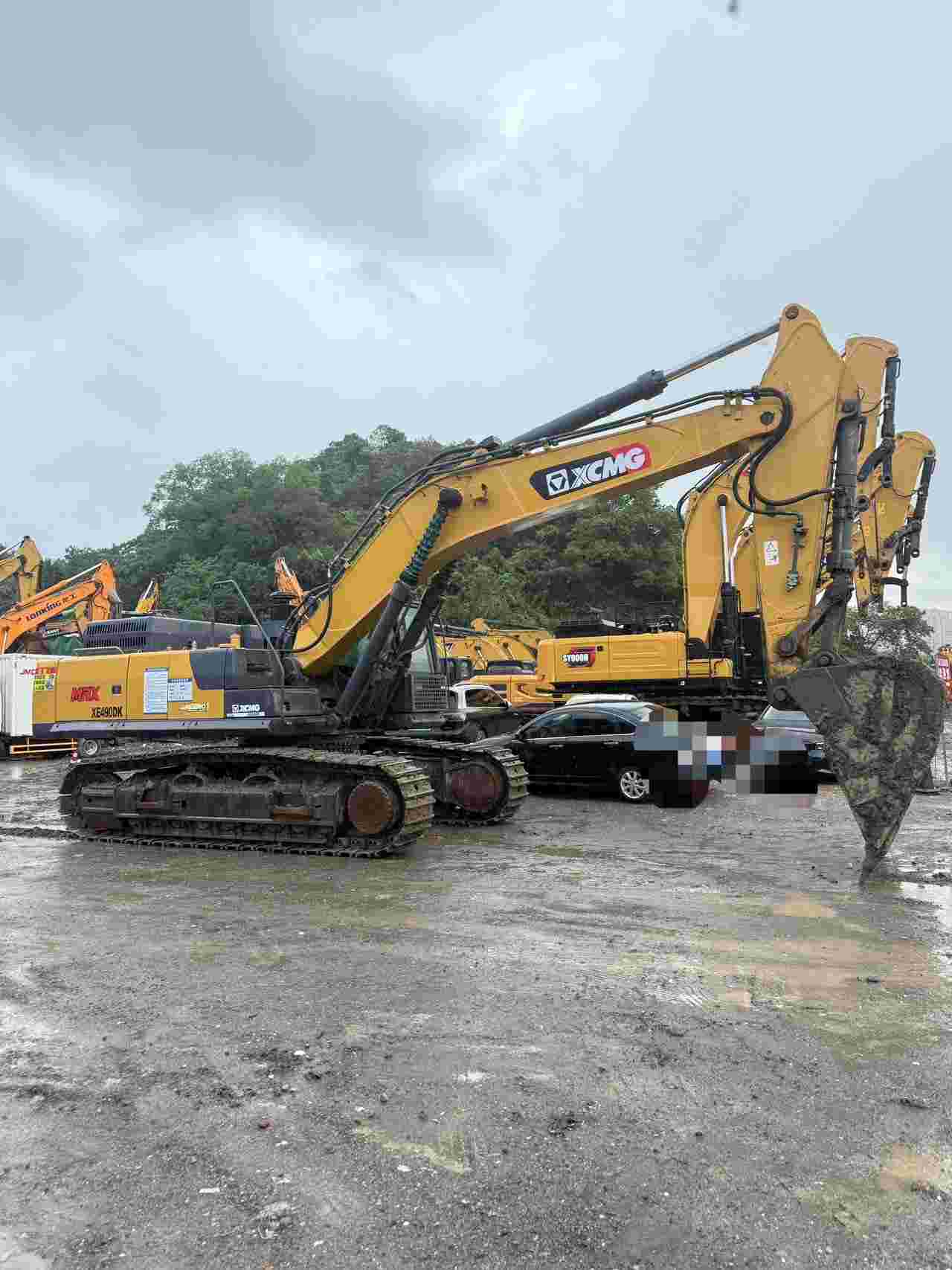

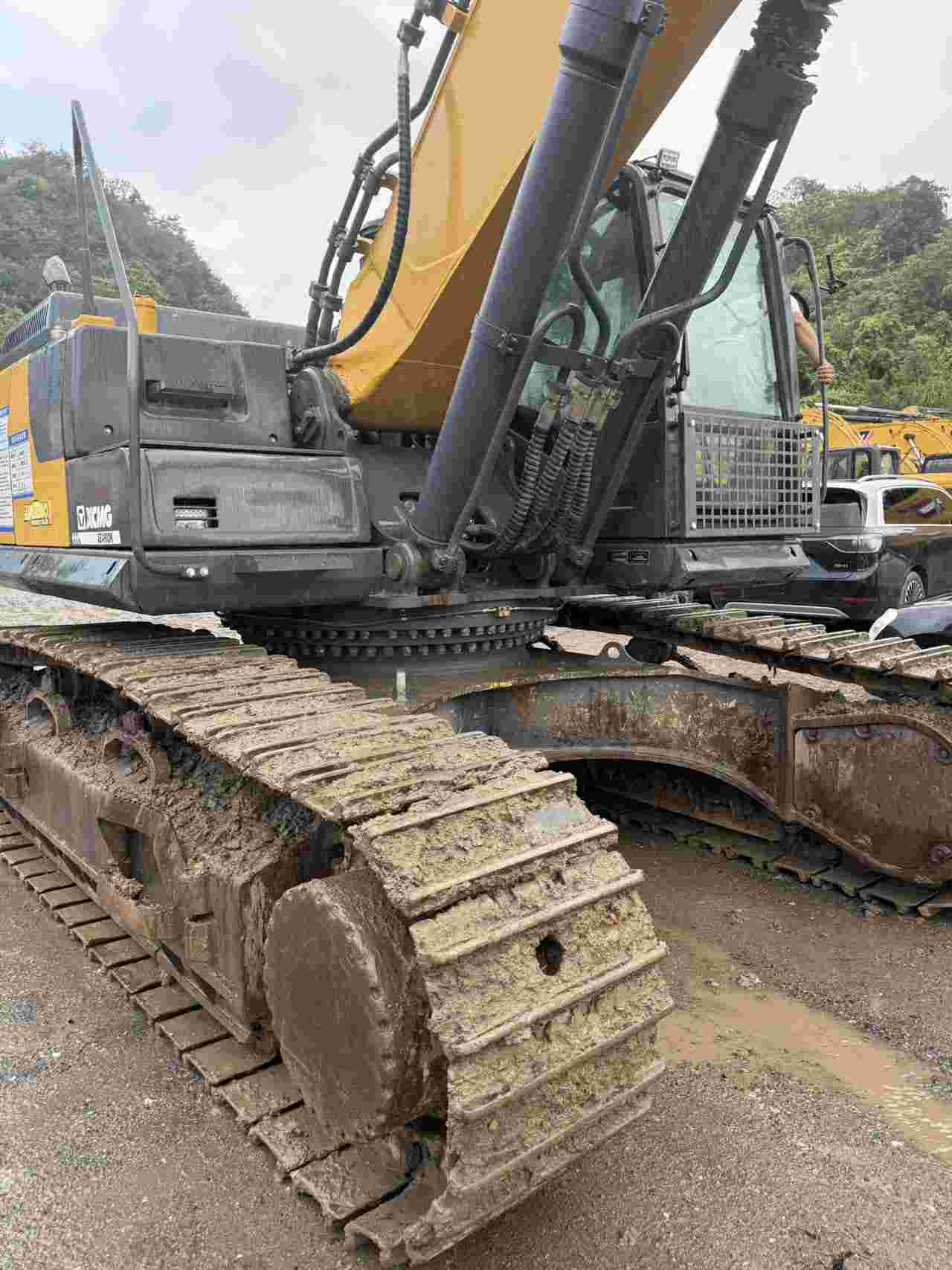

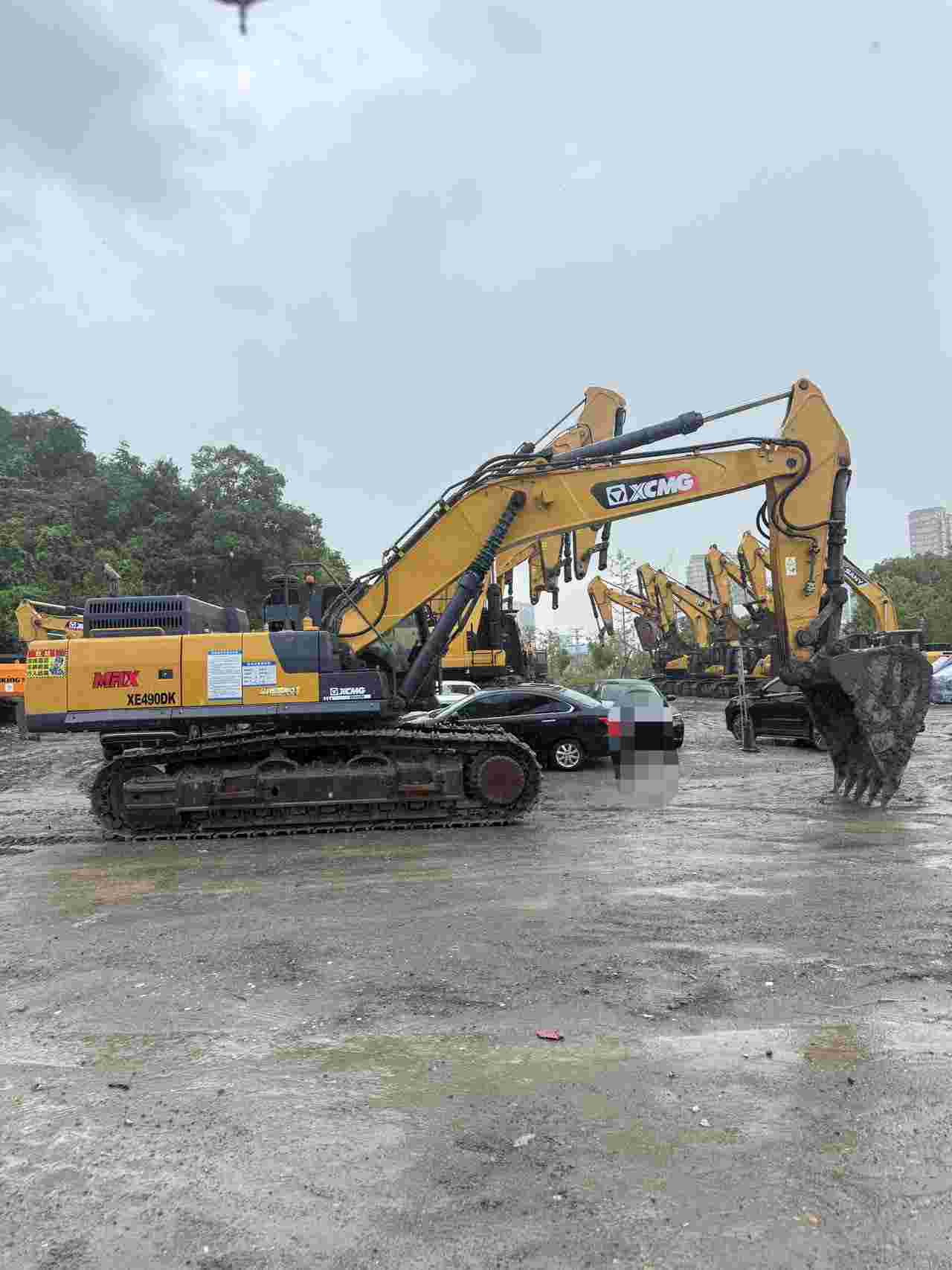

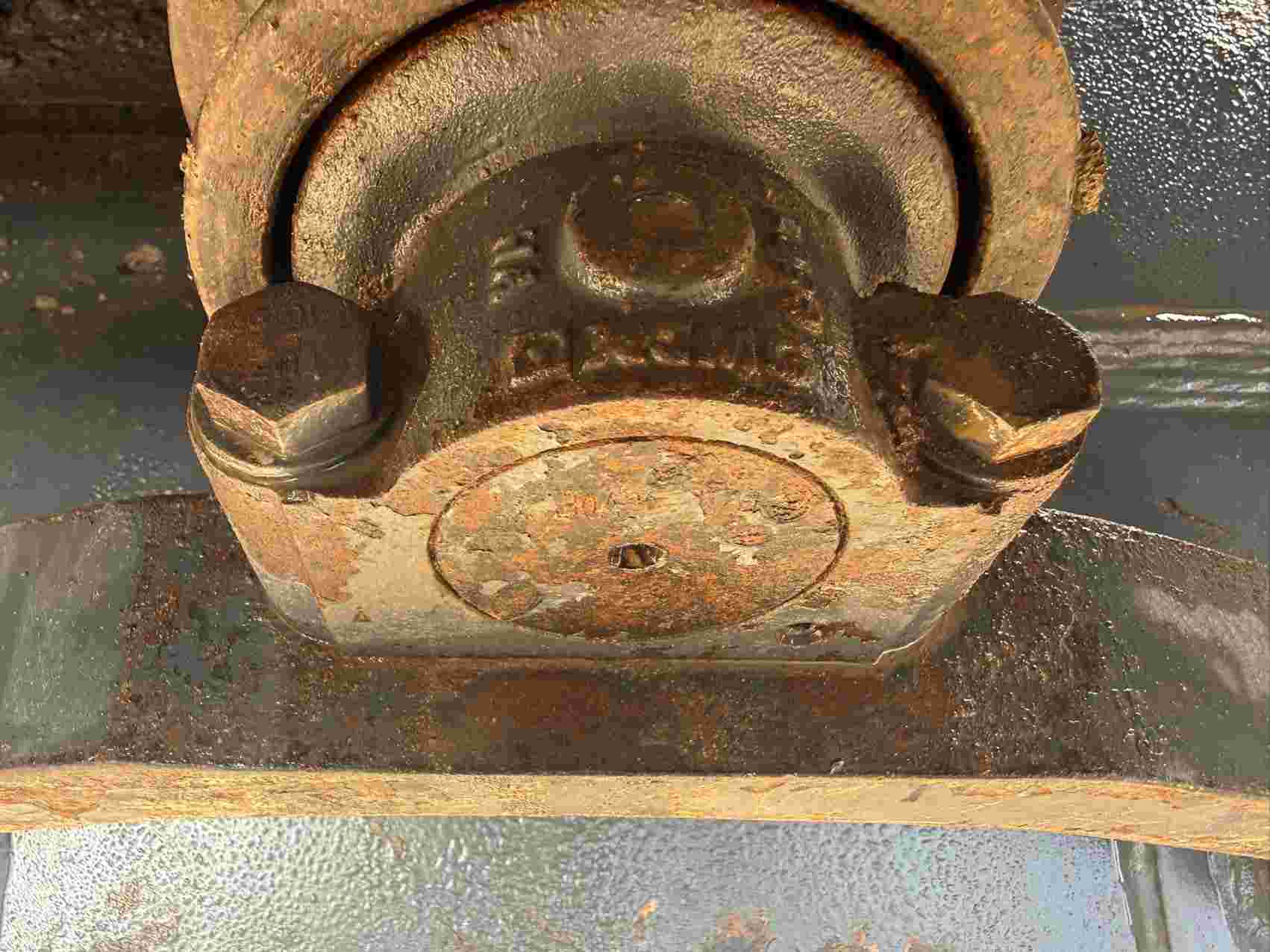

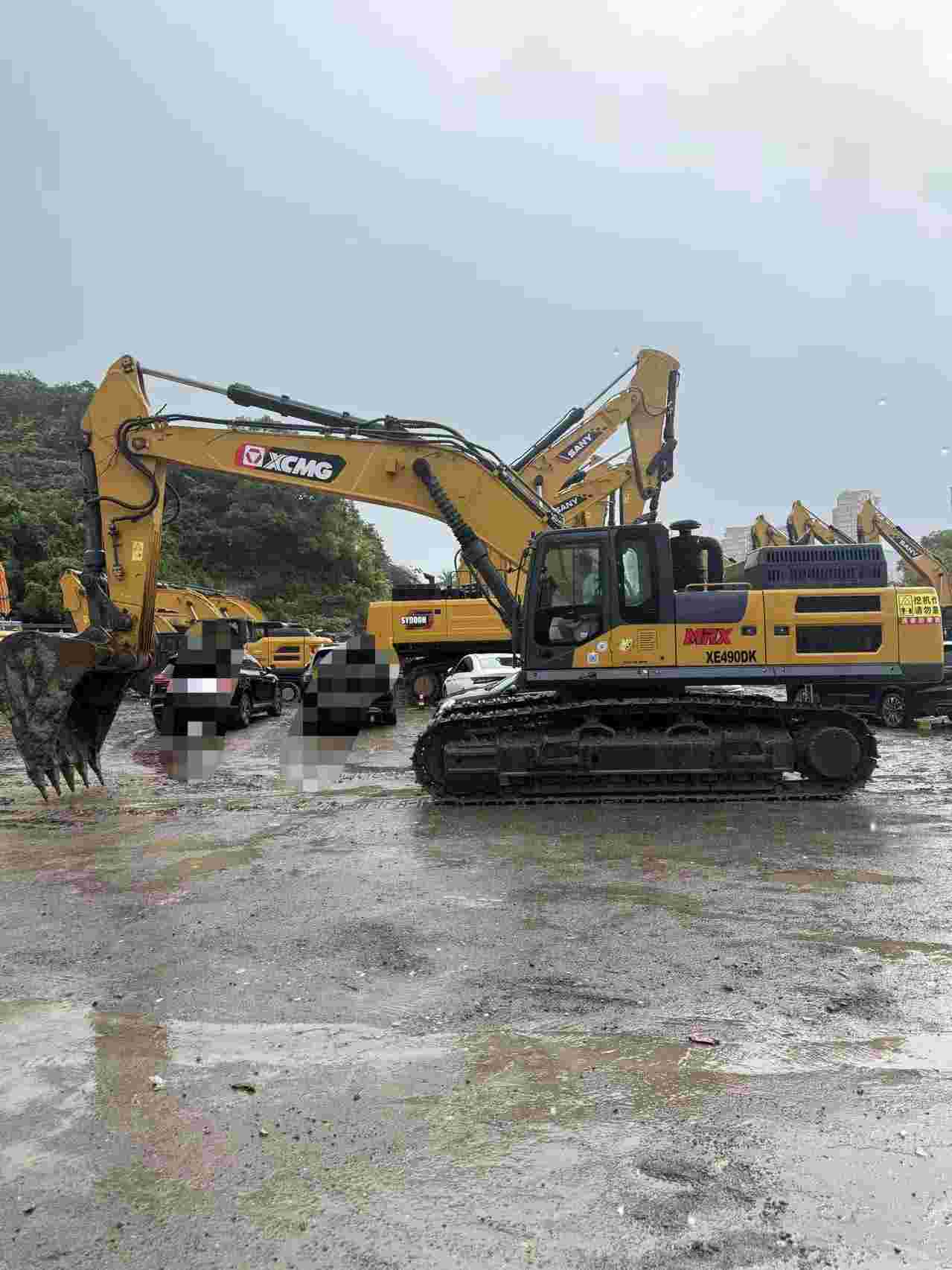

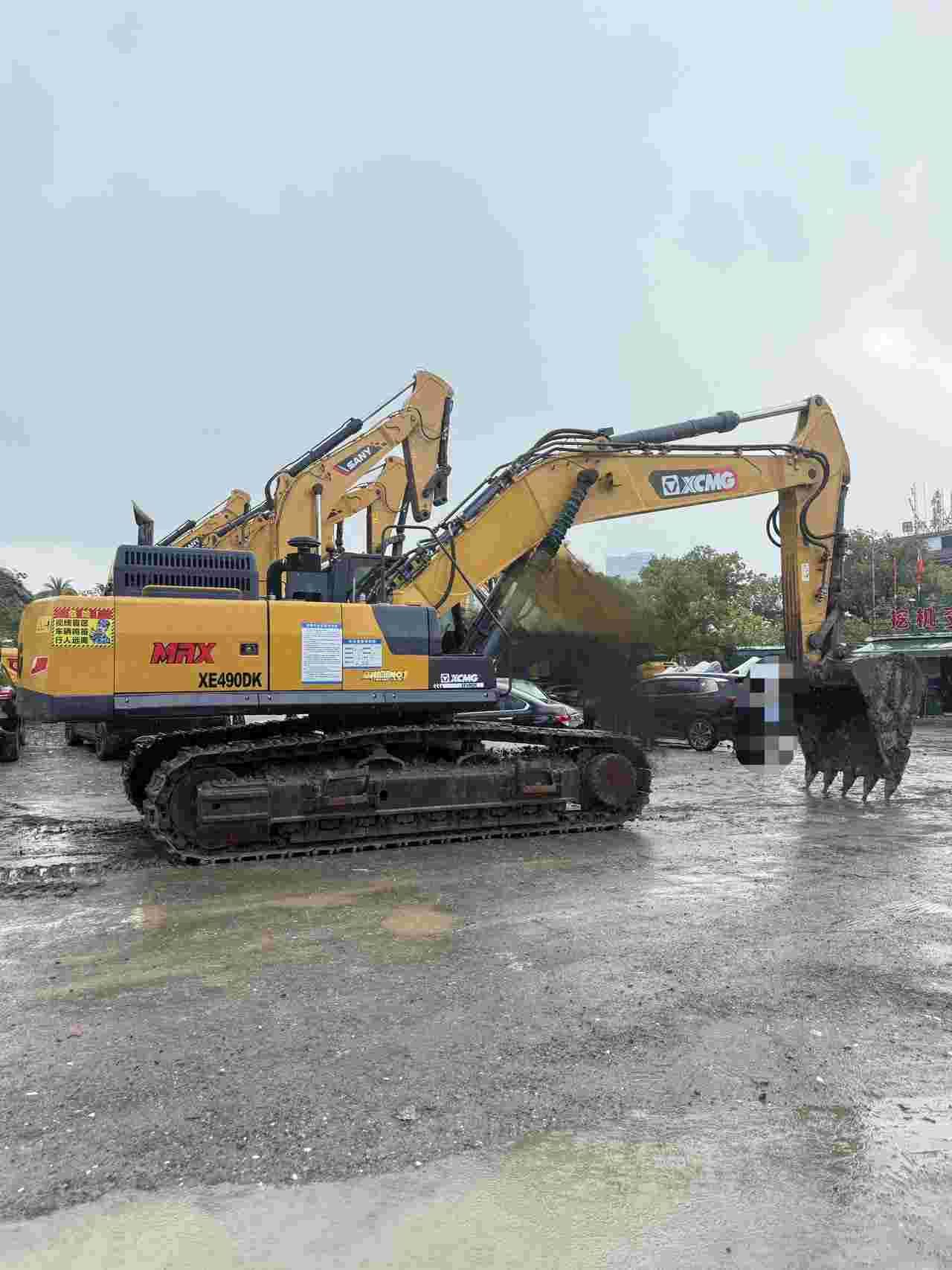

This 2020 XCMG XE490DK excavator represents a well-maintained example of XCMG's heavy-duty crawler series. Currently located in Zhejiang, China, this machine features original factory components throughout, including authentic XCMG-branded undercarriage elements—sprockets, idlers, rollers, and track chains all retain their original specifications.
The XE490DK offers robust performance in demanding excavation applications with proven reliability from XCMG's engineering. This unit's excellent mechanical condition reflects careful operation and proper maintenance practices.
- Year of Manufacture: 2020
- Model: XCMG XE490DK

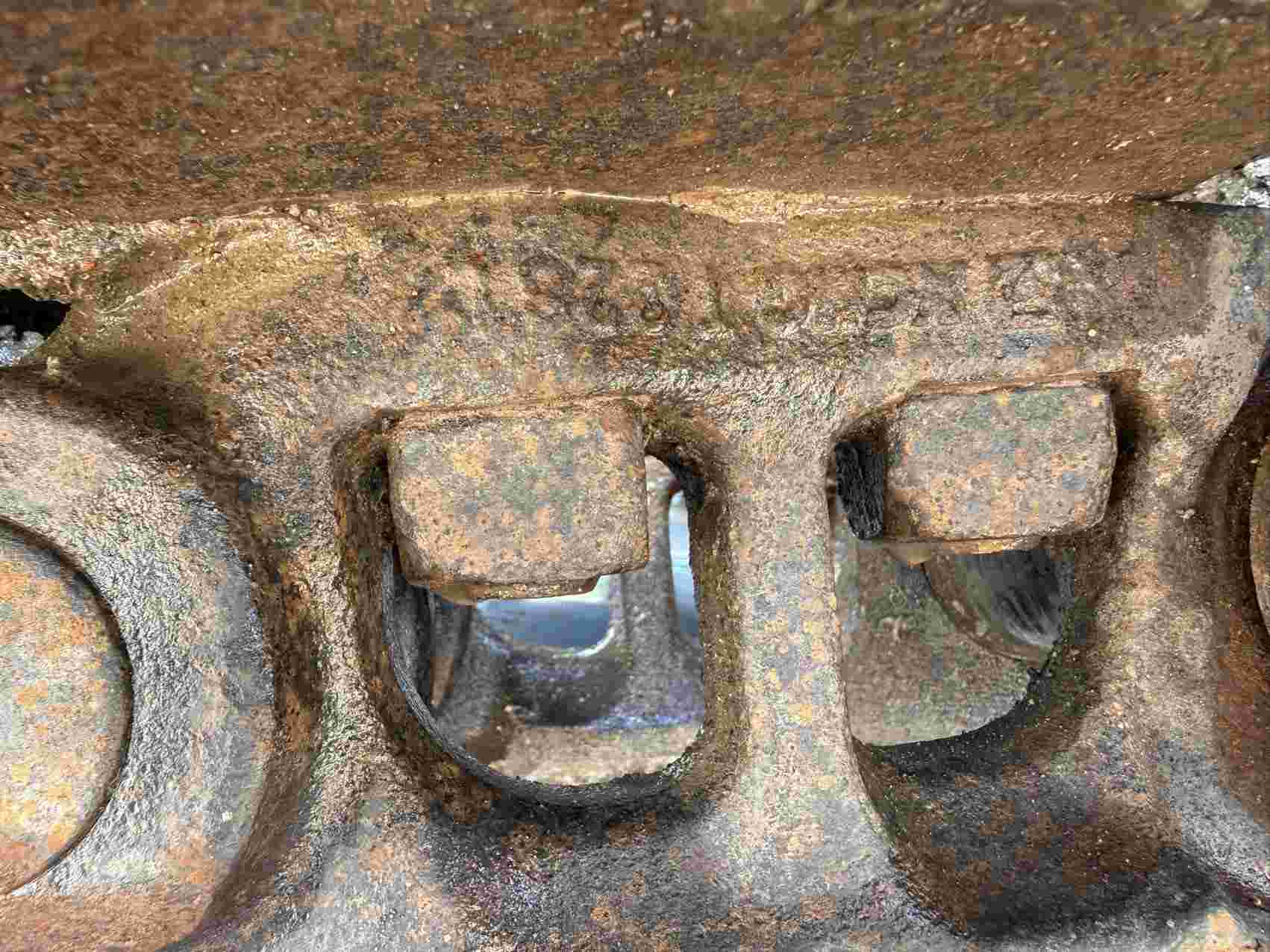

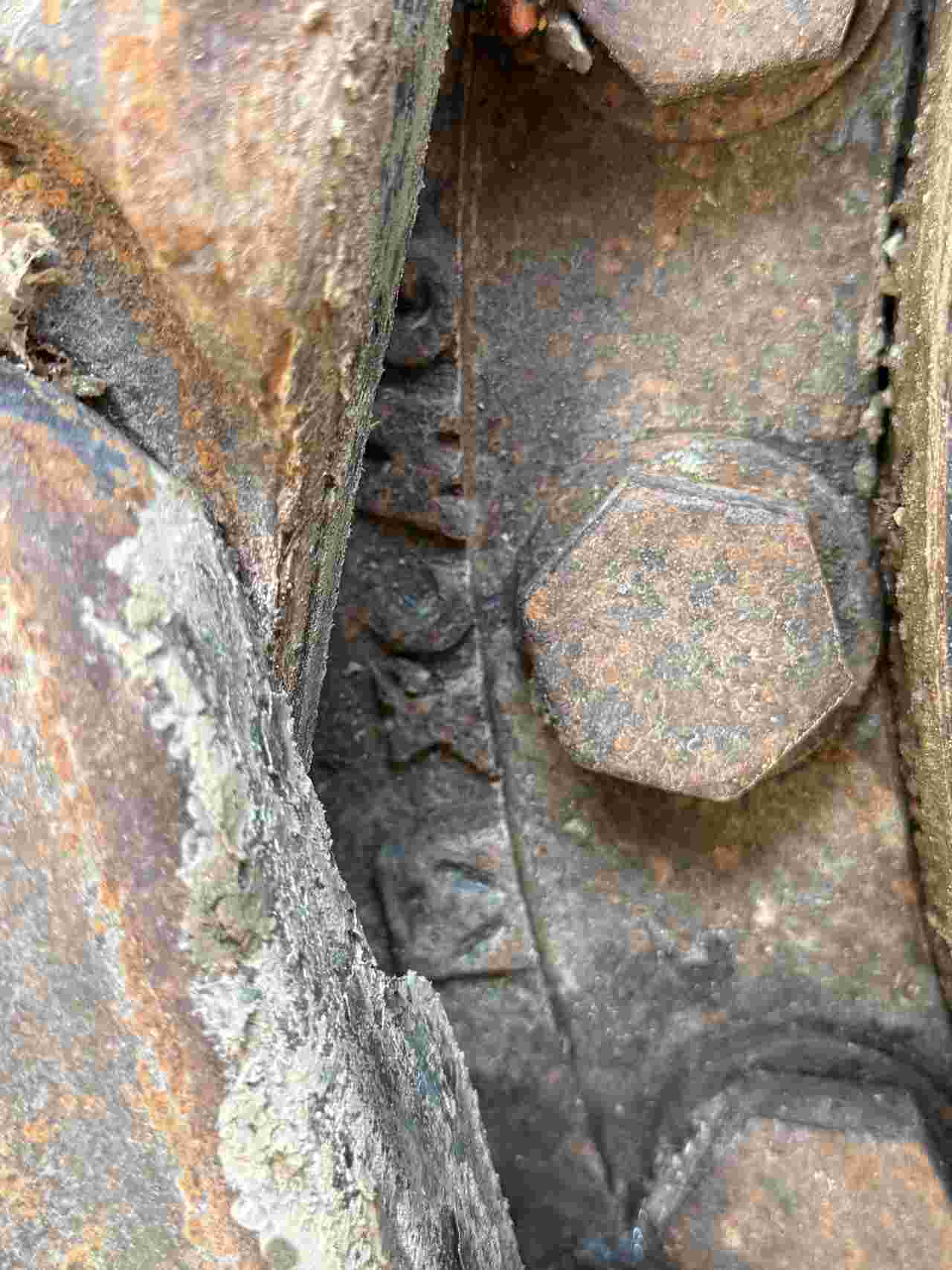

- Complete original undercarriage system
- Factory XCMG components throughout
- Located in Zhejiang Province, China
- Ready for immediate deployment
Suitable for construction, mining, and heavy earthmoving operations. Available for inspection by qualified buyers. Contact us for detailed specifications and acquisition terms.
| Specifications | Value |
|---|---|
| No. | 1138858 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100-49500 |

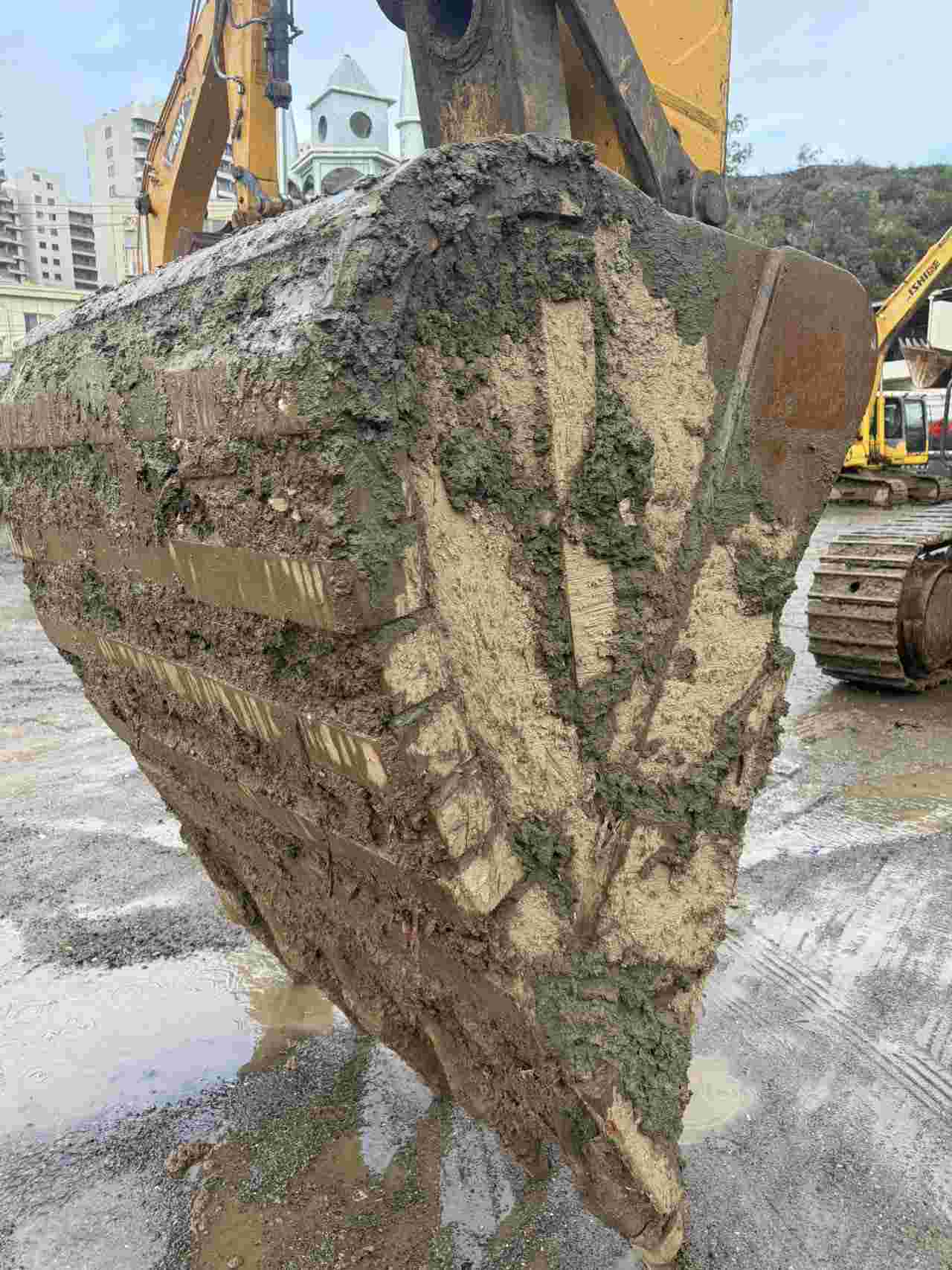

| Bucket capacity (m³) | 2.3-3.1 |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

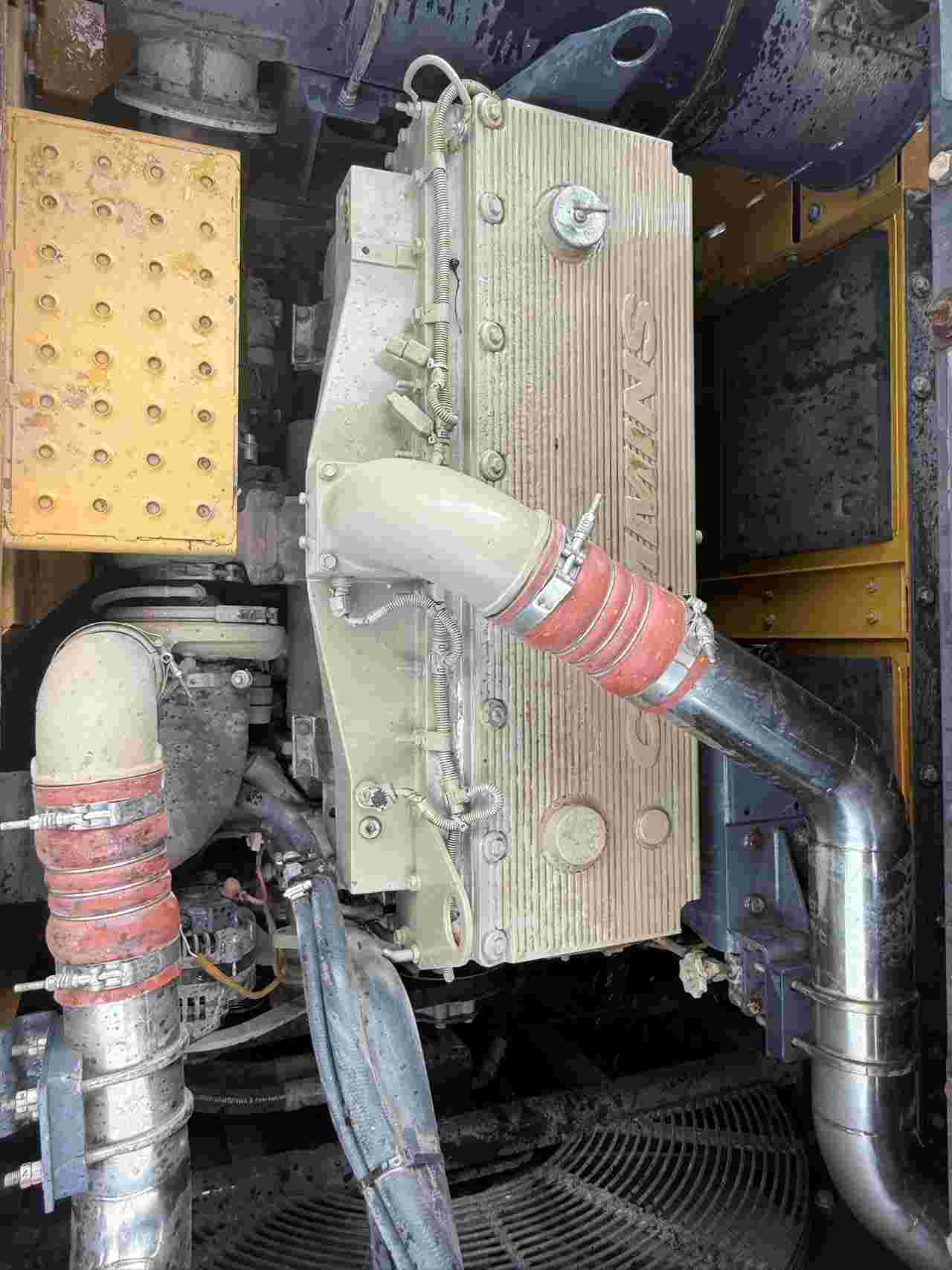

| Engine type | QSM11 |
| Rated power (kw/rpm) | 280/2000 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 301 |
| Rod digging force (kN) | 248 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |

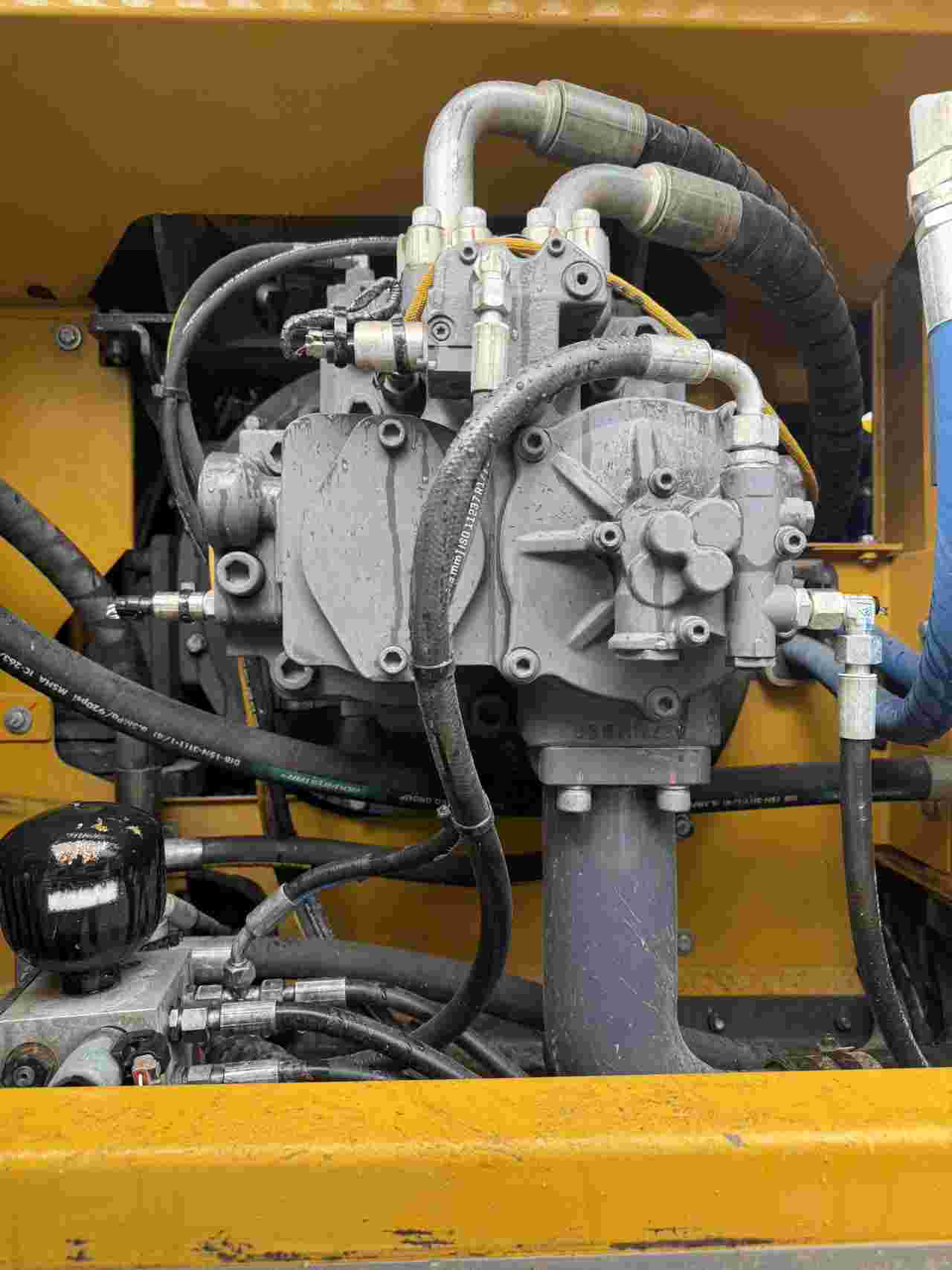

| Main pump type | Two plunger pumps |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11808 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3890 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Minimum turning radius of front working device (mm) | 4580 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10855 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9855 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 4500 |
| Maximum effective digging depth (mm) | 6900 |
