Product Description

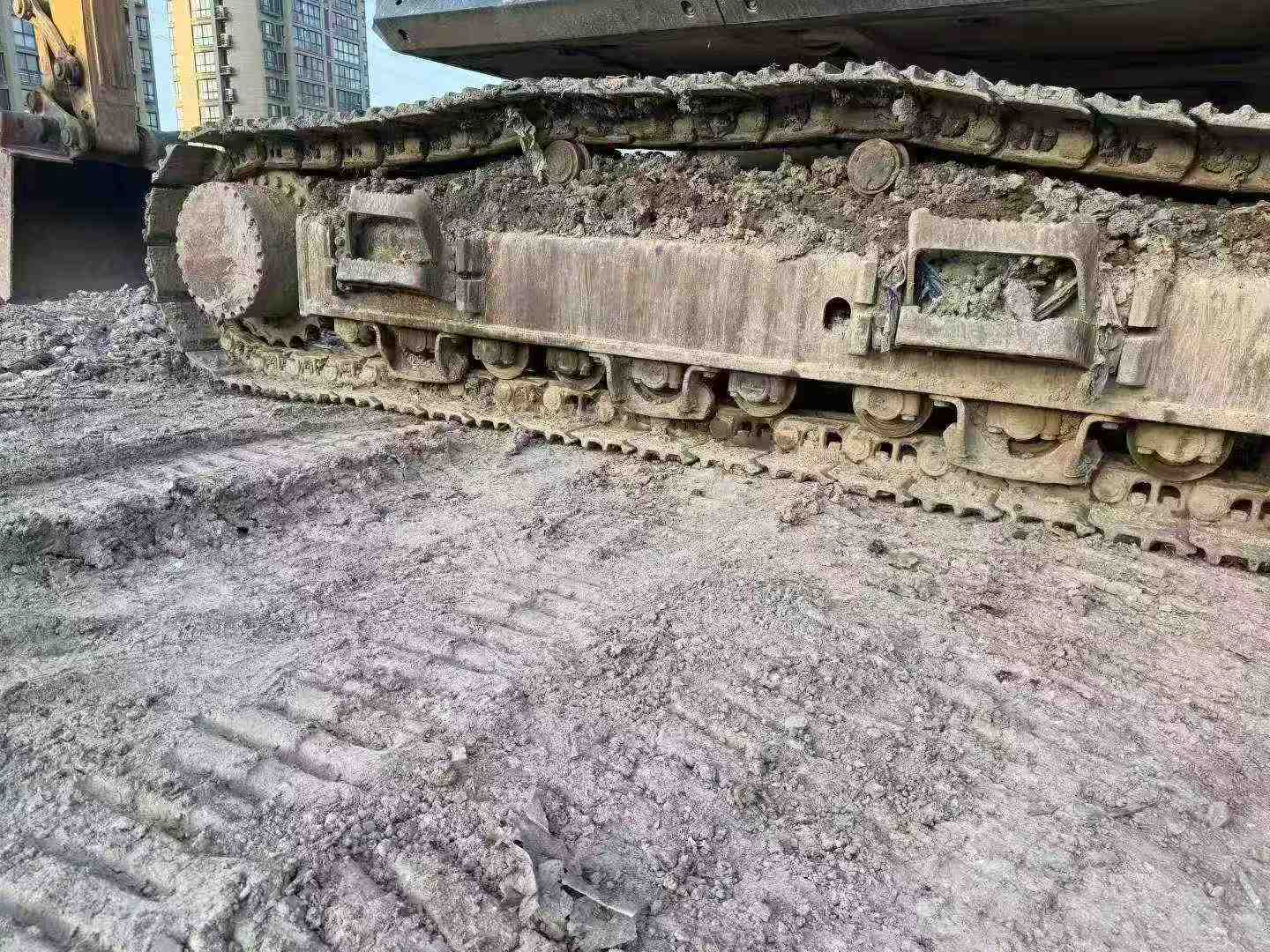

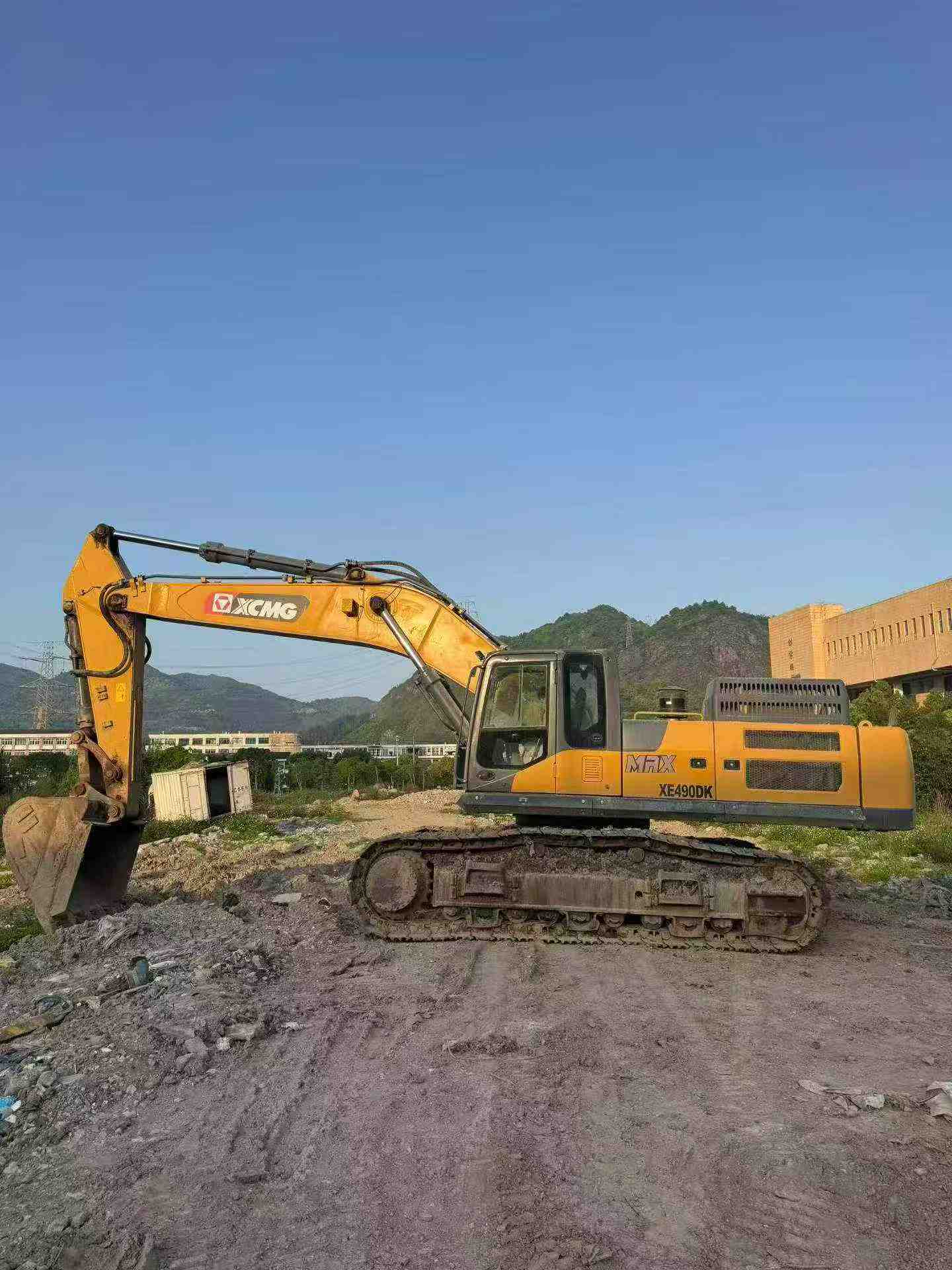

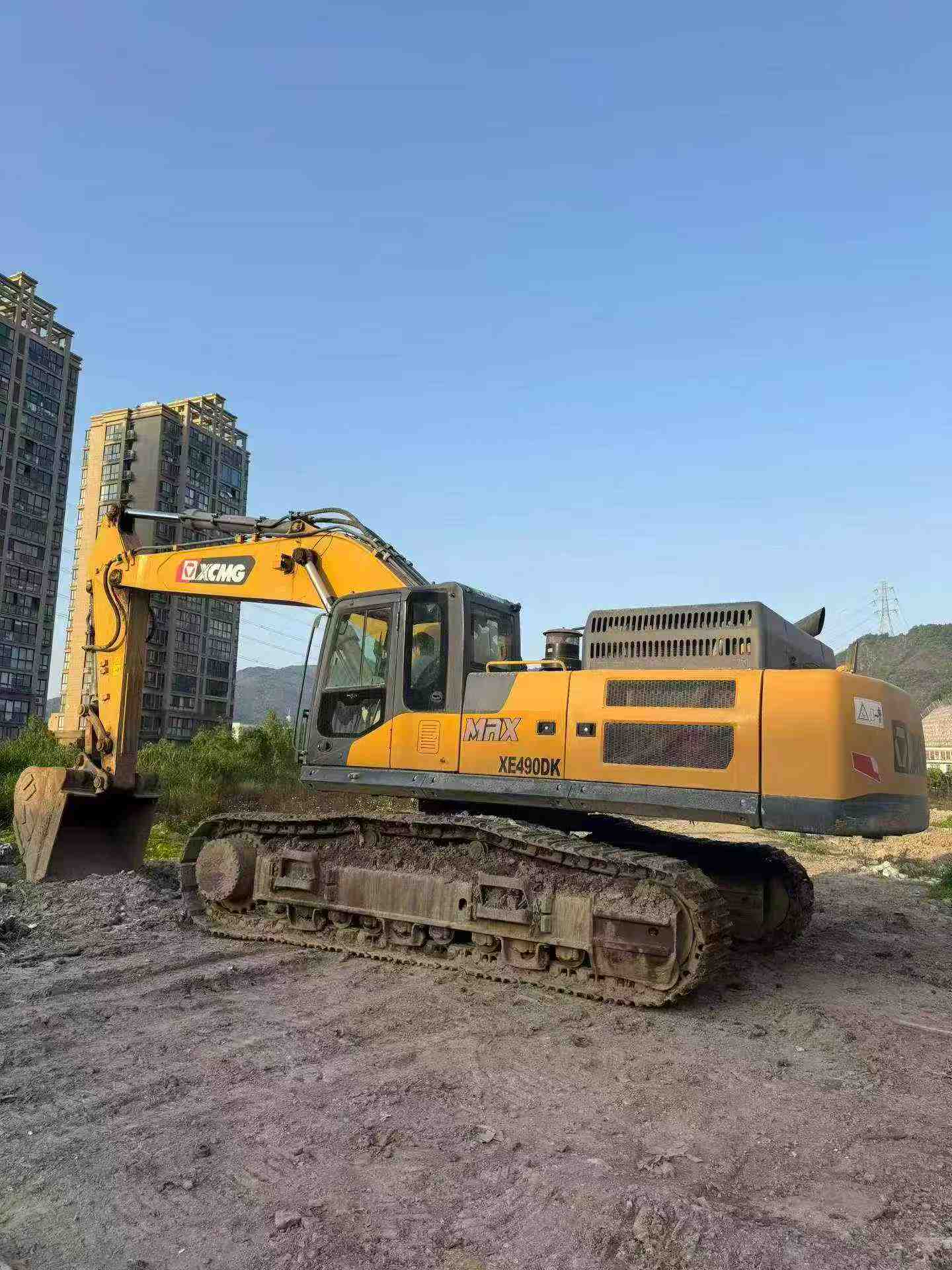

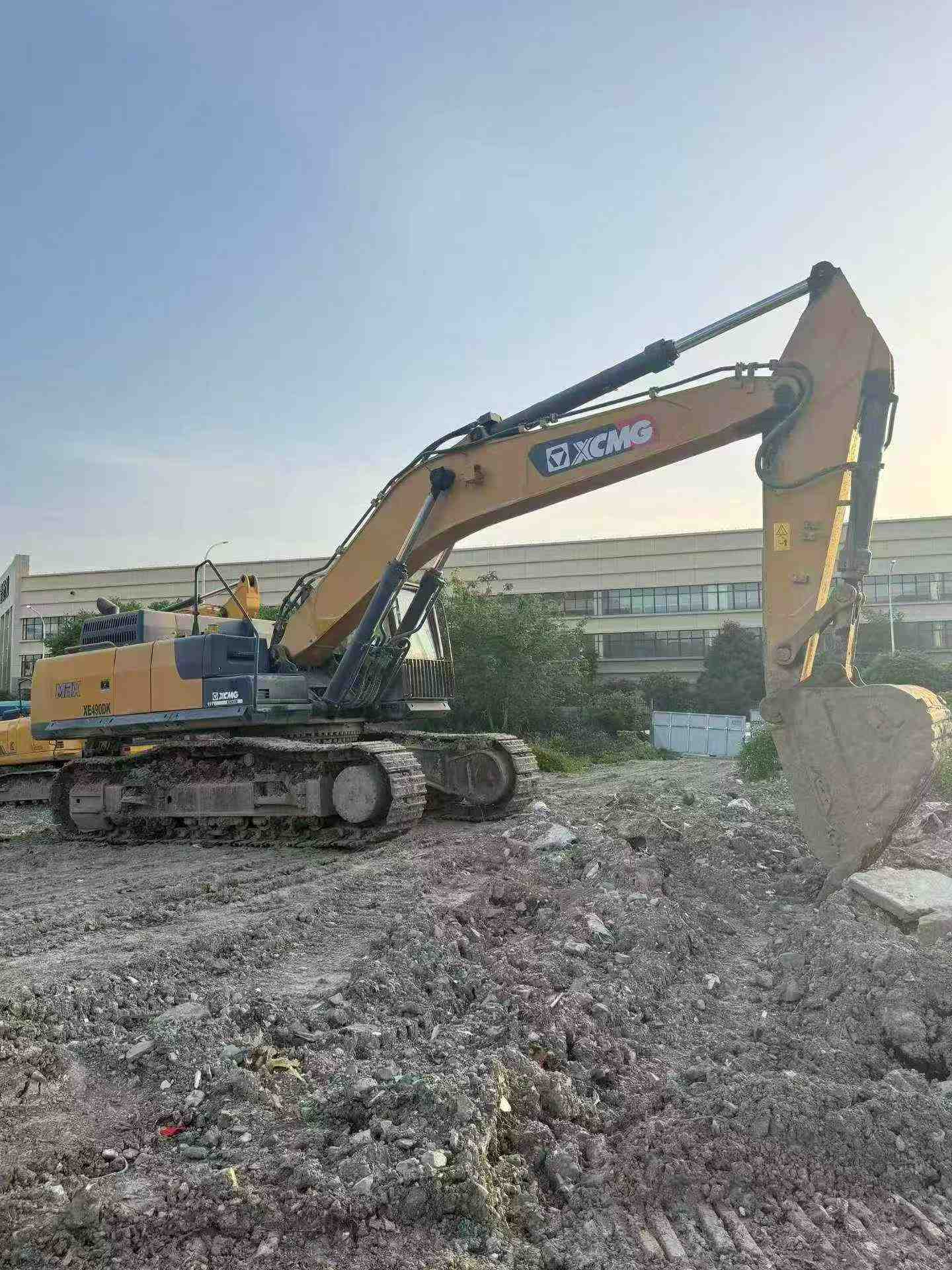

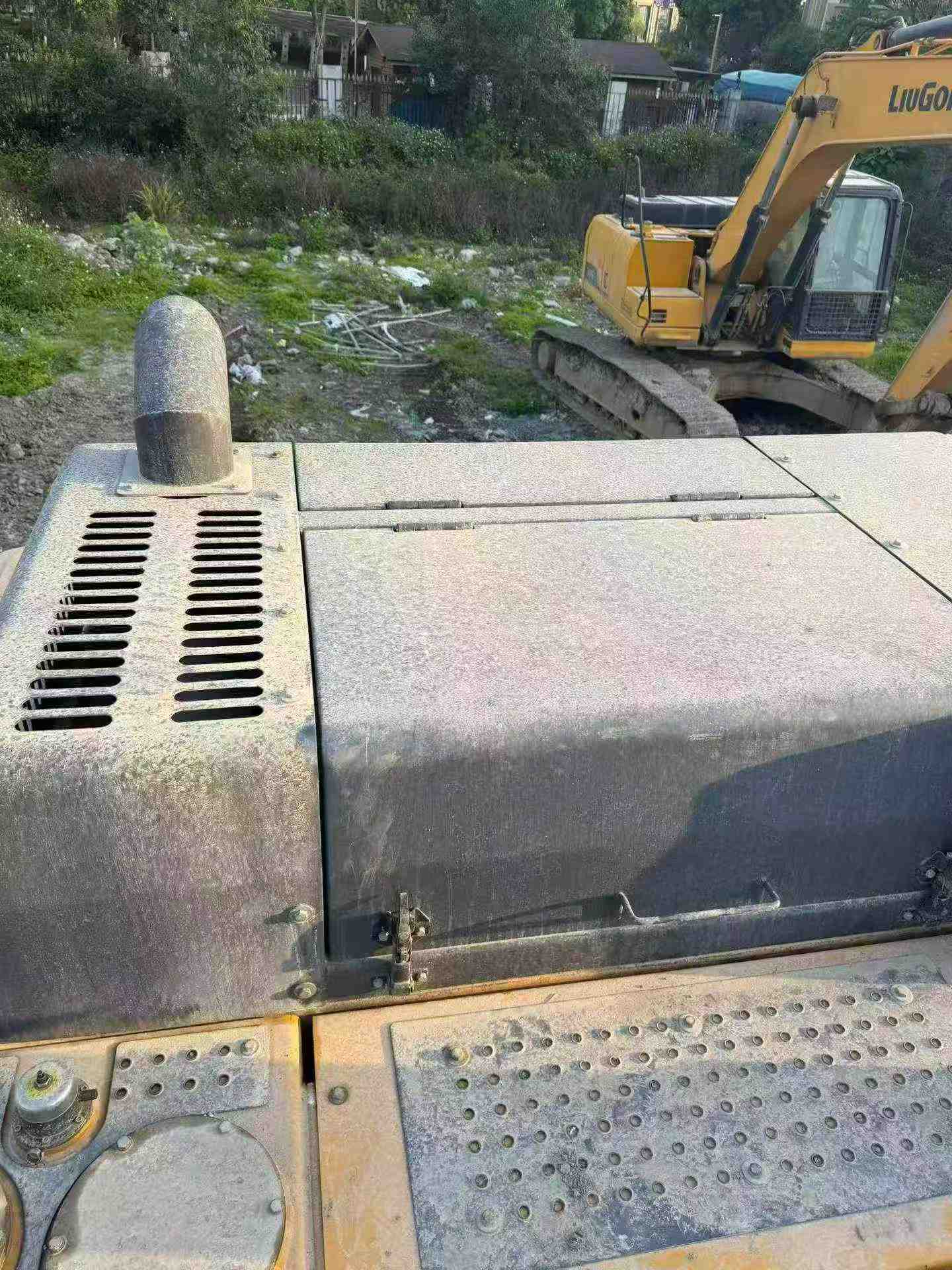

Discover the 2021 XCMG XE490DK, a robust and reliable excavator currently available in Zhejiang, China. This machine is in excellent condition, with all major components in top-notch shape, ensuring no leaks or mechanical issues. The original XCMG undercarriage retains up to 90% of its initial quality, underscoring its durability and performance. The XE490DK has been meticulously maintained, with all parts in their factory-fitted state, confirming its reliability and operational efficiency. Ready for immediate use, this excavator is being offered at a very competitive price by a motivated seller. Ideal for construction and excavation projects, this XCMG model promises to be a valuable addition to your fleet.
- Year: 2021
- Brand: XCMG
- Model: XE490DK
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1056555 |
| Tonnage (tons) | 49 |
| Working weight (kg) | 48100-49500 |
| Bucket capacity (m³) | 2.3-3.1 |
| Boom length (mm) | 6670 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

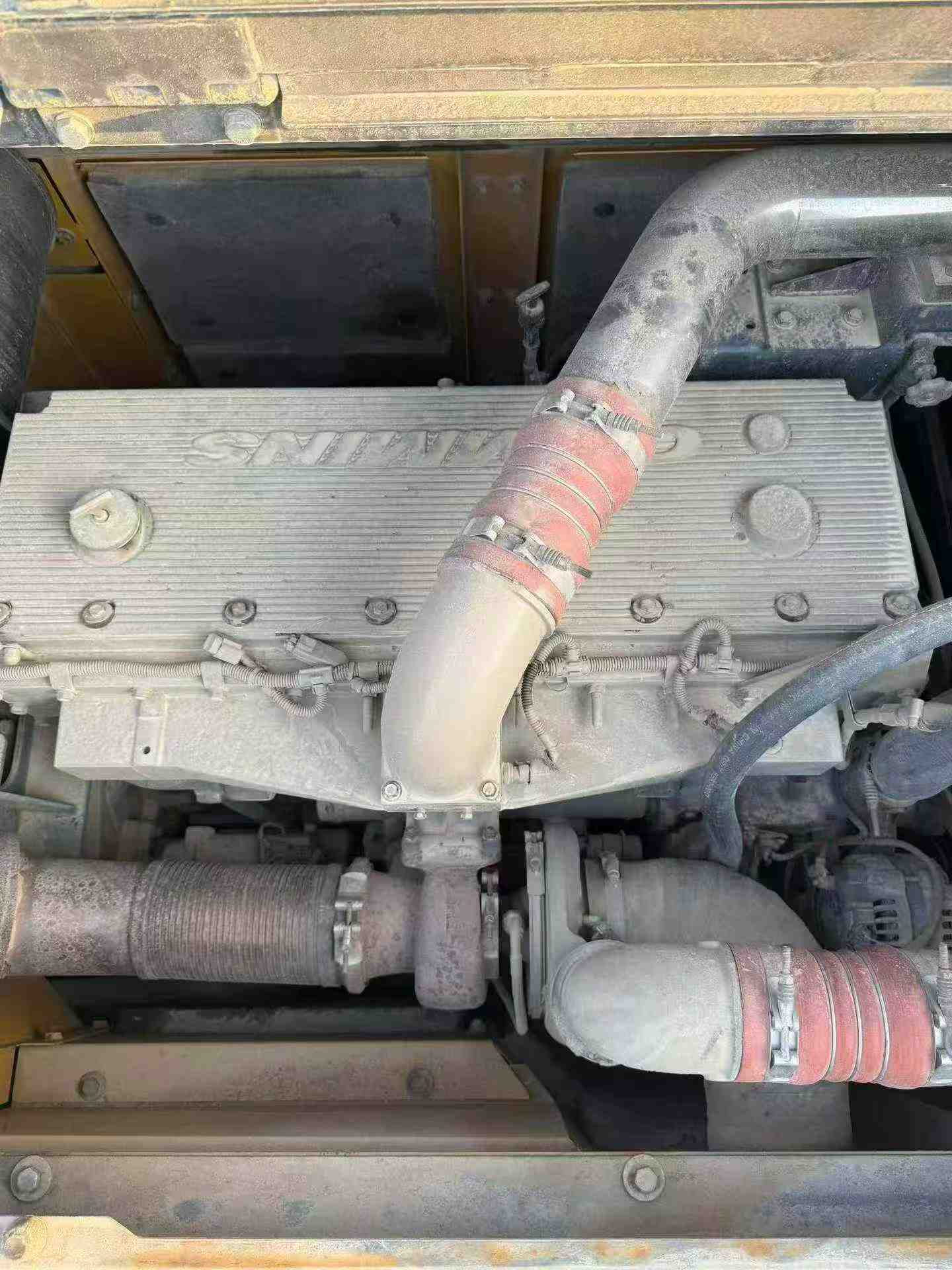

| Engine type | QSM11 |
| Rated power (kw/rpm) | 280/2000 |
| Ground specific pressure (Kpa) | 85 |
| Rotation speed (rpm) | 9.2 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 301 |
| Rod digging force (kN) | 248 |
| Maximum tractive force (kN) | 338 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2*360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 31 |

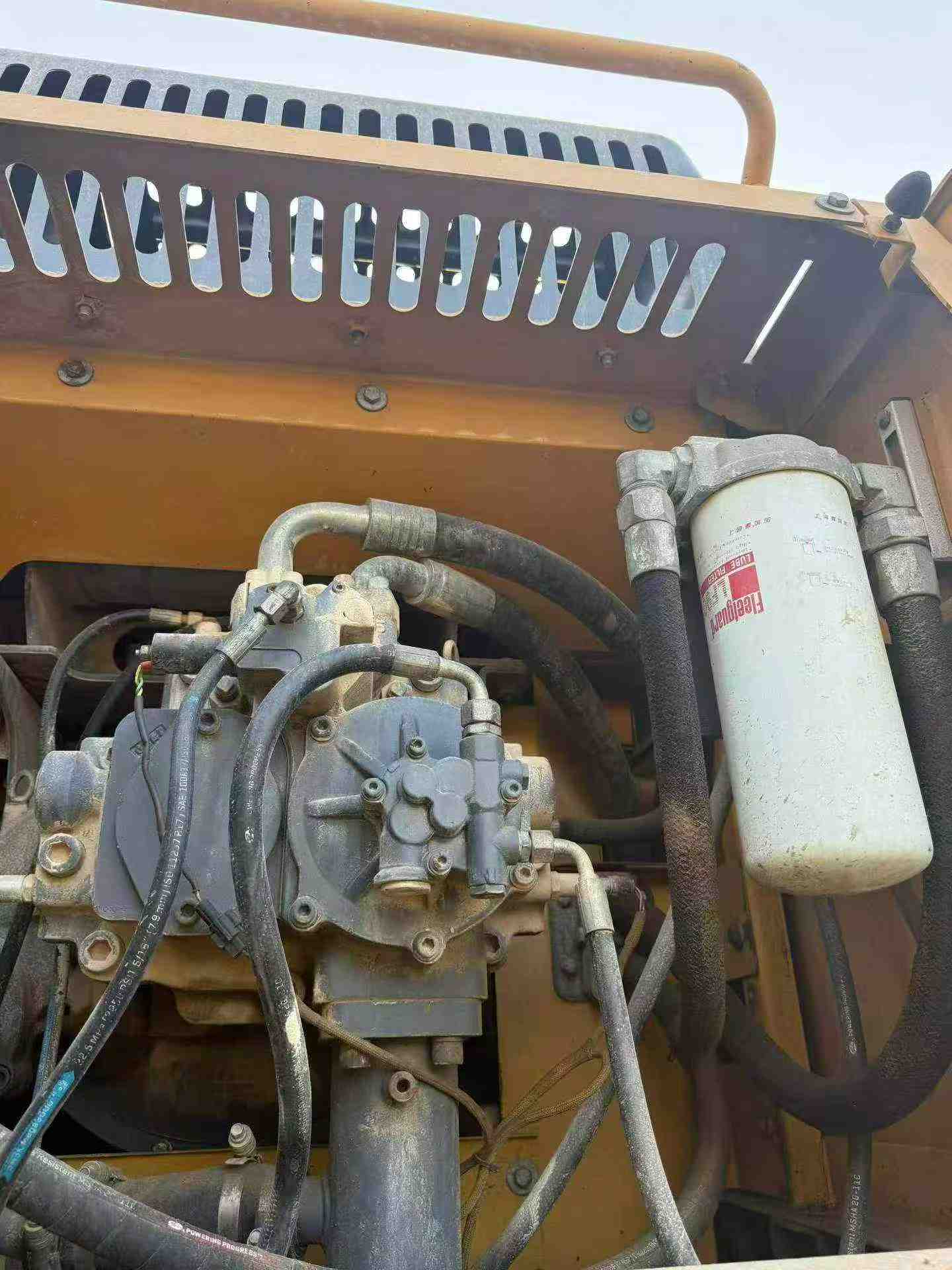

| Main pump type | Two plunger pumps |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 11808 |
| Total transport width (mm) | 3582 |
| Total transport height (mm) | 3890 |
| Counterweight ground clearance (mm) | 1324 |
| Minimum ground clearance (mm) | 519 |
| Minimum turning radius of front working device (mm) | 4580 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5353 |
| Track gauge (mm) | 2750 |
| Track plate width (mm) | 600 |
| Maximum digging radius (mm) | 10855 |
| Maximum digging depth (mm) | 7000 |
| Maximum excavation height (mm) | 9855 |
| Maximum unloading height (mm) | 6890 |
| Maximum vertical digging depth (mm) | 4500 |
| Maximum effective digging depth (mm) | 6900 |
