Product Description
Maximize your excavation budget with this 2016 XCMG XE500C—a 50-ton workhorse delivering flagship performance without the new equipment price tag. Powered by a robust Cummins QSM11 engine producing 250kW at 2100 rpm, this Chinese-manufactured excavator tackles demanding projects with 284kN bucket digging force and an impressive 11,631mm maximum digging radius. Operating weight sits at 47,300kg with bucket capacity ranging from 2.1 to 2.5m³, making it ideal for large-scale earthmoving, mining, and infrastructure development.

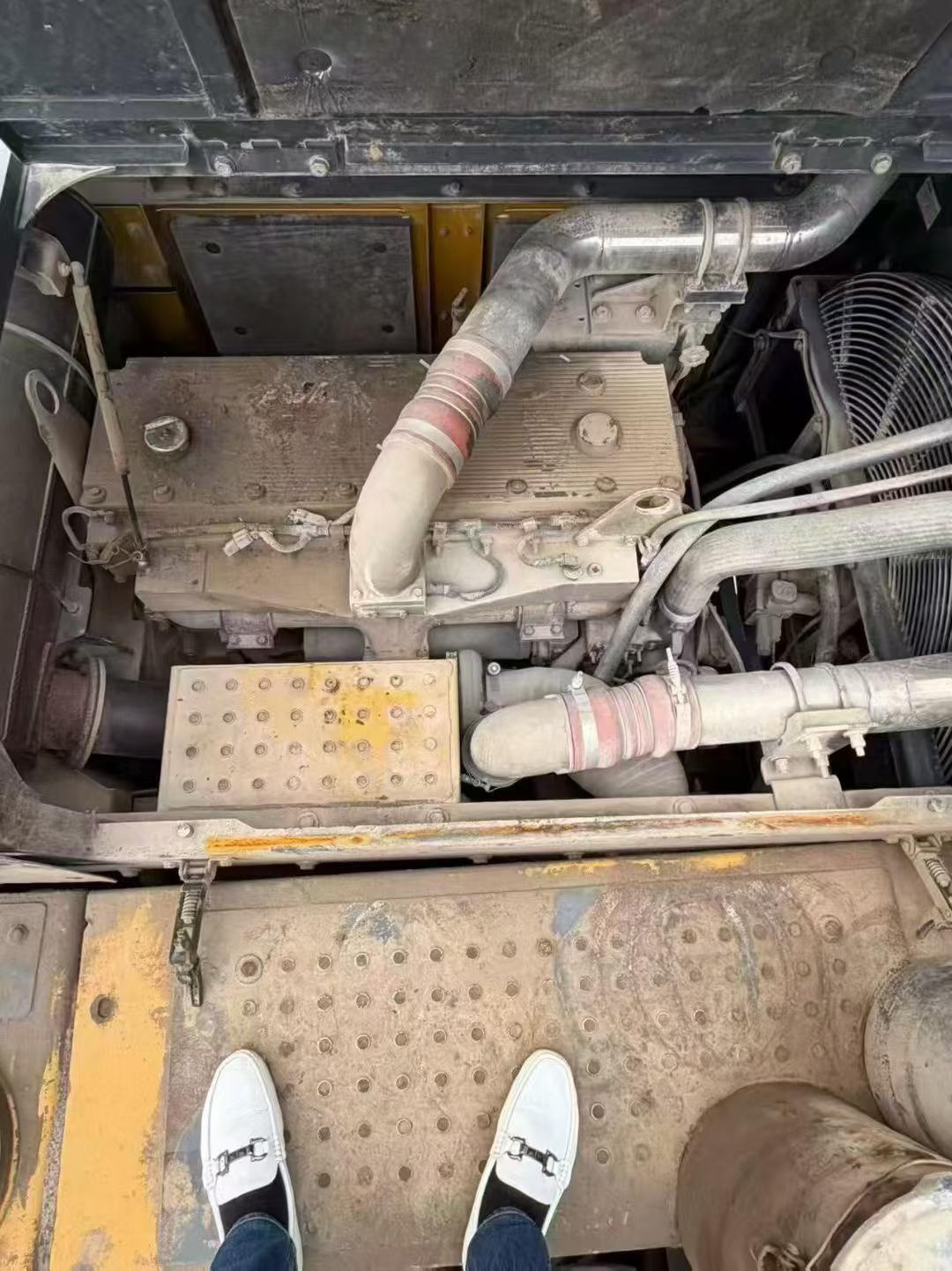

- Cummins QSM11 6-cylinder diesel engine (250kW rated power)
- Maximum digging depth: 7,337mm; Maximum reach: 11,631mm

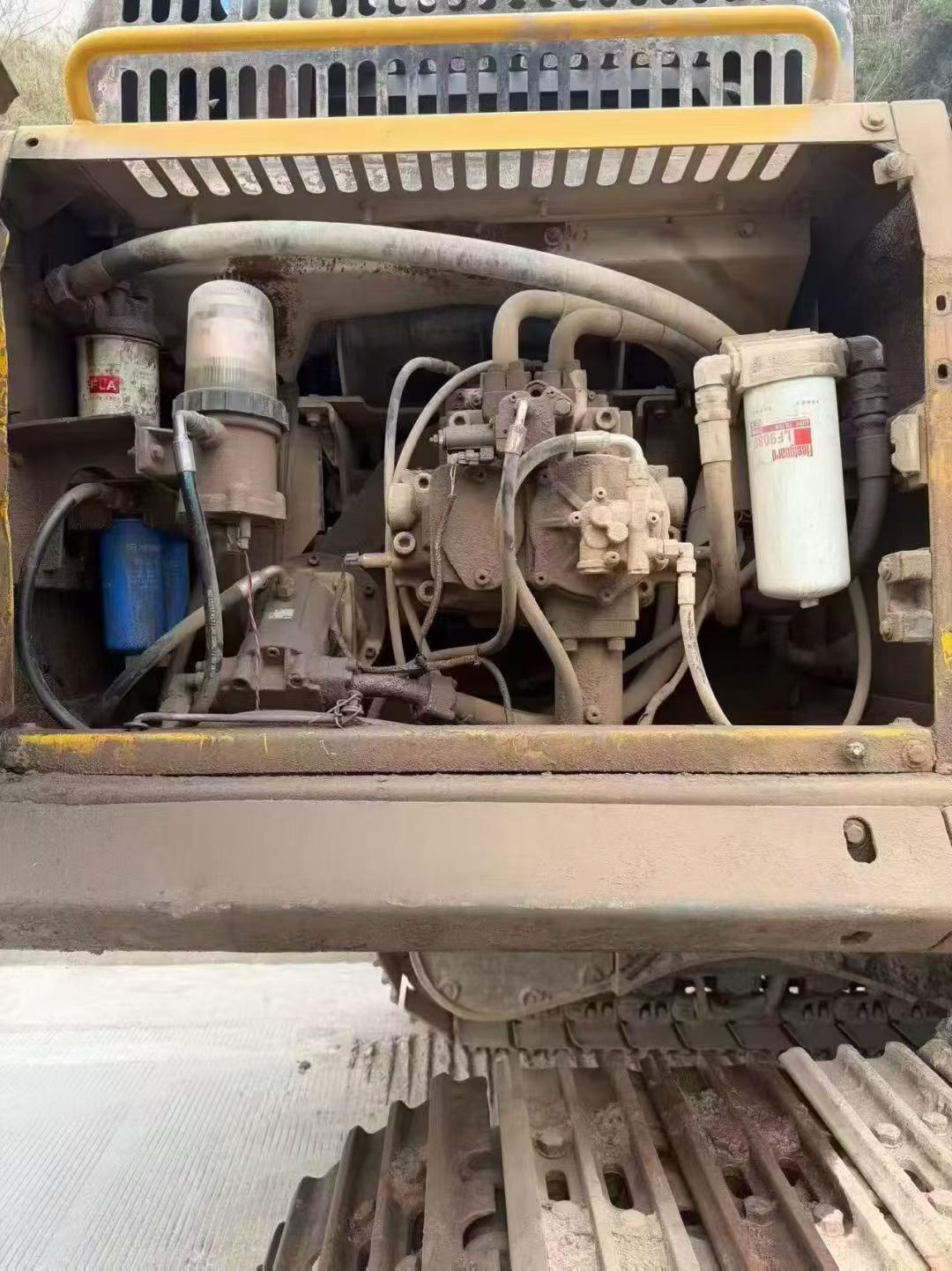

- Dual main pumps: 2 × 360 L/min hydraulic flow
- Superior stability: 85.9kPa ground pressure, 35% climbing ability
- 725L fuel tank for extended operation cycles
- Currently located in Hunan, China—ready for global shipment
Acquire proven XCMG reliability and heavy-duty specifications at a fraction of comparable new equipment costs. Contact Fair Trade Machinery today for competitive pricing and export documentation.
| Specifications | Value |
|---|---|
| No. | 1024697 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 47300 |
| Bucket capacity (m³) | 2.1 ~ 2.5 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 250/2100 |
| Maximum torque (N.m/rpm) | 1674/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Ground specific pressure (Kpa) | 85.9 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 236 |
| Maximum tractive force (kN) | 236 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 12032 |
| Total transport width (mm) | 3724 |
| Total transport height (mm) | 4165 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 703(without tooth height) |
| Back end turning radius (mm) | 3665 |
| Total track length (mm) | 5220 |
| Track gauge (mm) | 2392/2890 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 11631 |
| Maximum digging depth (mm) | 7337 |
| Maximum excavation height (mm) | 10675 |
| Maximum unloading height (mm) | 7409 |
| Maximum vertical digging depth (mm) | 5225 |
