Product Description
Proven performance meets long-term value in this 2023 XCMG XE500C excavator, currently located in Baoding, Hebei. With a 50-ton operating weight and robust Cummins QSM11 engine delivering 250kW at 2100rpm, this machine tackles demanding earthmoving projects with 284kN bucket digging force and an impressive 11,631mm maximum reach. XCMG's position as China's leading construction equipment manufacturer ensures exceptional parts availability and dealer support across global markets—critical factors when investing in used machinery.
- Bucket Capacity: 2.1-2.5m³ with backhoe configuration
- Maximum Digging Depth: 7,337mm for deep excavation work
- Hydraulic System: Dual 360L/min main pumps for responsive operation
- Travel Speed: 5.4km/h high range, 3.2km/h low range
- Fuel Efficiency: 725L tank capacity for extended runtime
XCMG equipment maintains strong resale value due to widespread brand recognition and standardized components. Replacement parts ship quickly from established distribution networks, minimizing downtime costs. This XE500C represents a strategic acquisition for contractors
| Specifications | Value |
|---|---|
| No. | 1024365 |
| Tonnage (tons) | 50 |
| Working weight (kg) | 47300 |
| Bucket capacity (m³) | 2.1 ~ 2.5 |
| Boom length (mm) | 7060 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

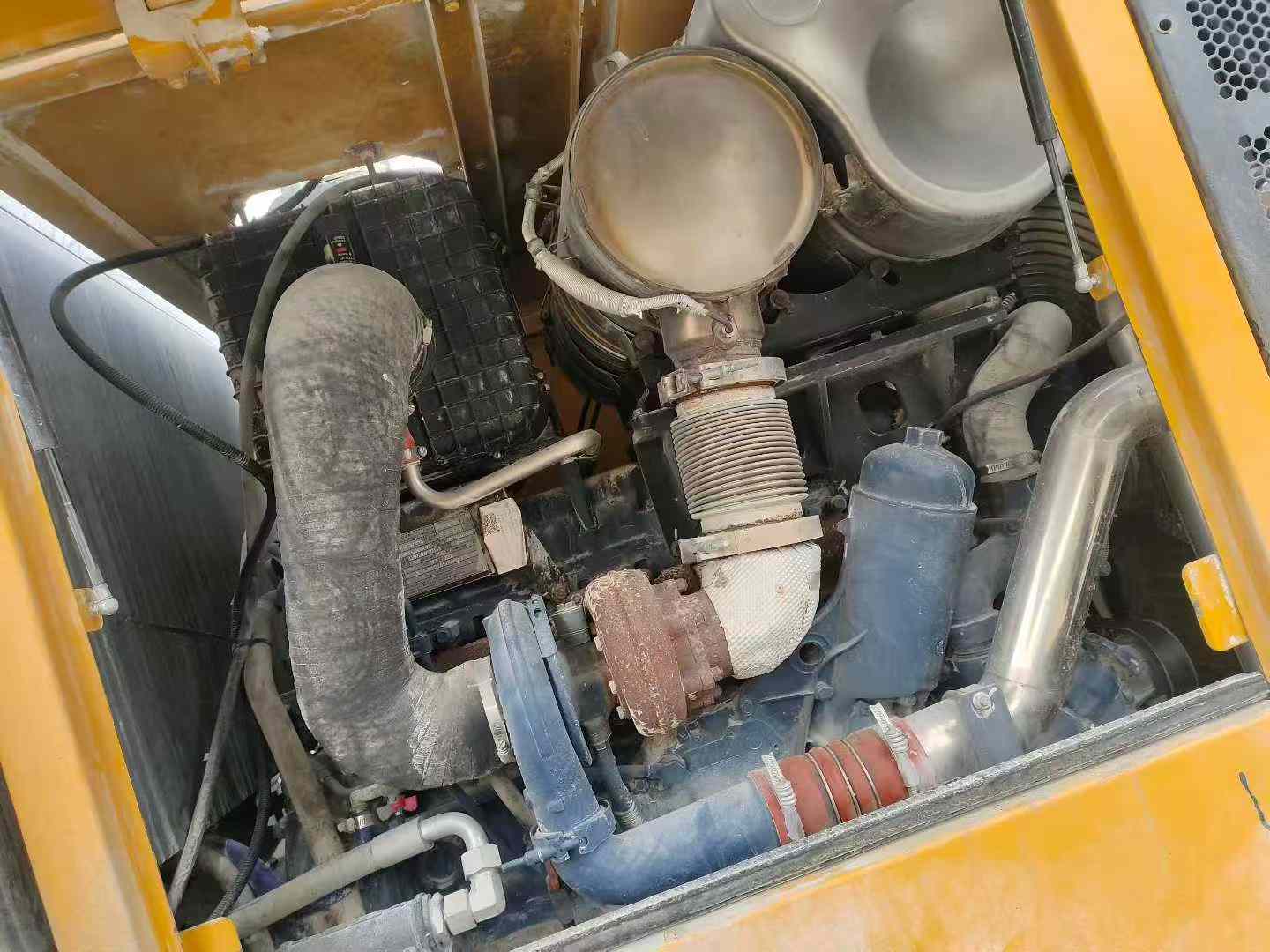

| Engine type | Cummins QSM11 |
| Rated power (kw/rpm) | 250/2100 |
| Maximum torque (N.m/rpm) | 1674/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 11 |
| Ground specific pressure (Kpa) | 85.9 |
| Rotation speed (rpm) | 9 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 284 |
| Rod digging force (kN) | 236 |
| Maximum tractive force (kN) | 236 |
| Travel speed (km/h) | 5.4/3.2 |
| Maximum flow of main pump (l/min) | 2 x 360 |
| Traveling Hydraulic Circuit (Mpa) | 34.3 |
| Rotary Hydraulic Circuit (Mpa) | 28.4 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 38 |
| Total transport length (mm) | 12032 |
| Total transport width (mm) | 3724 |
| Total transport height (mm) | 4165 |
| Counterweight ground clearance (mm) | 1360 |
| Minimum ground clearance (mm) | 703(without tooth height) |
| Back end turning radius (mm) | 3665 |
| Total track length (mm) | 5220 |
| Track gauge (mm) | 2392/2890 |
| Total track width (mm) | 600 |
| Maximum digging radius (mm) | 11631 |
| Maximum digging depth (mm) | 7337 |
| Maximum excavation height (mm) | 10675 |
| Maximum unloading height (mm) | 7409 |
| Maximum vertical digging depth (mm) | 5225 |
