Product Description

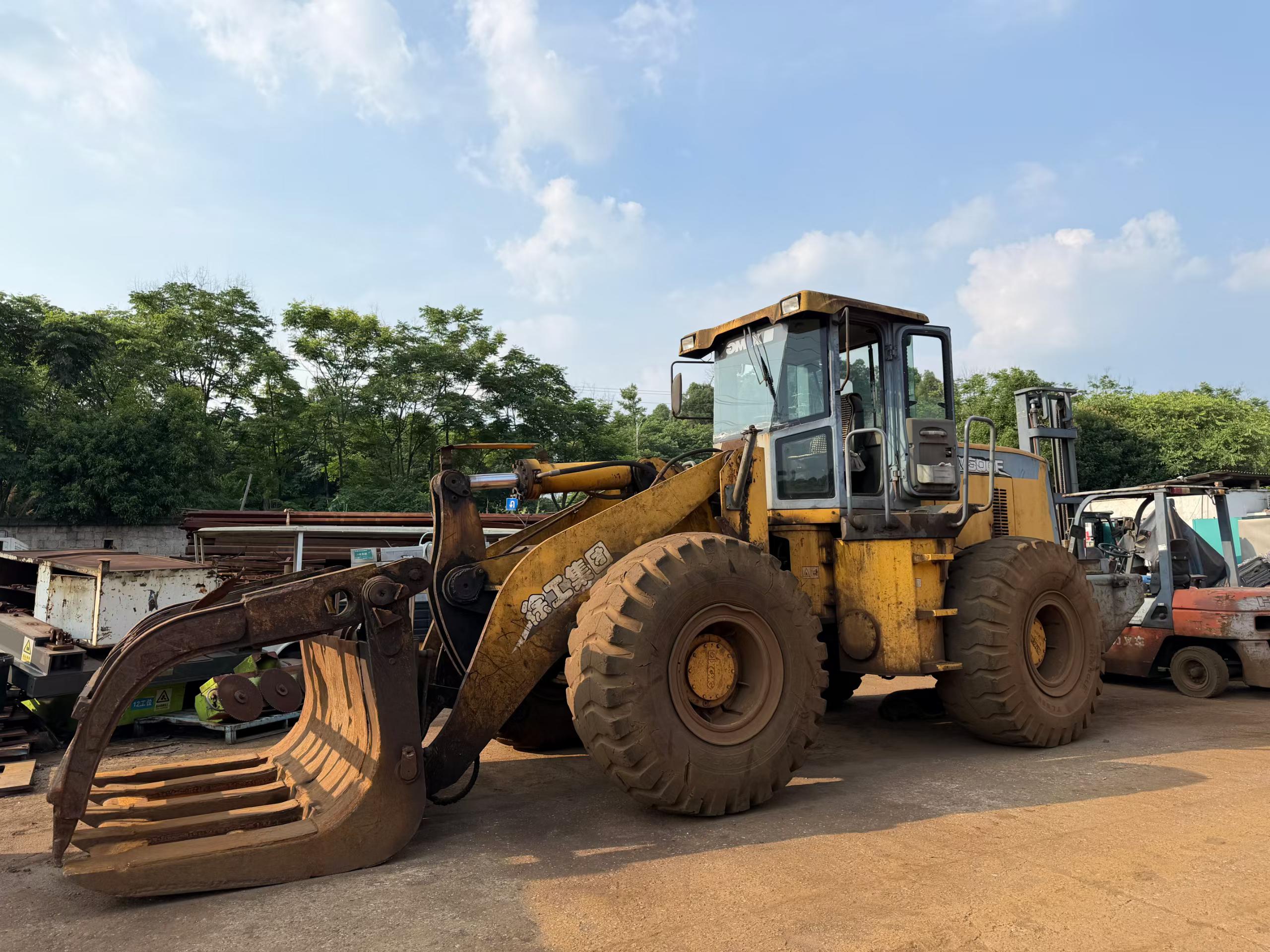

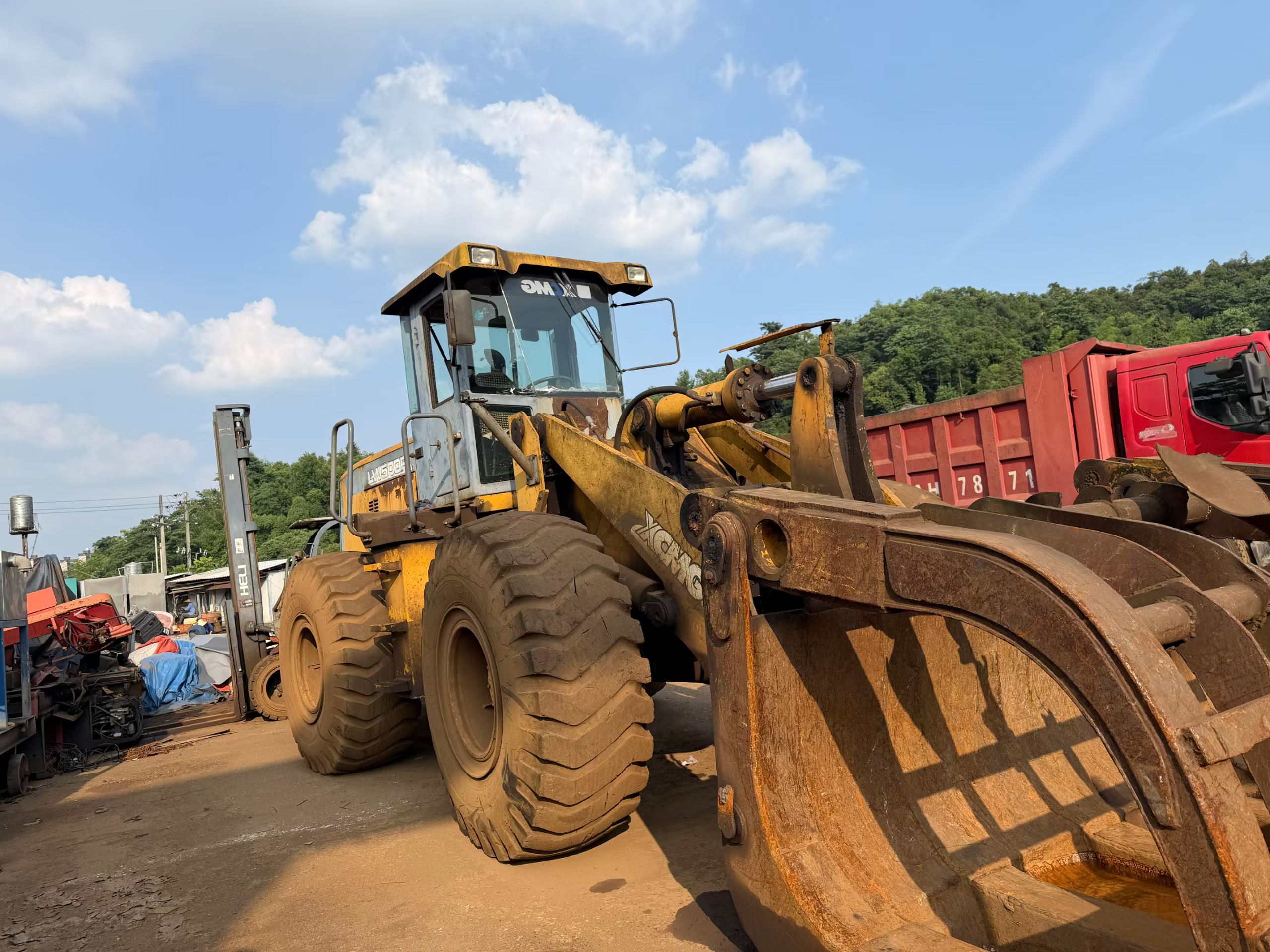

This 2014 XCMG XE50C log loader represents a practical solution for timber handling operations. Currently located in Hunan, China, this specialized material handler has been maintained without major overhauls, ensuring reliable performance for demanding forestry and lumber yard applications.

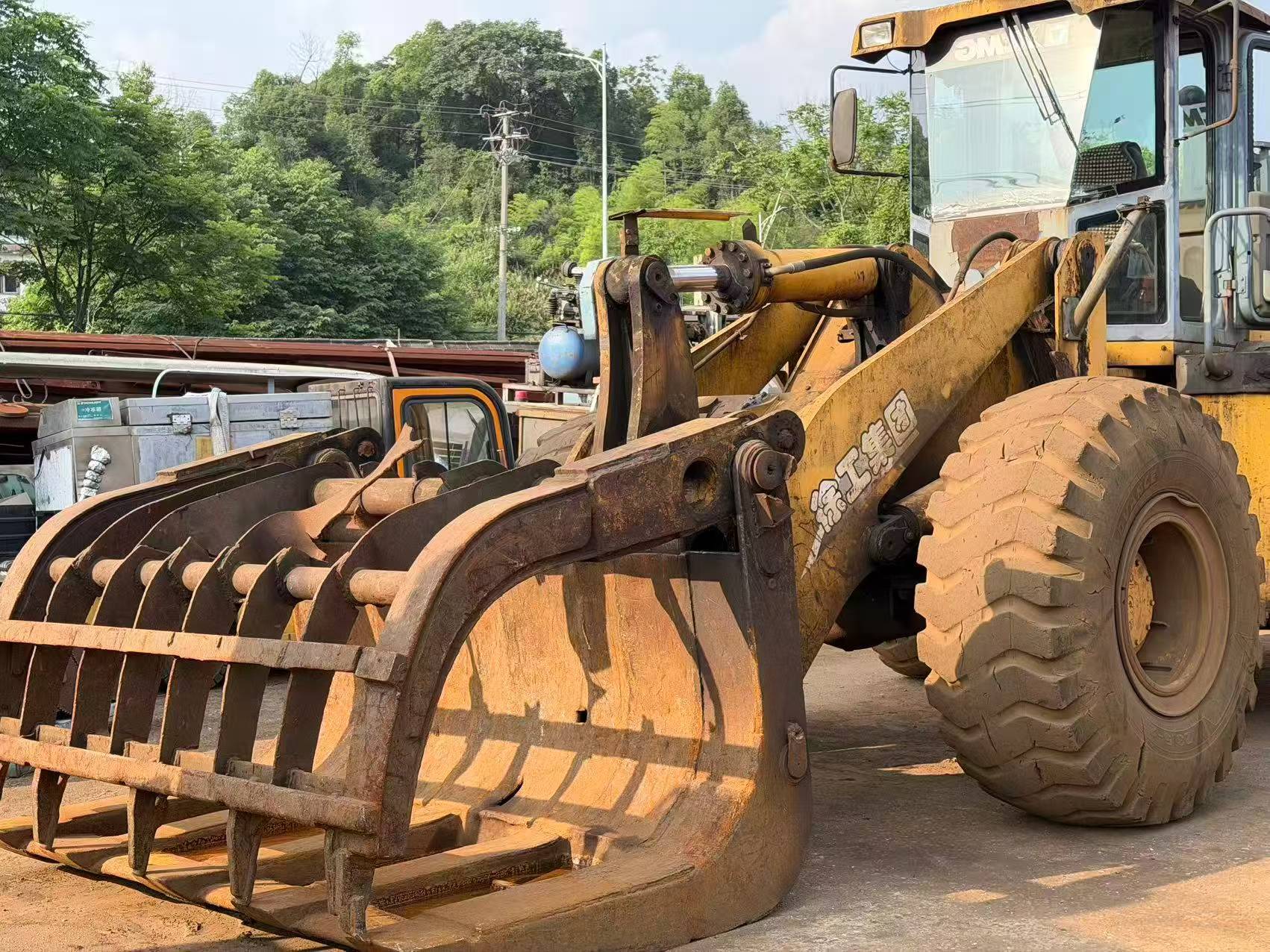

The machine features durable, wear-resistant timber grapples designed for sustained use in log handling environments. Hydraulic systems operate smoothly, providing consistent performance across various loading and unloading tasks. This equipment is well-suited for lumber yards, forestry sites, and scrap material handling operations.
- Year: 2014
- Model: XCMG XE50C
- Type: Log Loader
- Condition: No major repairs reported
- Features: Heavy-duty timber grapples, smooth hydraulic operation
- Location: Hunan, China
Competitively priced for immediate deployment. Inspection available upon request for serious buyers requiring timber handling equipment.
| Specifications | Value |
|---|---|
| No. | 1086648 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5030 |
| Bucket capacity (m³) | 0.18 |
| Boom length (mm) | 2795 |
| Rod length (mm) | 1600 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 4TNV88-SYY |
| Rated power (kw/rpm) | 27.6/2200 |
| Maximum torque (N.m/rpm) | 142/1320 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.19 |
| Ground specific pressure (Kpa) | 29.5 |
| Rotation speed (rpm) | 13.5 |
| Climbing ability (%) | 30 ° |
| Bucket digging force (kN) | 23.2 |
| Rod digging force (kN) | 19.3 |
| Maximum tractive force (kN) | 47.7 |
| Travel speed (km/h) | 4.2/2.6 |
| Maximum flow of main pump (l/min) | 1 x 110 + 11 |
| Traveling Hydraulic Circuit (Mpa) | 21 |
| Rotary Hydraulic Circuit (Mpa) | 16.7 |
| Pilot Oil Circuit (MPa) | 3.9 |
| Fuel Tank (L) | 65 |
| Hydraulic Tank (L) | 70 |
| Engine Oil changes (L) | 7.4 |
| Total transport length (mm) | 5475 |
| Total transport width (mm) | 1800 |
| Total transport height (mm) | 2540 |
| Counterweight ground clearance (mm) | 675 |
| Minimum ground clearance (mm) | 381 |
| Back end turning radius (mm) | 1490 |
| Track gauge (mm) | 1400 |
| Total track width (mm) | 400 |
| Maximum digging radius (mm) | 5810 |
| Maximum digging depth (mm) | 3555 |
| Maximum excavation height (mm) | 5412 |
| Maximum unloading height (mm) | 3788 |
| Maximum vertical digging depth (mm) | 3115 |
| Bulldozer lift or depth (mm) | 718/560 |
| Dodging plate width × height (mm) | 1800/340 |
