Product Description
Backed by China's largest construction machinery manufacturer, this 2016 XCMG XE550DK excavator delivers proven reliability in the 55-ton class. Powered by a robust Perkins 2206 III N engine generating 309.5 kW at 2100 rpm, this machine combines exceptional digging force (330 kN bucket, 255 kN arm) with efficient hydraulics featuring dual 360 L/min main pumps. XCMG's global parts network ensures minimal downtime, while strong aftermarket demand protects your investment.
- Brand Advantage: XCMG parts readily available worldwide with competitive pricing
- Power Unit: Perkins 2206 III N, 6-cylinder, 13L displacement, 1896 N·m max torque
- Performance: 370 kN maximum tractive force, 9.2 rpm rotation speed
- Capacity: 725L fuel tank, 430L hydraulic reservoir for extended operation
- Dimensions: 11,870mm transport length, 3,572mm width, 600mm track plates
- Location: Xinyu, Jiangxi, China—ready for international shipping
Operating weight of 51,200 kg provides stability for demanding applications. XCMG's reputation for durability and strong resale values makes this XE550DK a sou
| Specifications | Value |
|---|---|
| No. | 1030944 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51200 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Perkins 2206 III N |
| Rated power (kw/rpm) | 309.5/2100 |
| Maximum torque (N.m) | 1896/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 13 |
| Ground specific pressure (Kpa) | 88 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 330 |
| Rod digging force (kN) | 255 |
| Maximum tractive force (kN) | 370 |
| Travel speed (km/h) | 5.2/2.9 |

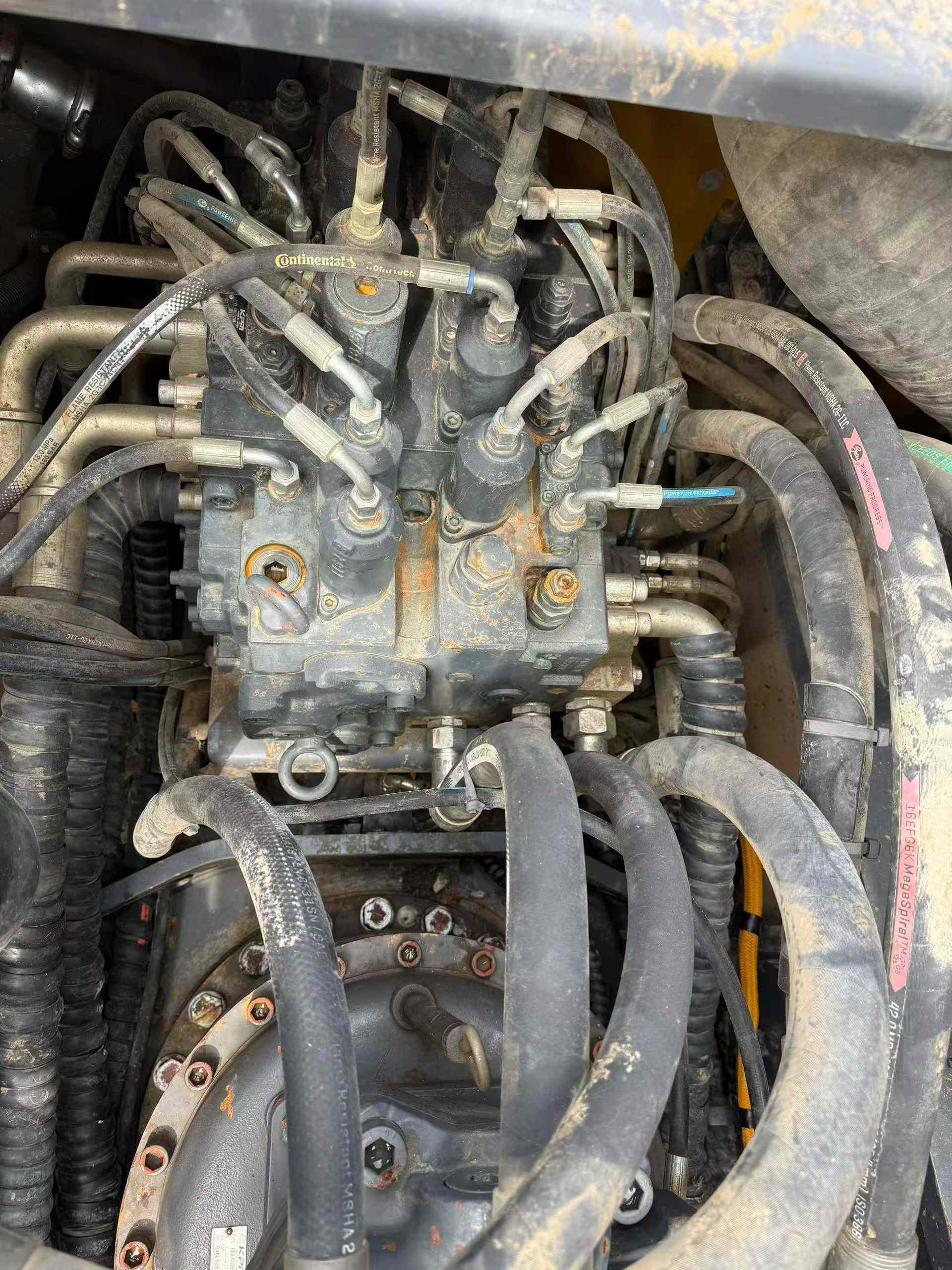

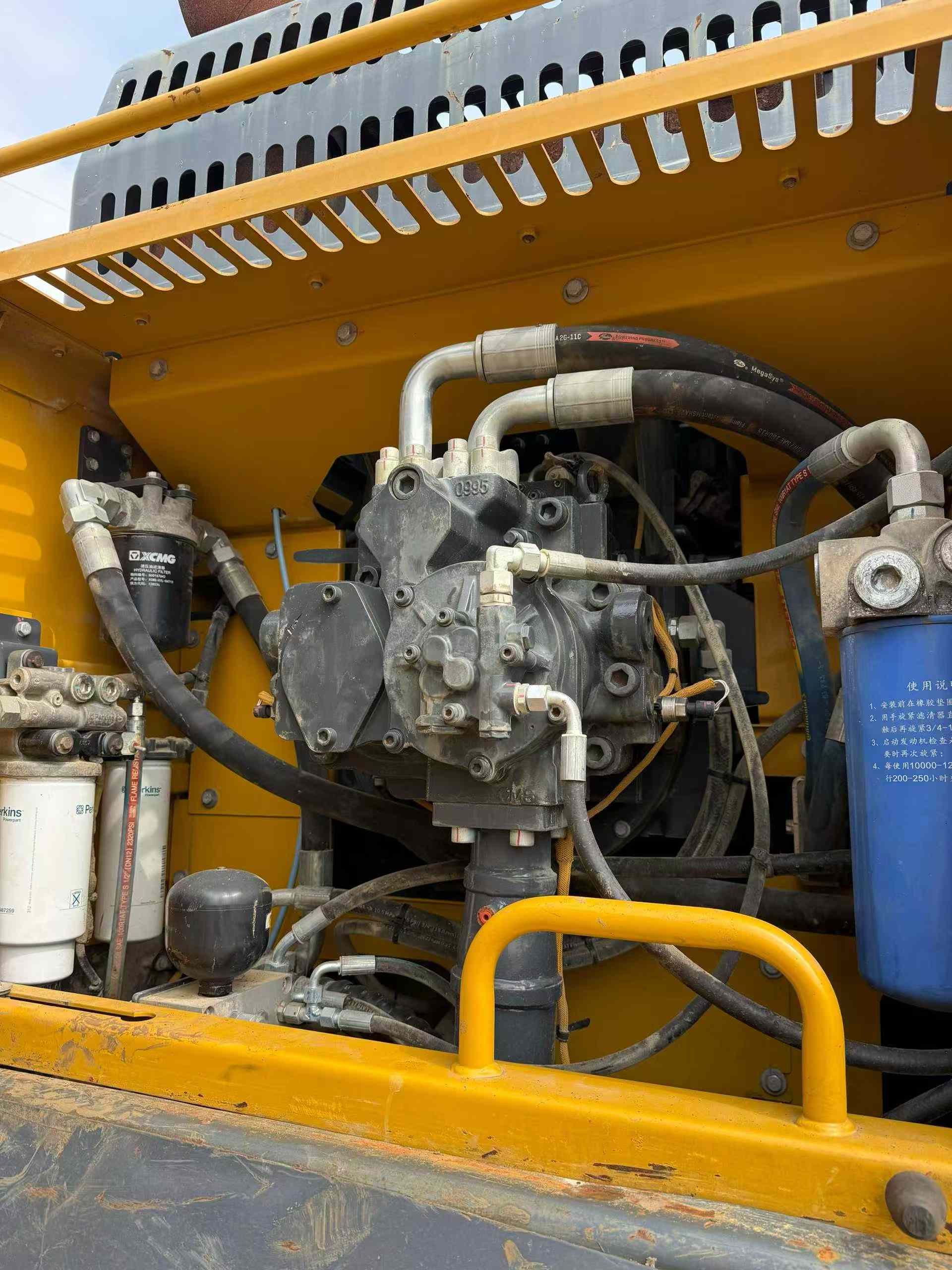

| Maximum flow of main pump (l/min) | 2*360 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 42 |
| Total transport length (mm) | 11870 |
| Total transport width (mm) | 3572 |
| Total transport height (mm) | 4100 |
| Counterweight ground clearance (mm) | 1353 |
| Minimum ground clearance (mm) | 518 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |

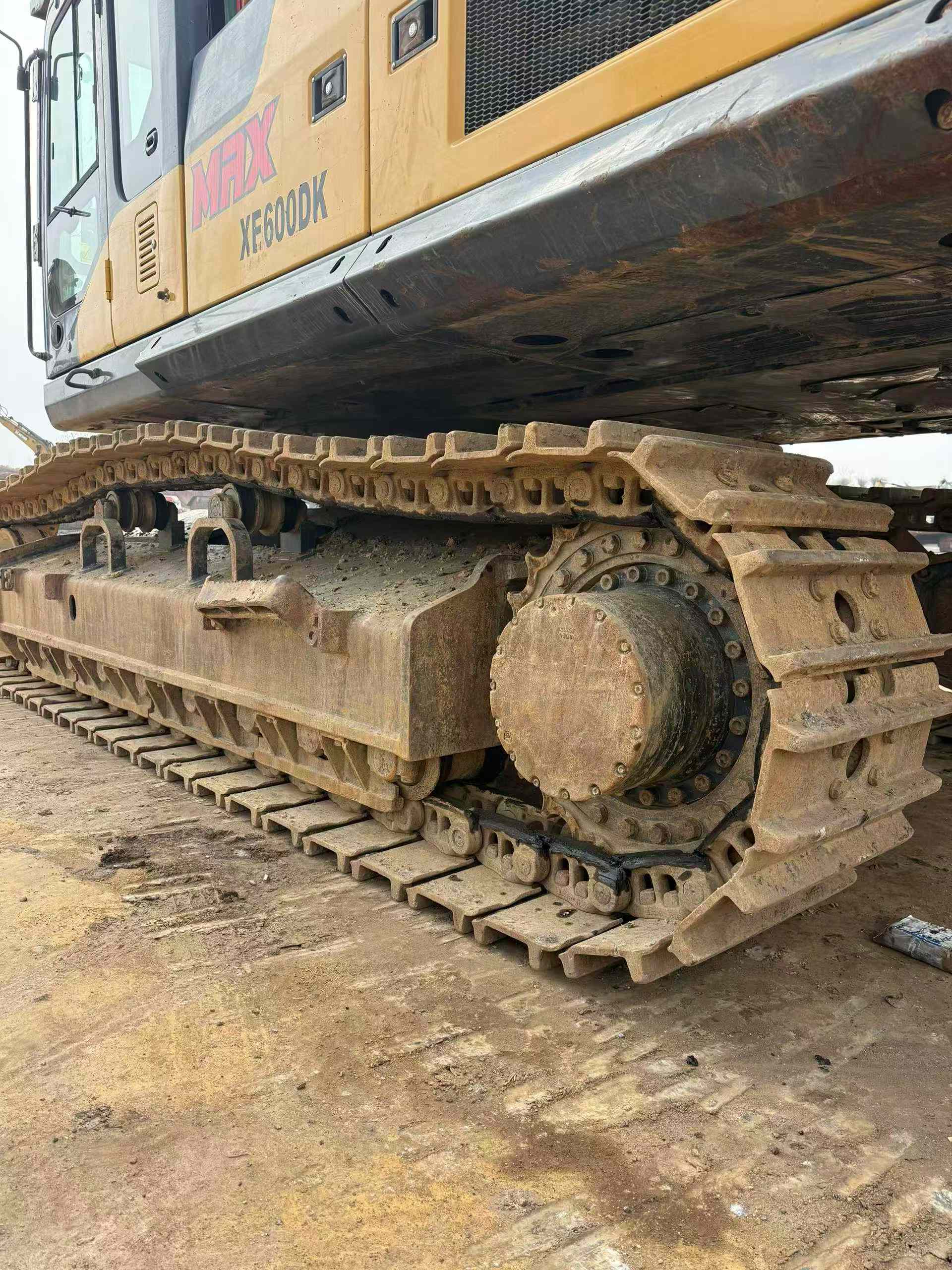

| Track plate width (mm) | 600 |
