Product Description

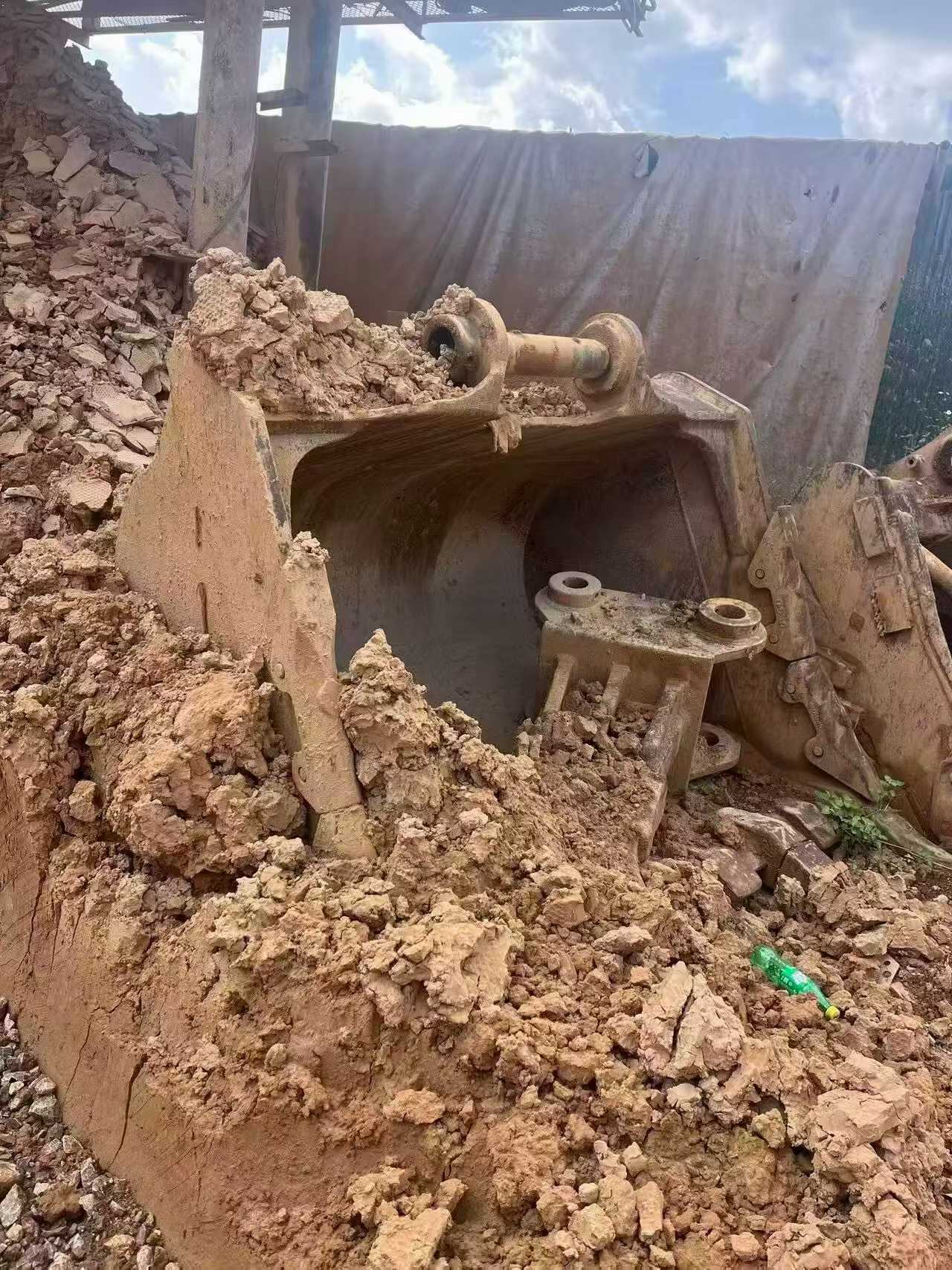

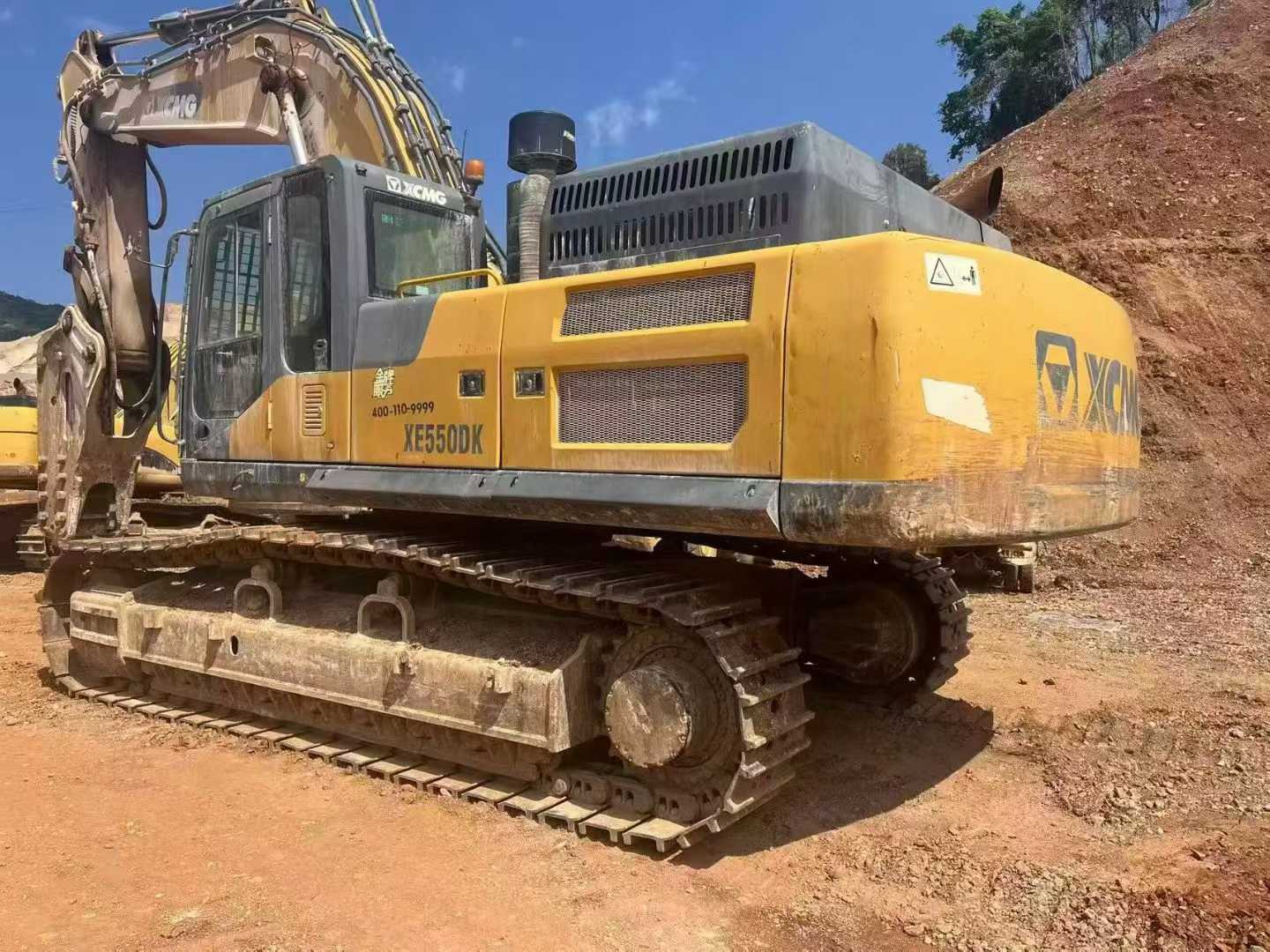

With a robust 55-ton capacity, the XCMG XE550DK is a powerhouse for demanding tasks. Located in 云南昆明, this excavator is site-ready, equipped with a Perkins 2206 III N engine delivering 309.5 kW at 2100 rpm. Its 6550 mm boom and 2550 mm rod provide extensive reach for deep digging and grading. The backhoe bucket, combined with 330 kN of bucket digging force and 255 kN of rod digging force, ensures efficient excavation. This machine offers a maximum tractive force of 370 kN, making it ideal for tough demolition jobs. Traveling at up to 5.2 km/h, it navigates sites with ease. The hydraulic system, powered by a 2*360 l/min main pump, supports smooth and powerful operations. With a 725 L fuel tank, it's designed for long hours on the job without frequent refueling. Ready to work immediately, the XE550DK is your reliable partner for any construction challenge.
| Specifications | Value |
|---|---|
| No. | 1023116 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51200 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

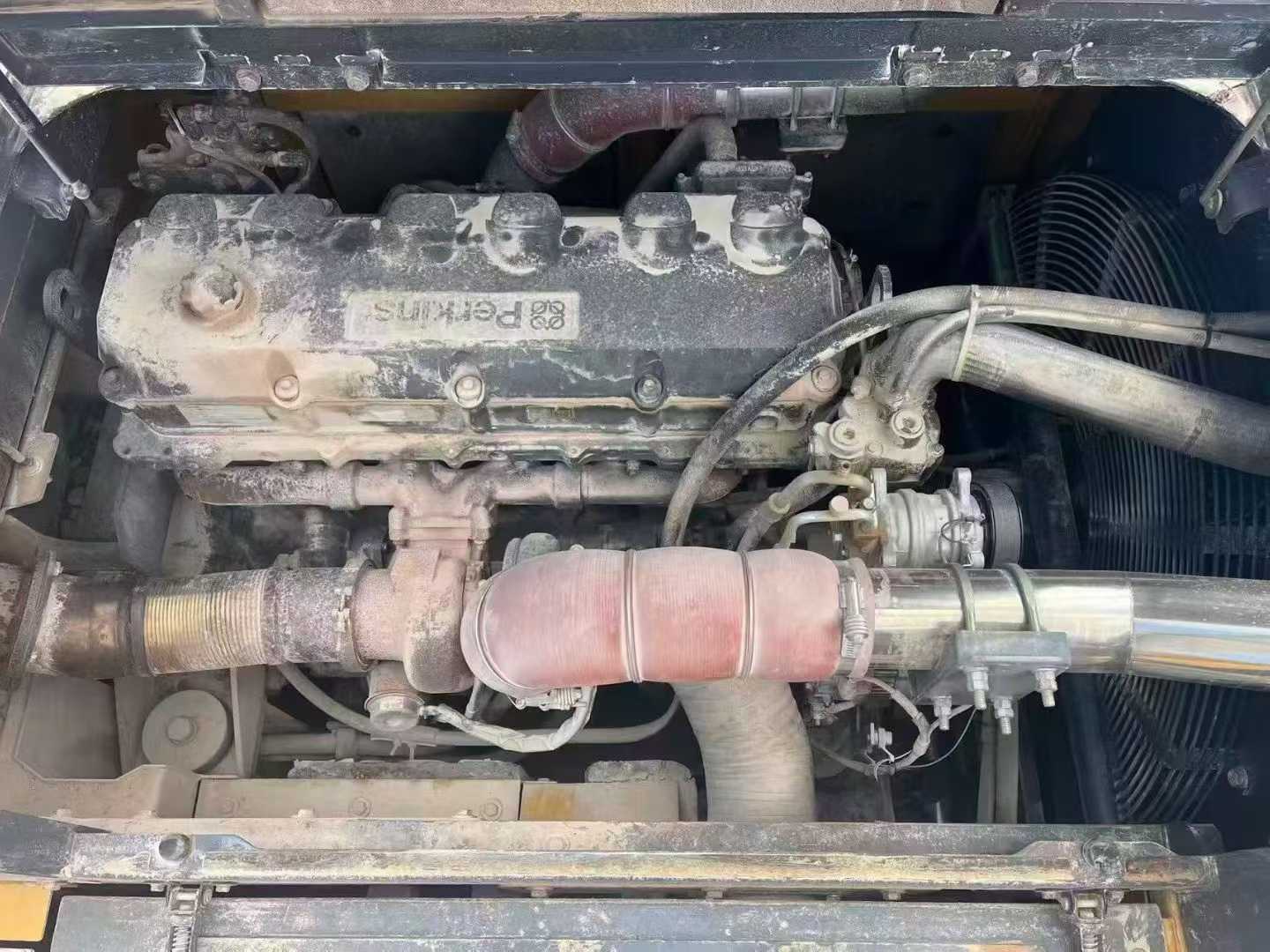

| Engine type | Perkins 2206 III N |
| Rated power (kw/rpm) | 309.5/2100 |
| Maximum torque (N.m) | 1896/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 13 |
| Ground specific pressure (Kpa) | 88 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 330 |
| Rod digging force (kN) | 255 |
| Maximum tractive force (kN) | 370 |
| Travel speed (km/h) | 5.2/2.9 |

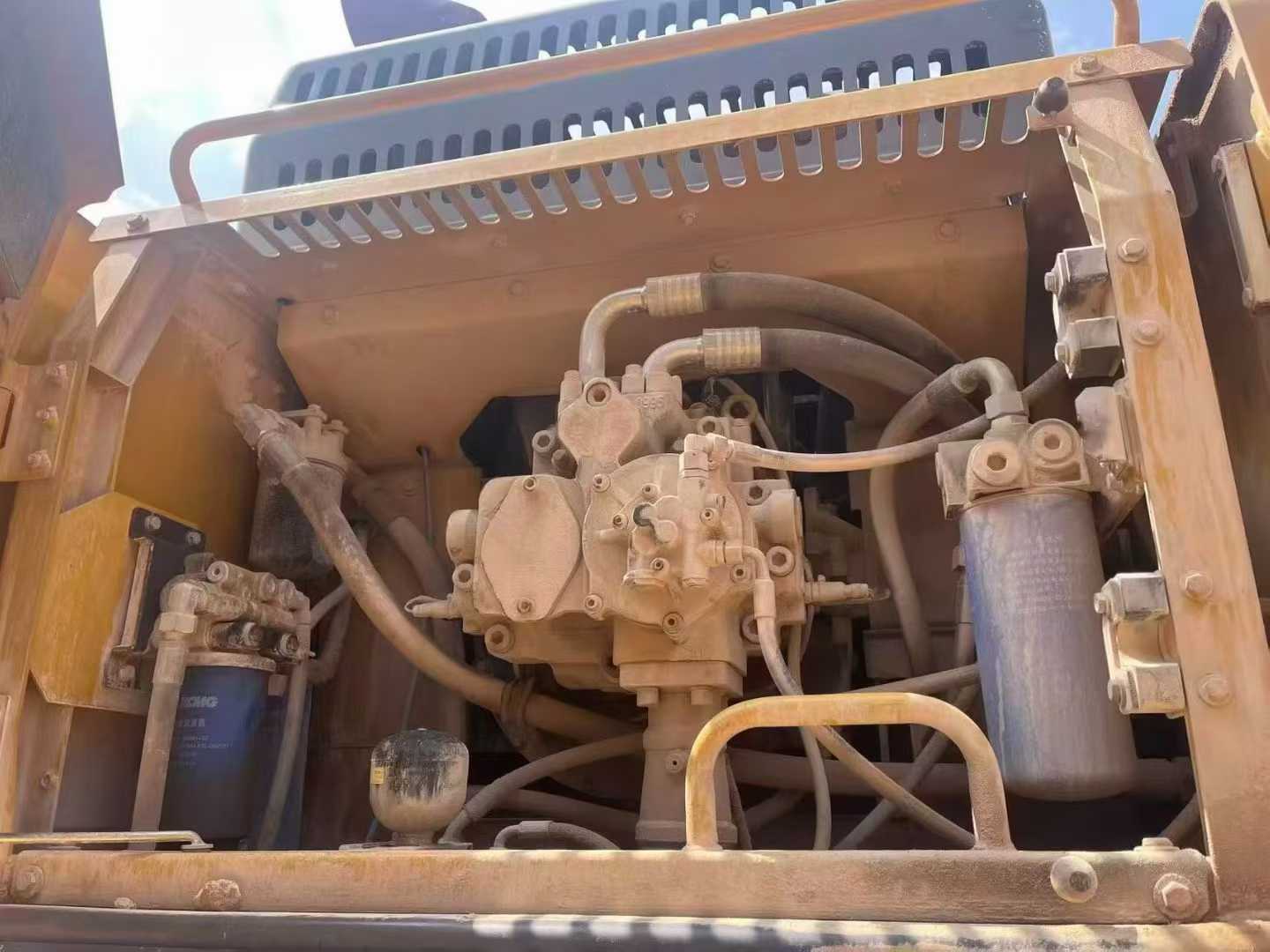

| Maximum flow of main pump (l/min) | 2*360 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 42 |
| Total transport length (mm) | 11870 |
| Total transport width (mm) | 3572 |
| Total transport height (mm) | 4100 |
| Counterweight ground clearance (mm) | 1353 |
| Minimum ground clearance (mm) | 518 |
| Back end turning radius (mm) | 3800 |

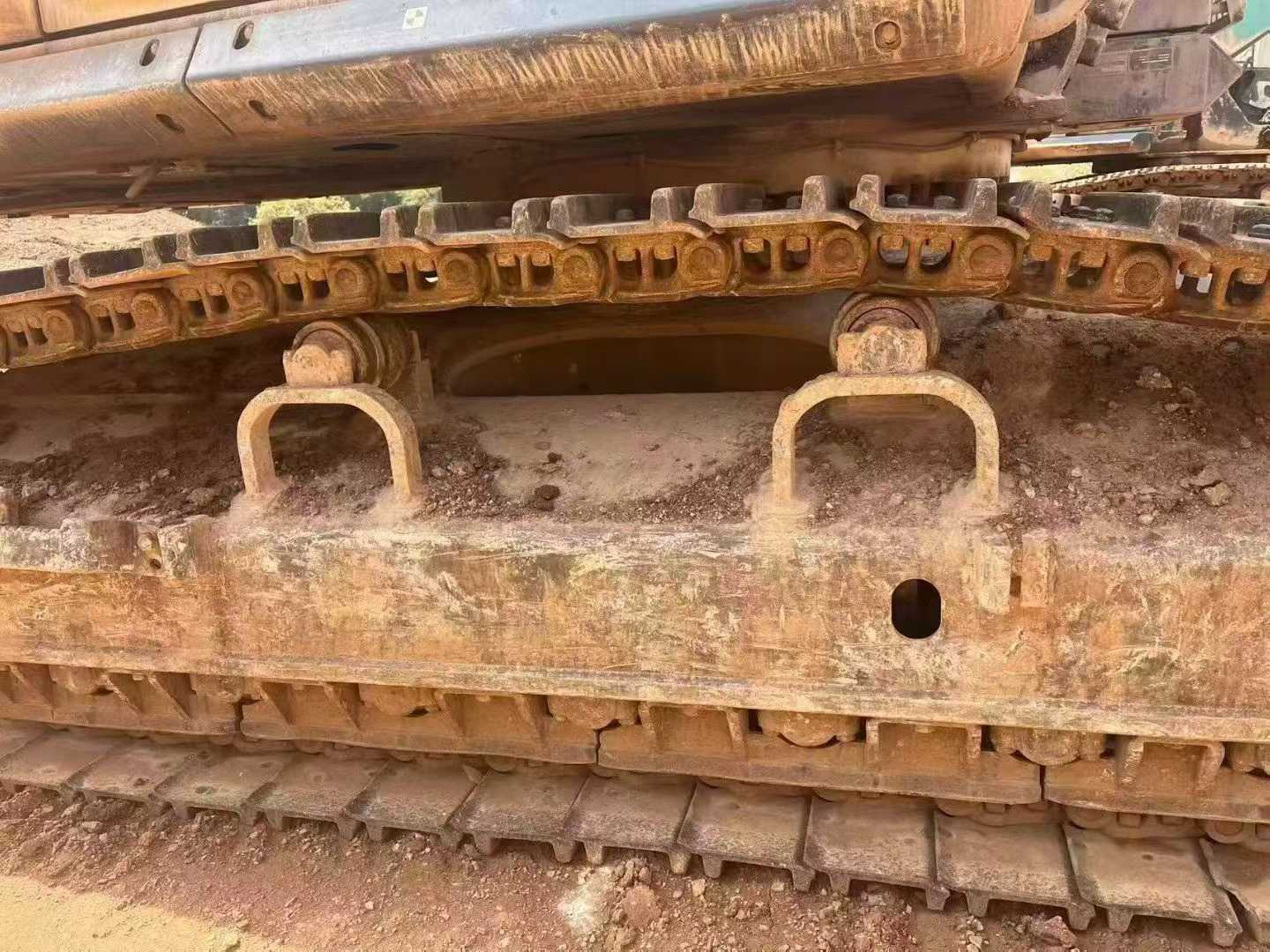

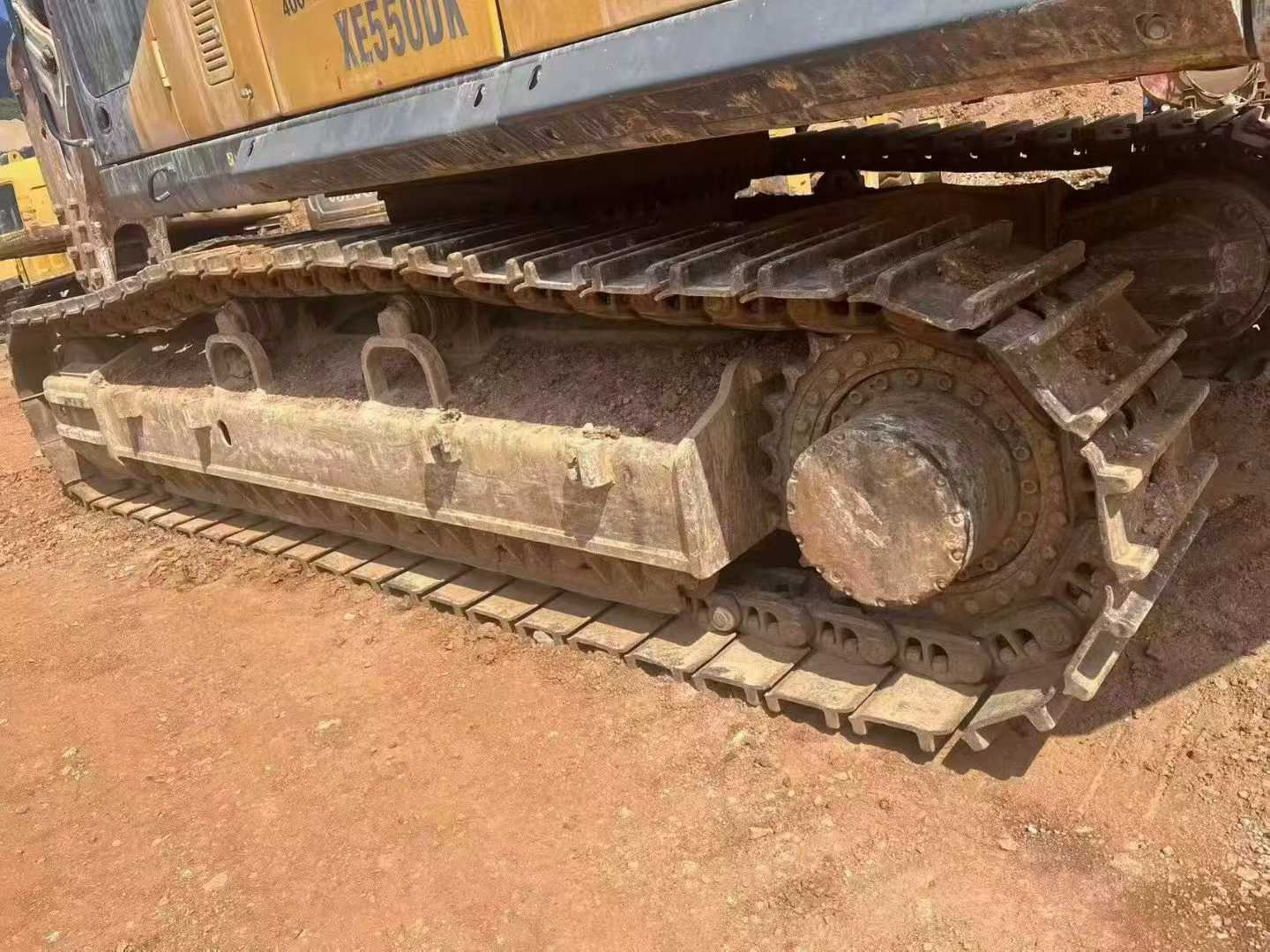

| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
