Product Description

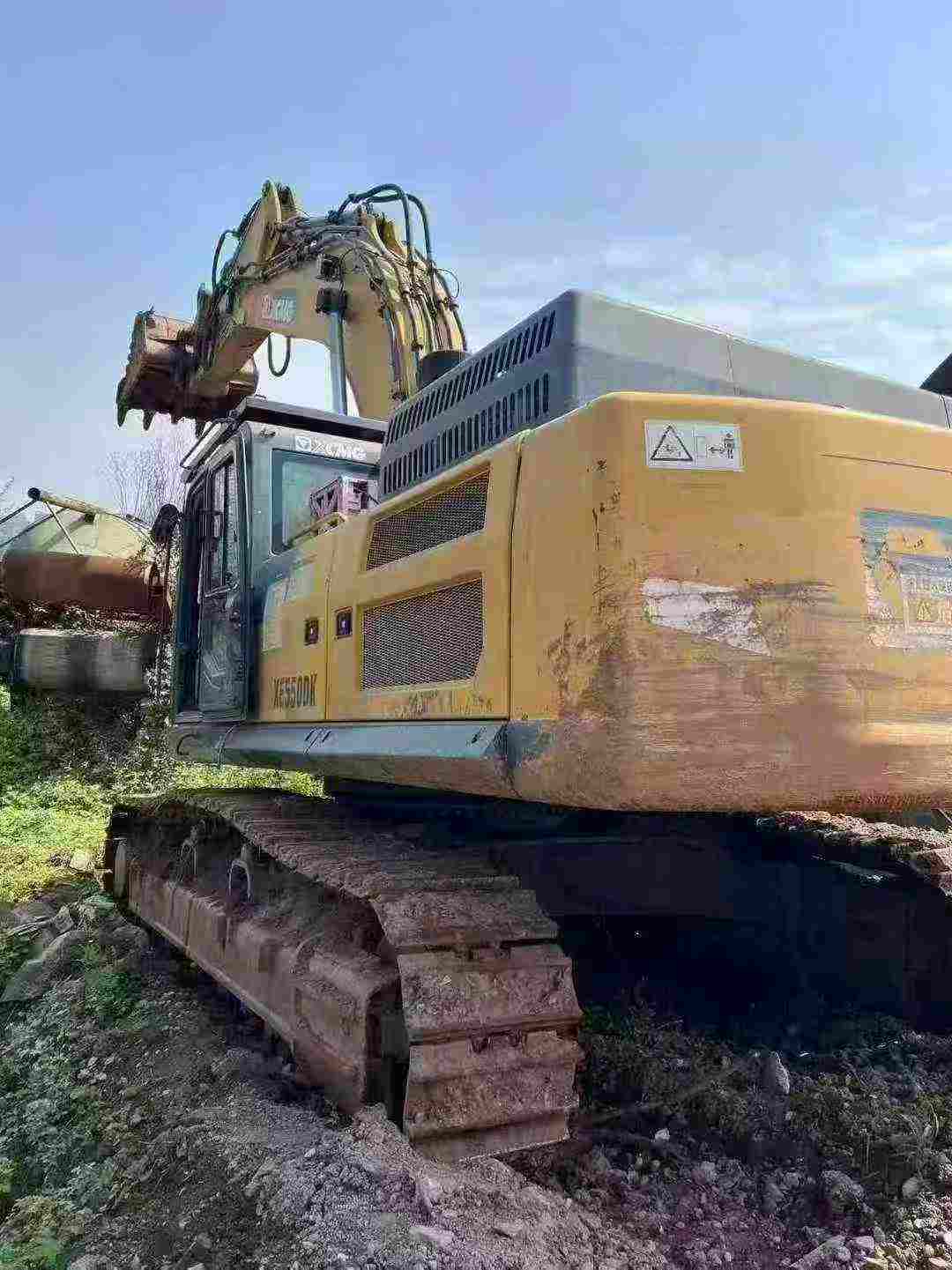

Available now from our Luzhou, Sichuan facility, this 2020 XCMG XE550DK 55-ton excavator eliminates factory wait times and delivers immediate productivity to your project. Powered by a robust Perkins 2206 III N engine generating 309.5 kW at 2100 rpm, this machine combines proven reliability with substantial digging force—330 kN bucket capacity and 255 kN stick force tackle demanding excavation work without hesitation.
Engineered for large-scale operations, the XE550DK features dual 360 L/min hydraulic pumps, a 6,550 mm boom, and 2,550 mm stick configuration. With 51,200 kg working weight and 88 kPa ground pressure, it balances power with site mobility. Fast deployment means you skip months of production delays—this unit ships directly from Luzhou to your worksite, ready for immediate commissioning.
- 55-ton class excavator with 309.5 kW Perkins diesel engine
- 330 kN bucket digging force for heavy earthmoving applications
- 725 L fuel tank and 430 L hydraulic reservoir for extended operation
- Currently located in Luzhou, Sichuan—immediate availability
- Complete transport dimensions: 11,870 mm × 3,572 mm × 4,100 mm
| Specifications | Value |
|---|---|
| No. | 1030561 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51200 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Perkins 2206 III N |
| Rated power (kw/rpm) | 309.5/2100 |
| Maximum torque (N.m) | 1896/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 13 |
| Ground specific pressure (Kpa) | 88 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 330 |
| Rod digging force (kN) | 255 |
| Maximum tractive force (kN) | 370 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 2*360 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 42 |
| Total transport length (mm) | 11870 |
| Total transport width (mm) | 3572 |
| Total transport height (mm) | 4100 |
| Counterweight ground clearance (mm) | 1353 |
| Minimum ground clearance (mm) | 518 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
