Product Description
Built for large-scale earthmoving, the 2020 XCMG XE550DK delivers 55-ton class performance at a fraction of new equipment cost. Powered by a Perkins 2206 III N engine producing 309.5 kW and 1,896 N·m of peak torque, this machine handles demanding excavation with a bucket digging force of 330 kN and a rod digging force of 255 kN — specs that rival brand-new units on the market today.

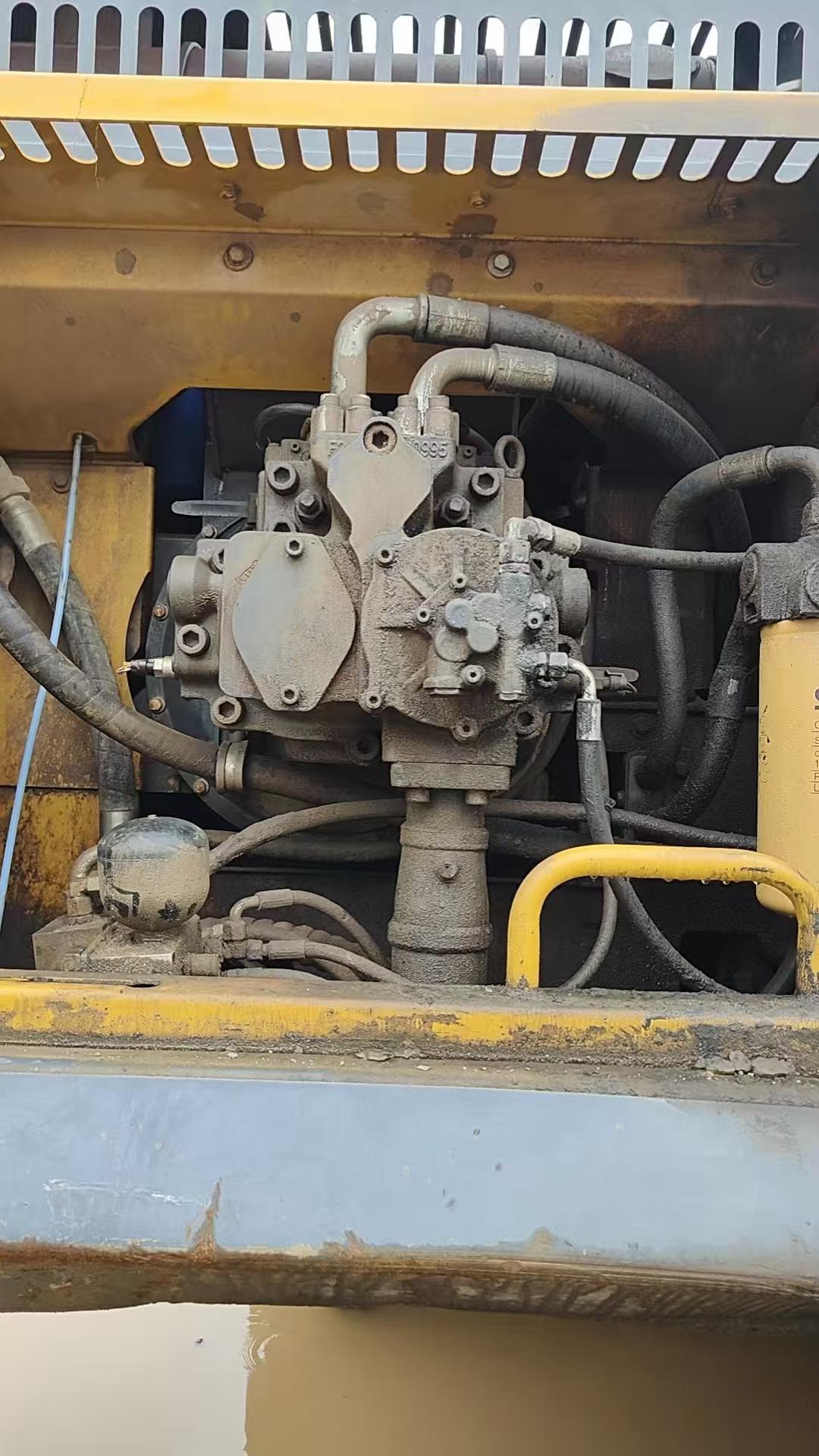

For contractors and fleet buyers seeking maximum return on capital, pre-owned heavy iron like this XE550DK makes hard financial sense. Low hours, proven German-engineered power, and full hydraulic capacity (2×360 L/min main pump flow) mean productivity from day one without the depreciation hit of buying new.
- Operating weight: 51,200 kg | Bucket digging force: 330 kN
- Engine: Perkins 2206 III N — 309.5 kW @ 2,100 rpm, 6-cylinder, 13L displacement
- Max tractive force: 370 kN | Travel speed: 5.2 / 2.9 km/h
- Fuel tank: 725 L | Hydraulic tank: 430 L
- Transport dimensions: 11,870 × 3,572 × 4,100 mm
- Track plate width: 600 mm | Track gauge: 2,740 mm
- Location: Guangdong, China — available for global export
| Specifications | Value |
|---|---|
| No. | 1077172 |
| Tonnage (tons) | 55 |
| Working weight (kg) | 51200 |
| Boom length (mm) | 6550 |
| Rod length (mm) | 2550 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Perkins 2206 III N |
| Rated power (kw/rpm) | 309.5/2100 |
| Maximum torque (N.m) | 1896/1400 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 13 |
| Ground specific pressure (Kpa) | 88 |
| Rotation speed (rpm) | 9.2 |
| Bucket digging force (kN) | 330 |
| Rod digging force (kN) | 255 |
| Maximum tractive force (kN) | 370 |
| Travel speed (km/h) | 5.2/2.9 |
| Maximum flow of main pump (l/min) | 2*360 |
| Fuel Tank (L) | 725 |
| Hydraulic Tank (L) | 430 |
| Engine Oil changes (L) | 42 |
| Total transport length (mm) | 11870 |
| Total transport width (mm) | 3572 |
| Total transport height (mm) | 4100 |
| Counterweight ground clearance (mm) | 1353 |
| Minimum ground clearance (mm) | 518 |
| Back end turning radius (mm) | 3800 |
| Total track length (mm) | 5470 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
