2021 XCMG XE550DK

1/7
Buy XCMG XE550DK Used Excavator / 1

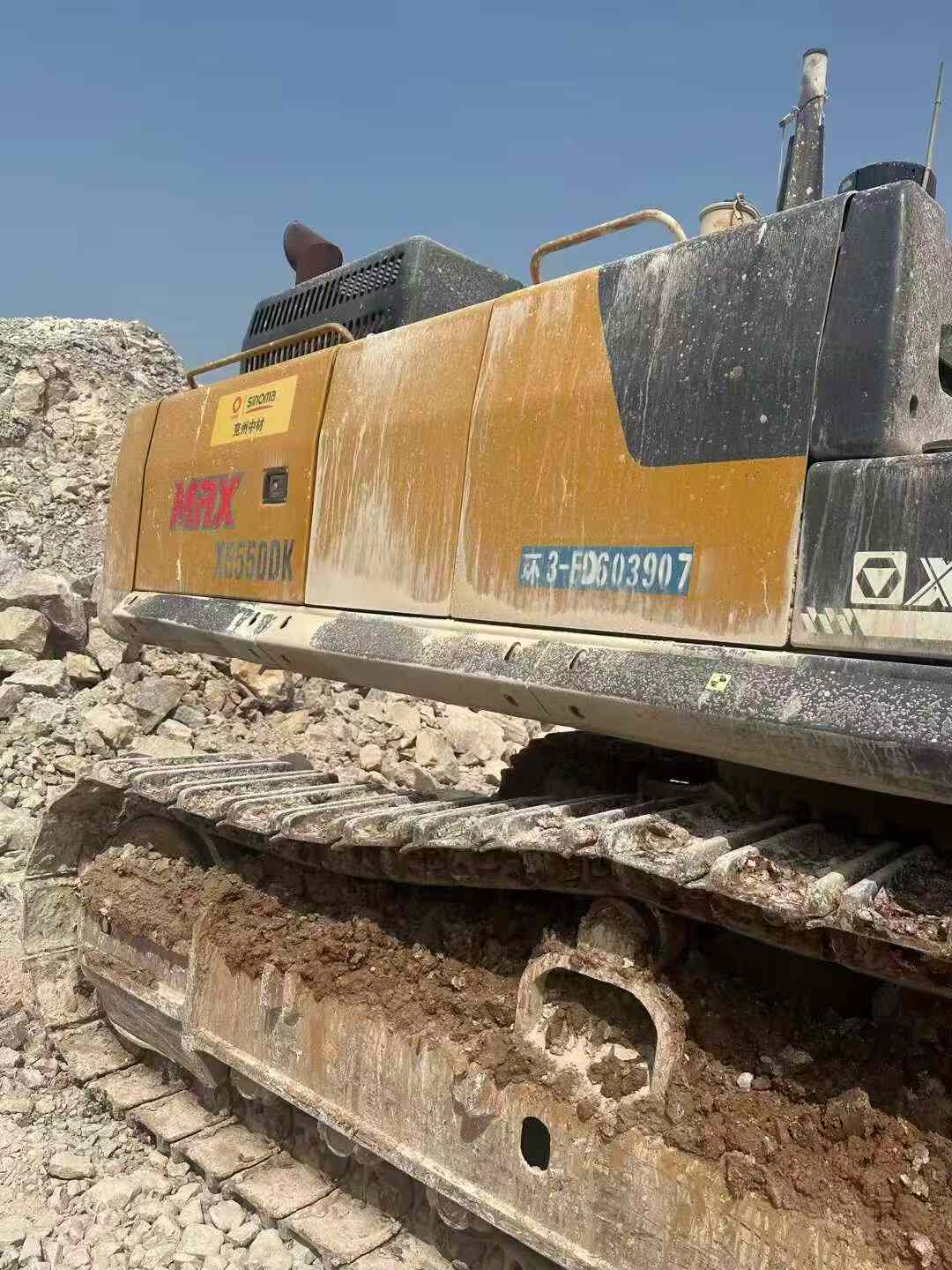

Buy XCMG XE550DK Used Excavator / 2

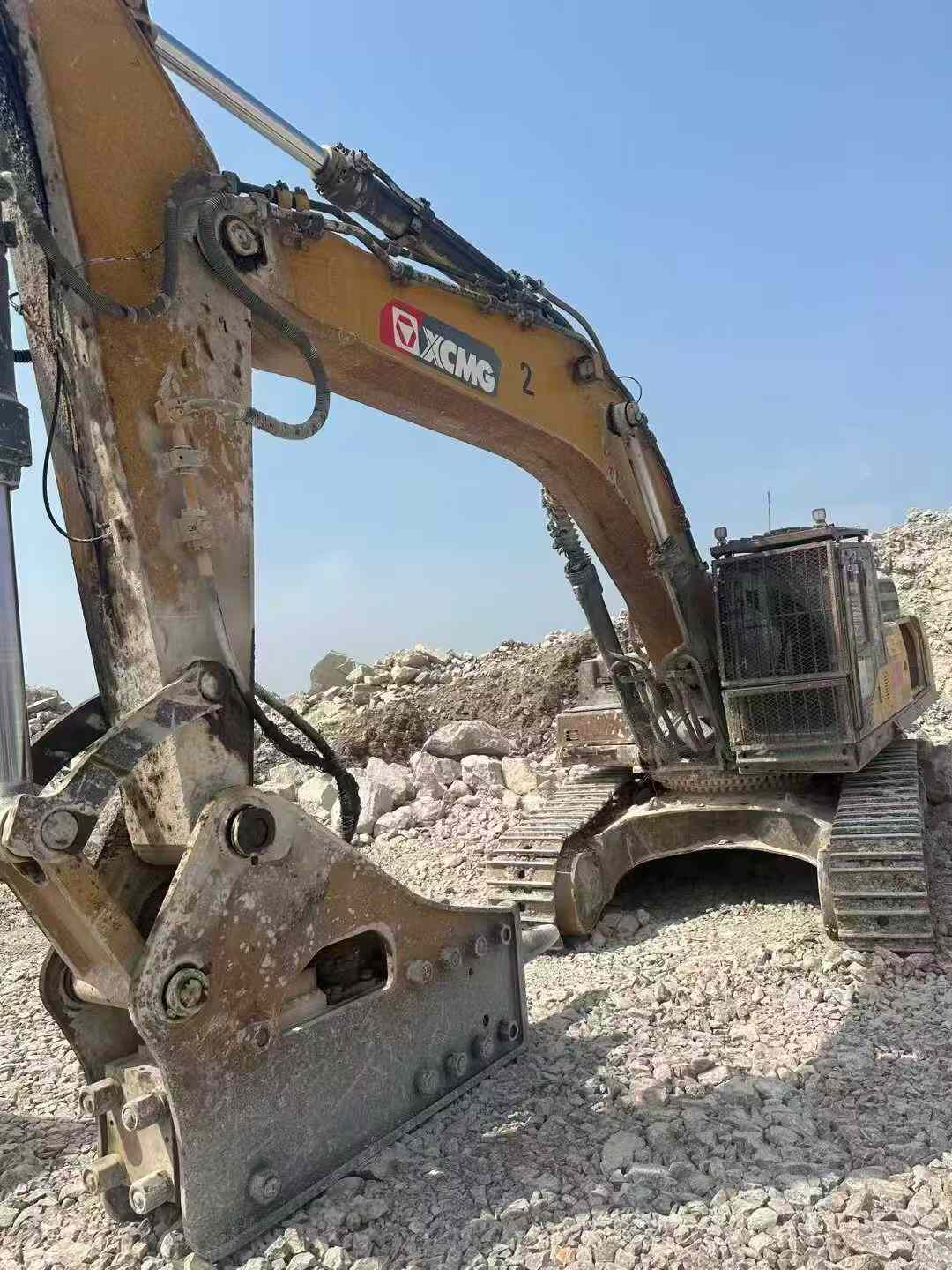

Buy XCMG XE550DK Used Excavator / 3

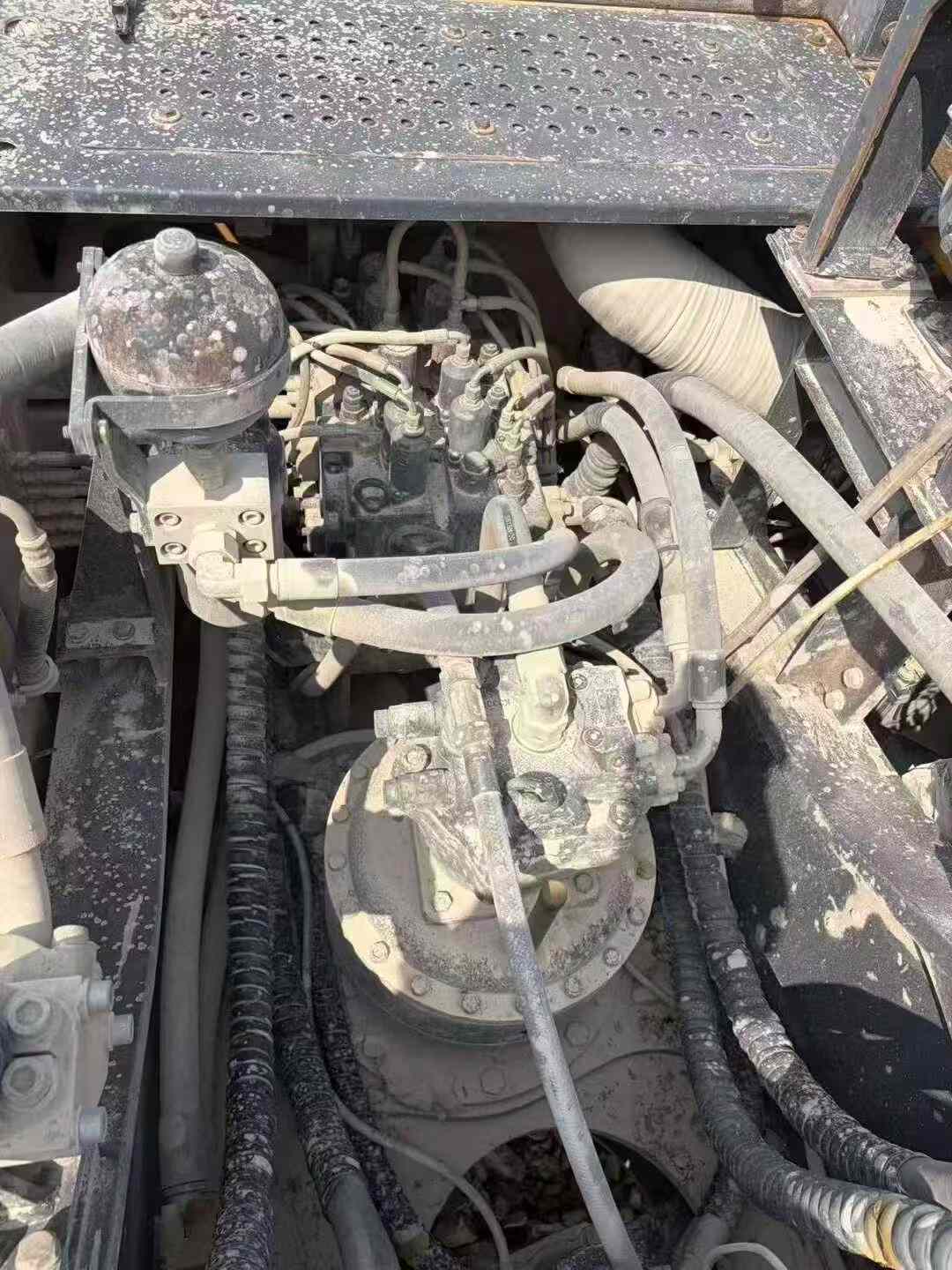

Buy XCMG XE550DK Used Excavator / 4

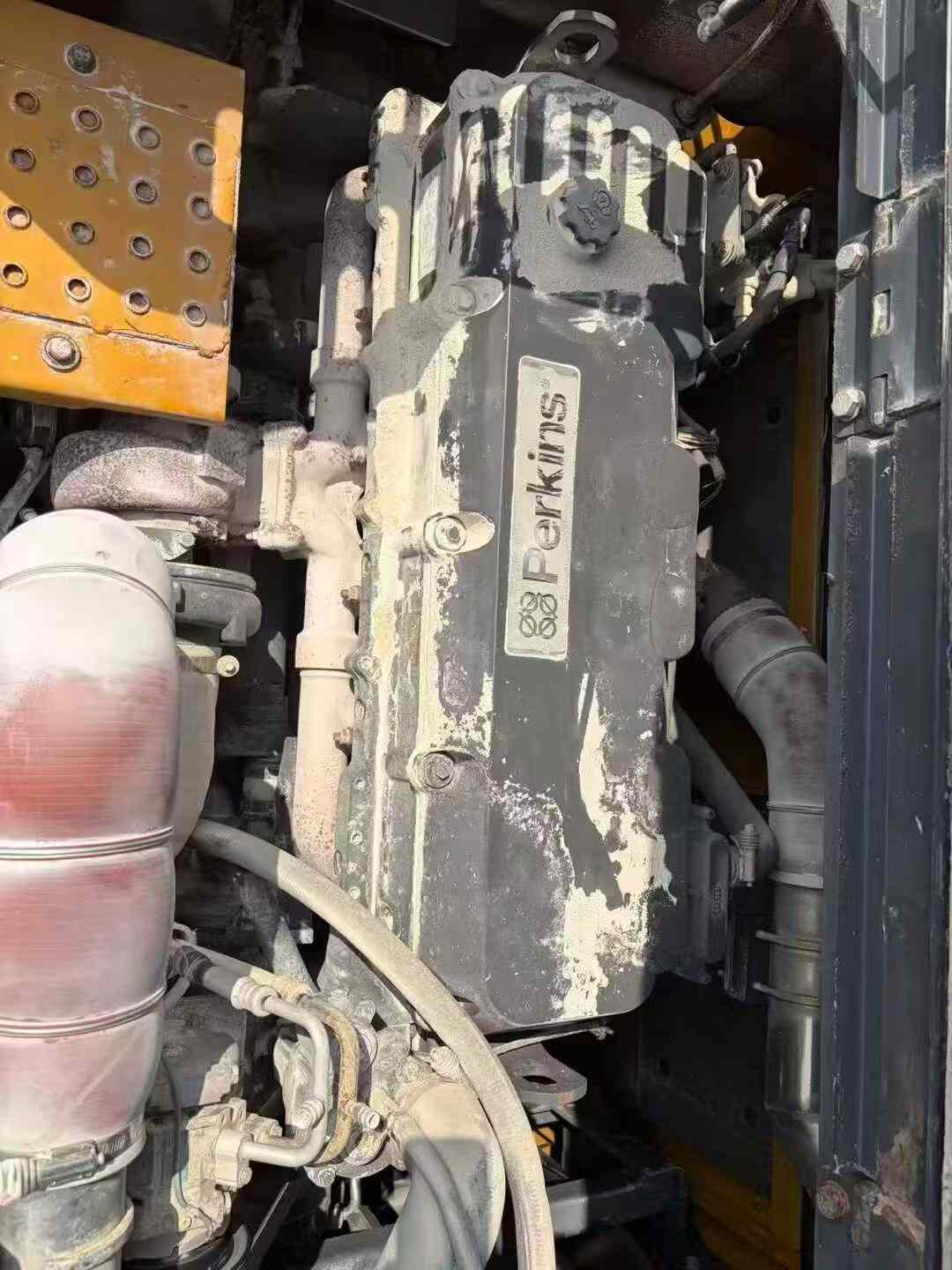

Buy XCMG XE550DK Used Excavator / 5

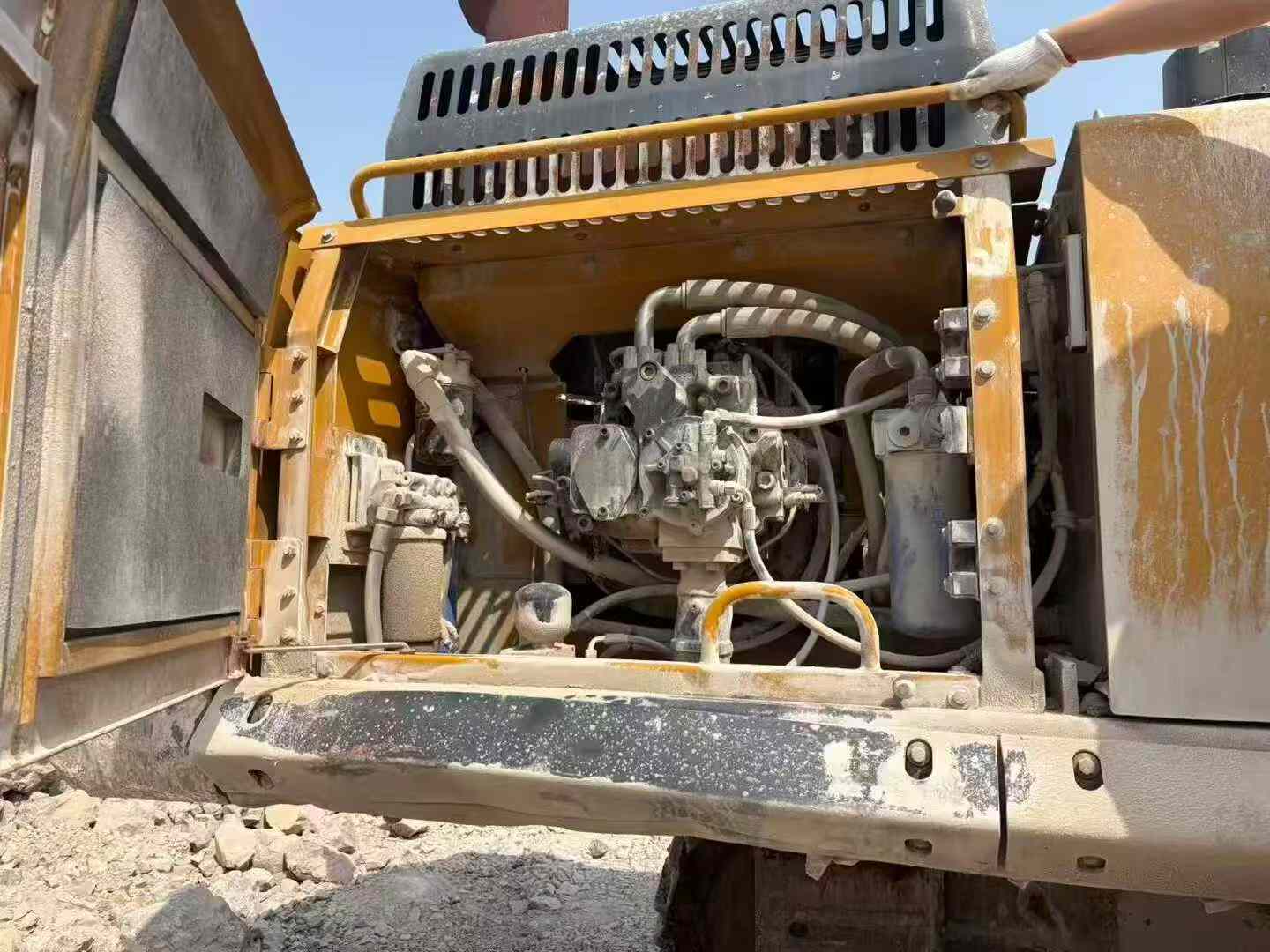

Buy XCMG XE550DK Used Excavator / 6

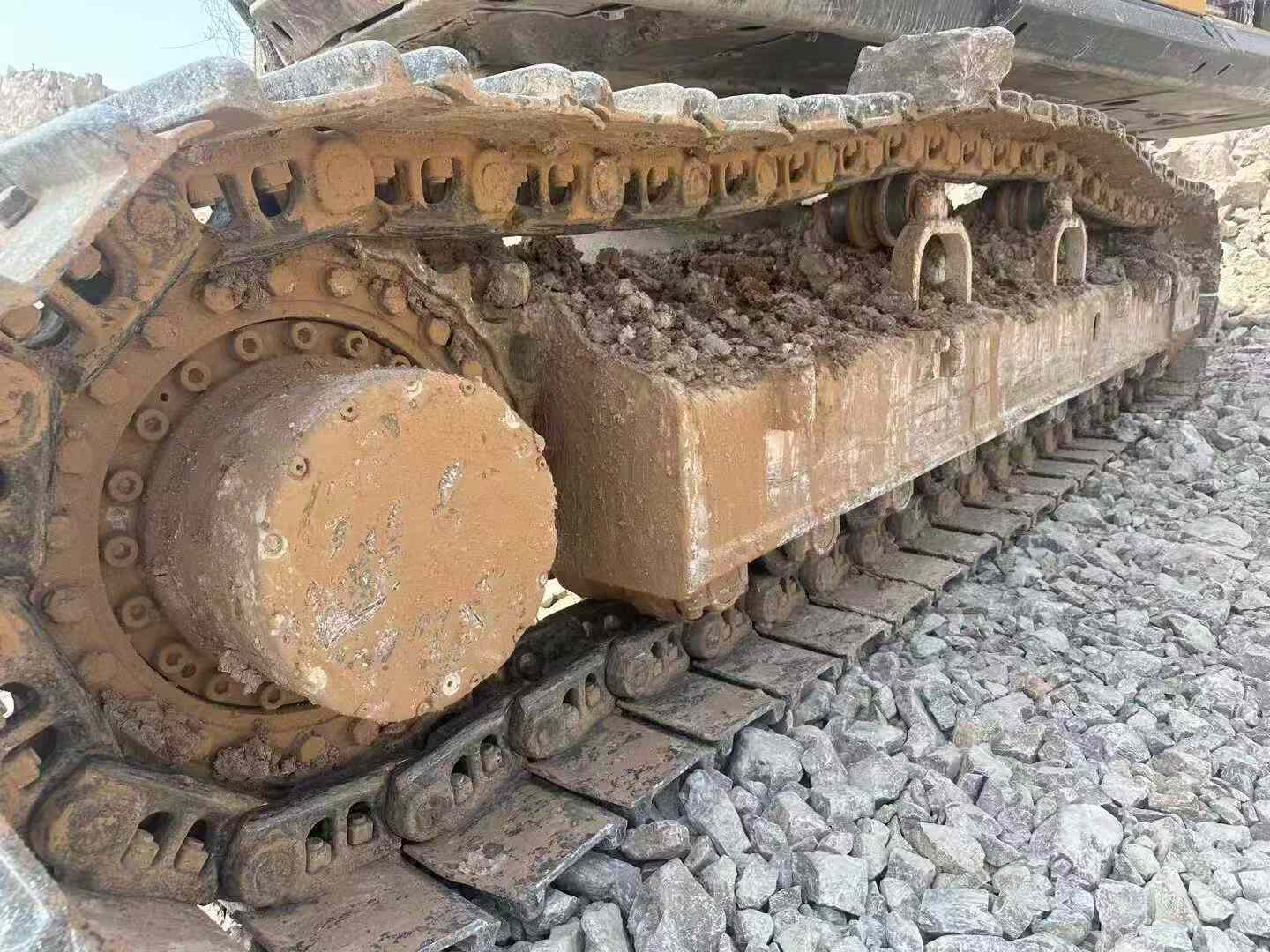

Buy XCMG XE550DK Used Excavator / 7

Product Description

Engineered for heavy-duty excavation, this 2021 XCMG XE550DK delivers exceptional performance through precision-built hydraulics and robust power systems. At its core, a Perkins 2206 III N six-cylinder engine generates 309.5 kW at 2100 rpm, producing 1896 N·m of maximum torque to handle demanding dig cycles. Dual main pumps supply 2×360 L/min flow capacity, translating into 330 kN bucket digging force and 255 kN rod digging force—critical metrics for high-volume earthmoving operations.

Key Technical Specifications:

  • Operating weight: 51,200 kg with 55-ton excavation capacity
  • Boom reach: 6,550 mm; rod length: 2,550 mm
  • Maximum tractive force: 370 kN for superior grading power
  • Ground pressure: 88 kPa minimizes surface disruption
  • Fuel efficiency: 725 L tank with 13 L displacement engine
  • Transport dimensions: 11,870×3,572×4,100 mm

Currently located in Putian, Fujian, this Chinese-manufactured crawler excavator combines proven XCMG engineering with reliable Perkins power for consistent productivity in mining, infrastructure, and large-scale construction environments.

SpecificationsValue
No.1048676
Tonnage (tons)55
Working weight (kg)51200
Boom length (mm)6550
Rod length (mm)2550
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typePerkins 2206 III N
Rated power (kw/rpm)309.5/2100
Maximum torque (N.m)1896/1400
Number of cylinders (PCS)6
Displacement (L)13
Ground specific pressure (Kpa)88
Rotation speed (rpm)9.2
Bucket digging force (kN)330
Rod digging force (kN)255
Maximum tractive force (kN)370
Travel speed (km/h)5.2/2.9
Maximum flow of main pump (l/min)2*360
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)42
Total transport length (mm)11870
Total transport width (mm)3572
Total transport height (mm)4100
Counterweight ground clearance (mm)1353
Minimum ground clearance (mm)518
Back end turning radius (mm)3800
Total track length (mm)5470
Track gauge (mm)2740
Track plate width (mm)600
see more

Overview

No.1048676

Brand Name:

XCMG

Model Number:

XE550DK

Year:

2021

Location:

Fujian China
