2022 XCMG XE550DK

1/9

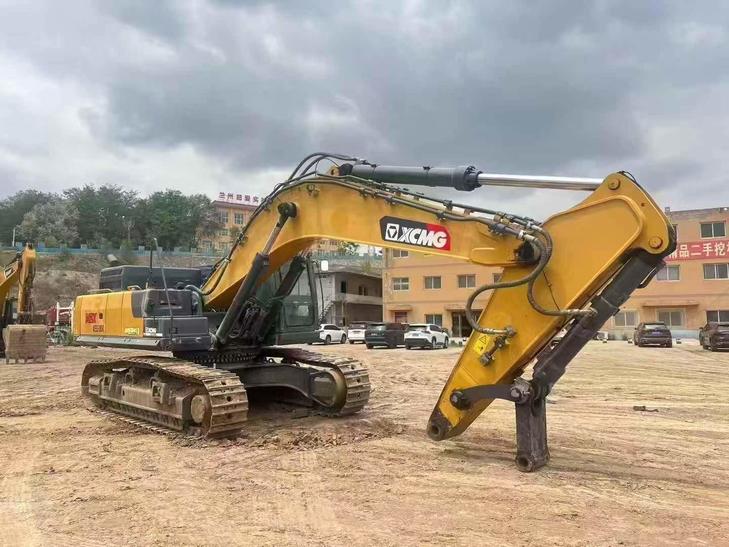

Buy XCMG XE550DK Used Excavator / 1
Buy XCMG XE550DK Used Excavator / 2
Buy XCMG XE550DK Used Excavator / 3
Buy XCMG XE550DK Used Excavator / 4
Buy XCMG XE550DK Used Excavator / 5
Buy XCMG XE550DK Used Excavator / 6
Buy XCMG XE550DK Used Excavator / 7
Buy XCMG XE550DK Used Excavator / 8
Buy XCMG XE550DK Used Excavator / 9

Product Description

Built for serious earthmoving operations, the 2022 XCMG XE550DK is a 55-ton hydraulic excavator sourced directly from Gansu, China — ready for immediate deployment on demanding job sites worldwide. Powered by a Perkins 2206 III N six-cylinder engine producing 309.5 kW at 2,100 rpm with peak torque of 1,896 N·m, this machine delivers consistent, high-output performance across heavy digging cycles.

From the operator's seat, the XE550DK is engineered for control and confidence. The spacious cab provides wide sightlines over the work area, reducing fatigue on long shifts. With a bucket digging force of 330 kN and rod digging force of 255 kN, operators can push through tough material without fighting the controls. The dual main pumps deliver 2×360 L/min, ensuring smooth, responsive hydraulic reaction during simultaneous functions.

  • Engine: Perkins 2206 III N | 309.5 kW / 2,100 rpm | 1,896 N·m torque
  • Operating Weight: 51,200 kg | Ground Pressure: 88 kPa
  • Bucket Digging Force: 330 kN | Rod Digging Force: 255 kN
  • Max Tractive Force: 370 kN | Travel Speed: 5.2 / 2.9 km/h
  • Fuel Tank: 725 L | Hydraulic Tank: 430 L
  • Track Gauge: 2,740 mm | Track Plate Width: 600 mm
  • Transport Dimensions: 11,870 × 3,572 × 4,100 mm
SpecificationsValue
No.1087044
Tonnage (tons)55
Working weight (kg)51200
Boom length (mm)6550
Rod length (mm)2550
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typePerkins 2206 III N
Rated power (kw/rpm)309.5/2100
Maximum torque (N.m)1896/1400
Number of cylinders (PCS)6
Displacement (L)13
Ground specific pressure (Kpa)88
Rotation speed (rpm)9.2
Bucket digging force (kN)330
Rod digging force (kN)255
Maximum tractive force (kN)370
Travel speed (km/h)5.2/2.9
Maximum flow of main pump (l/min)2*360
Fuel Tank (L)725
Hydraulic Tank (L)430
Engine Oil changes (L)42
Total transport length (mm)11870
Total transport width (mm)3572
Total transport height (mm)4100
Counterweight ground clearance (mm)1353
Minimum ground clearance (mm)518
Back end turning radius (mm)3800
Total track length (mm)5470
Track gauge (mm)2740
Track plate width (mm)600
see more

Overview

No.1087044

Brand Name:

XCMG

Model Number:

XE550DK

Year:

2022

Location:

Gansu China
