Product Description

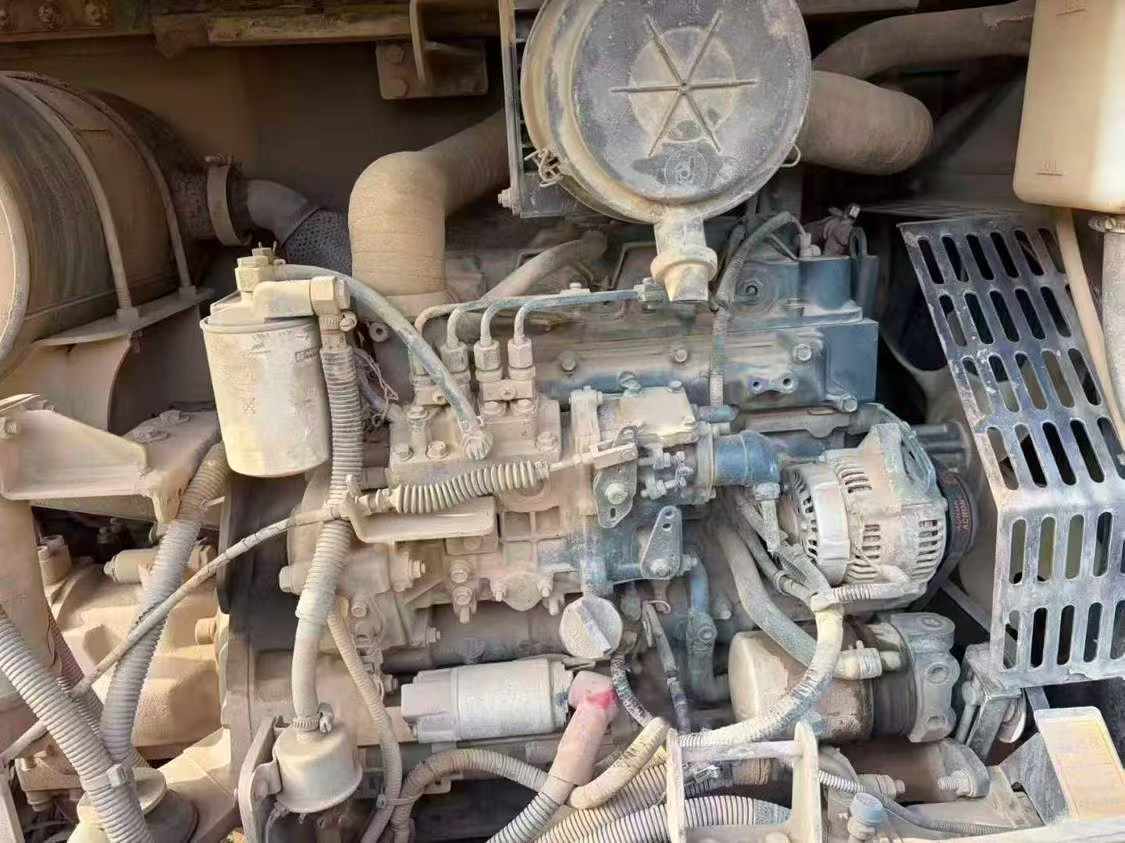

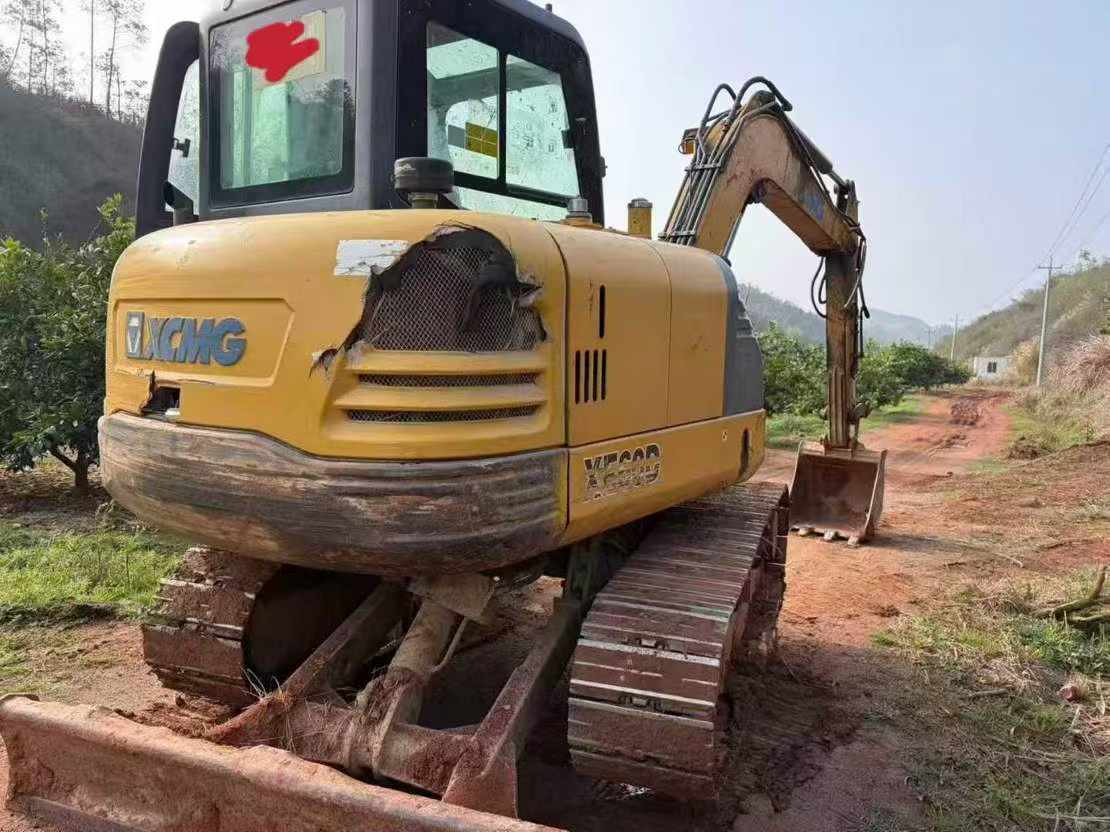

Built to withstand the demands of professional excavation work, this 2019 XCMG XE55DA mini excavator delivers proven performance with over five years of reliable operation behind it. Operating at 5 tons with a robust 5,750 kg working weight, this machine represents Chinese engineering at its finest, featuring a water-cooled V2607 engine producing 35 kW at 2200 rpm. Impressive digging capabilities include 48.3 kN bucket force and 32.5 kN arm force, reaching a maximum digging depth of 3,830 mm and radius of 6,130 mm.
Currently located in Jinhua, Zhejiang, this workhorse comes equipped with a 0.21 m³ backhoe bucket and demonstrates exceptional stability with just 31 kPa ground pressure. The hydraulic system features a 150 l/min main pump with dedicated circuits for traveling (24.5 MPa), rotation (24 MPa), and pilot operations (3.5 MPa). Compact transport dimensions of 5,860 × 1,920 × 2,585 mm make mobilization straightforward, while the 110L fuel tank and 77L hydraulic reservoir ensure extended operating intervals.
Key Performance Specifications:
- Maximum digging height: 5,630 mm / Maximum unloading height: 3,945 mm
- Travel speed: 4.2/2.2 km/h with 35% climbing ability
- Minim
| Specifications | Value |
|---|---|
| No. | 1023777 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5750 |
| Bucket capacity (m³) | 0.21 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | V2607 |
| Rated power (kw/rpm) | 35/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.615 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 50.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 77 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1670 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Center distance of support wheel (mm) | 1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
