Product Description

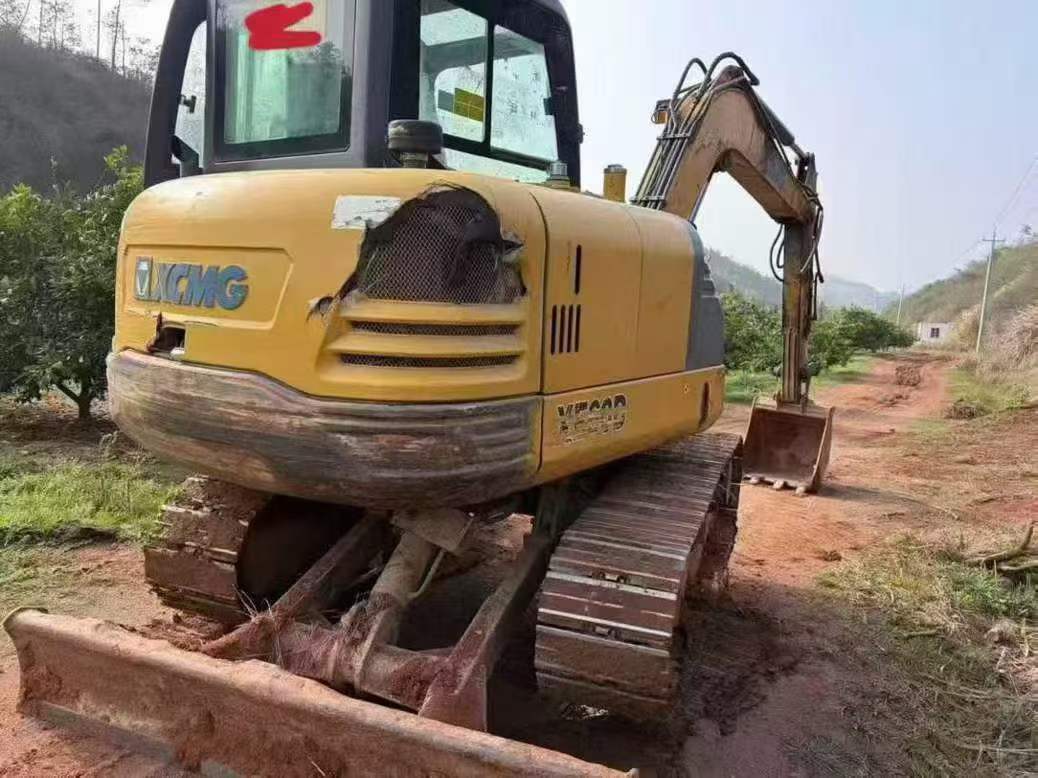

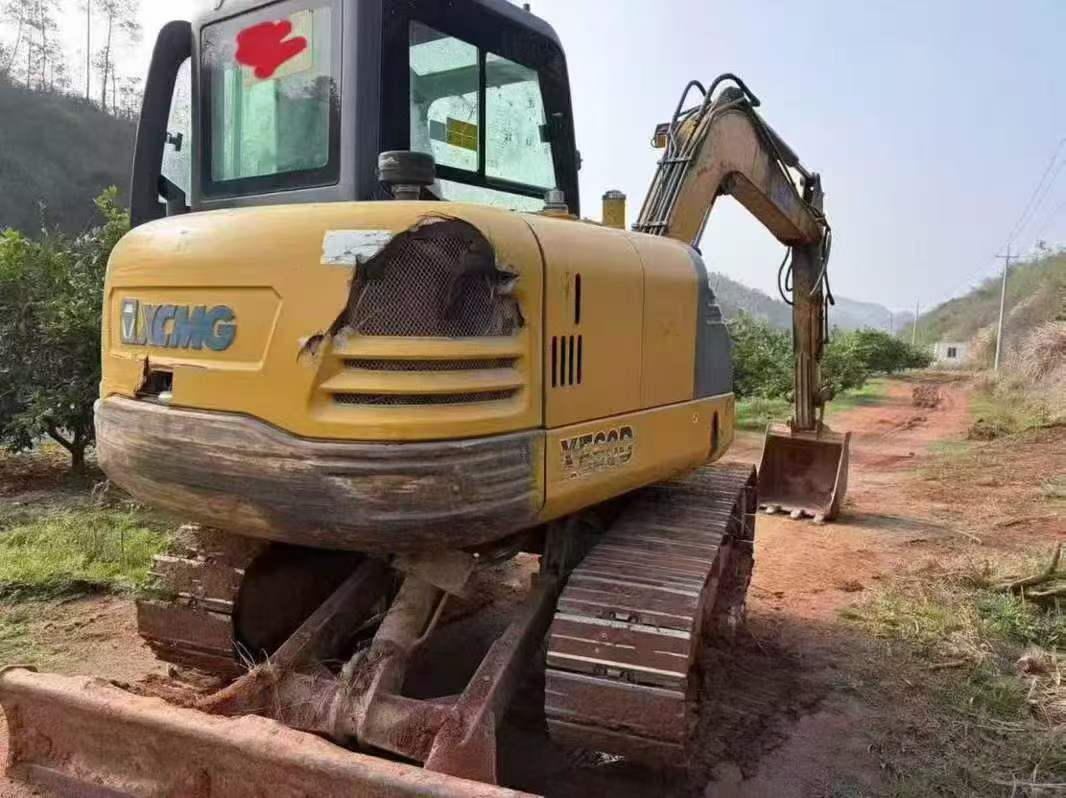

Maximize your equipment budget with this 2019 XCMG XE55DA mini excavator from Hunan, China. Delivering professional-grade performance at a fraction of new equipment costs, this 5-ton machine offers exceptional value for contractors seeking reliable productivity without premium pricing. Powered by a robust V2607 water-cooled engine producing 35kW at 2200 RPM, it combines 48.3 kN bucket digging force with 32.5 kN arm digging force to handle demanding excavation tasks efficiently.
- Cost-Effective Performance: 2019 model year with minimal depreciation remaining
- Impressive Reach: 6,130mm maximum digging radius and 3,830mm digging depth
- Compact Footprint: 5,860mm transport length, 1,920mm width—ideal for confined job sites
- Versatile Capability: 0.21m³ bucket capacity with 35% climbing ability
- Reliable Hydraulics: 150 L/min main pump flow ensures smooth operation
- Ready to Work: 110L fuel tank and 77L hydraulic tank for extended run times
Smart buyers recognize that used equipment from reputable manufacturers like XCMG delivers comparable performance to new machines wh
| Specifications | Value |
|---|---|
| No. | 1026857 |
| Tonnage (tons) | 5 |
| Working weight (kg) | 5750 |
| Bucket capacity (m³) | 0.21 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

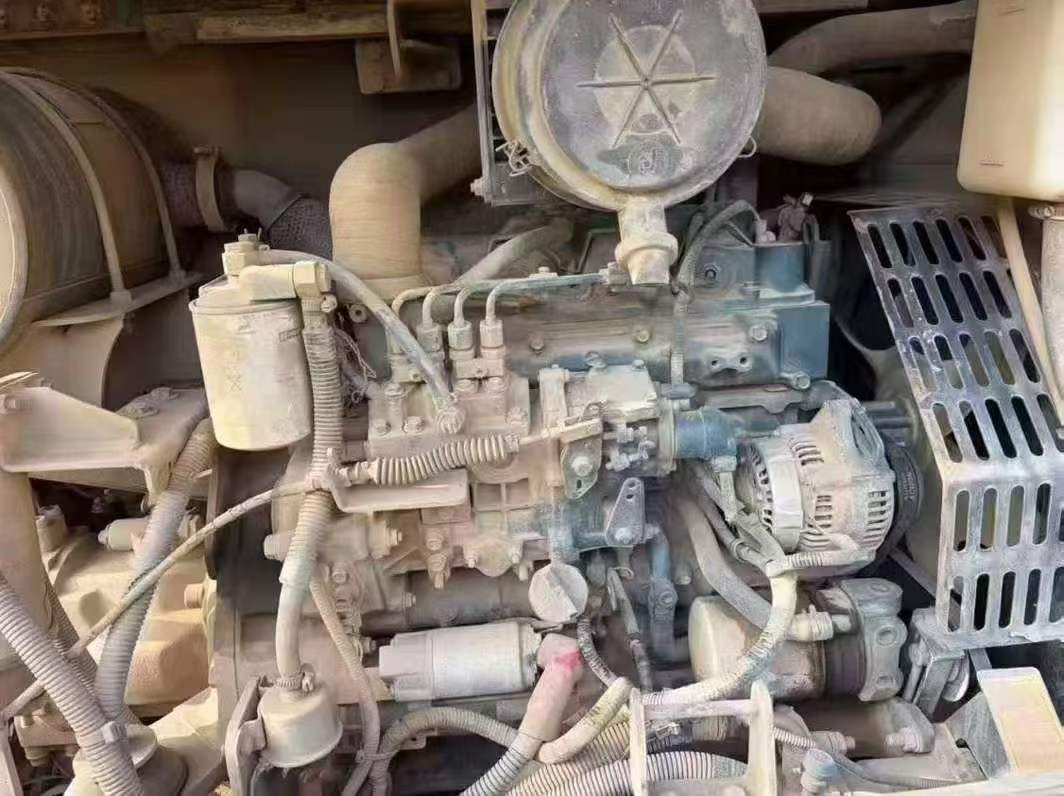

| Engine type | V2607 |
| Rated power (kw/rpm) | 35/2200 |
| Cooling mode | water-cooling |
| Displacement (L) | 2.615 |
| Working form | Direct injection, 4 strokes |
| Ground specific pressure (Kpa) | 31 |
| Rotation speed (rpm) | 10 |
| Climbing ability (%) | 35 |
| Bucket digging force (kN) | 48.3 |
| Rod digging force (kN) | 32.5 |
| Maximum tractive force (kN) | 50.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Maximum flow of main pump (l/min) | 150 |
| Traveling Hydraulic Circuit (Mpa) | 24.5 |
| Rotary Hydraulic Circuit (Mpa) | 24 |
| Pilot Oil Circuit (MPa) | 3.5 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 77 |
| Engine Oil changes (L) | 10 |
| Total transport length (mm) | 5860 |
| Total transport width (mm) | 1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 700 |
| Minimum ground clearance (mm) | 385 |
| Minimum turning radius of front working device (mm) | 2460 |
| Back end turning radius (mm) | 1670 |
| Track gauge (mm) | 1500 |
| Track plate width (mm) | 400 |
| Center distance of support wheel (mm) | 1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
