Product Description

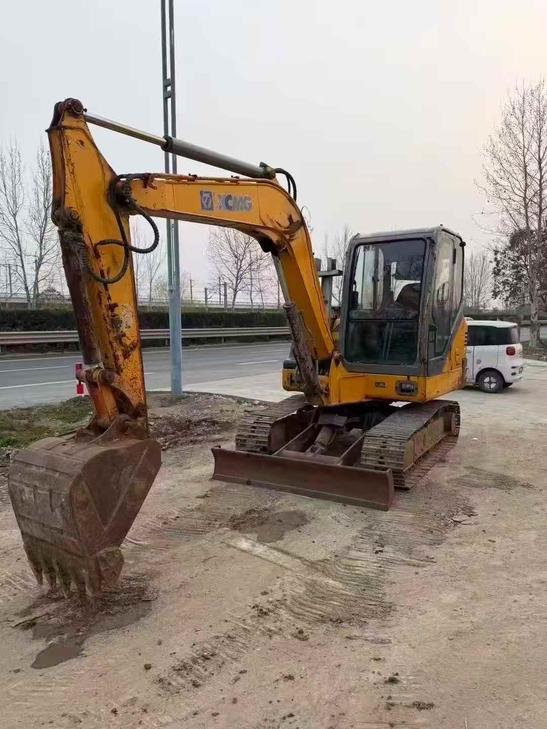

Built for precision work in confined spaces, this 2012 XCMG XE60 mini excavator delivers 6-ton performance with compact maneuverability. Powered by a reliable Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, this machine handles demanding site conditions with water-cooled efficiency. Its 3000mm boom and 1600mm arm provide a maximum digging reach of 6130mm and depth of 3830mm, making it ideal for trenching, utility installation, and foundation work.
Key specifications include:
- Operating weight: 5960 kg with exceptional 32.1 kPa ground pressure
- Bucket capacity: 0.09-0.23 m³ for versatile material handling
- Bucket digging force: 42.5 kN; arm digging force: 28.5 kN
- Rexroth main pump system: dual 60.5 L/min circuits for responsive hydraulics
- Standard hydraulic crushing pipeline for attachment versatility
- Compact transport dimensions: 5850mm length × 1920mm width
- 35° climbing ability and 9.5 rpm rotation speed
Currently located in Jiangsu, China, this XCMG machine arrives ready for immediate deployment on residential construction, landscaping, or municipal projects requiring reliable excavation performance.
| Specifications | Value |
|---|---|
| No. | 1046402 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
