Product Description

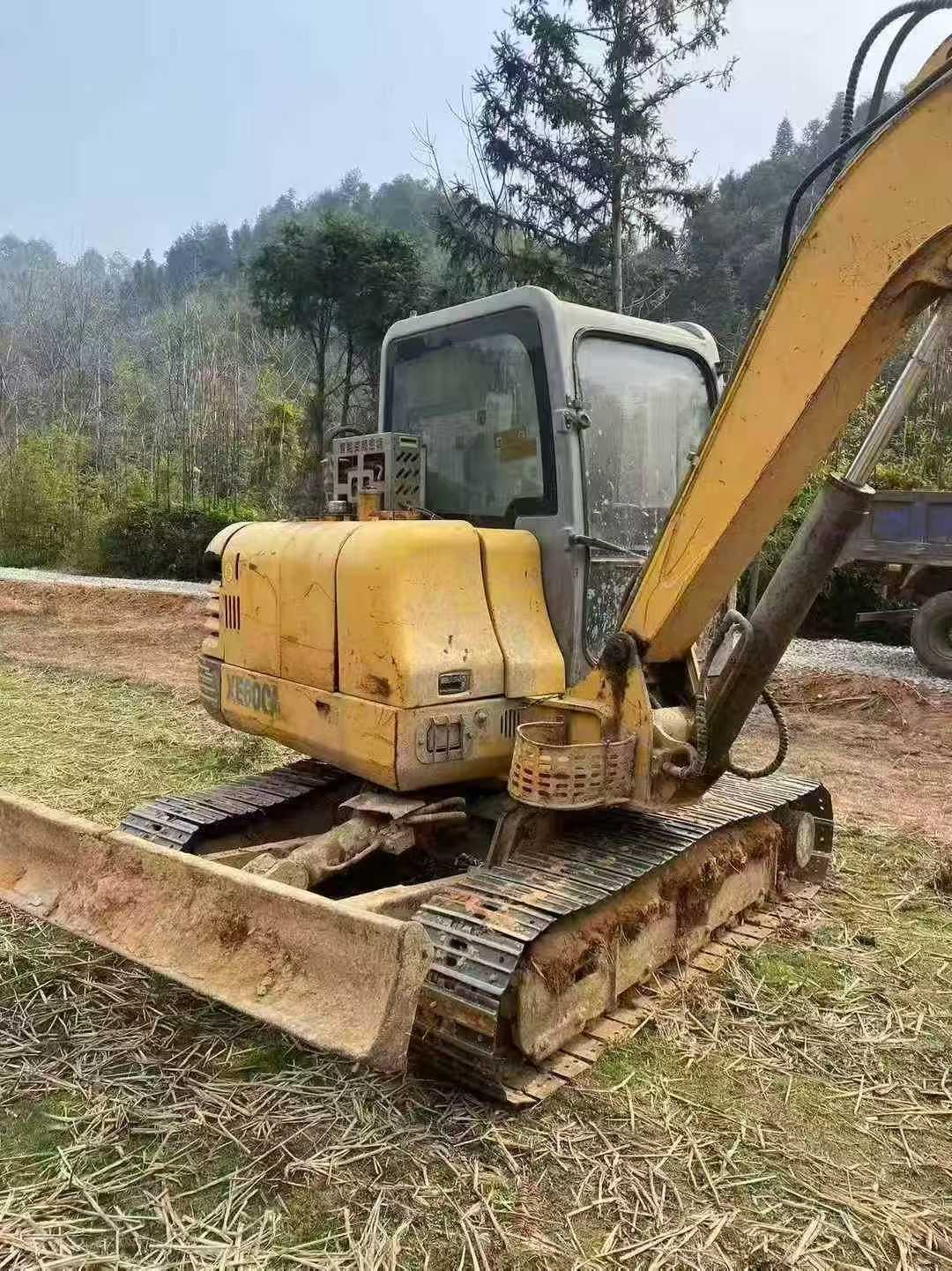

Built for immediate deployment, this 2013 XCMG XE60 compact excavator delivers 6-ton performance with proven Yanmar 4TNV94L engine technology. Operating at 39.8kW rated power, the machine tackles digging operations with 42.5kN bucket force and reaches 6.13m maximum digging radius for versatile site coverage.
Engineered for demanding jobsites, the XE60 features Rexroth hydraulic systems operating at 22MPa main pressure, ensuring consistent performance during grading and demolition tasks. Compact 1.88m transport width enables access to confined spaces while maintaining stability through 1480mm track gauge and 400mm track plates.
- Maximum digging depth: 3.83m for foundation and utility work
- Travel speeds: 4.2/2.2 km/h for efficient site mobility
- Fuel capacity: 110L for extended operation cycles
- Climbing capability: 35° for challenging terrain navigation
Currently located in Guangdong Maoming, this machine combines Chinese manufacturing reliability with Japanese engine durability. Ready for immediate deployment on construction, landscaping, and utility projects requiring precision excavation in tight quarters.
| Specifications | Value |
|---|---|
| No. | 991529 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
