Product Description

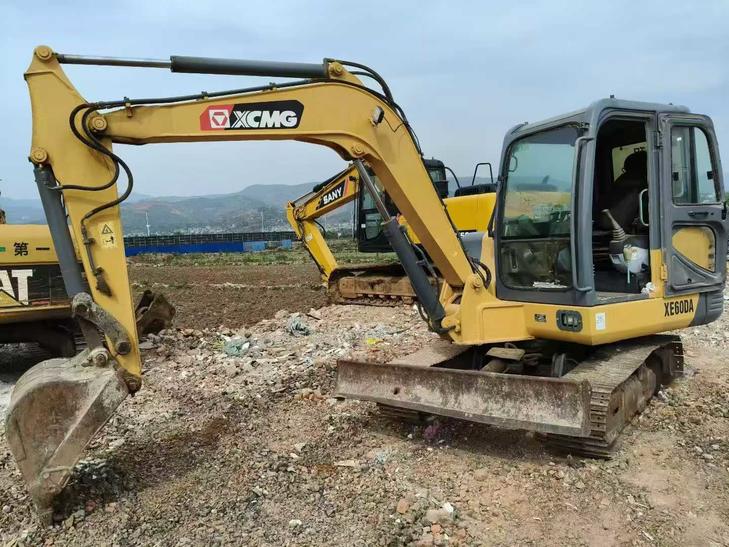

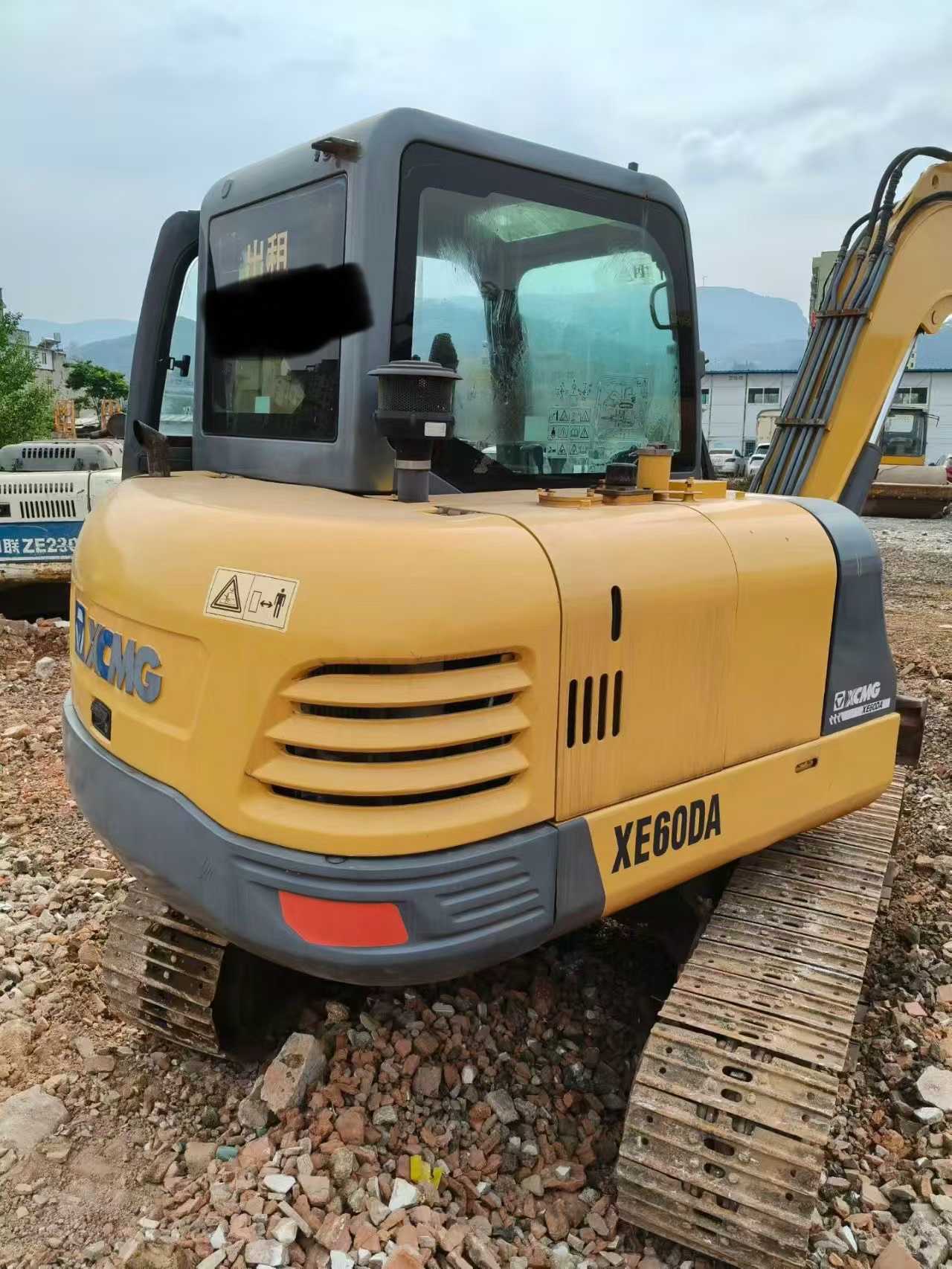

Engineered with precision in Xuzhou, this 2015 6-ton mini excavator delivers exceptional performance through its Yanmar 4TNV94L engine, producing 39.8 kW at 2200 rpm across four water-cooled cylinders. Hydraulic power comes from a dual Rexroth main pump system flowing 2×60.5+40.3+9.9 L/min at 22 MPa working pressure, driving impressive bucket digging force of 42.5 kN and rod force of 28.5 kN. Operating weight of 5,960 kg combines with 400mm track plates to maintain ground pressure at just 32.1 kPa, enabling 35° climbing capability on challenging terrain.
Performance specifications include:
- Maximum digging reach: 6,130 mm with 3,830 mm depth capacity
- 3,000 mm boom and 1,600 mm arm configuration
- Bucket capacity range: 0.09-0.23 m³ for versatile applications
- Dual travel speeds: 4.2/2.2 km/h for transport and precision work
- Standard hydraulic breaker circuit for attachment flexibility
- Compact transport dimensions: 5,850×1,920×2,585 mm
Currently located in Kunming, Yunnan, this machine combines proven Japanese engine technology with Chinese hydraulic engineering for reliable jobsite productivity.
| Specifications | Value |
|---|---|
| No. | 1029464 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
