Product Description
Built to endure the toughest jobsite conditions, this 2016 XCMG XE60 excavator stands as a proven workhorse with years of reliable performance behind it. Operating at 6 tons with a working weight of 5,960 kg, this compact machine delivers exceptional power through its Yanmar 4TNV94L engine, generating 39.8 kW at 2200 rpm. Engineered in Xuzhou, China, the XE60 combines robust construction with impressive digging capabilities—42.5 kN bucket digging force and 28.5 kN rod digging force ensure consistent productivity across diverse applications.
Key performance specifications include:
- Maximum digging depth of 3,830 mm with 6,130 mm reach
- Bucket capacity range: 0.09-0.23 m³ for versatile material handling

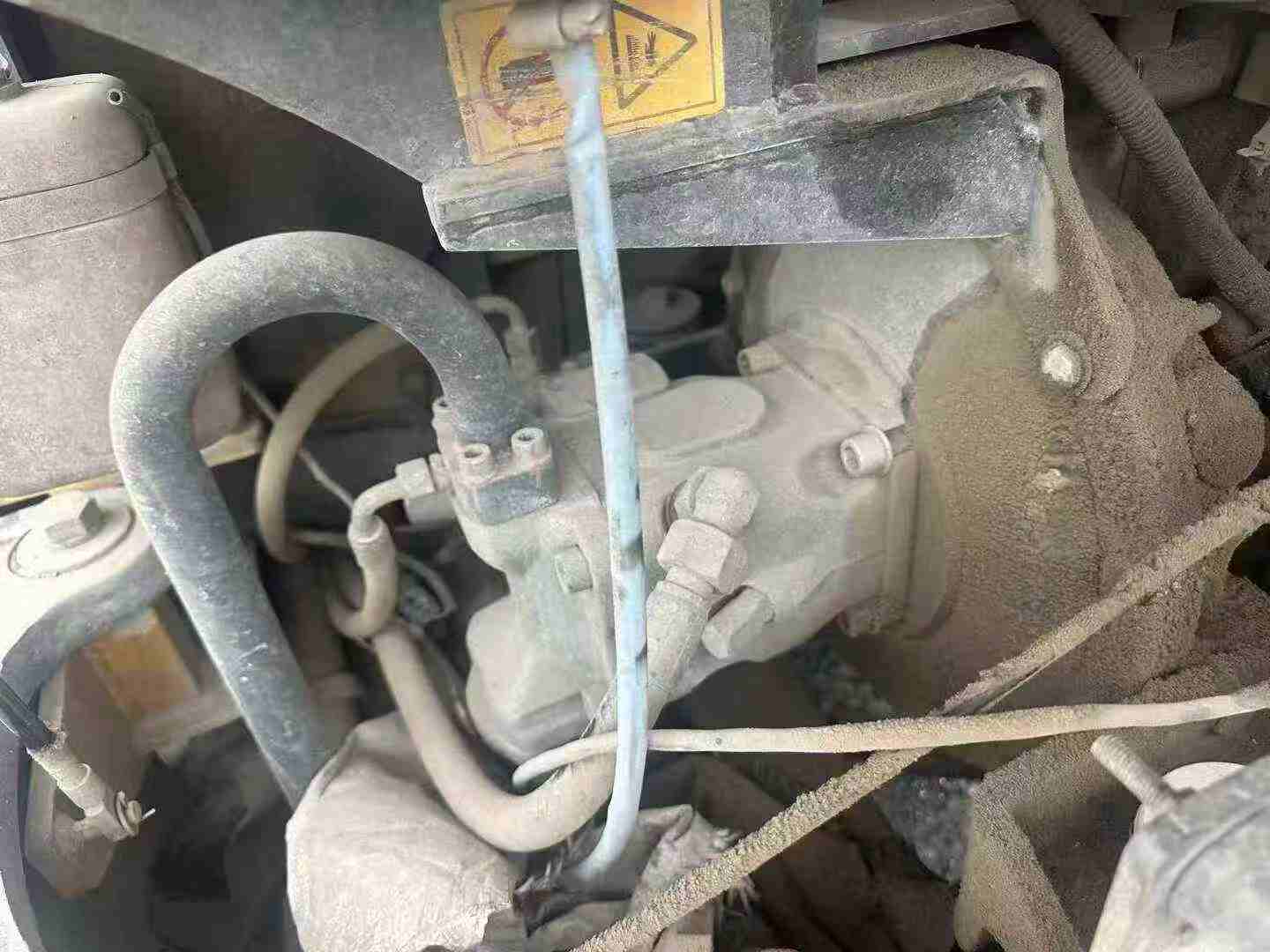

- Rexroth main pump system delivering reliable hydraulic performance
- 35° climbing ability and 9.5 rpm rotation speed for superior maneuverability
- Compact transport dimensions: 5,850 mm length × 1,880 mm width
- Standard hydraulic crushing pipeline for enhanced versatility
Currently located in Shanghai, this time-tested machine represents proven engineering quality that continues to perform year after year. Water-cooled efficiency and comprehensive hydraulic syst
| Specifications | Value |
|---|---|
| No. | 1008698 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
