Product Description

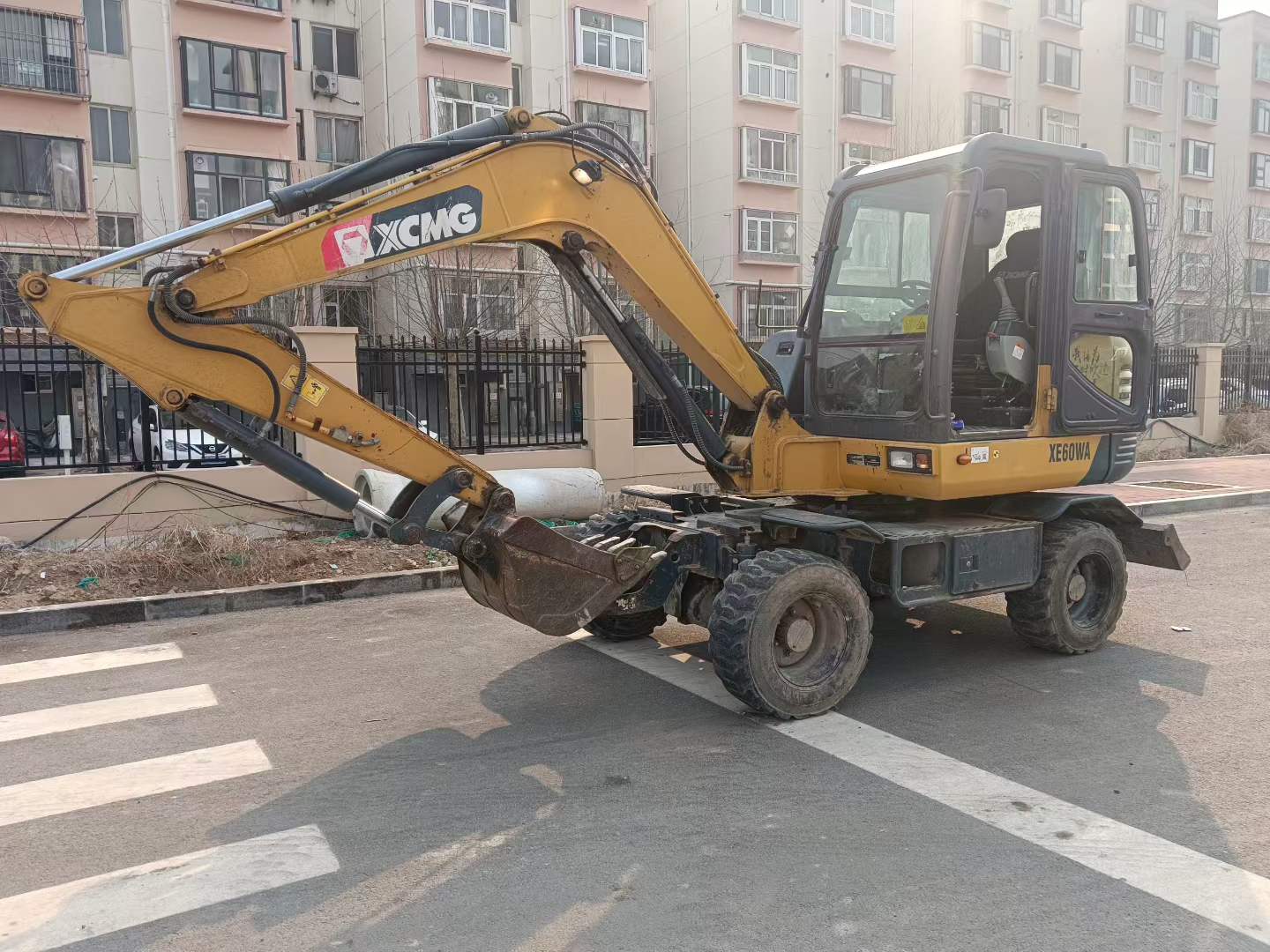

Built for precision work in confined spaces, this 2016 XCMG XE60 mini excavator delivers reliable performance with exceptional operator control. Powered by a Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, this 6-ton machine combines responsive hydraulics with stable operation across demanding job sites. The Rexroth main pump system provides dual 60.5 l/min flow rates, ensuring smooth boom and arm movements while maintaining precise bucket control.
Operators benefit from excellent visibility and maneuverability in tight quarters. With a minimum turning radius of just 2450 mm and a compact transport width of 1880 mm, this excavator navigates urban construction sites and residential projects with ease. The 400 mm track plates distribute the 5960 kg working weight evenly, resulting in low ground pressure of 32.1 kPa that protects finished surfaces. Hydraulic performance remains consistent with 42.5 kN bucket digging force and 28.5 kN arm digging force, while the 35° climbing ability tackles sloped terrain confidently.
Currently located in Qinhuangdao, Hebei, this machine features standard hydraulic crusher piping and water-cooled operation for extended reliability. Maximum digging depth reaches 3830 mm with a 6130
| Specifications | Value |
|---|---|
| No. | 1025963 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

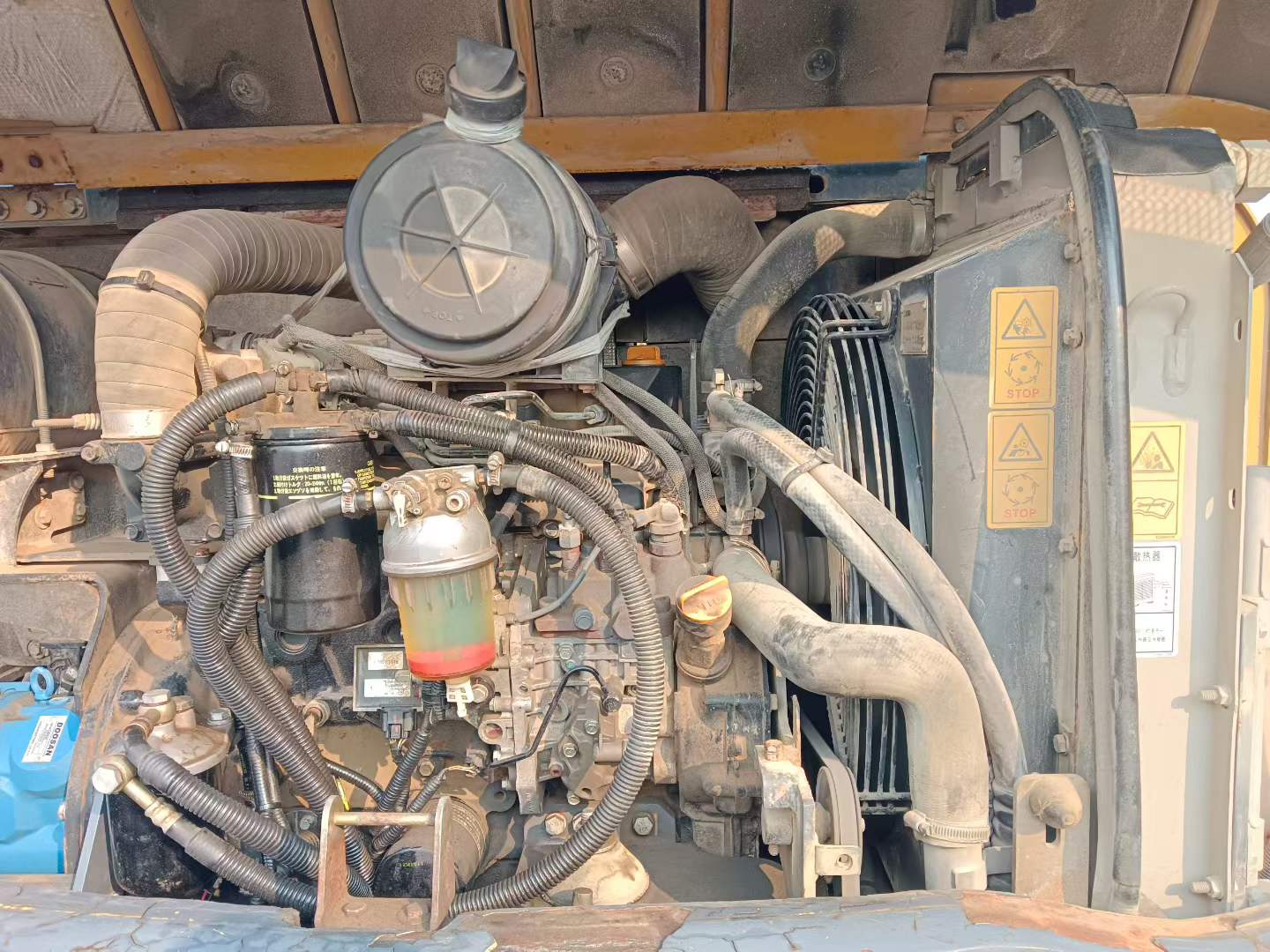

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
