Product Description

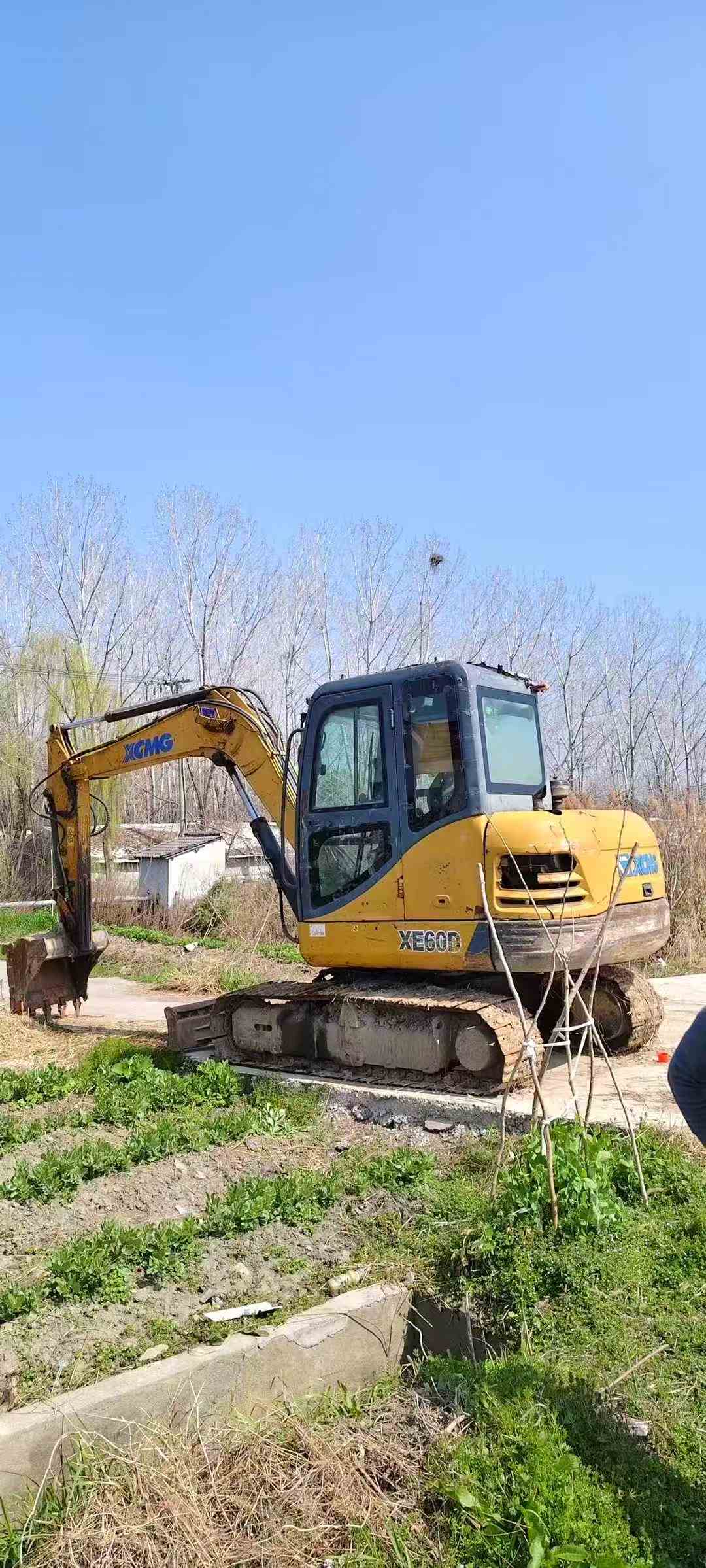

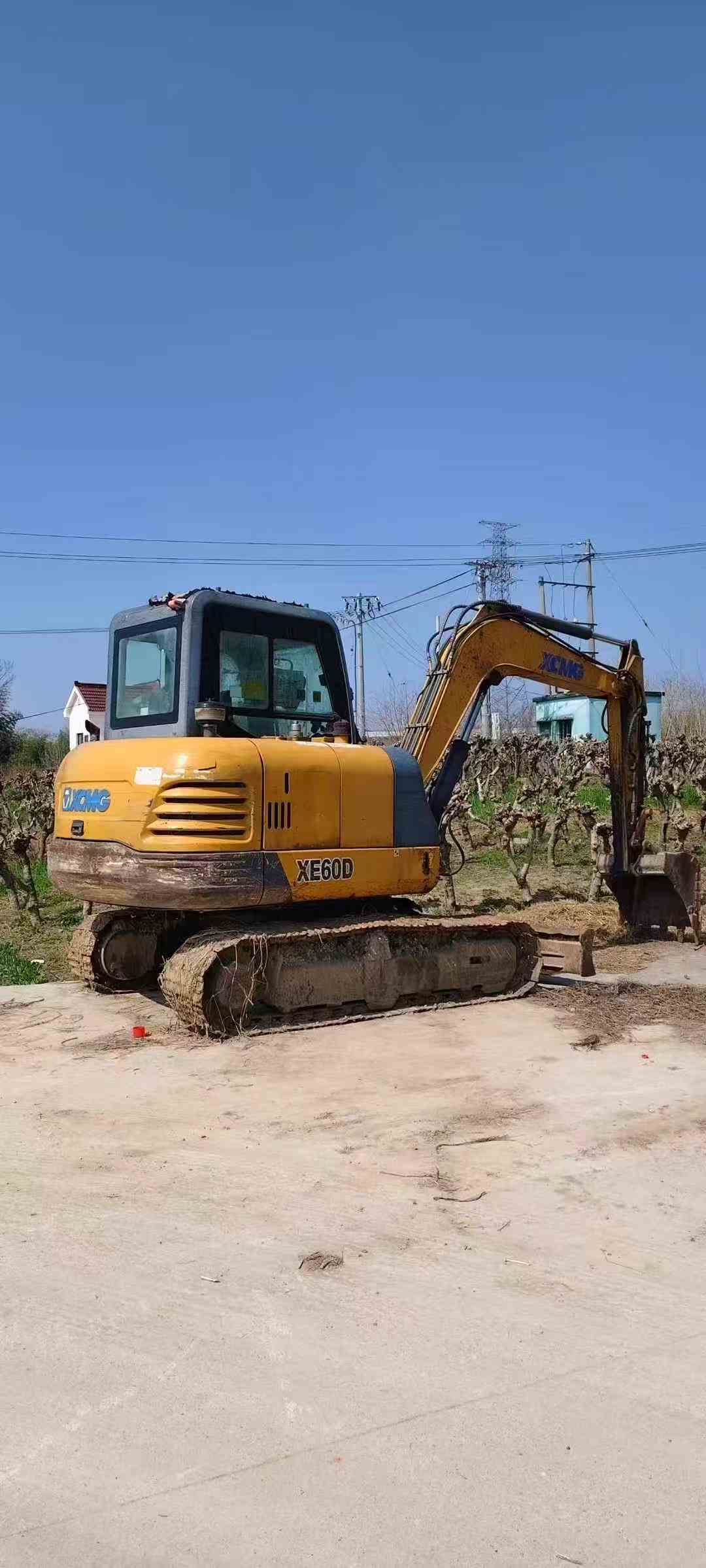

Built for precision work in confined spaces, this 2016 XCMG XE60 mini excavator delivers 39.8kW of Yanmar 4TNV94L diesel power across a 5,960kg working platform. Currently located in Hangzhou, Zhejiang, this 6-ton machine arrives site-ready with a Rexroth hydraulic system pushing 42.5kN bucket digging force and 28.5kN arm force—ample strength for trenching, foundation prep, and utility installation.
Equipped with a 3,000mm boom and 1,600mm stick, the XE60 reaches 6,130mm maximum digging radius and penetrates 3,830mm deep. Dual-speed tracks (4.2/2.2 km/h) and a tight 1,650mm rear swing radius enable efficient maneuvering on crowded jobsites. Standard hydraulic breaker lines convert this excavator into a demolition tool within minutes.
- Yanmar 4-cylinder water-cooled engine: proven reliability in demanding conditions
- Bucket capacity range: 0.09-0.23 m³ for versatile material handling
- 35° climbing ability tackles sloped terrain without hesitation
- Compact transport dimensions: 5,850mm × 1,920mm × 2,585mm
- 110L fuel tank supports extended operation between refills
Ready to dig, load, and grade from day one. Inspected and prepared for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1030705 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
