Product Description

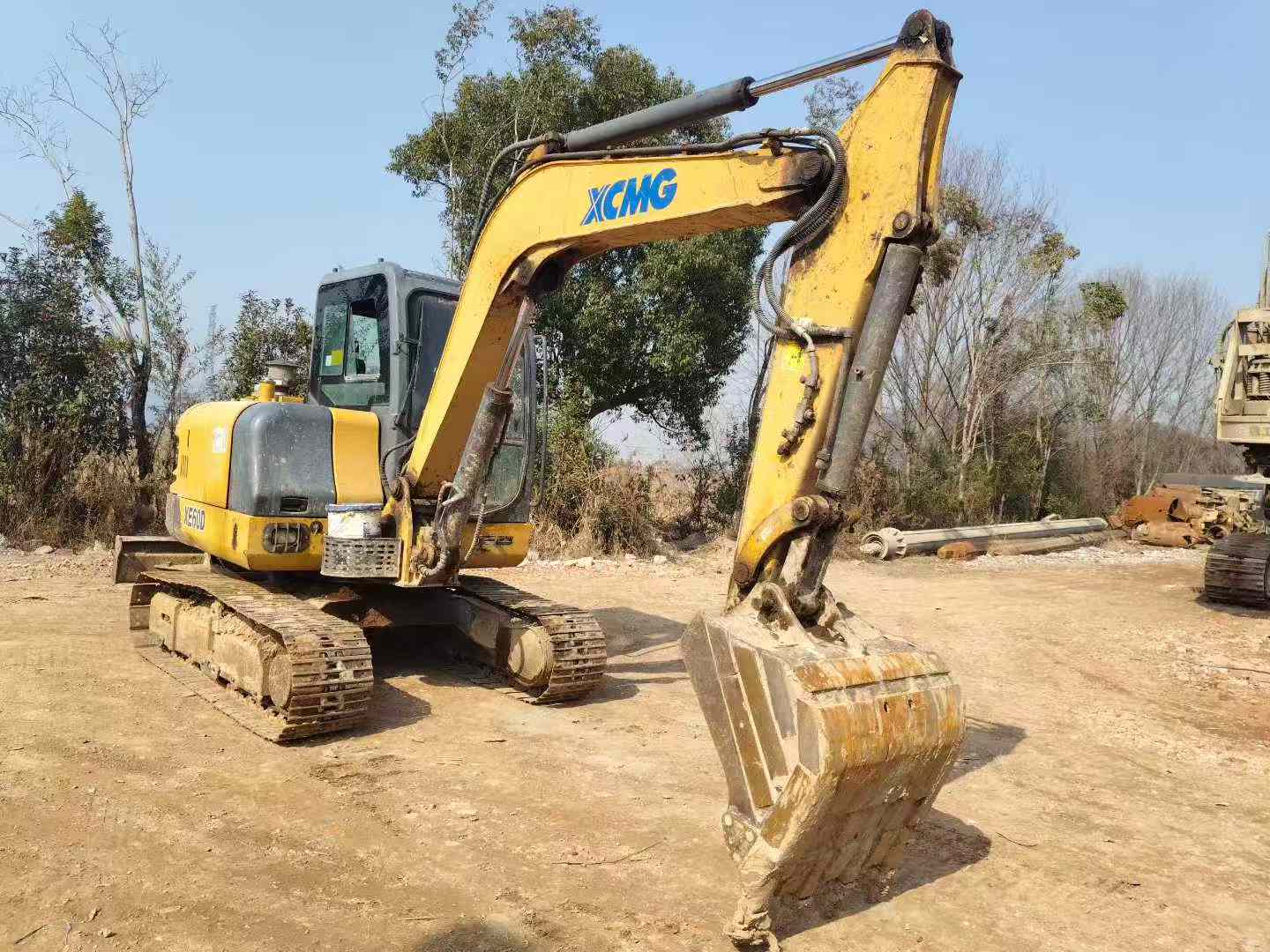

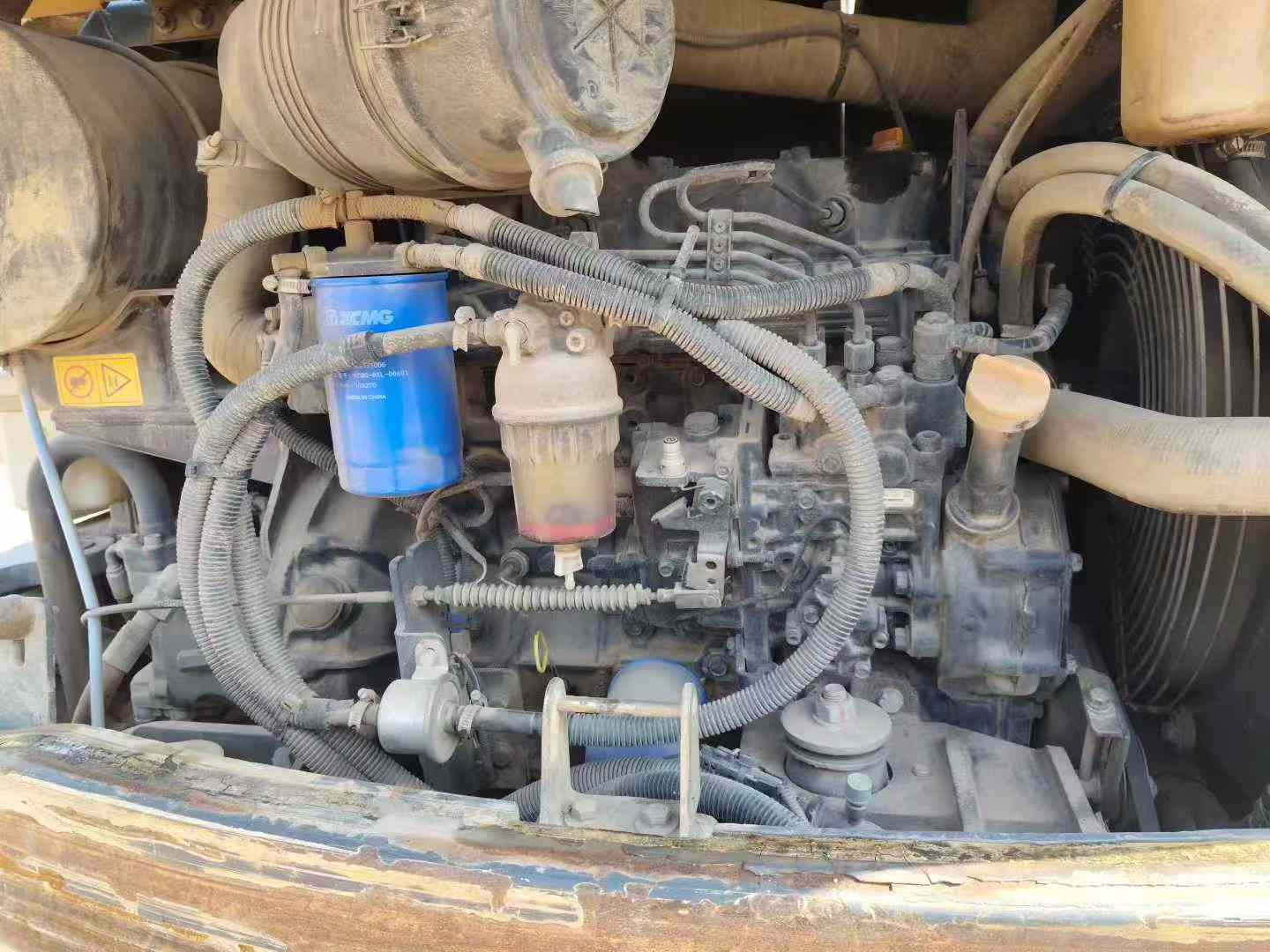

Built in 2017, this XCMG XE60 mini excavator delivers proven reliability in a compact 6-ton package. Powered by a Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, this Chinese-manufactured machine combines water-cooled efficiency with field-tested durability. XCMG's extensive global dealer network ensures parts availability remains strong, protecting your investment long-term.
Key specifications include:
- Working weight: 5,960 kg with 0.09-0.23 m³ bucket capacity
- Maximum digging reach: 6,130 mm / Maximum digging depth: 3,830 mm

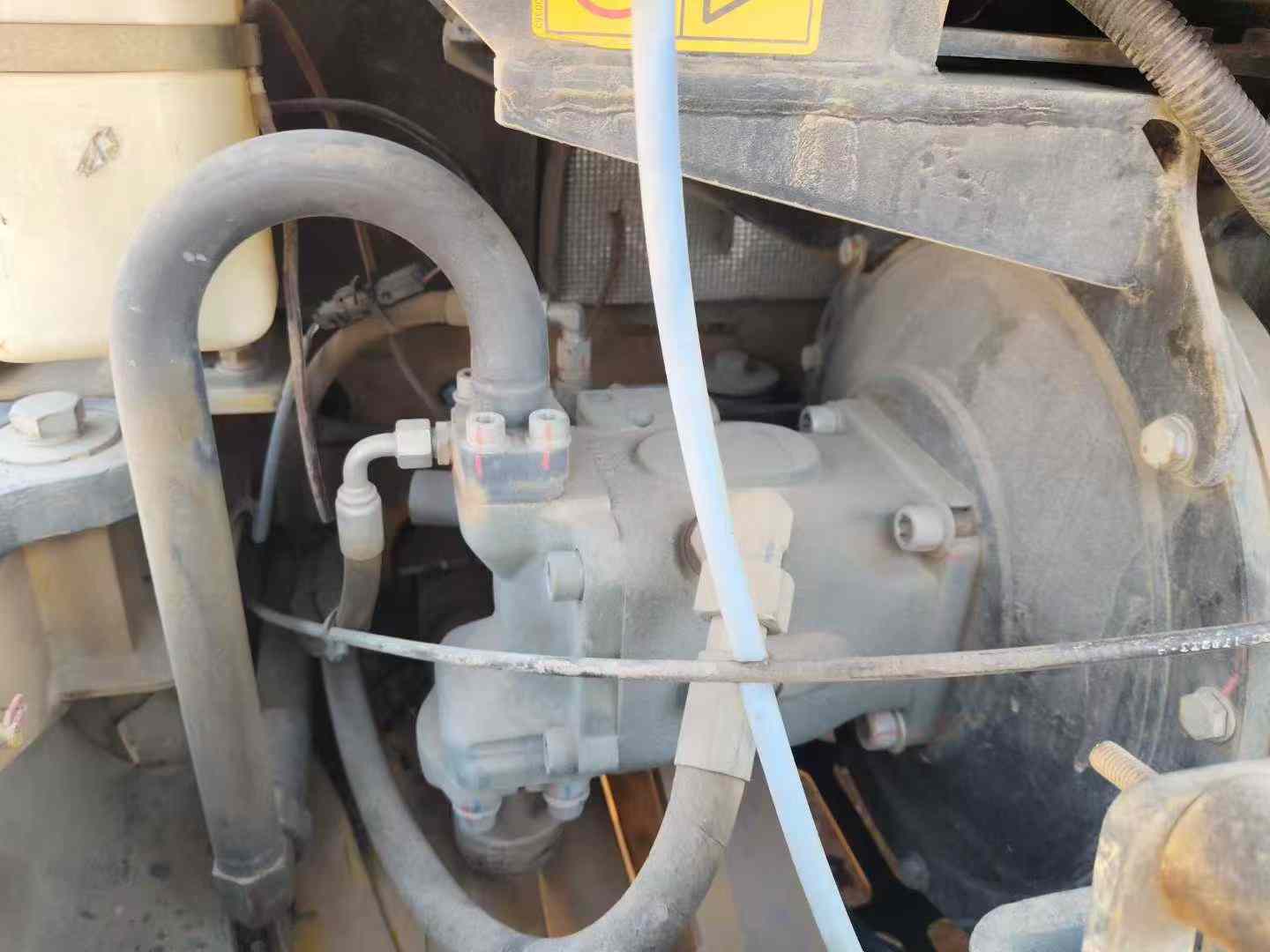

- Rexroth main pump system delivering 2×60.5+40.3+9.9 L/min flow
- Bucket digging force: 42.5 kN / Rod digging force: 28.5 kN
- 35° climbing ability with 32.1 kPa ground pressure
- Standard hydraulic crushing pipeline included
Currently located in Zhejiang, China, this XE60 represents smart value in the used equipment market. XCMG's reputation for straightforward engineering means lower maintenance costs and predictable resale values—critical factors when managing fleet economics.
| Specifications | Value |
|---|---|
| No. | 1016727 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
