Product Description

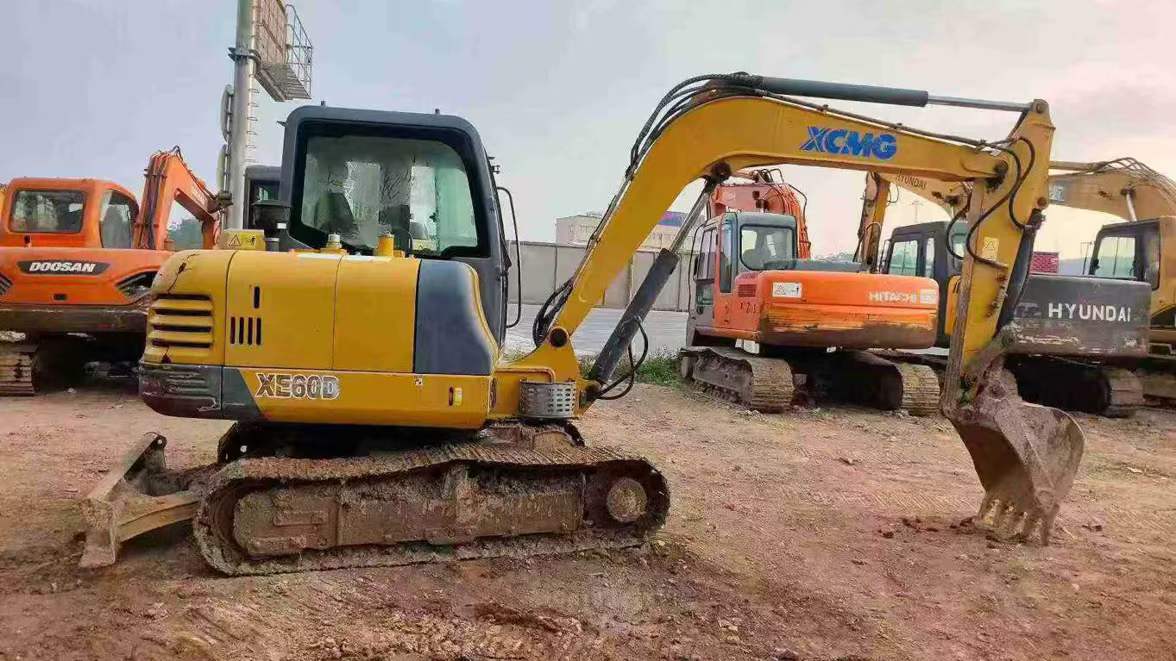

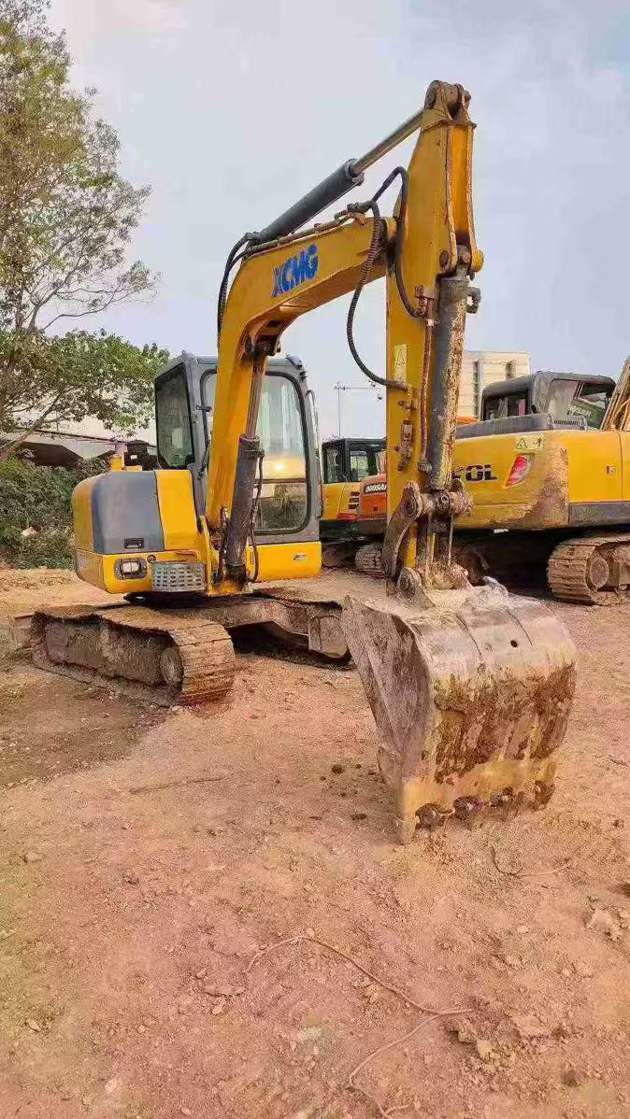

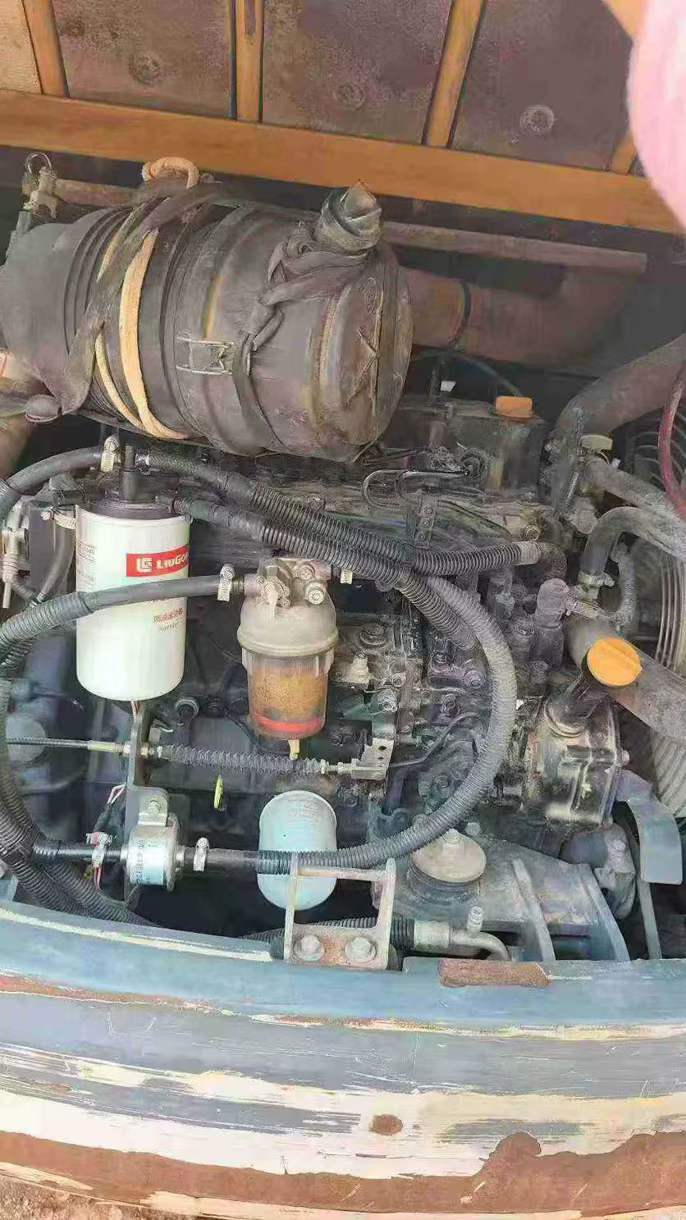

Proven performance meets compact efficiency in this 2017 XCMG XE60 mini excavator, currently located in Nanning, Guangxi. With over six years of reliable operation behind it, this 6-ton workhorse demonstrates the exceptional build quality that has made XCMG a trusted name in heavy equipment manufacturing. Powered by a robust Yanmar 4TNV94L engine delivering 39.8kW at 2200rpm, this machine combines Japanese engine reliability with Chinese engineering excellence.
Built to handle demanding jobsites, the XE60 features impressive digging capabilities with a maximum reach of 6,130mm and digging depth of 3,830mm. Hydraulic performance is backed by Rexroth main pumps operating at 22MPa, providing 42.5kN bucket digging force and 28.5kN rod digging force. Compact dimensions (5,850mm length × 1,920mm width) ensure maneuverability in confined spaces while maintaining stability with 32.1kPa ground pressure.
Key Specifications:
- Operating weight: 5,960kg with 0.09-0.23m³ bucket capacity
- Water-cooled 4-cylinder engine (3.054L displacement)
- 9.5rpm rotation speed with 35° climbing ability
- Standard hydraulic crushing pipeline for versatile attachment use
- 110L fuel tank a
| Specifications | Value |
|---|---|
| No. | 1018812 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
