Product Description

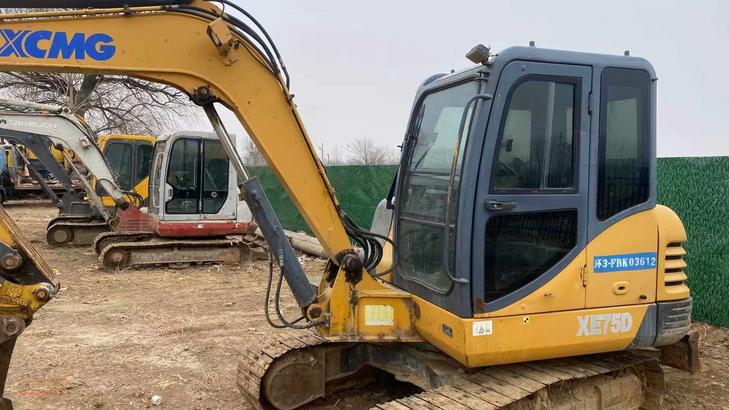

Built for precision work in confined spaces, this 2017 XCMG XE60 mini excavator delivers 6-ton performance with the maneuverability demanded by urban construction and utility projects. Powered by a reliable Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, this machine combines proven hydraulics with compact dimensions to tackle digging, trenching, and grading tasks without hesitation.
Equipped with Rexroth main pumps and a hydraulic crushing pipeline as standard, this excavator handles bucket digging force up to 42.5 kN and reaches a maximum digging depth of 3830mm. With a 0.09-0.23 m³ bucket capacity and maximum digging radius of 6130mm, it covers substantial ground while maintaining a transport width of just 1920mm. The water-cooled 4-cylinder engine, 110L fuel tank, and dual-speed travel system (4.2/2.2 km/h) ensure sustained productivity across multi-shift operations.
Key Specifications:
- Working weight: 5960 kg with 32.1 kPa ground pressure
- 3000mm boom, 1600mm arm for optimal reach
- 9.5 rpm rotation speed, 35° climbing ability
- Currently located in Qingdao, Shandong—ready for immediate deployment
| Specifications | Value |
|---|---|
| No. | 1019883 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
