Product Description

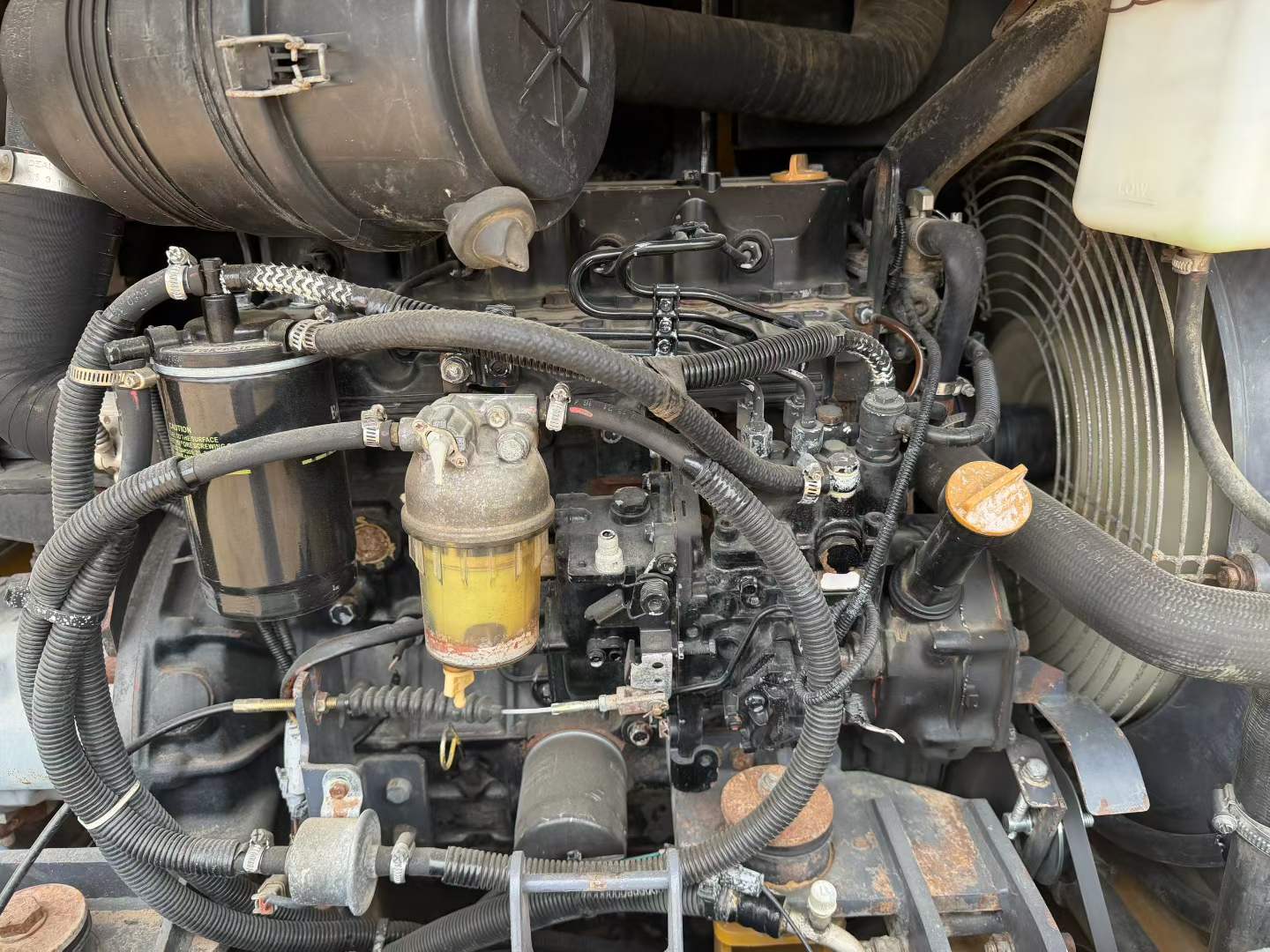

Built around a Yanmar 4TNV94L 4-cylinder water-cooled engine producing 39.8 kW at 2,200 rpm, the 2017 XCMG XE60 is engineered for precision and durability in the 6-ton compact excavator class. Rexroth main pump technology drives dual circuits at 2×60.5 L/min, with hydraulic systems operating at 22 MPa — delivering consistent, responsive performance across demanding dig cycles.
- Bucket digging force: 42.5 kN / Rod digging force: 28.5 kN
- Maximum digging depth: 3,830 mm | Maximum digging radius: 6,130 mm
- Bucket capacity range: 0.09–0.23 m³ (backhoe configuration)
- Displacement: 3.054 L | Rated power: 39.8 kW @ 2,200 rpm
- Hydraulic crushing pipeline: standard fitment
- Travel speed: 4.2 / 2.2 km/h | Climbing ability: 35°
- Ground pressure: 32.1 kPa — suitable for soft and confined terrain
- Fuel tank: 110 L | Hydraulic tank: 85 L
- Transport dimensions: 5,850 × 1,880 × 2,585 mm
Sourced from Guangdong, China, this unit carries XCMG's proven build quality from the XE series lineup. With a compact back-end turning radius of 1,650 mm and a minimum ground clearance of 369 mm, it handles tight urban and infrastructure job sites without compromising reach or digging capacity.
| Specifications | Value |
|---|---|
| No. | 1042265 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

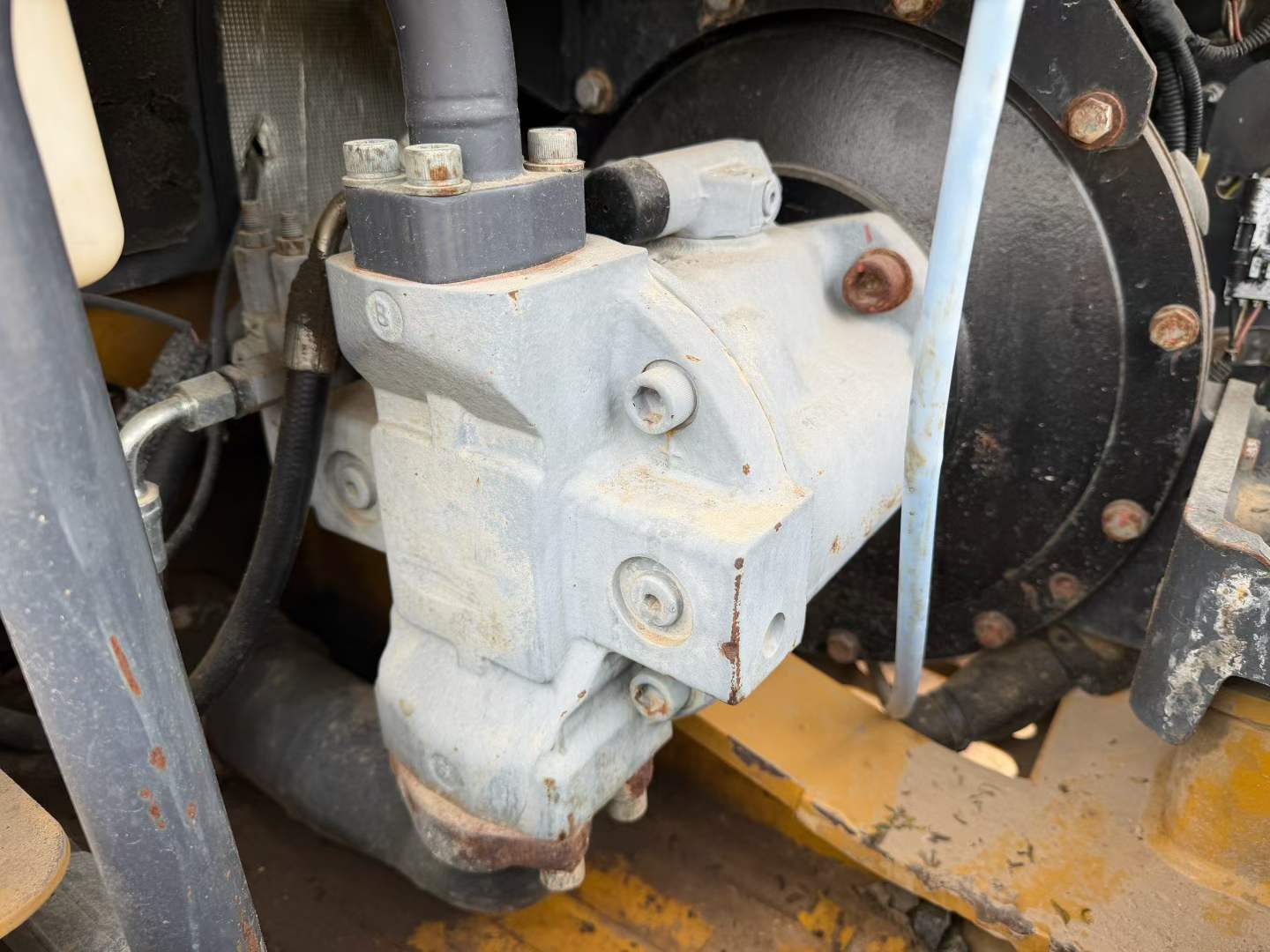

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
