Product Description

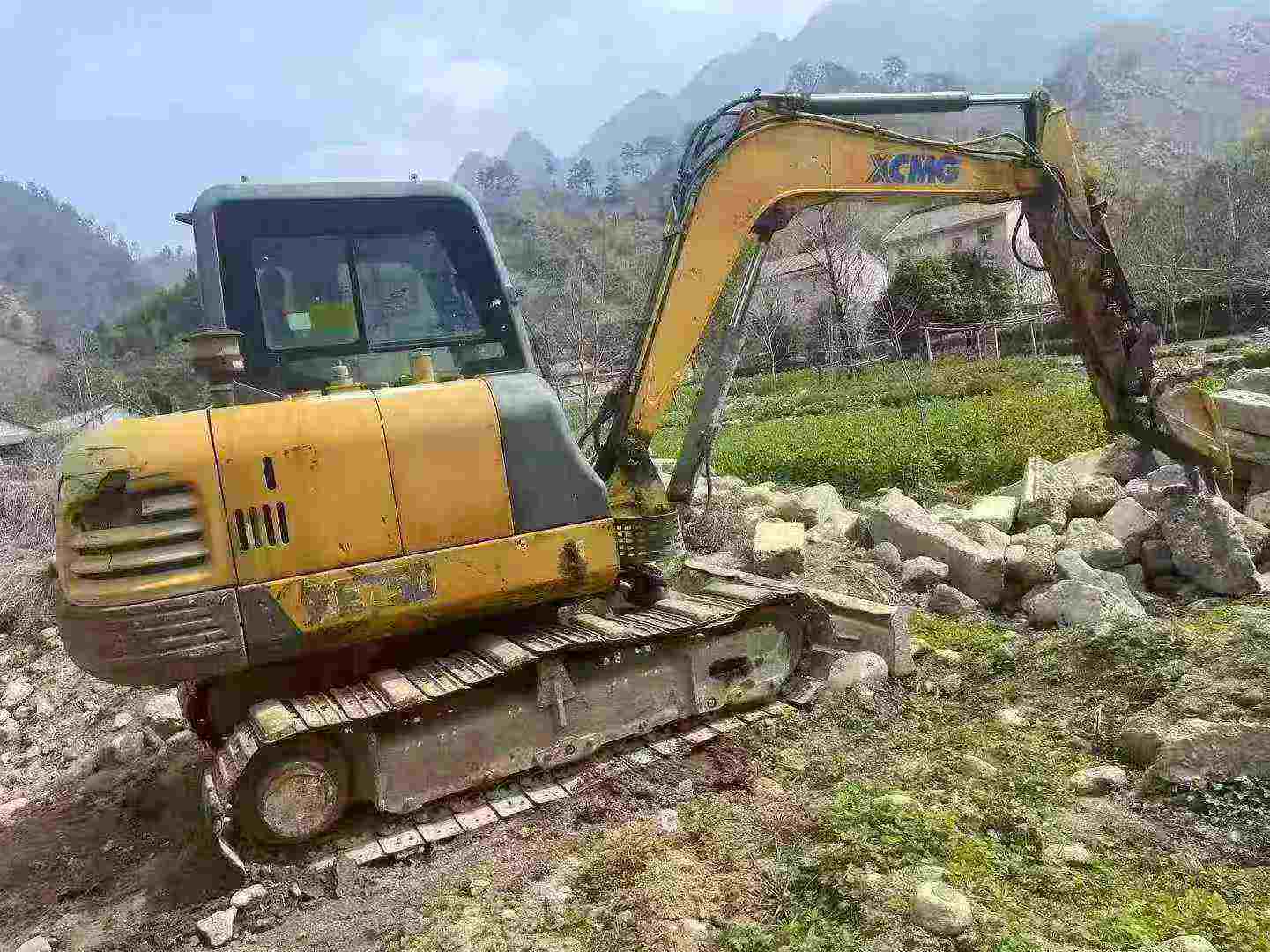

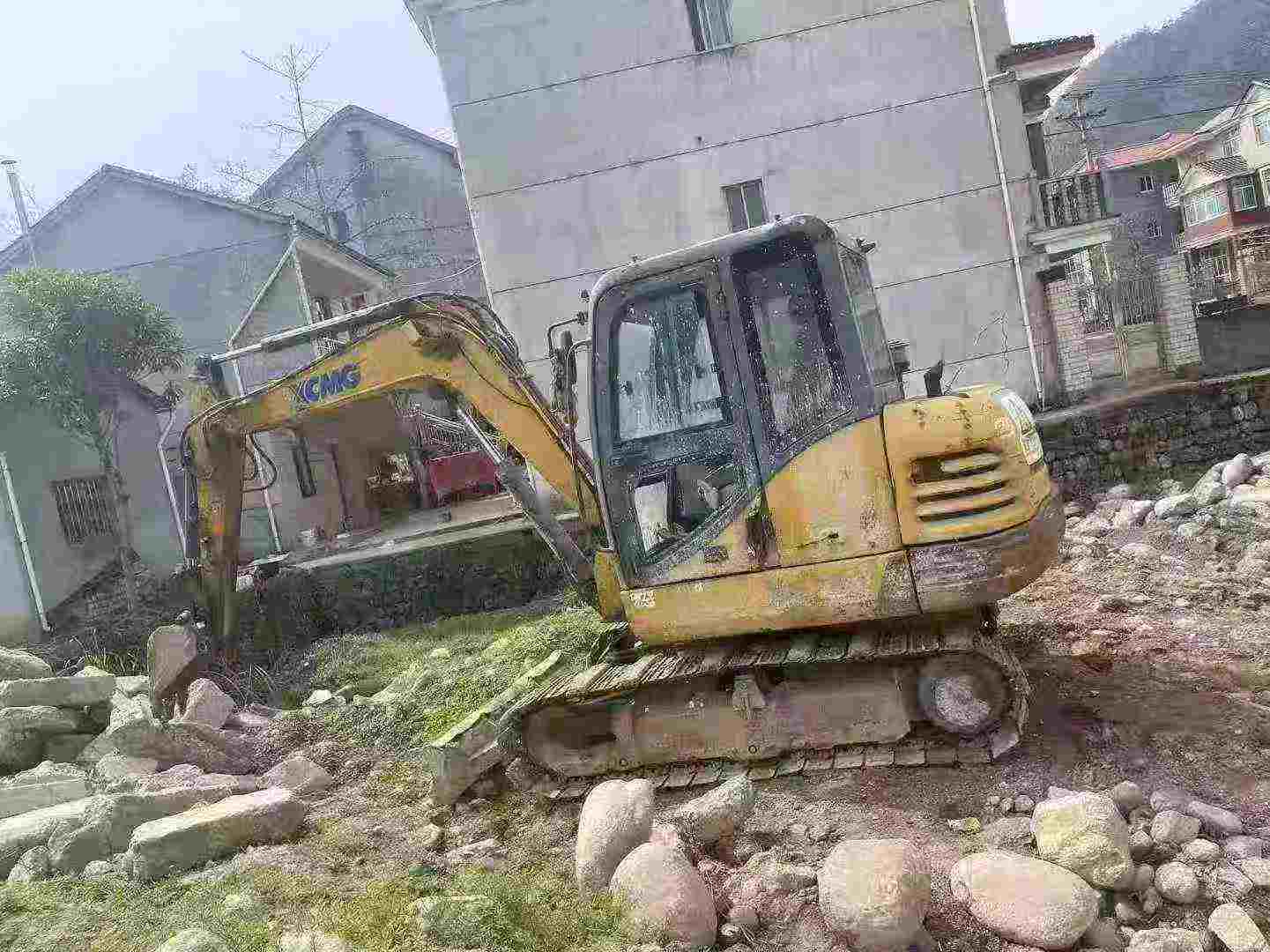

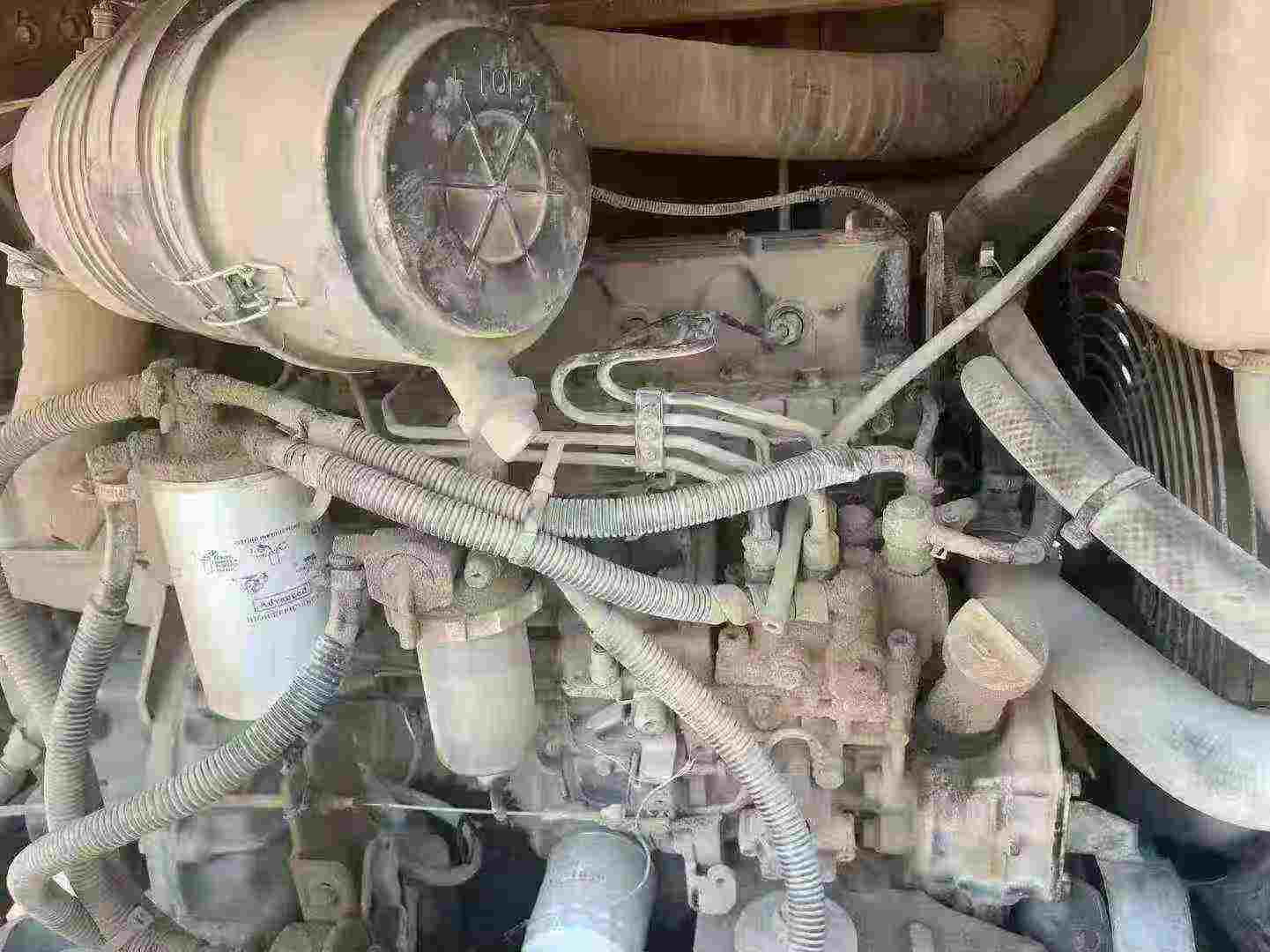

Proven performance meets compact efficiency in this 2017 XCMG XE60 mini excavator, now available from our Hangzhou, Zhejiang facility. Operating at 6 tons with a working weight of 5,960 kg, this machine has demonstrated its durability through years of reliable service. Powered by a robust Yanmar 4TNV94L engine delivering 39.8 kW at 2200 rpm, this workhorse combines Japanese engine reliability with Chinese manufacturing value.
Built to last, this excavator features premium Rexroth main pumps and a comprehensive hydraulic system with 22 MPa main overflow pressure. With a maximum digging depth of 3,830 mm and digging radius extending to 6,130 mm, it tackles demanding jobsites with confidence. The bucket digging force of 42.5 kN and rod force of 28.5 kN deliver consistent productivity across applications.
- Bucket capacity: 0.09-0.23 m³ with backhoe configuration
- Water-cooled 4-cylinder engine (3.054L displacement)
- Standard hydraulic crushing pipeline for versatility
- Compact transport dimensions: 5,850 × 1,880 × 2,585 mm
- 35° climbing ability for challenging terrain
- 110L fuel tank for extended operation
Ready for immediate deployment worldwide from Fair Trade
| Specifications | Value |
|---|---|
| No. | 1050490 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
