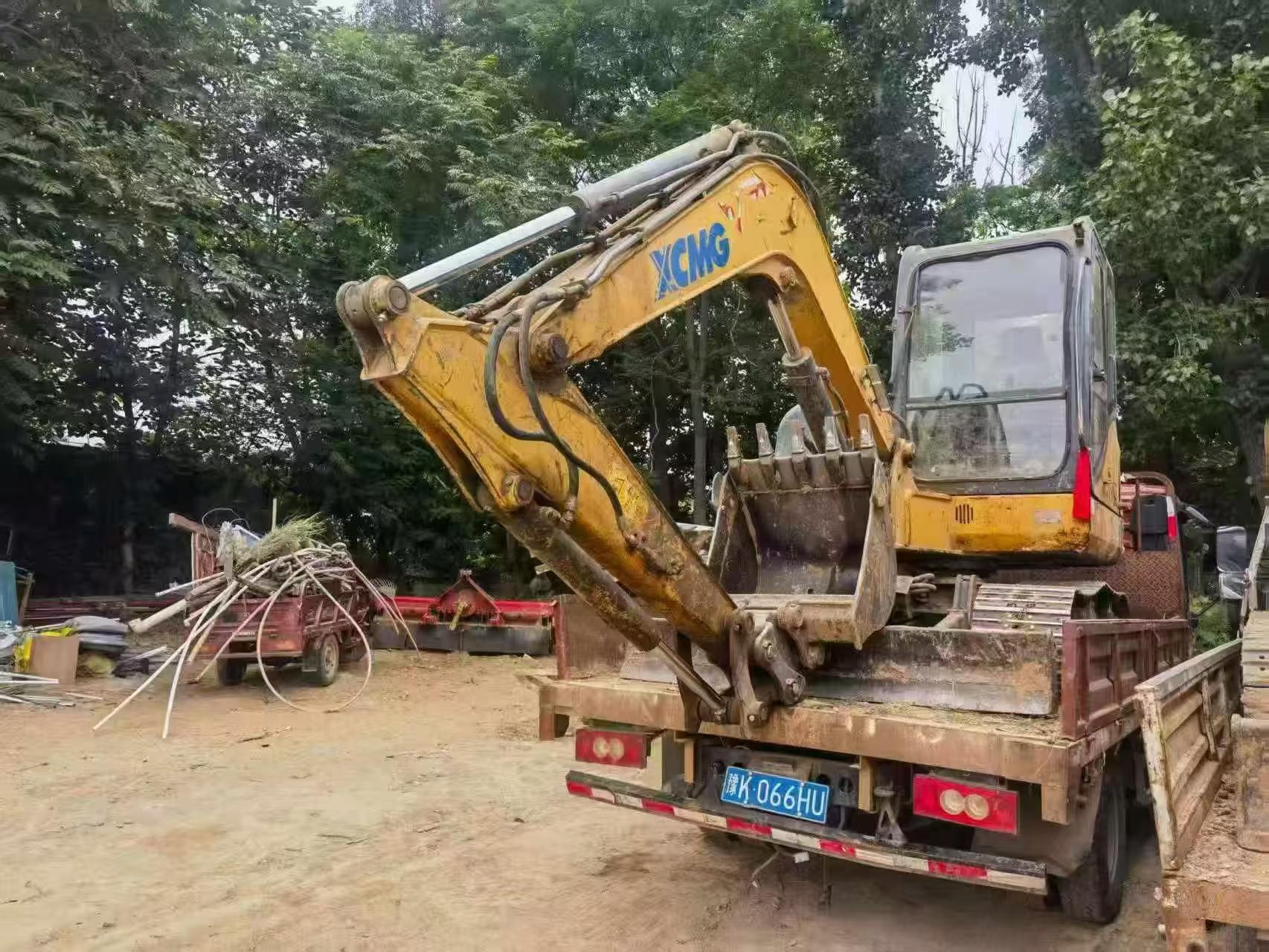

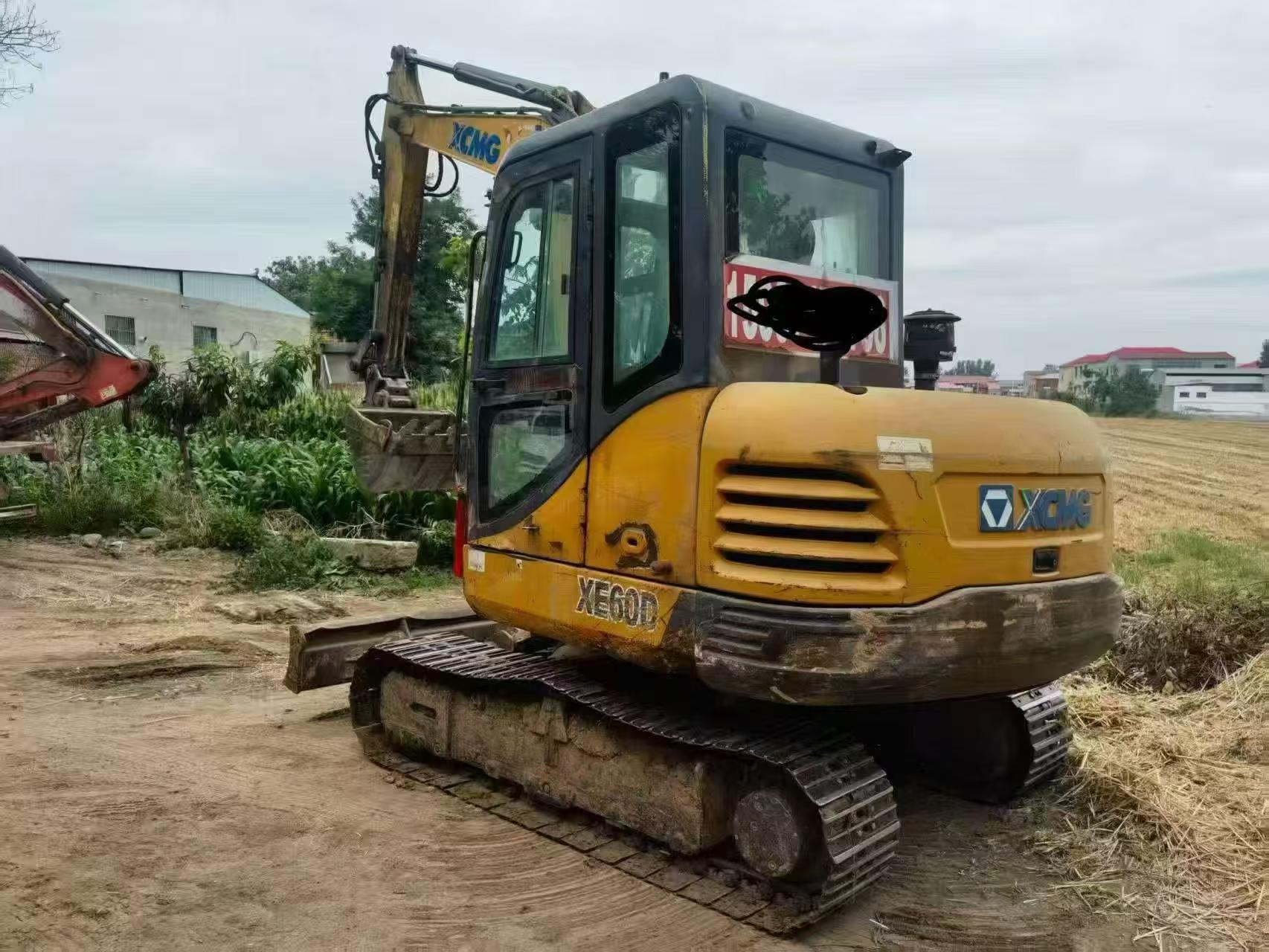

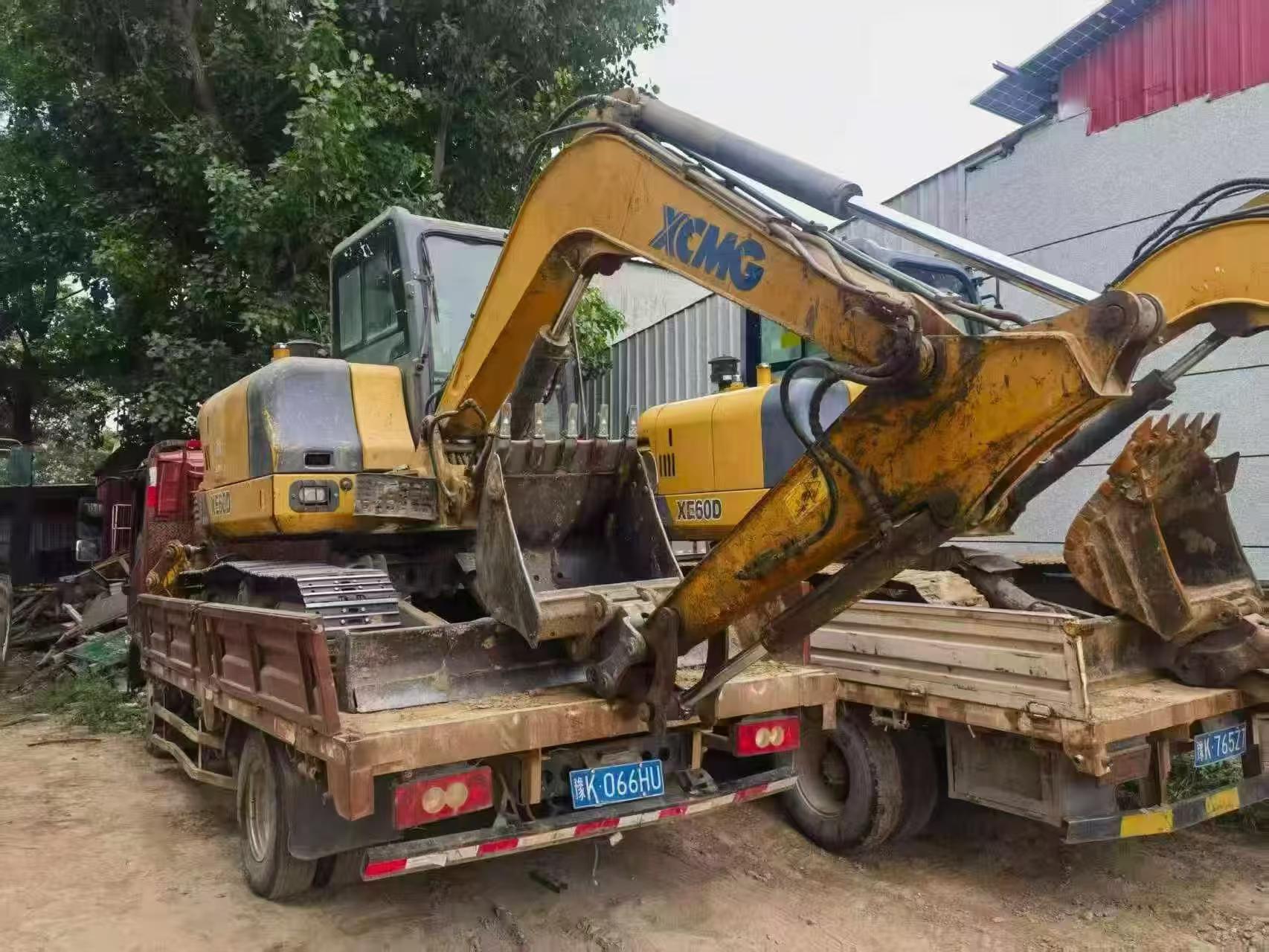

2017 XCMG XE60

1/9
Buy XCMG XE60 Used Excavator / 1
Buy XCMG XE60 Used Excavator / 2
Buy XCMG XE60 Used Excavator / 3
Buy XCMG XE60 Used Excavator / 4

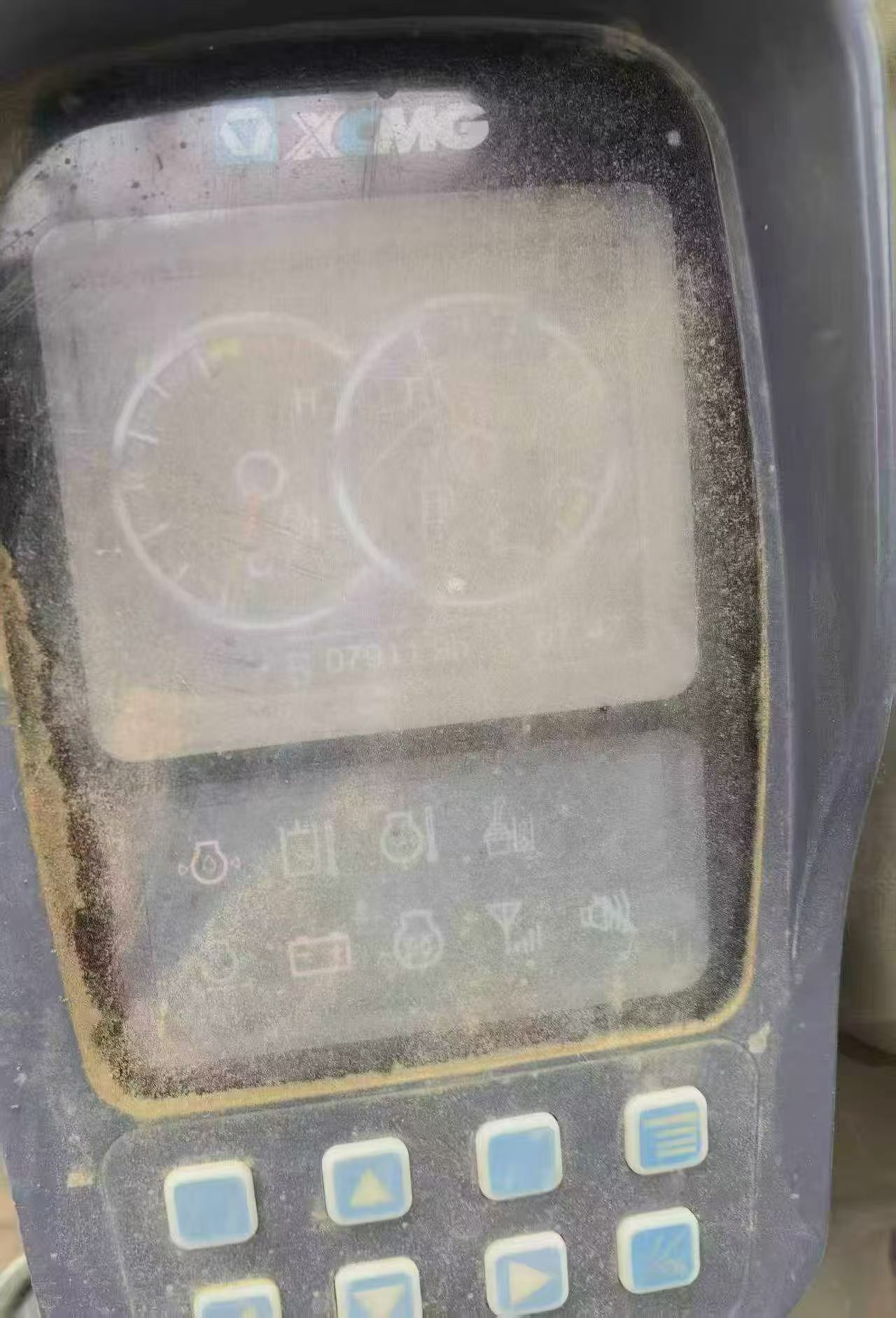

Buy XCMG XE60 Used Excavator / 5
Buy XCMG XE60 Used Excavator / 6
Buy XCMG XE60 Used Excavator / 7
Buy XCMG XE60 Used Excavator / 8
Buy XCMG XE60 Used Excavator / 9

Product Description

This 2017 XCMG XE60 midi excavator represents a solid opportunity for contractors seeking reliable performance at competitive value. Located in Hunan, China, this 6-ton class machine has accumulated approximately 30,000+ operating hours while maintaining complete documentation and service records.

The XE60 is well-regarded in the Chinese construction equipment market for its balance of power and maneuverability, making it suitable for urban construction, landscaping, and light utility work. The unit's well-preserved condition reflects consistent maintenance practices throughout its operational life.

  • Year of Manufacture: 2017
  • Model: XCMG XE60
  • Operating Hours: 30,000+
  • Documentation: Complete records available
  • Current Location: Hunan Province, China

This excavator is available for immediate inspection and export arrangements. Contact us for detailed specifications, additional imagery, and shipping logistics to your destination.

SpecificationsValue
No.1087589
Tonnage (tons)6
Working weight (kg)5960
Bucket capacity (m³)0.09-0.23
Boom length (mm)3000
Rod length (mm)1600
Country of originXuzhou
powerTraditional power
manufacturerMade in China
bucketbackhoe

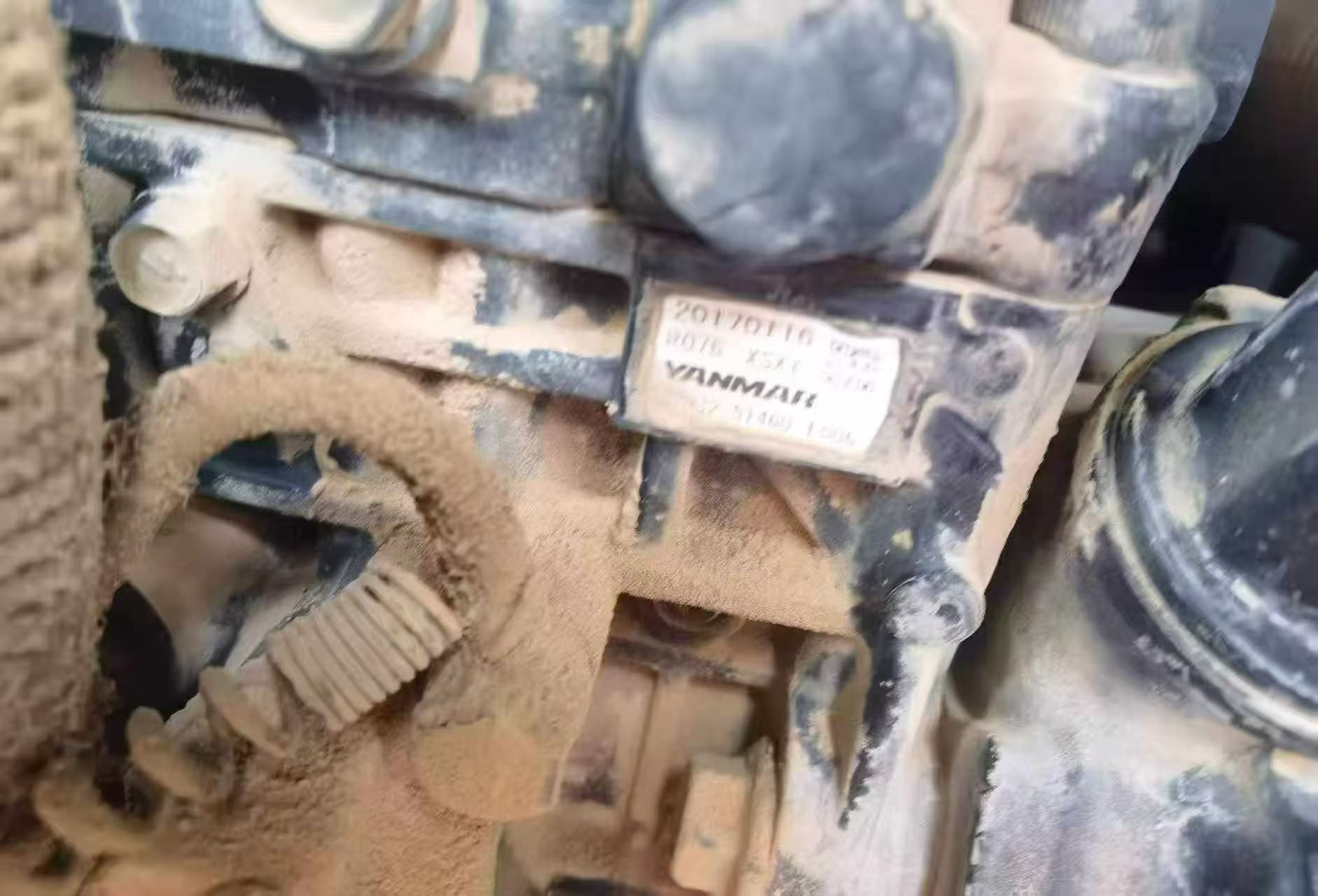

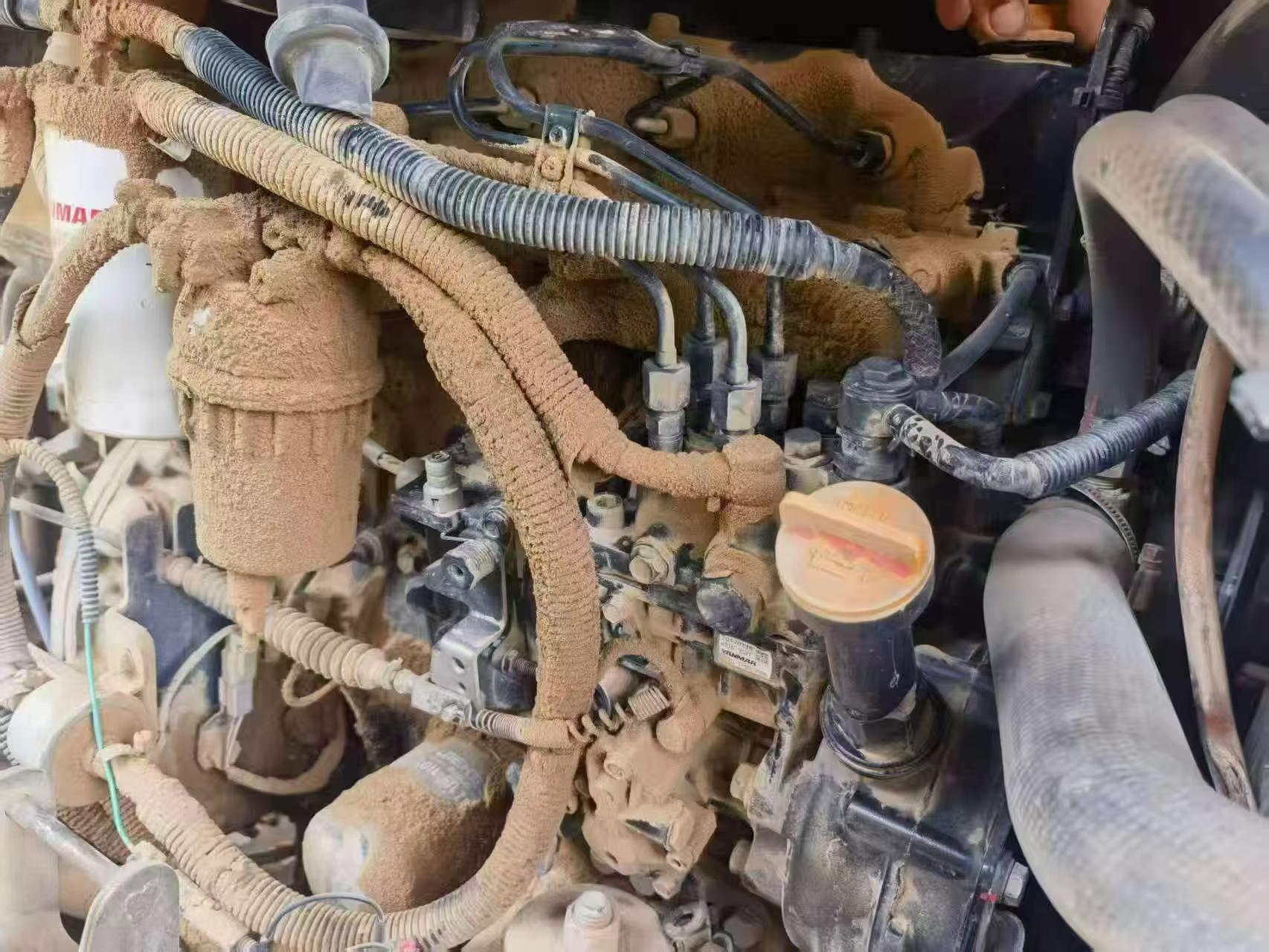

Engine typeYanmar 4TNV94L
Rated power (kw/rpm)39.8/2200
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.054
Ground specific pressure (Kpa)32.1
Rotation speed (rpm)9.5
Climbing ability (%)35 °
Bucket digging force (kN)42.5
Rod digging force (kN)28.5
Travel speed (km/h)4.2/2.2
Main overflow set pressure (Mpa)22
Maximum flow of main pump (l/min)2*60.5+40.3+9.9
Traveling Hydraulic Circuit (Mpa)22
Rotary Hydraulic Circuit (Mpa)23
Hydraulic crushing pipeline is standardis
Main pump typeRexroth
Pilot Oil Circuit (MPa)2.9
Fuel Tank (L)110
Hydraulic Tank (L)85
Engine Oil changes (L)5.3
Total transport length (mm)5850
Total transport width (mm)1880/1920
Total transport height (mm)2585
Counterweight ground clearance (mm)694
Minimum ground clearance (mm)369
Minimum turning radius of front working device (mm)2450
Back end turning radius (mm)1650
Track gauge (mm)1480/1500
Track plate width (mm)400
Track ground length (mm)1985/1990
Maximum digging radius (mm)6130
Maximum digging depth (mm)3830
Maximum excavation height (mm)5630
Maximum unloading height (mm)3945
Maximum vertical digging depth (mm)2680
Dodging plate width × height (mm)1880*365/1920*340
see more

Overview

No.1087589

Brand Name:

XCMG

Model Number:

XE60

Year:

2017

Location:

Hunan China

Pub Date

Are you interested in this machine?

Please contact us
