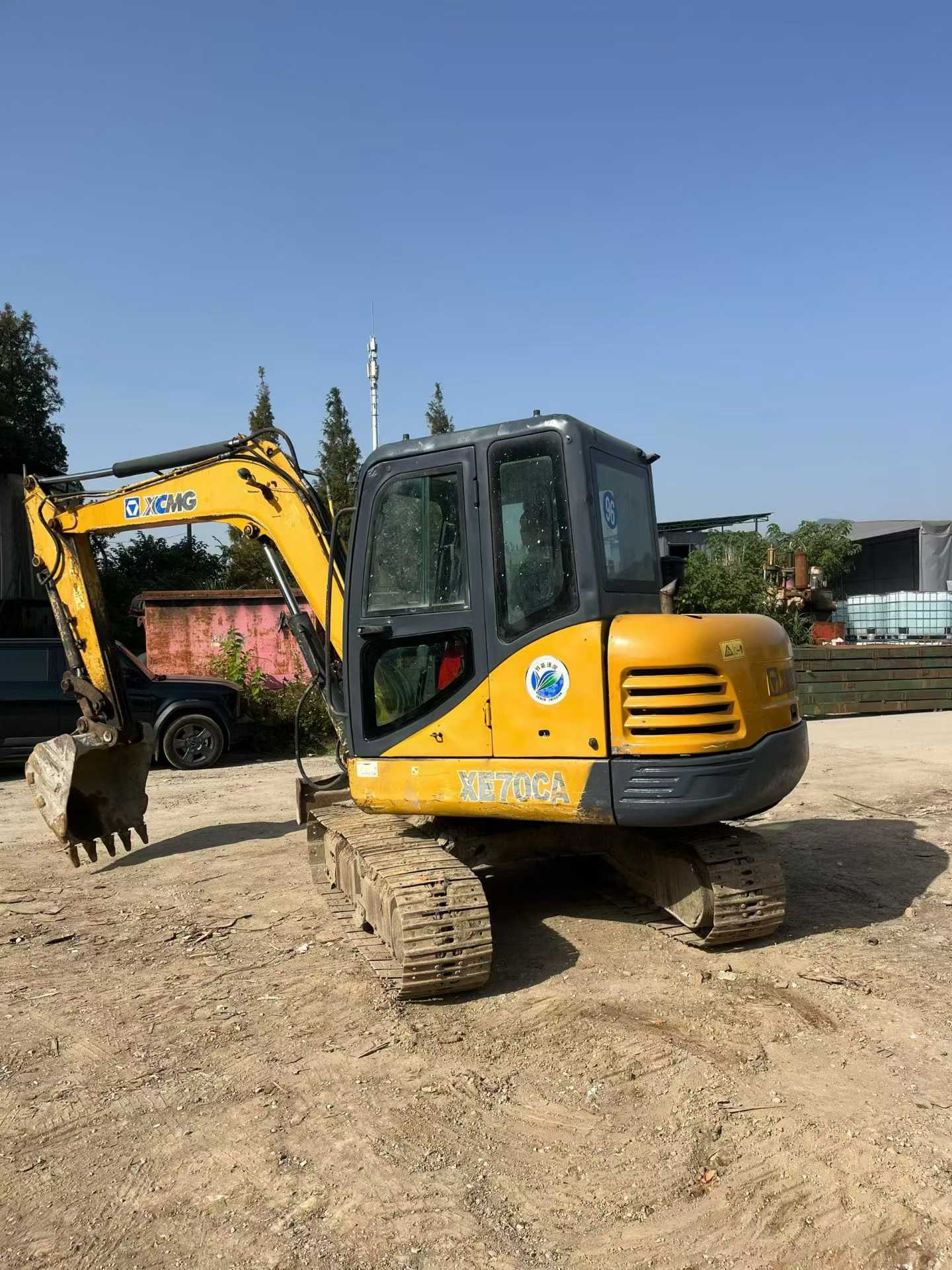

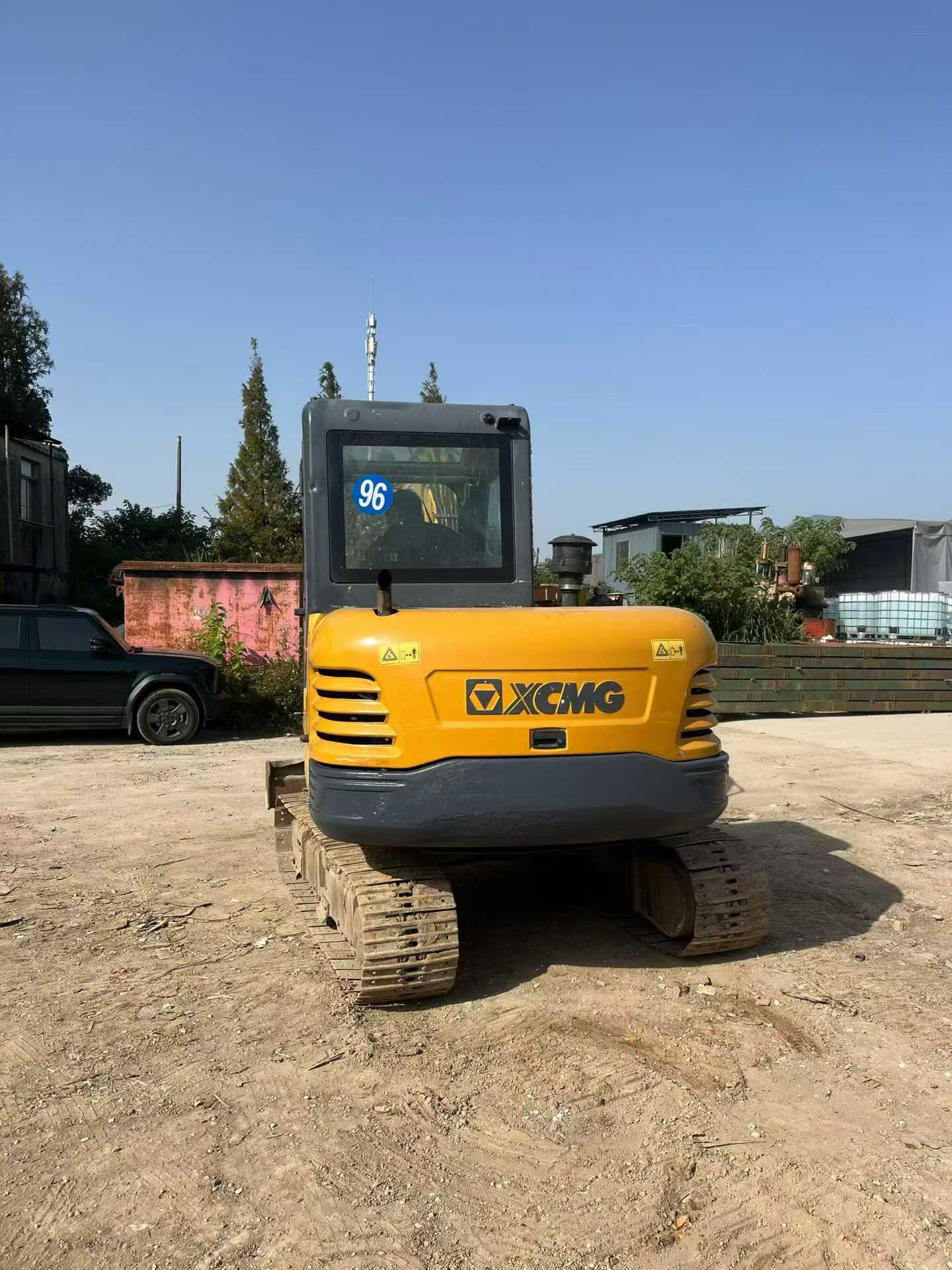

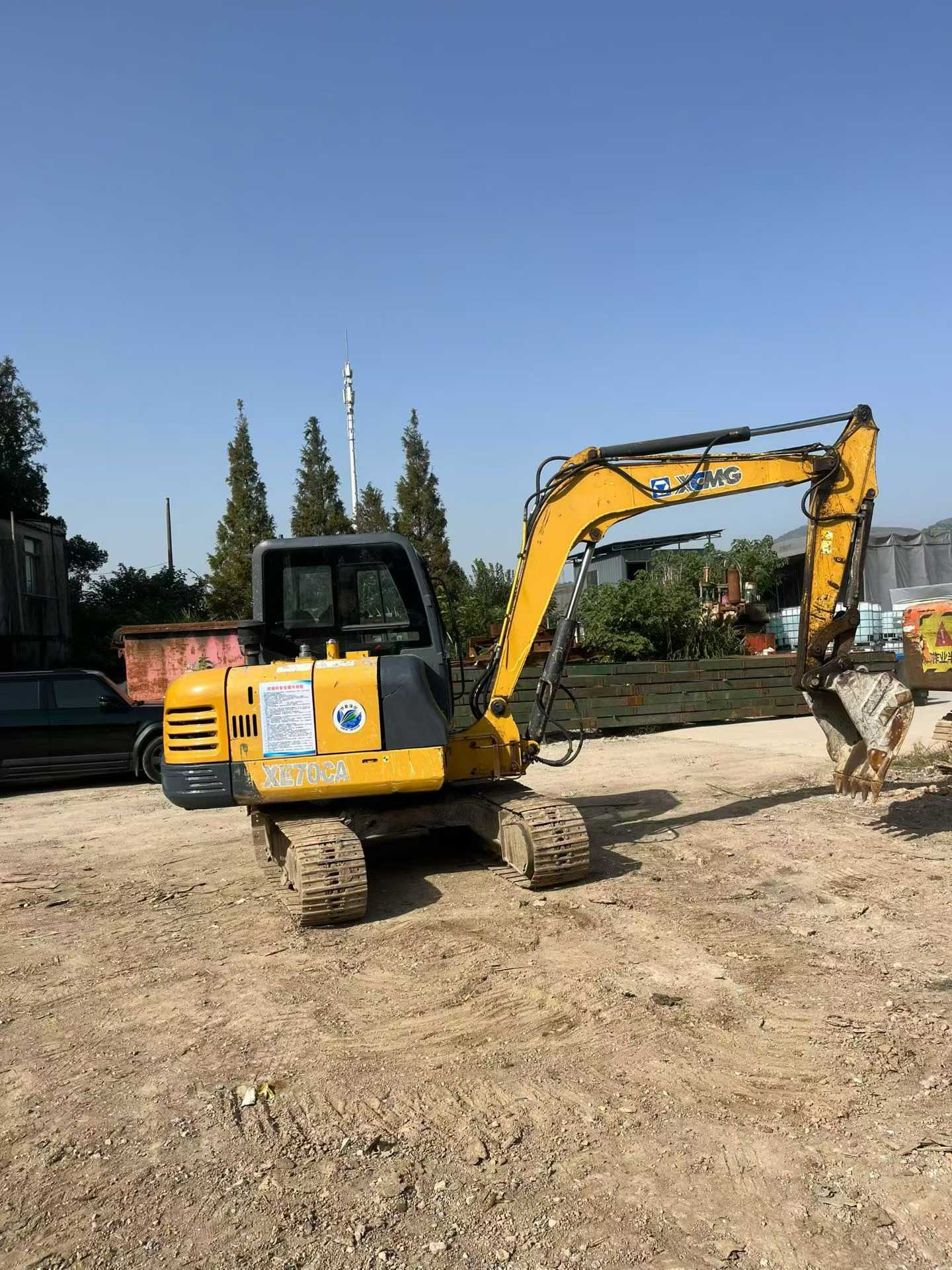

Built for reliability and fleet versatility, this 2017 XCMG XE60 compact excavator delivers consistent 6-ton performance where larger machines can't reach. Powered by a robust Yanmar 4TNV94L engine producing 39.8kW, this unit maintains productivity across diverse jobsites with its 0.09-0.23m³ bucket capacity range and impressive 42.5kN digging force.
Key operational advantages include:
- Compact 1880mm transport width for easy site access and trailer loading
- Dual-speed travel system (4.2/2.2 km/h) optimizing both transport and precision work
- Rexroth hydraulic system with 22MPa main circuit pressure ensuring consistent performance
- 6130mm maximum digging radius covering substantial work areas
- 110L fuel capacity minimizing downtime between refueling cycles
Currently located in Ningbo, Zhejiang, this machine represents an ideal fleet expansion opportunity for contractors requiring dependable backup capacity or specialized access capabilities. With proven XCMG engineering and comprehensive hydraulic specifications, it integrates seamlessly into existing operations while maintaining the performance standards your projects demand.
| Specifications | Value |
|---|---|
| No. | 991856 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
