Product Description

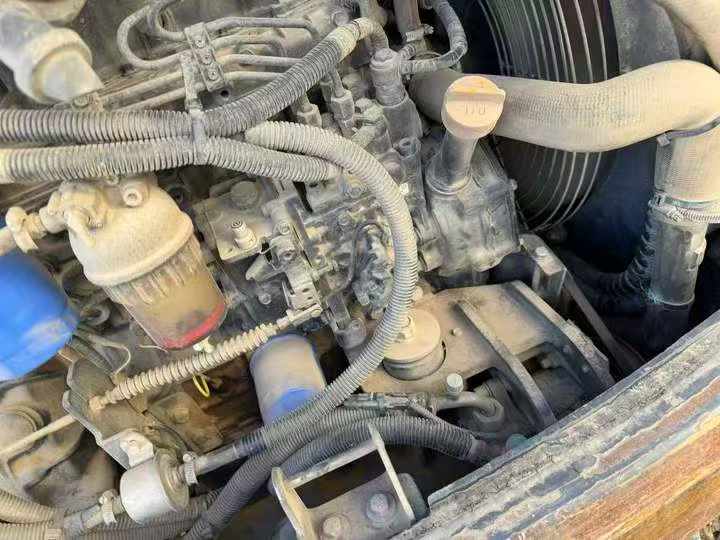

Built to endure the toughest jobsite conditions, this 2017 XCMG XE60 excavator represents proven engineering excellence from one of China's leading manufacturers. With over six years of operational history, this 6-ton workhorse demonstrates the exceptional build quality and reliability that XCMG is known for worldwide. Powered by a robust Yanmar 4TNV94L engine delivering 39.8kW at 2200rpm, this machine combines dependable performance with efficient water-cooled operation.
Currently located in Hangzhou, Zhejiang, this proven performer features premium Rexroth main pumps and comprehensive hydraulic systems designed for sustained productivity. Key specifications include:
- Maximum digging depth of 3,830mm with impressive reach of 6,130mm
- Powerful bucket digging force of 42.5kN for demanding excavation tasks
- Versatile bucket capacity range from 0.09 to 0.23m³
- Standard hydraulic crushing pipeline for enhanced versatility
- Compact transport dimensions (5,850mm length) for easy mobilization
- 35° climbing ability and 32.1kPa ground pressure for varied terrain
Backed by years of field-tested performance, this durable excavator continues to deliver consistent result
| Specifications | Value |
|---|---|
| No. | 995900 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
