Product Description

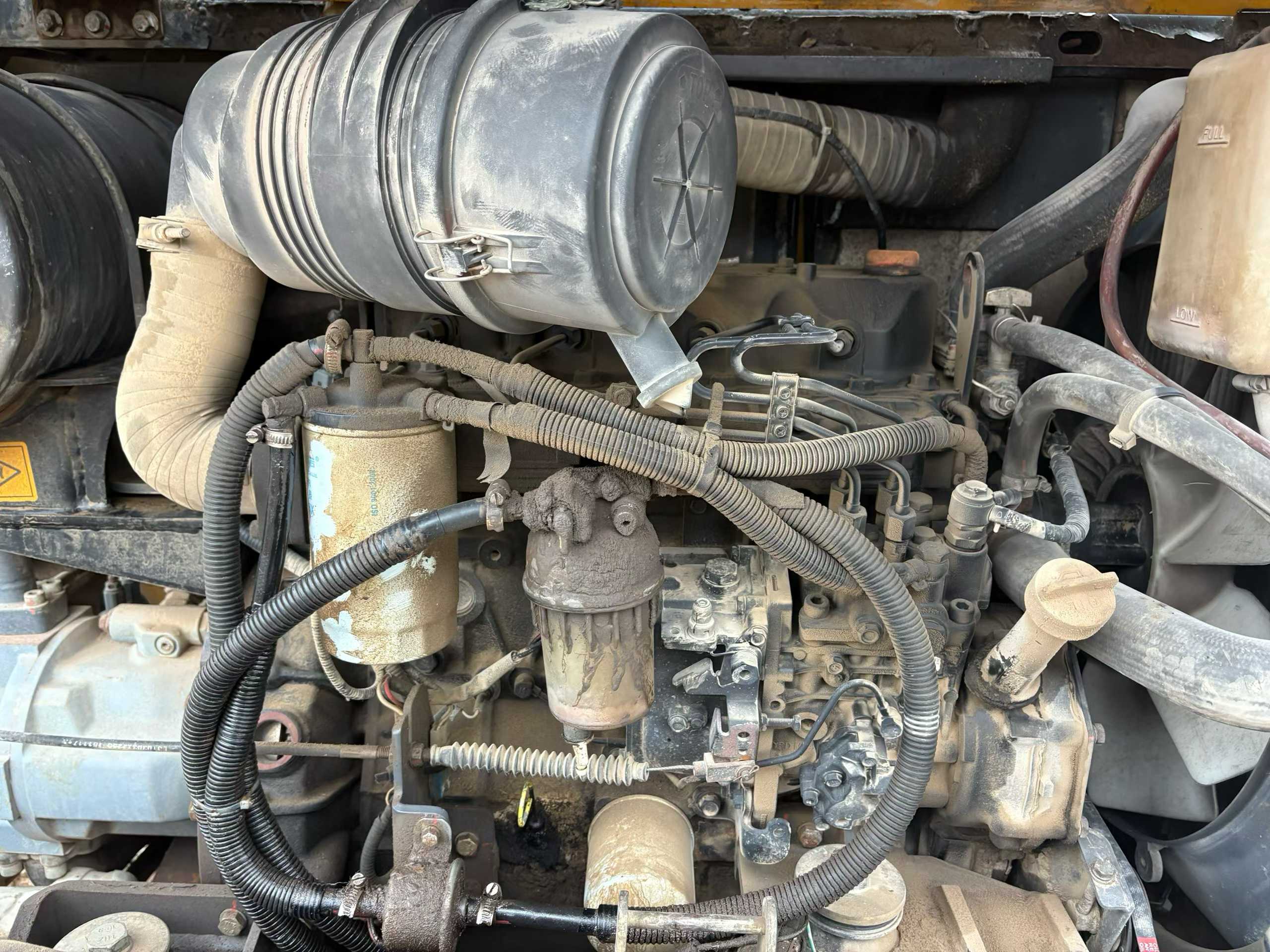

Built in 2018, this XCMG XE60 compact excavator delivers proven performance with the backing of China's most trusted heavy equipment manufacturer. Weighing 5,960 kg with a 0.09-0.23 m³ bucket capacity, this 6-ton machine handles urban construction, landscaping, and utility projects with precision. Powered by a reliable Yanmar 4TNV94L engine producing 39.8 kW at 2200 rpm, it combines fuel efficiency with consistent hydraulic power through dual Rexroth main pumps delivering 2×60.5+40.3+9.9 l/min total flow.
Operating specs include a maximum digging depth of 3,830 mm, digging radius of 6,130 mm, and bucket digging force of 42.5 kN—ideal for trenching and foundation work. Standard hydraulic crushing pipeline capability expands versatility across demolition applications.
Why XCMG in the used market:
- Global parts network ensures minimal downtime and affordable maintenance
- Strong resale value backed by China's largest construction equipment brand
- Factory support from Xuzhou continues beyond original sale
- Proven durability across millions of operating hours worldwide
Currently located in Fuyang, Anhui, this XE60 represents a smart investment for contract
| Specifications | Value |
|---|---|
| No. | 1016490 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
