Product Description
Proven in demanding conditions since 2018, this XCMG XE60 mini excavator demonstrates the durability that has made it a reliable workhorse across construction sites worldwide. Built in Xuzhou with a robust Yanmar 4TNV94L engine delivering 39.8kW at 2200rpm, this 6-ton machine combines compact dimensions with serious digging power—42.5kN bucket force and 3830mm maximum depth capacity prove its capabilities extend far beyond its size.

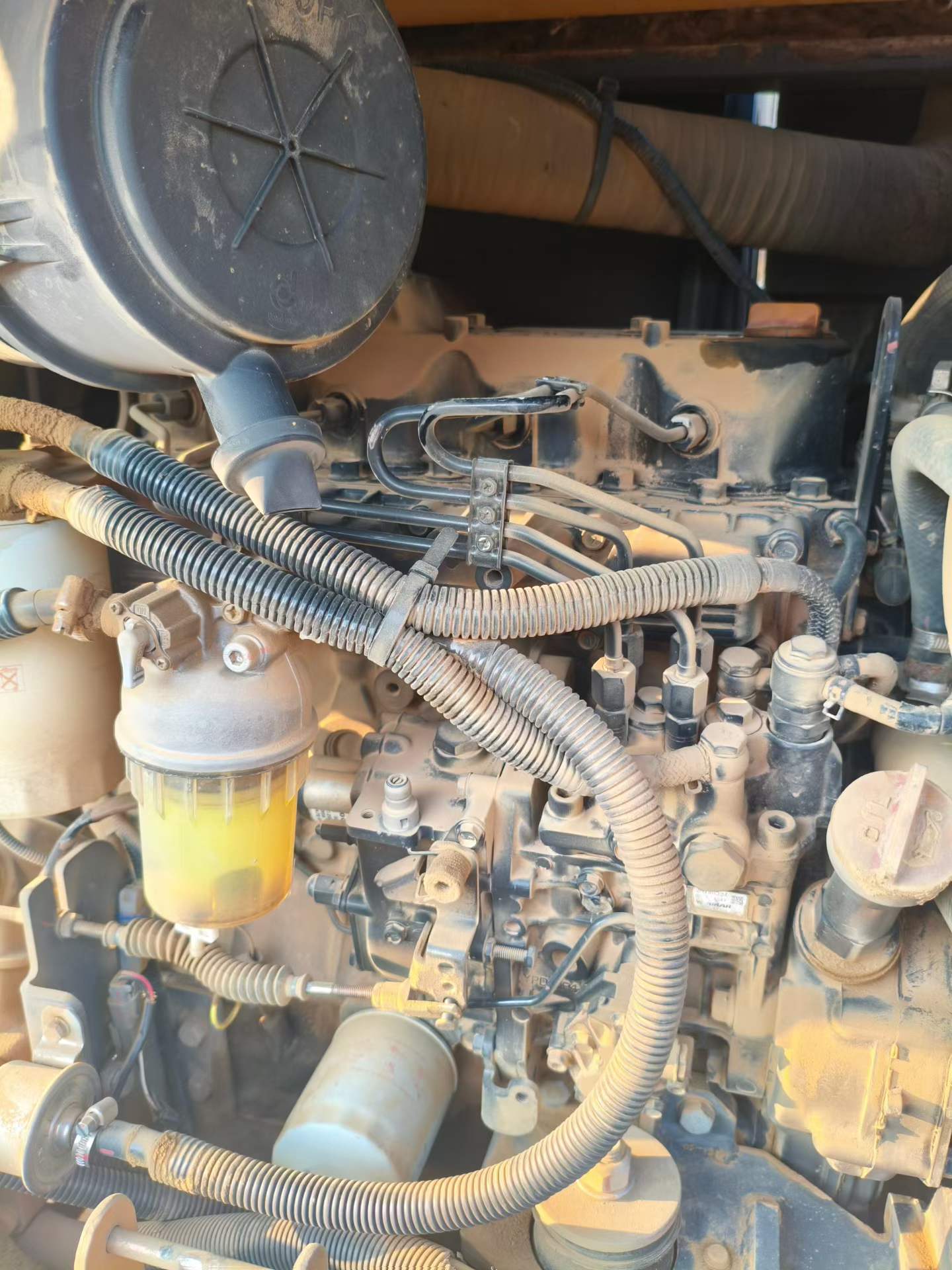

Operating weight of 5960kg provides stability without sacrificing maneuverability, while the Rexroth main pump system ensures consistent hydraulic performance across all functions. Water-cooled 4-cylinder engine with 3.054L displacement maintains optimal temperatures during extended operation. Standard hydraulic crushing pipeline adds versatility for demolition work.
- Compact transport dimensions: 5850mm length × 1920mm width
- Maximum digging radius: 6130mm for extended reach
- 35° climbing ability tackles challenging terrain
- 110L fuel tank minimizes refueling downtime
- 9.5rpm rotation speed enables efficient cycle times
Currently located in Dali, Yunnan Province, this machine represents tested reliability backed by years of field-proven
| Specifications | Value |
|---|---|
| No. | 1027833 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

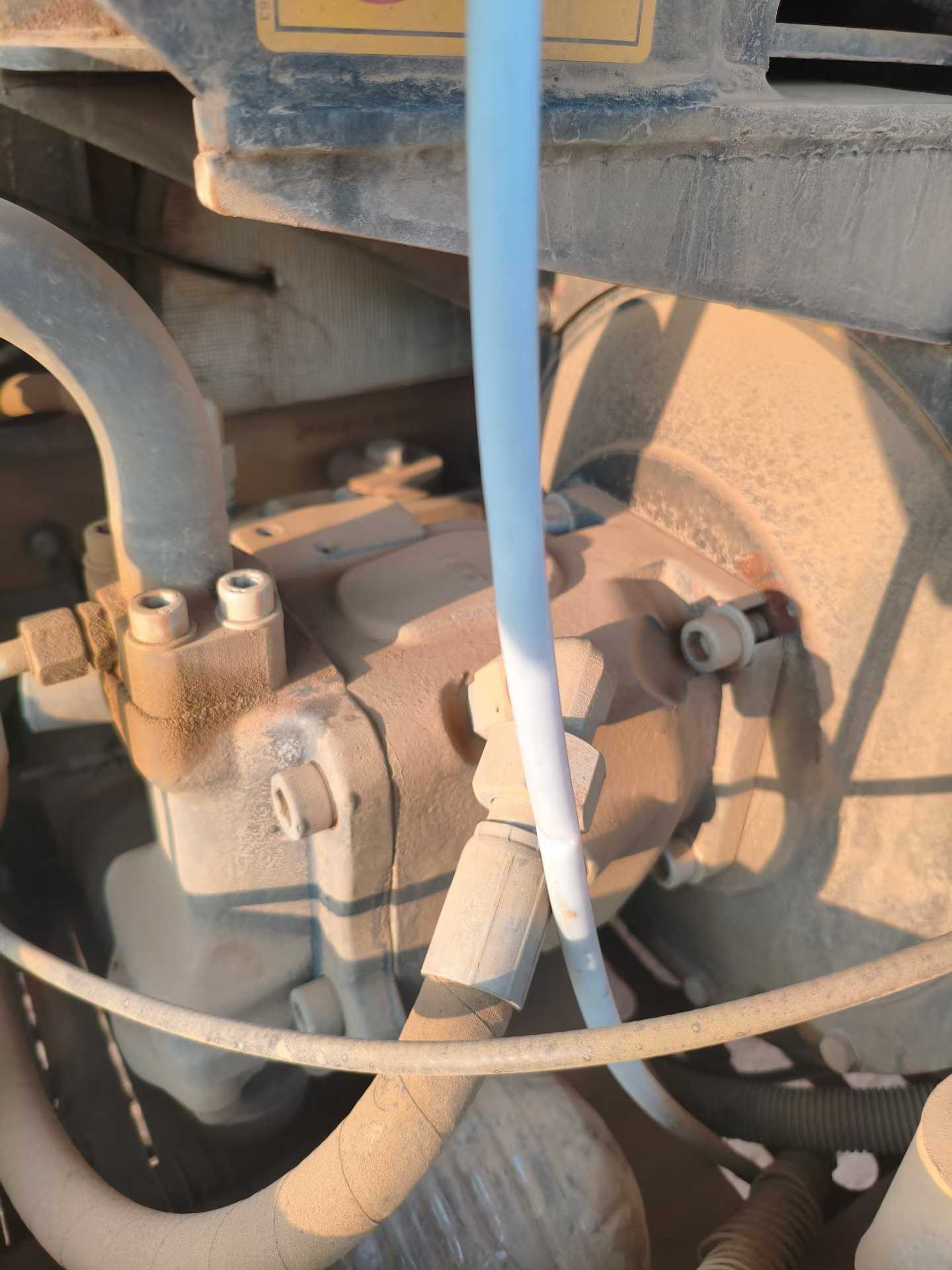

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
