Product Description

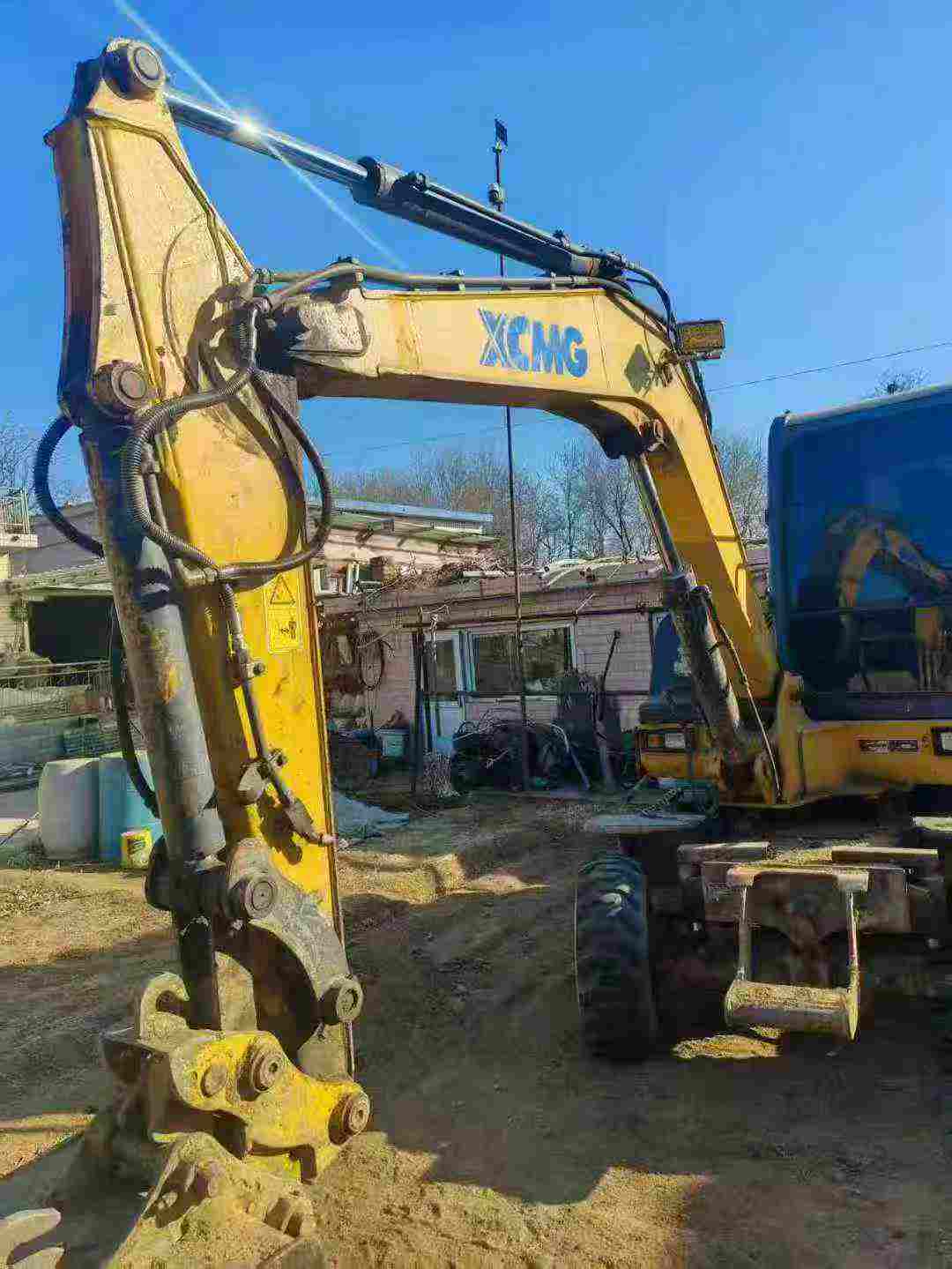

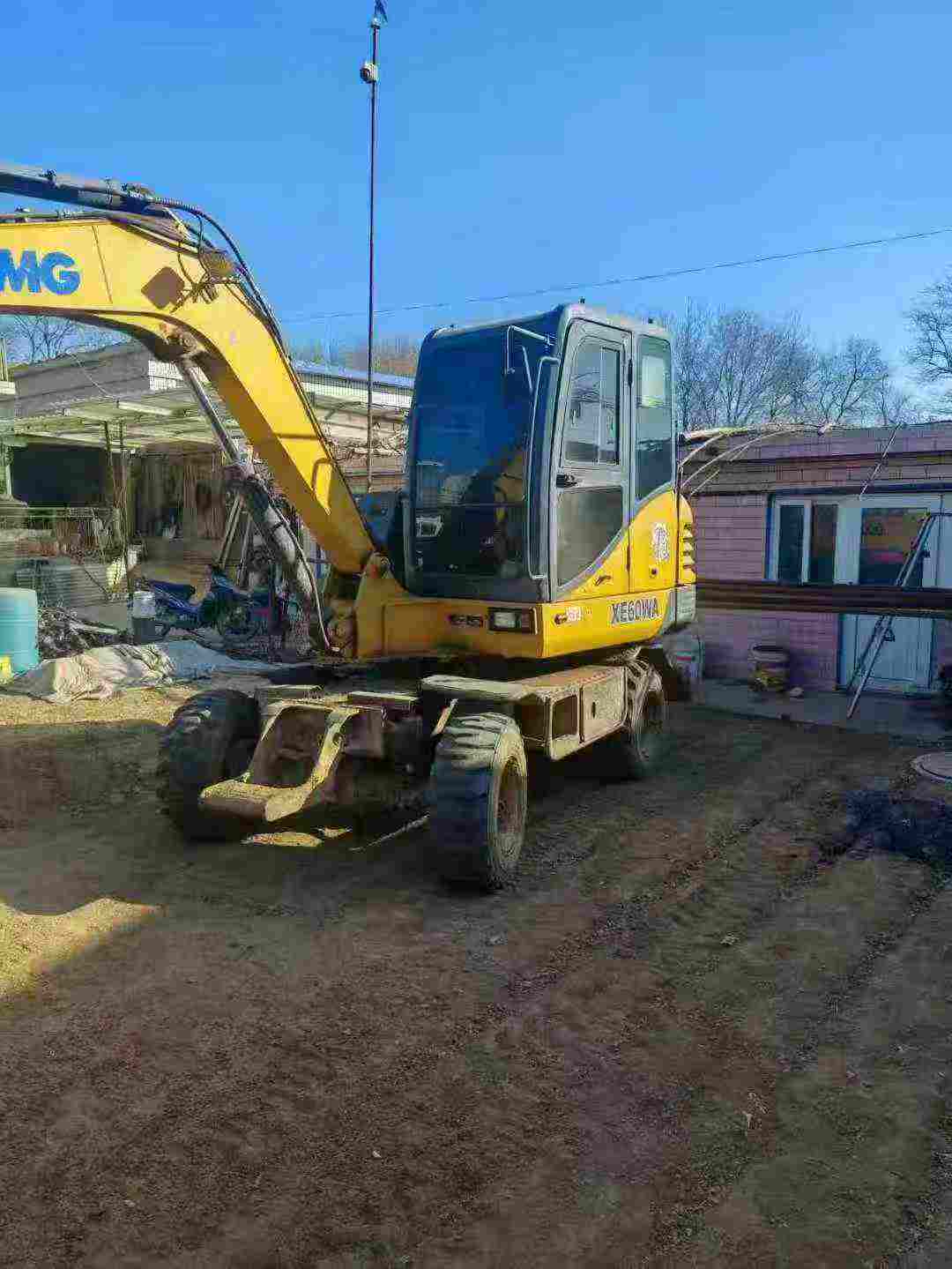

Built in 2018, this XCMG XE60 mini excavator delivers proven performance in a 6-ton package engineered for versatility and long-term value. Powered by a reliable Yanmar 4TNV94L diesel engine producing 39.8kW, this compact machine combines robust digging force (42.5kN bucket, 28.5kN arm) with precision hydraulics courtesy of Rexroth main pumps. With a maximum digging reach of 6,130mm and depth of 3,830mm, it handles confined jobsites and utility work with confidence.
XCMG's global presence ensures critical advantages for used equipment buyers: parts availability rivals any major brand, technical support spans six continents, and resale values remain stable due to widespread fleet adoption. The XE60's water-cooled engine, standard hydraulic breaker lines, and durable undercarriage (400mm track plates, 1,985mm ground contact) reflect construction-grade engineering rarely found in this weight class. Currently located in Qinhuangdao, Hebei, this unit represents exceptional value for contractors seeking dependable Chinese machinery backed by a manufacturer with genuine aftermarket infrastructure.
- Working weight: 5,960kg | Bucket capacity: 0.09-0.23m³
- Yanmar 4TNV94L engine: 39.8kW @ 2,200rpm
- Max digg
| Specifications | Value |
|---|---|
| No. | 1029269 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
