Product Description

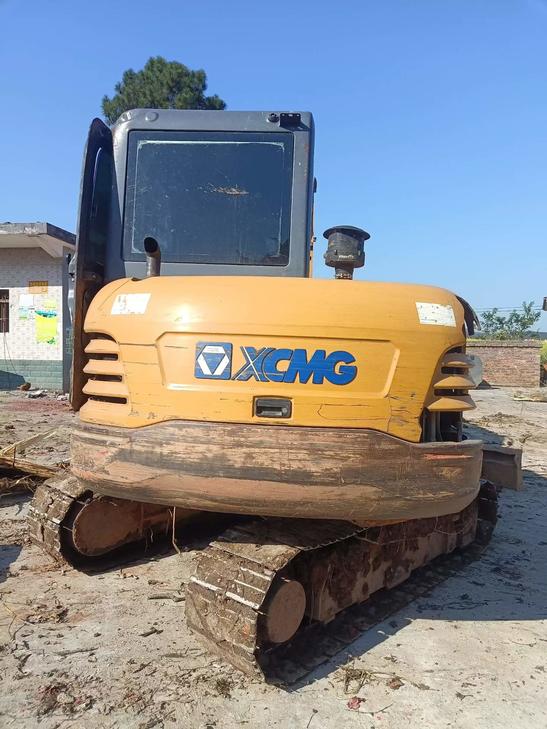

Built in 2018, this XCMG XE60 mini excavator delivers proven performance for contractors seeking dependable 6-ton capacity machinery. Powered by a Yanmar 4TNV94L engine producing 39.8kW at 2200 rpm, this Xuzhou-manufactured unit combines robust Japanese power with XCMG's established engineering standards. Operating weight of 5,960 kg and bucket capacity ranging from 0.09 to 0.23 m³ make it ideal for urban construction, utility work, and landscaping projects.

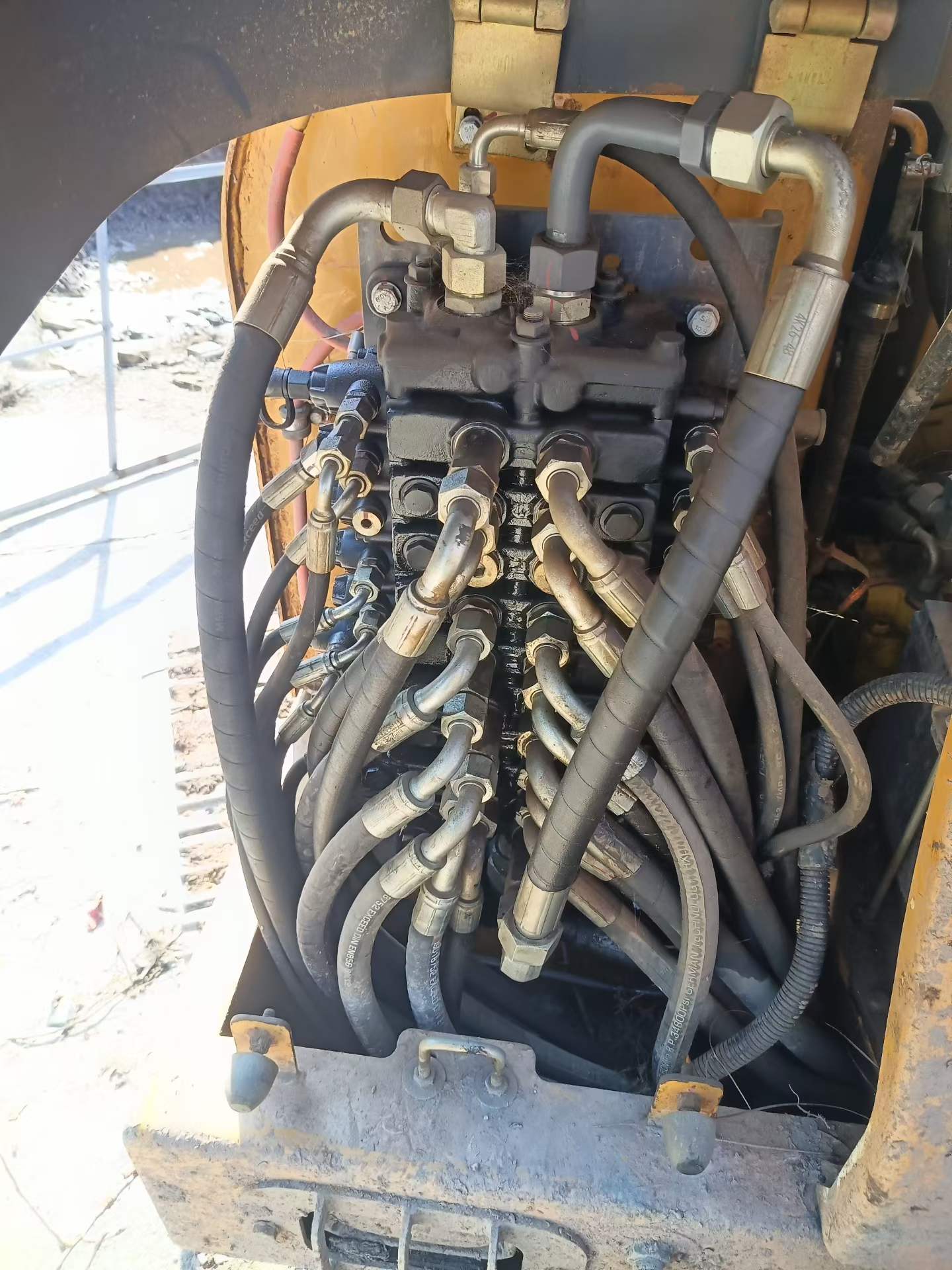

XCMG's market dominance ensures exceptional parts availability and strong resale value—critical factors when purchasing used equipment. The XE60 features a premium Rexroth hydraulic system with dual 60.5 l/min pumps, delivering 42.5 kN bucket digging force and 28.5 kN arm digging force. Maximum digging reach extends to 6,130 mm with 3,830 mm depth capability. Standard hydraulic breaker lines, water-cooled 4-cylinder engine, and compact dimensions (5,850 mm transport length) provide versatility across job sites.
Currently located in Jiangxi Ji'an, this machine represents a smart investment in China's most trusted construction equipment brand. XCMG's extensive dealer network guarantees long-term operational support and parts accessibility worldwide.
| Specifications | Value |
|---|---|
| No. | 1031135 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
