Product Description

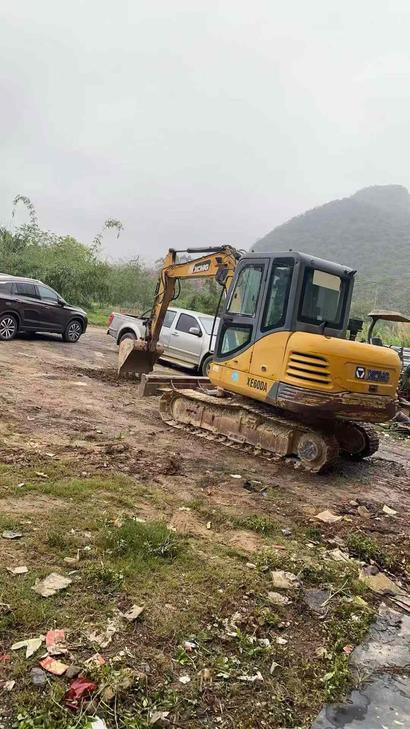

Strengthen your operational capacity with this 2018 XCMG XE60 mini excavator, a proven 6-ton workhorse designed for contractors managing multiple jobsites. Powered by a reliable Yanmar 4TNV94L engine delivering 39.8 kW at 2200 rpm, this compact unit combines efficient fuel consumption with robust hydraulic performance. Dual Rexroth main pumps supply 2×60.5 L/min flow, generating 42.5 kN bucket digging force and 28.5 kN arm digging force—sufficient power for trenching, foundation work, and utility installations.
Currently located in Zhaoqing, Guangdong, this machine offers practical dimensions for transport and tight-access projects:
- Operating weight: 5,960 kg with excellent 32.1 kPa ground pressure
- Maximum digging reach: 6,130 mm with 3,830 mm depth capability
- Compact transport size: 5,850 mm × 1,920 mm × 2,585 mm
- Bucket capacity range: 0.09–0.23 m³ for versatile applications
- Factory-equipped hydraulic breaker circuit for attachment flexibility
Ideal as a fleet backup or secondary unit, this XE60 reduces downtime risks while maintaining productivity across concurrent projects. Water-cooled 4-cylinder engine ensures consistent performance in demanding conditions
| Specifications | Value |
|---|---|
| No. | 1049491 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
