Product Description

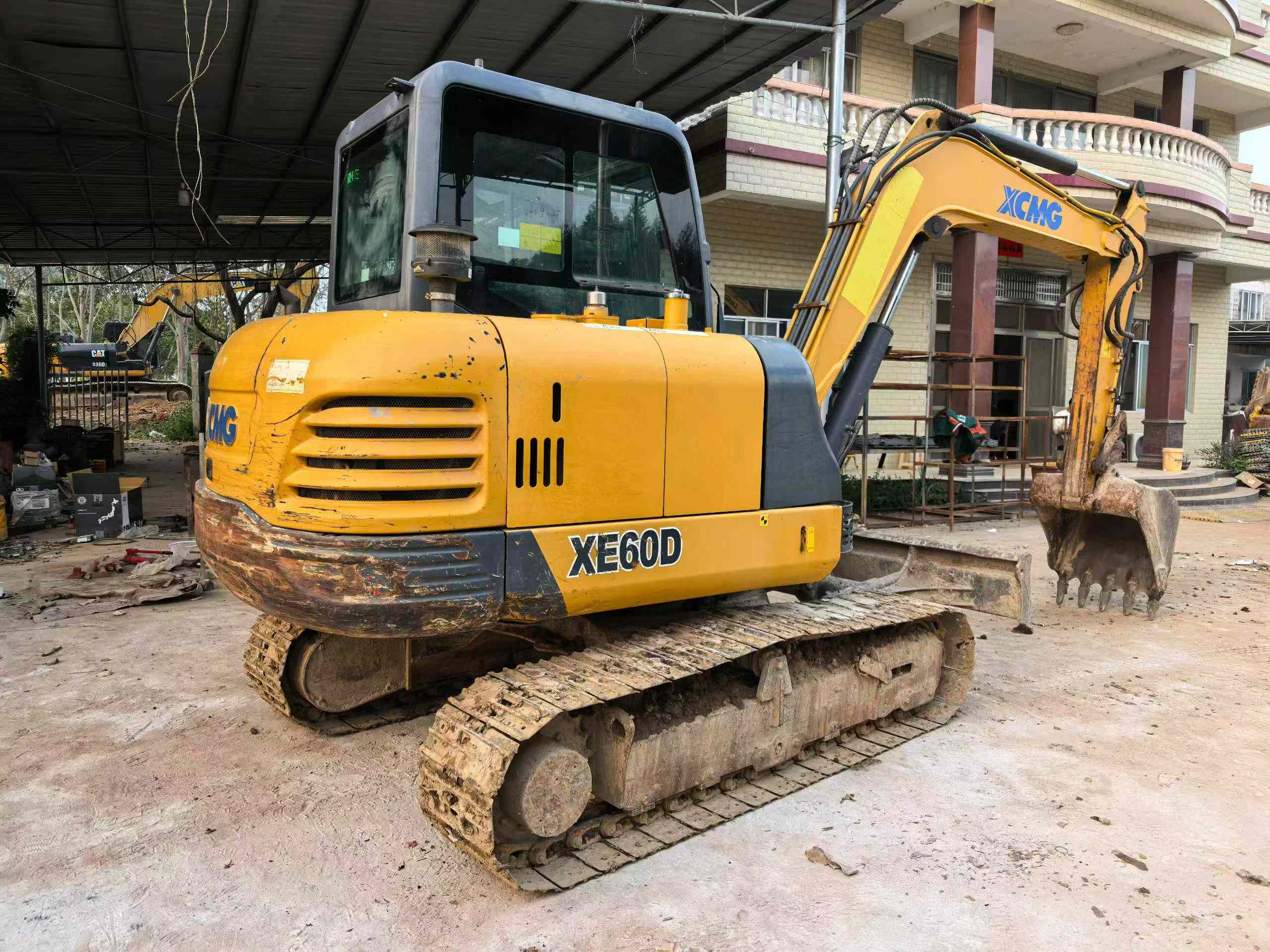

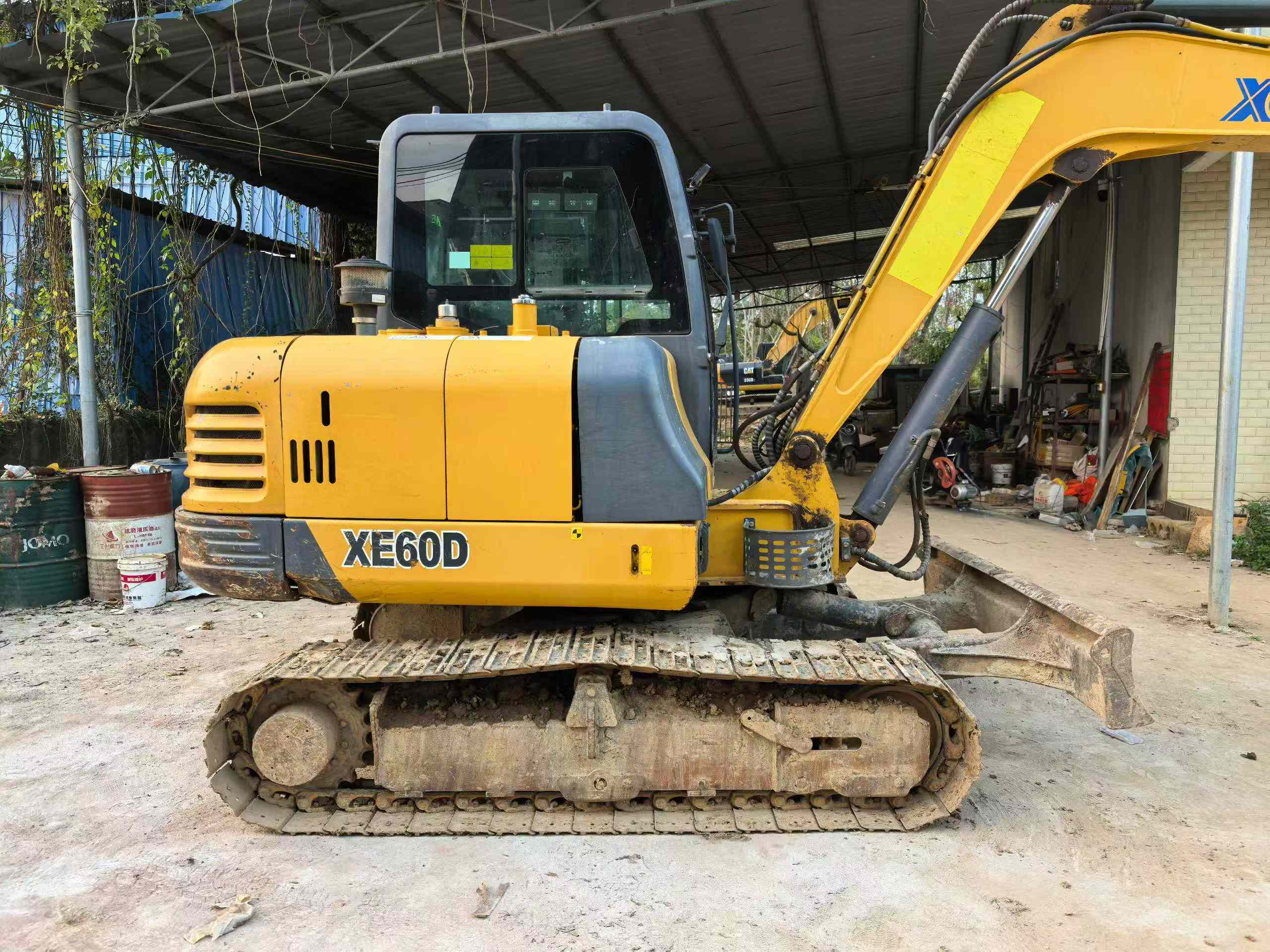

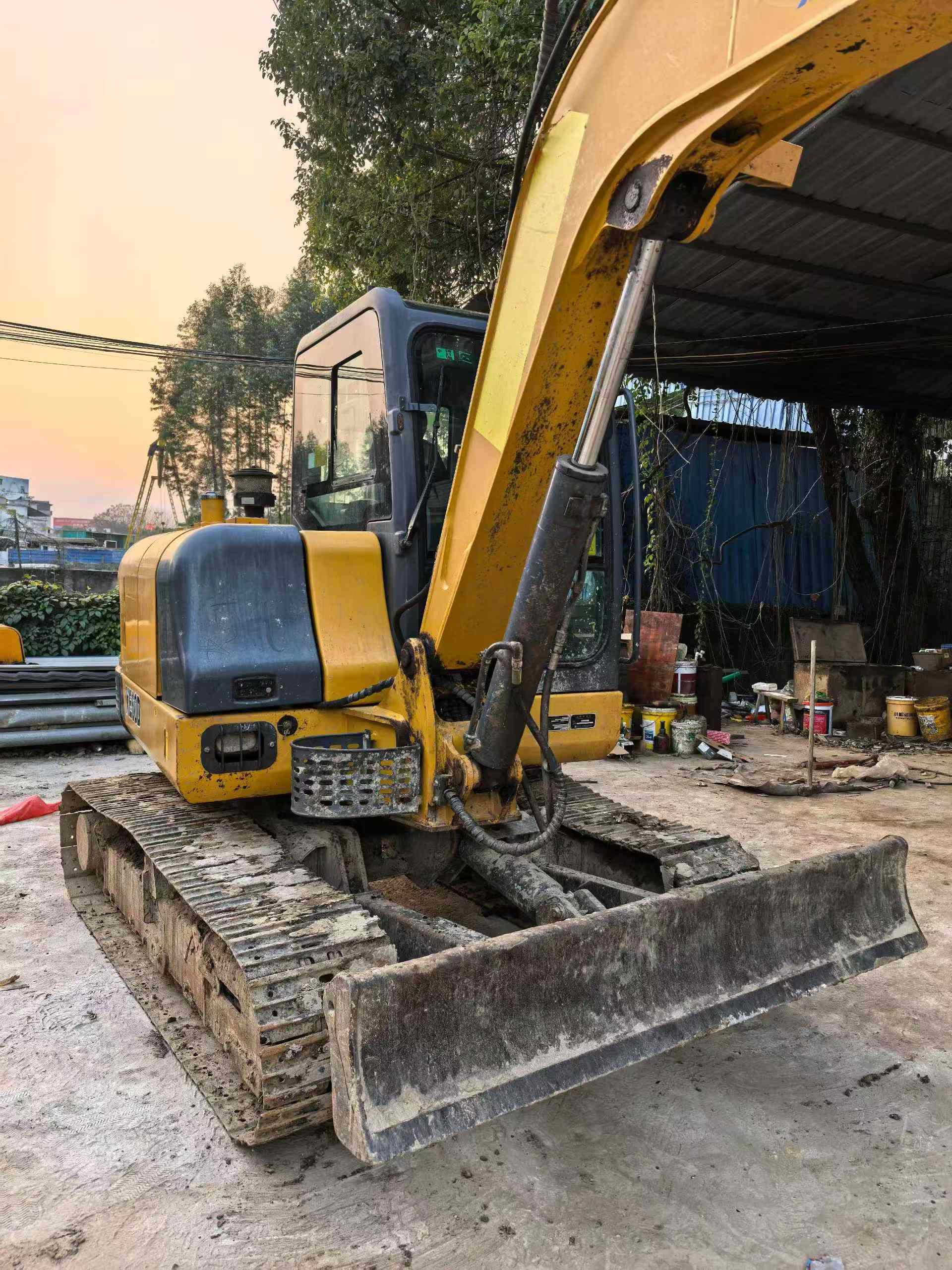

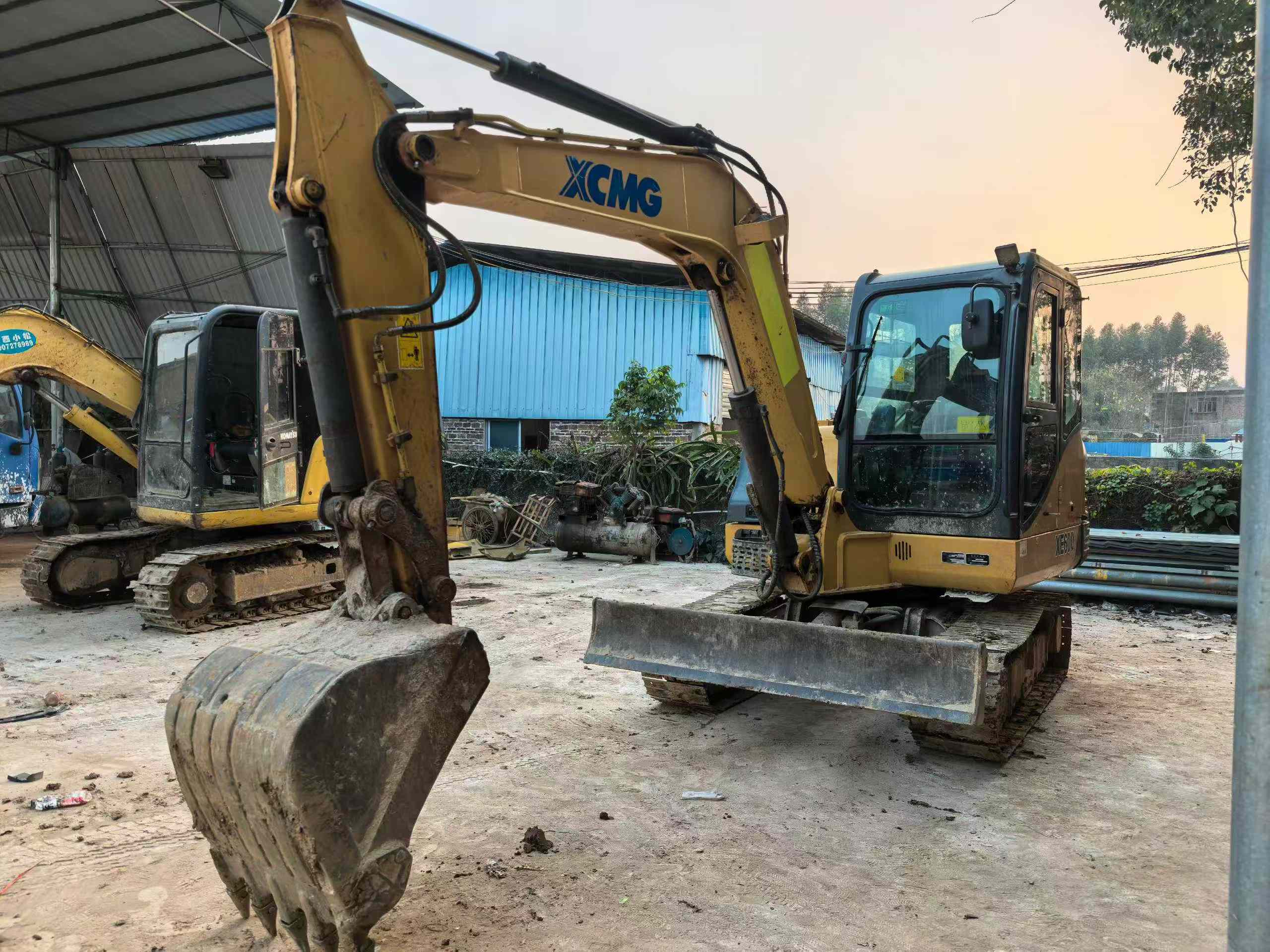

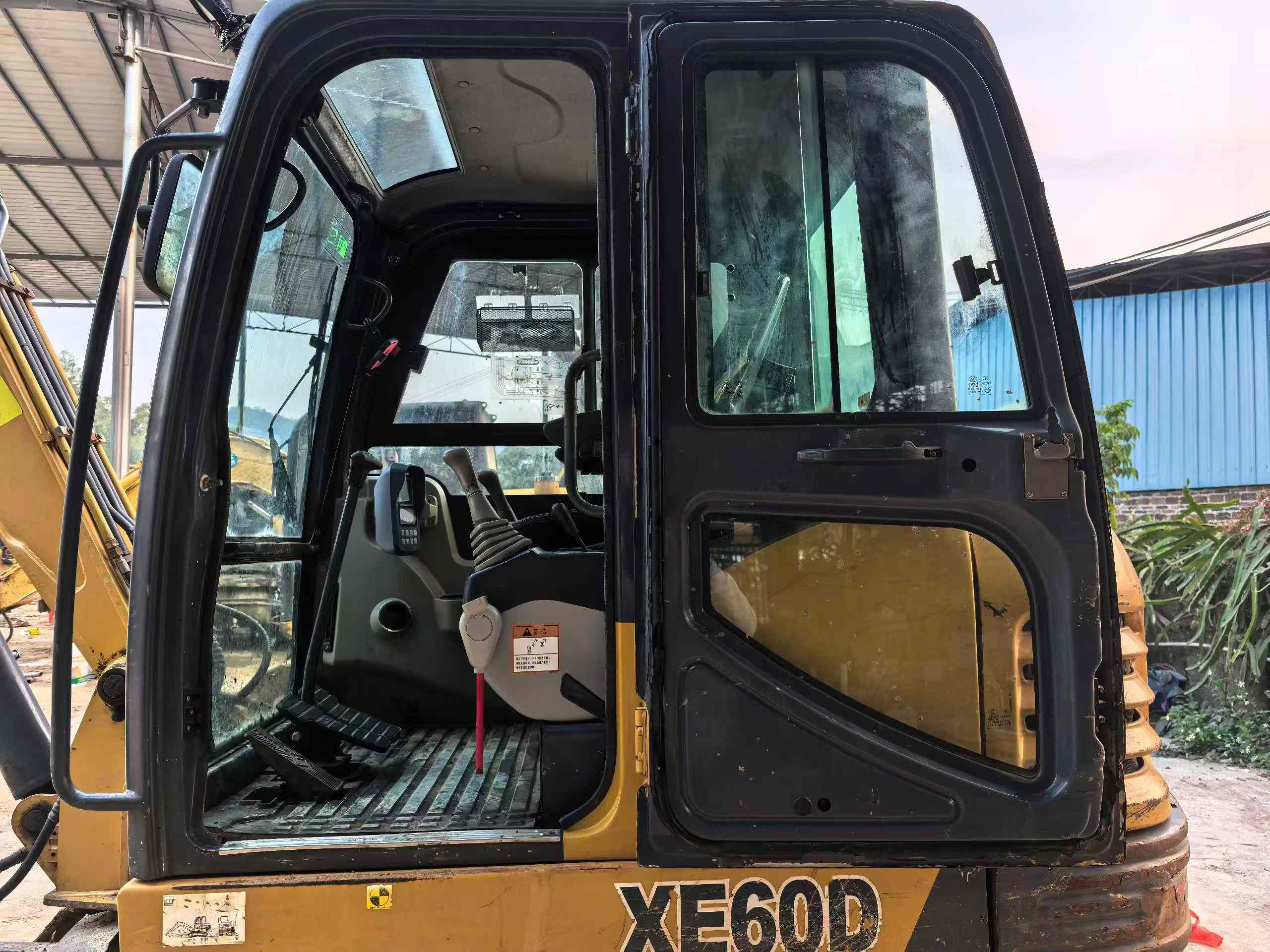

Available now in 广西, this 2018 XCMG XE60 mini excavator eliminates factory lead times and delivers immediate productivity to your jobsite. Operating at 6 tons with a robust 5,960 kg working weight, this compact machine combines Yanmar 4TNV94L power (39.8 kW) with Rexroth hydraulic systems for reliable performance across construction, landscaping, and utility applications.
Fast deployment means faster project starts. Equipped with a 0.09-0.23 m³ bucket capacity and impressive digging specifications—6,130 mm maximum reach, 3,830 mm depth, and 42.5 kN bucket digging force—this excavator handles demanding tasks efficiently. The dual-pump hydraulic system (2×60.5 + 40.3 + 9.9 L/min) ensures smooth operation, while the 35° climbing ability and 4.2 km/h travel speed maintain productivity on challenging terrain.
Key specifications include:
- Yanmar 4-cylinder water-cooled diesel engine with 3.054L displacement
- Compact transport dimensions: 5,850 mm length × 1,880 mm width × 2,585 mm height

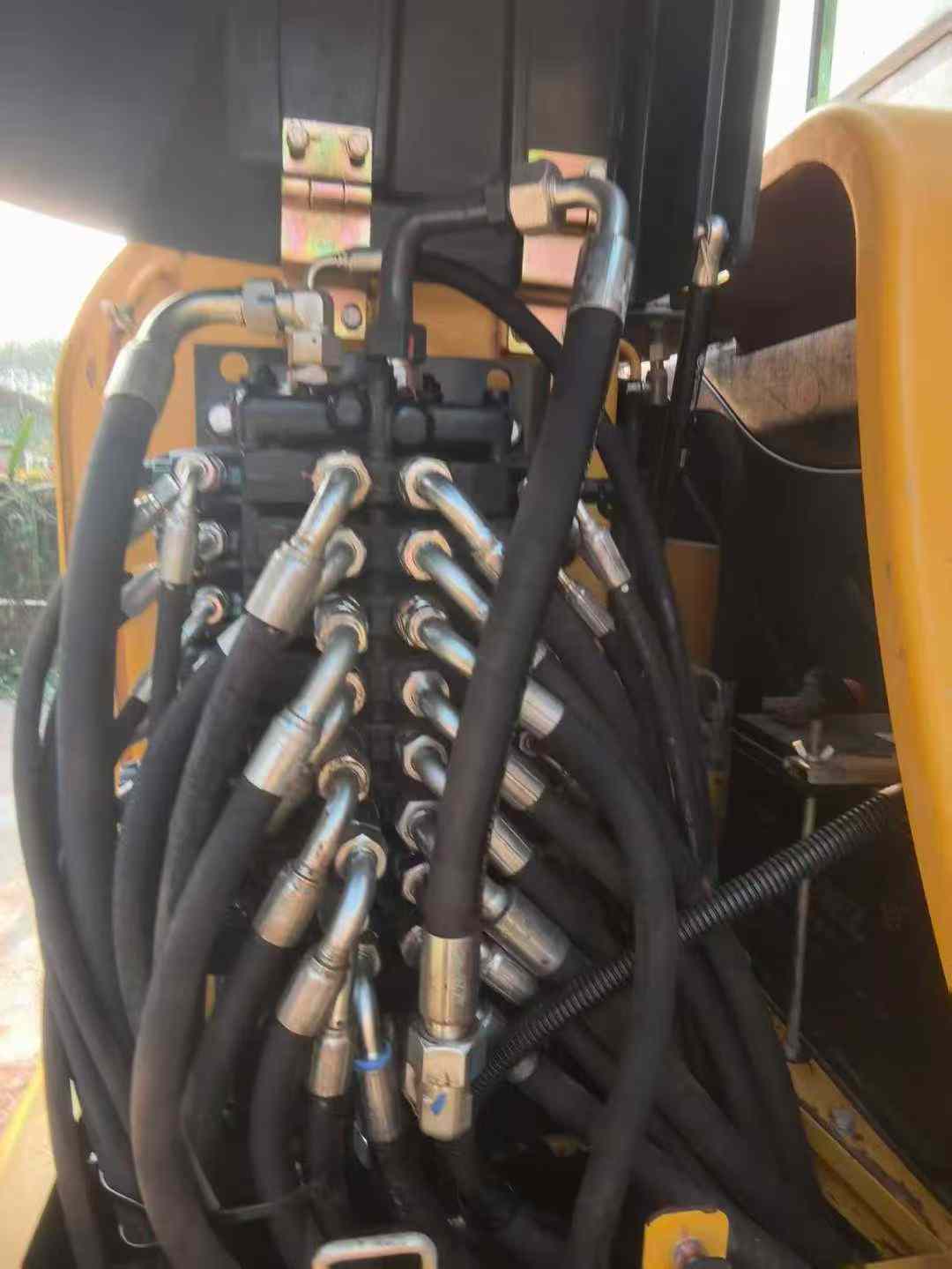

- Standard hydraulic crushing pipeline for versatile attachments
- 110L fuel tank and 85L hydraulic reservoir for extended operation
- 2,450 mm minimum turning radius for confined spaces
| Specifications | Value |
|---|---|
| No. | 994311 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

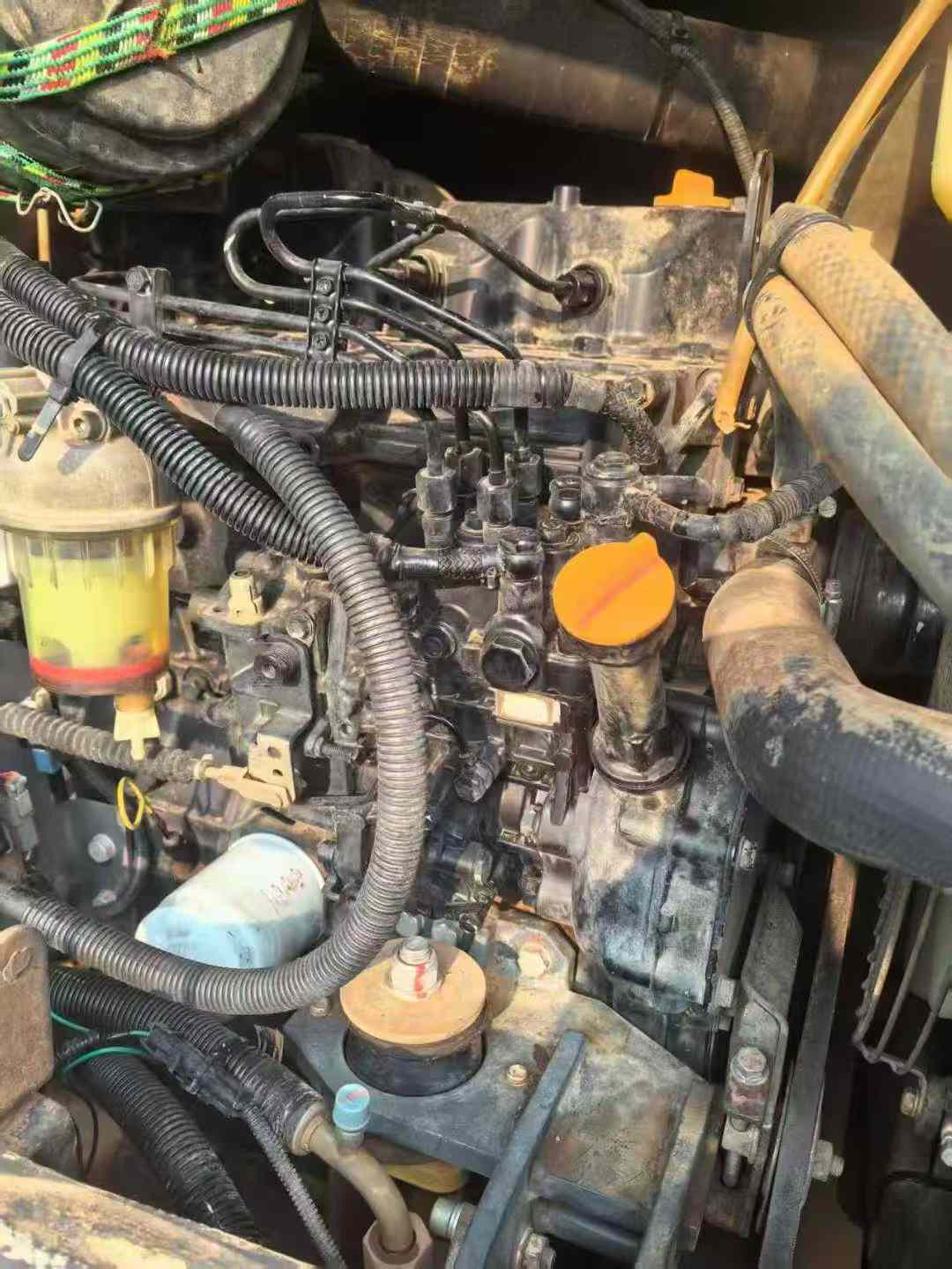

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

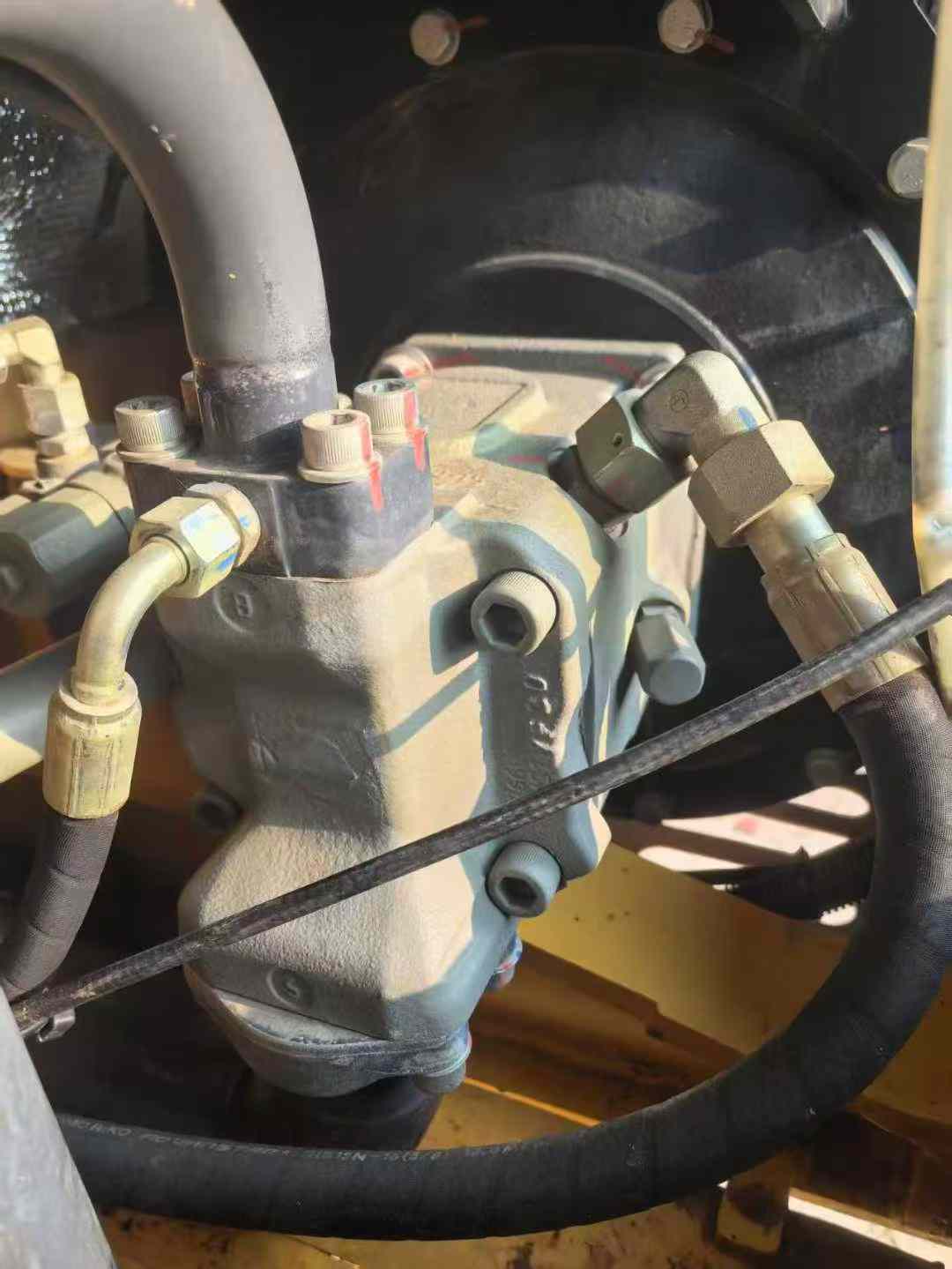

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |

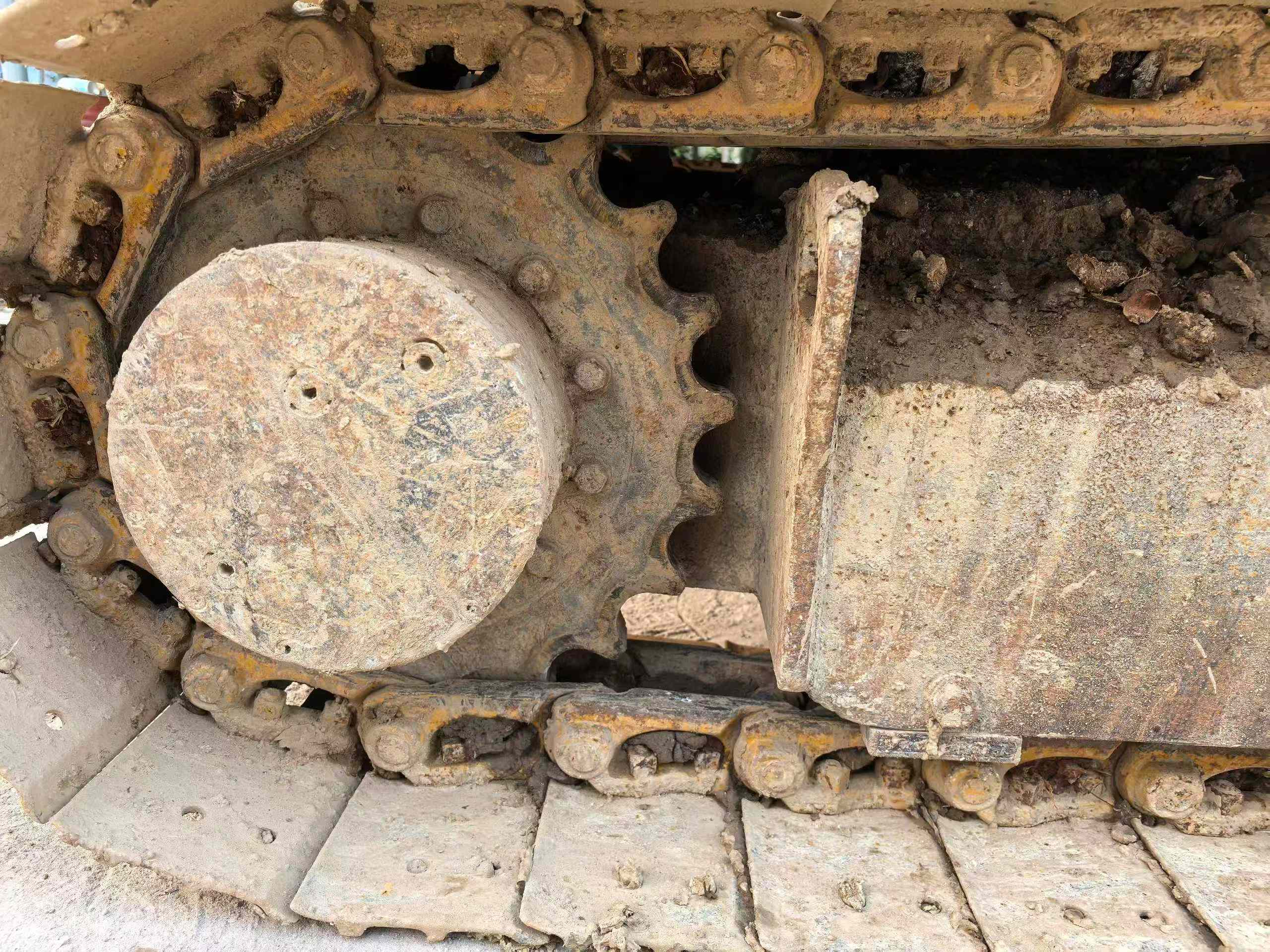

| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
