Product Description
With a working weight of 5960 kg and a bucket capacity ranging from 0.09 to 0.23 m³, the 2019 XCMG XE60 excavator stands as a robust and reliable choice for your construction needs. Located in Guangdong Maoming, this machine is powered by a Yanmar 4TNV94L engine, delivering 39.8 kW at 2200 rpm, ensuring efficient and powerful performance.
- Manufactured in Xuzhou, China, known for its high-quality engineering, XCMG offers excellent parts availability and strong resale value.
- Equipped with a backhoe bucket and a main pump type Rexroth, it provides a maximum digging depth of 3830 mm and a maximum digging radius of 6130 mm.
- Featuring a water-cooled engine and a 4-cylinder, 3.054 L displacement, this excavator ensures consistent performance even in demanding conditions.
- The XE60 boasts a travel speed of 4.2/2.2 km/h and a climbing ability of 35°, making it versatile for various terrains and job sites.
Choose the 2019 XCMG XE60 for its reliability, durability, and the peace of mind that comes with a brand trusted globally for its quality and support.
| Specifications | Value |
|---|---|
| No. | 1004299 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

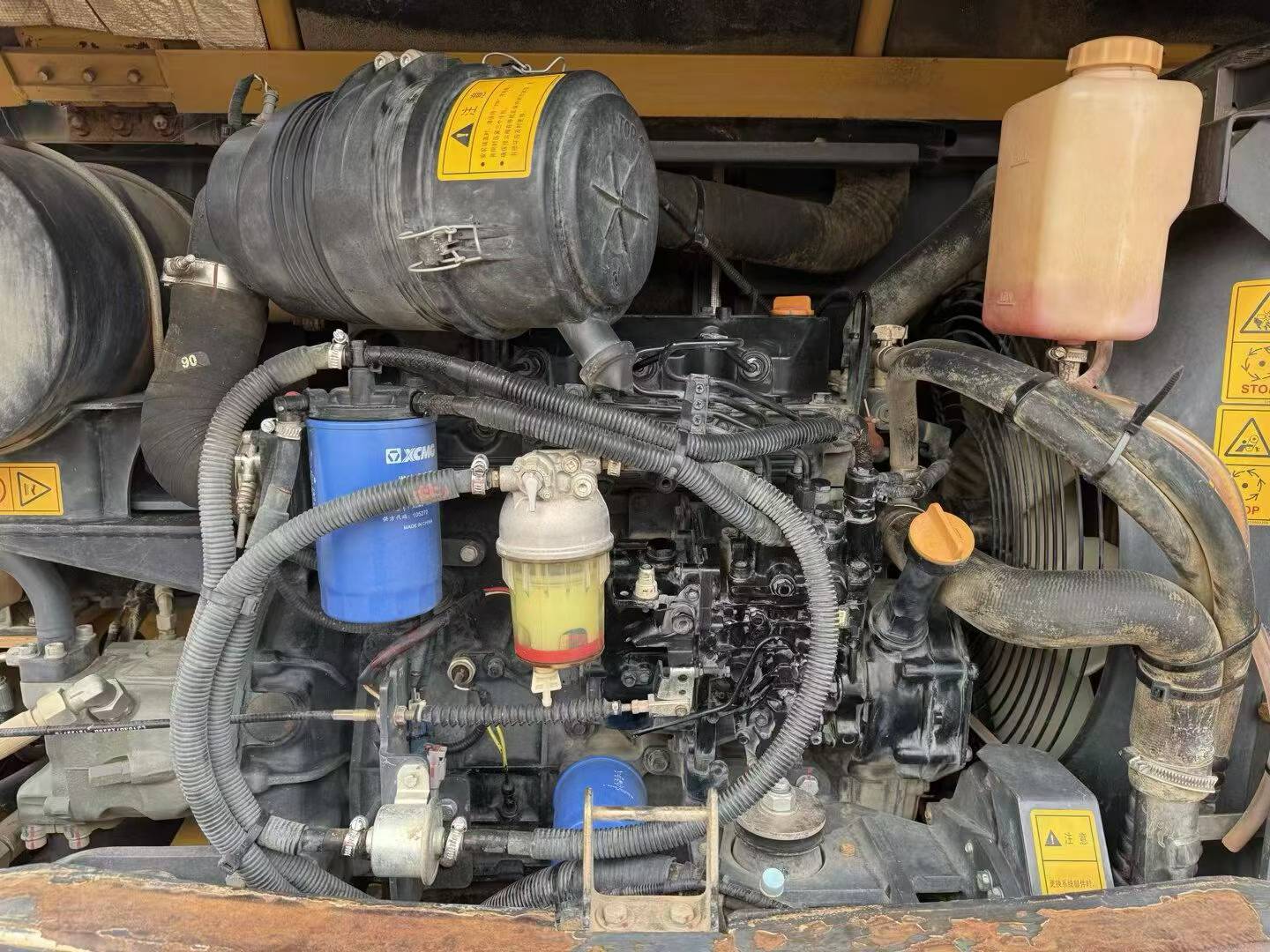

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |

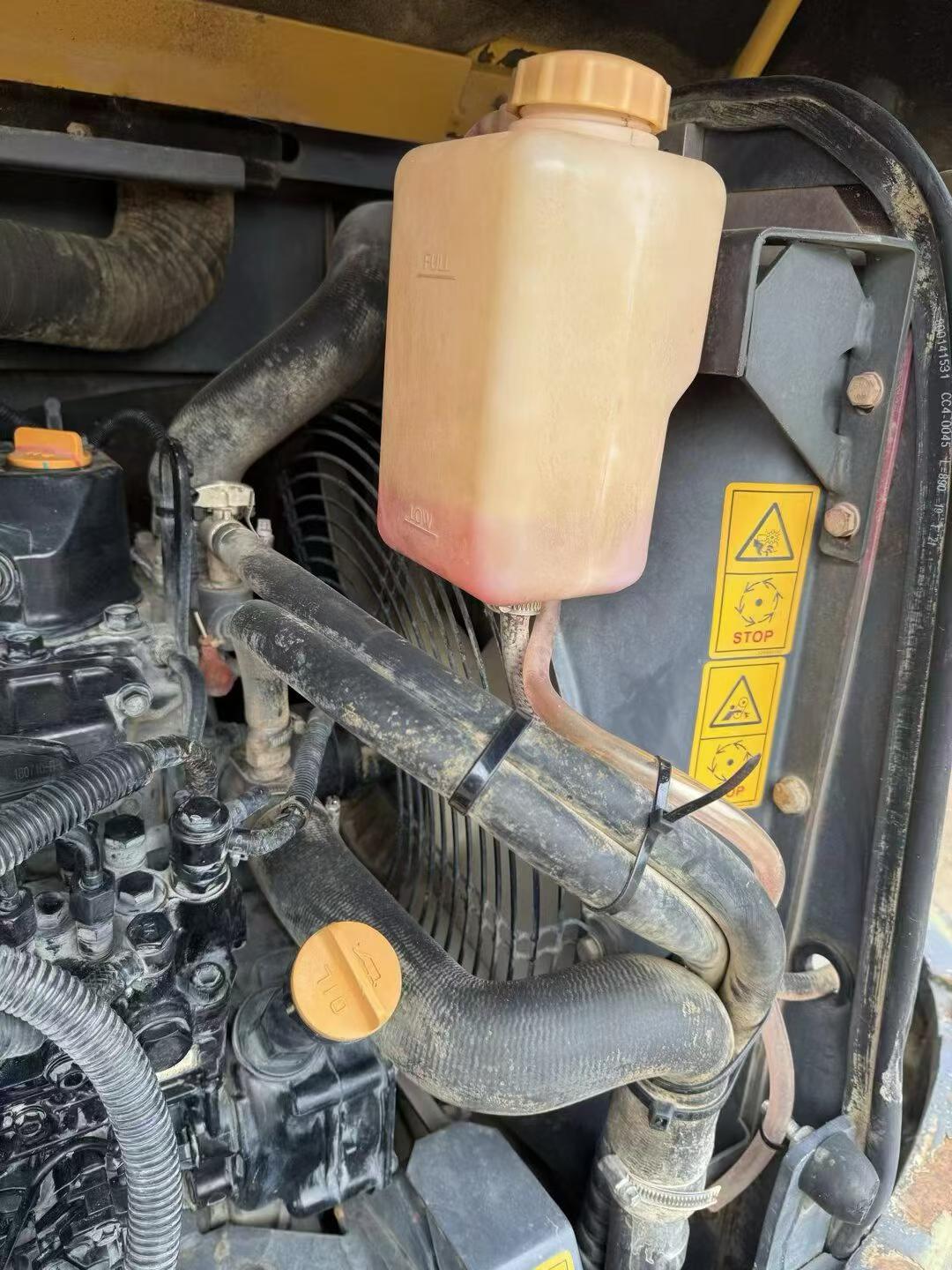

| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

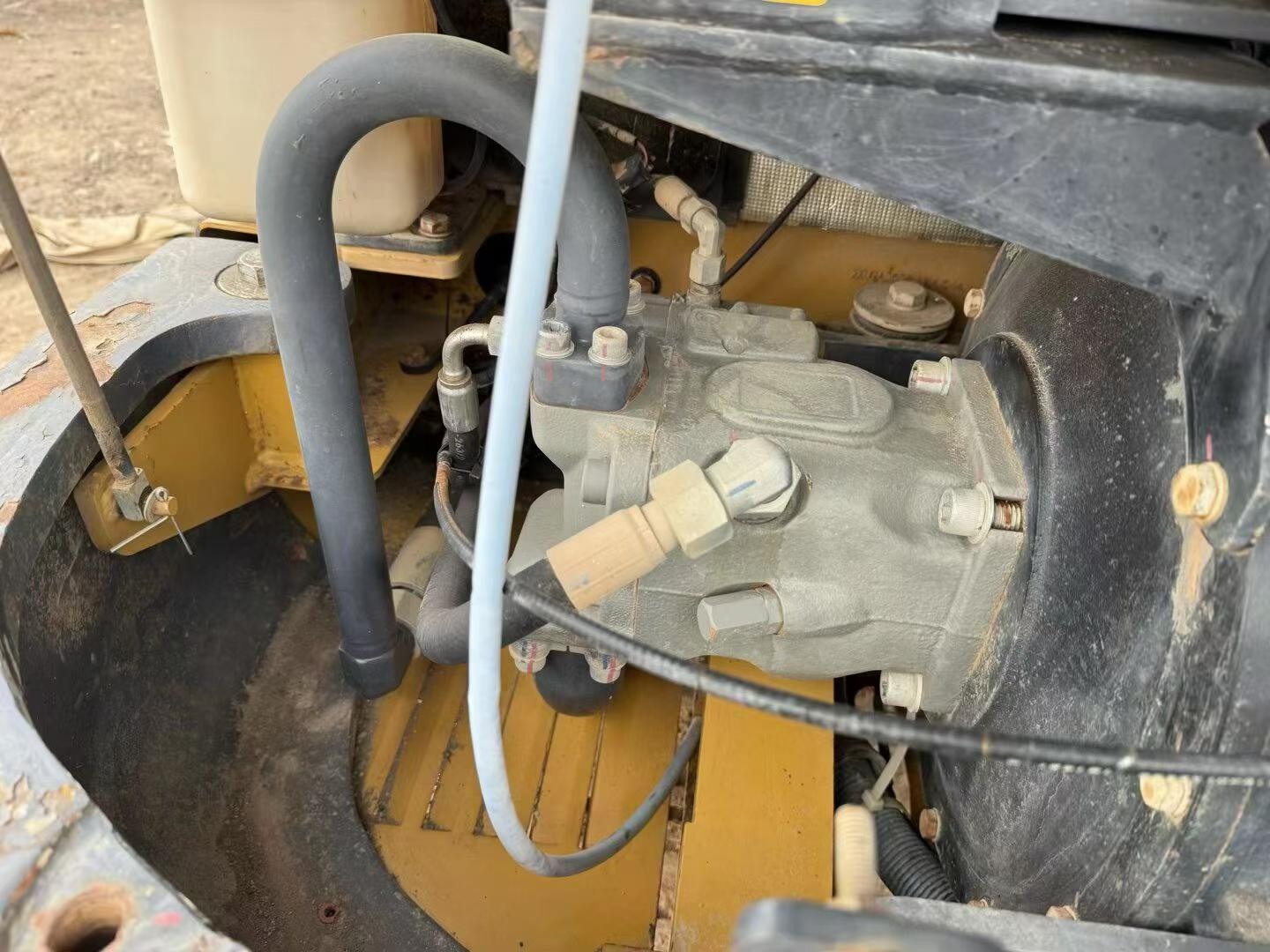

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
