Product Description
Proven in the field since 2019, this XCMG XE60 mini excavator demonstrates the durability that construction professionals demand. Powered by a reliable Yanmar 4TNV94L engine delivering 39.8kW at 2200 rpm, this 6-ton workhorse combines robust performance with proven engineering. The machine's water-cooled 4-cylinder design and 3.054L displacement ensure consistent power delivery across demanding job sites.
Built for versatility, the XE60 offers impressive working parameters: maximum digging depth of 3830mm, reach extending to 6130mm, and bucket digging force of 42.5kN. Its compact footprint—just 1880mm wide in transport configuration—enables access to confined spaces while maintaining a 35° climbing ability for challenging terrain. The Rexroth main pump system and dual hydraulic circuits (2×60.5 + 40.3 + 9.9 l/min) deliver responsive control and efficient cycle times.
Key Specifications:
- Operating weight: 5960kg with 0.09-0.23m³ bucket capacity
- Travel speed: 4.2/2.2 km/h with 32.1kPa ground pressure
- 9.5 rpm rotation speed for productive positioning
- Standard hydraulic crushing pipeline for attachment versatility
- Currently located in Zhanjiang, Guangdong—
| Specifications | Value |
|---|---|
| No. | 1030129 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

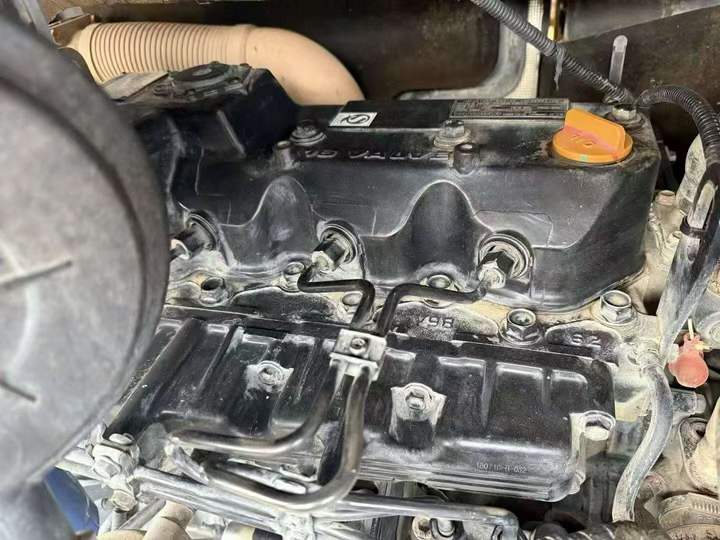

| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |

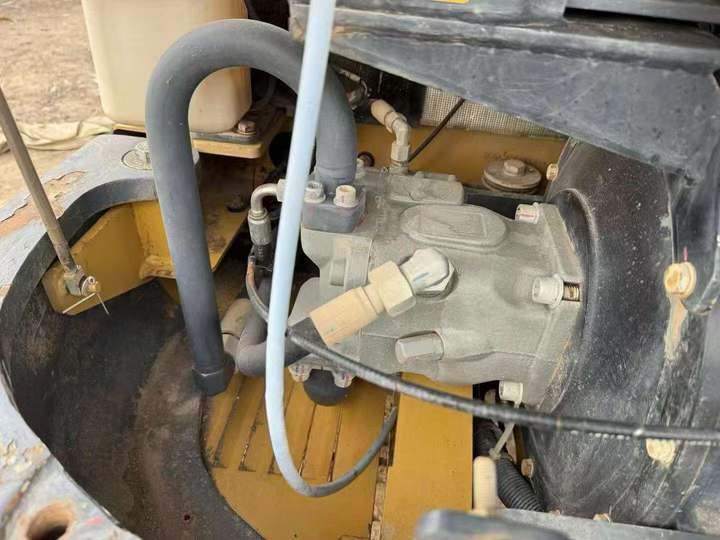

| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
