Product Description

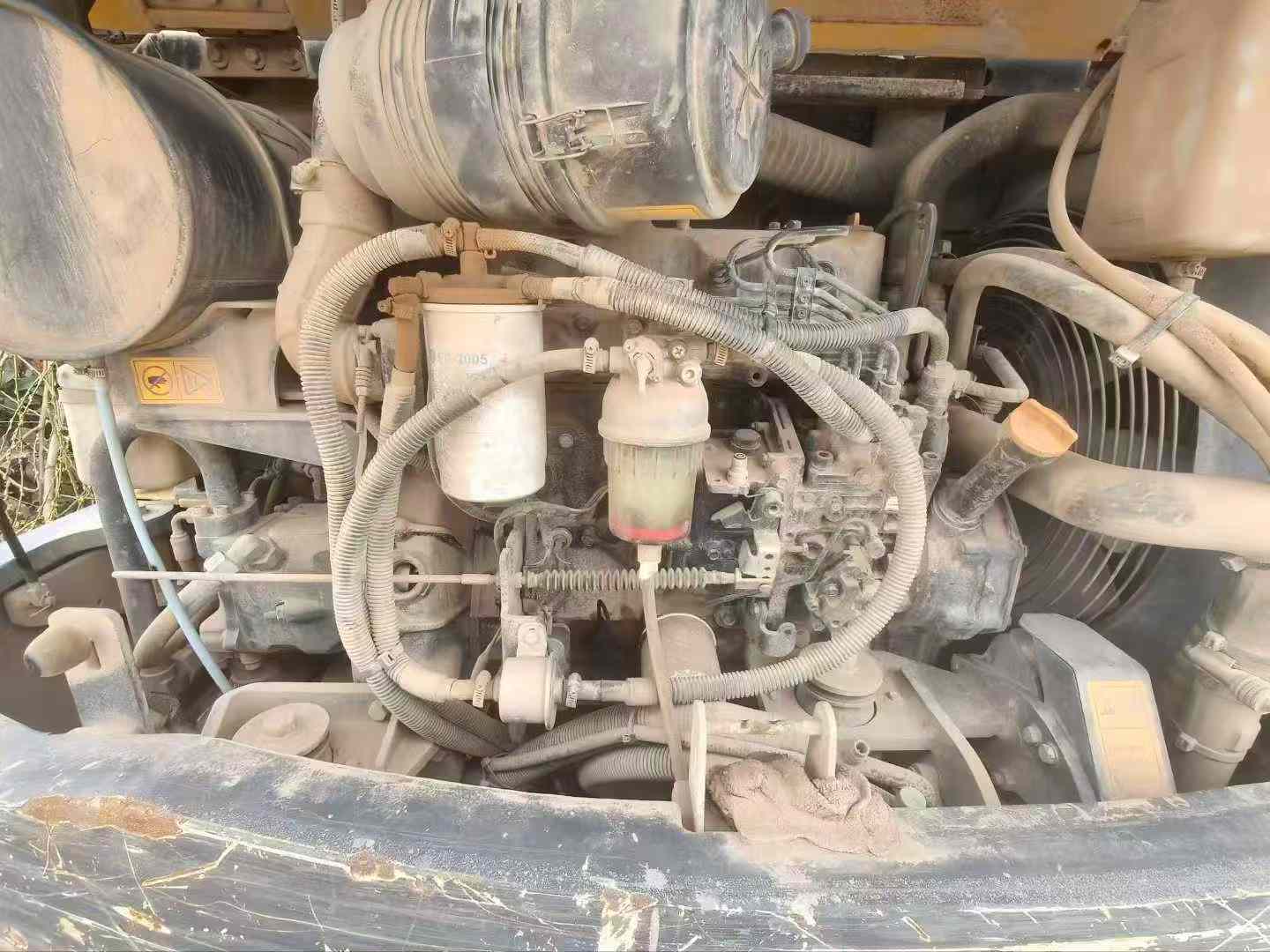

Built for precision work in confined spaces, this 2020 XCMG XE60 mini excavator delivers 6-ton performance with the agility to navigate tight jobsites. Powered by a reliable Yanmar 4TNV94L diesel engine generating 39.8 kW at 2200 rpm, this machine tackles trenching, utility installation, and light demolition without hesitation. Water-cooled efficiency and a robust 4-cylinder design ensure consistent operation through demanding shifts.
Equipped with a maximum digging depth of 3,830mm and reach extending to 6,130mm, this excavator handles foundation work, drainage projects, and site preparation with authority. Bucket capacity ranges from 0.09 to 0.23 m³, adapting to material handling requirements from precision grading to bulk excavation. Rexroth hydraulic pumps deliver 2×60.5 L/min flow, providing responsive control and powerful bucket digging force of 42.5 kN.

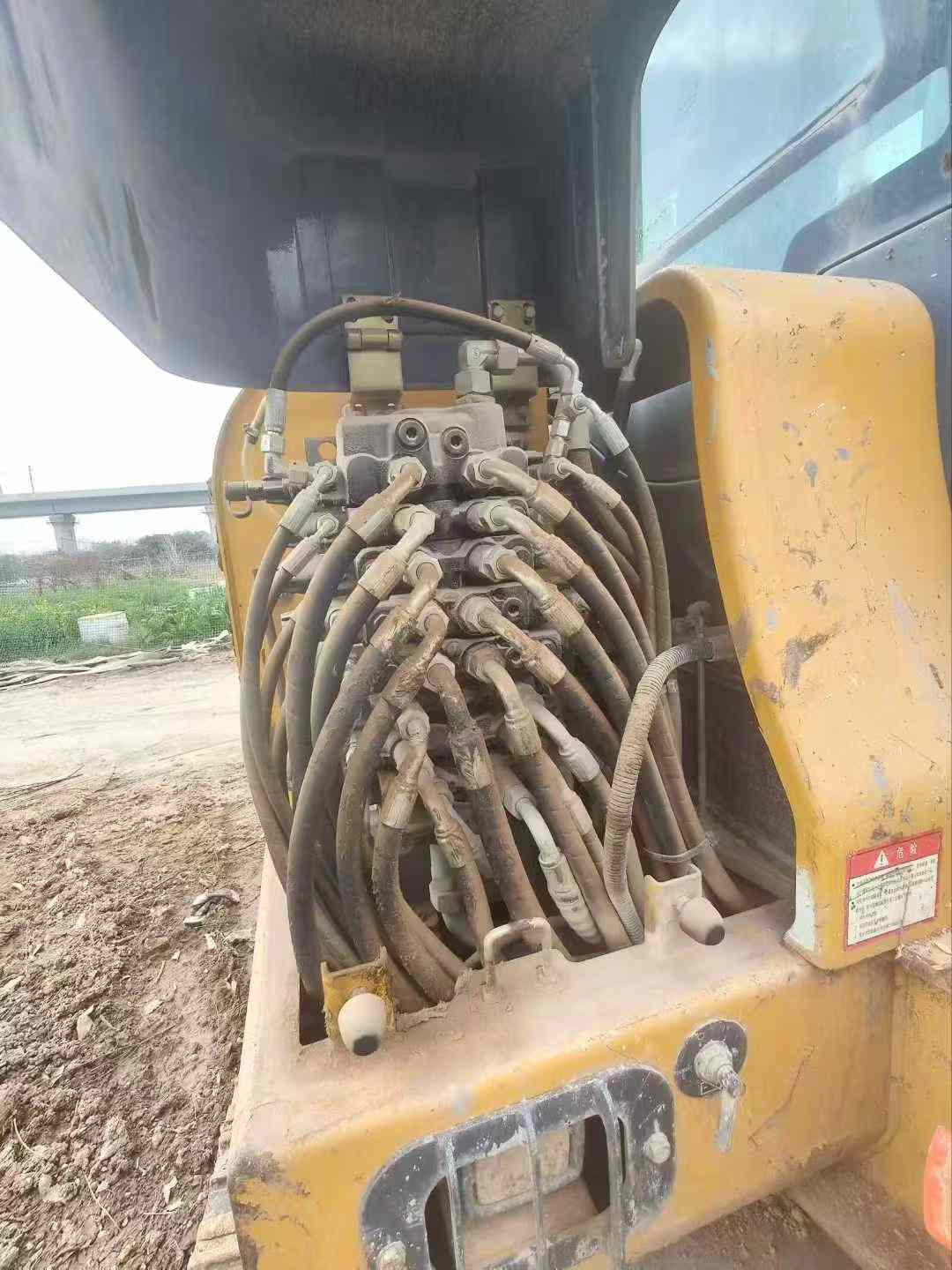

Standard hydraulic breaker lines allow immediate attachment of crushing tools for concrete demolition and rock breaking. Compact transport dimensions of 5,850mm length by 1,880mm width enable easy trailer mobilization between sites. Currently located in Ningbo, Zhejiang, this machine arrives ready to deploy with 110L fuel capacity and proven Chinese engineering
| Specifications | Value |
|---|---|
| No. | 1026486 |
| Tonnage (tons) | 6 |
| Working weight (kg) | 5960 |
| Bucket capacity (m³) | 0.09-0.23 |
| Boom length (mm) | 3000 |
| Rod length (mm) | 1600 |
| Country of origin | Xuzhou |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Yanmar 4TNV94L |
| Rated power (kw/rpm) | 39.8/2200 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.054 |
| Ground specific pressure (Kpa) | 32.1 |
| Rotation speed (rpm) | 9.5 |
| Climbing ability (%) | 35 ° |
| Bucket digging force (kN) | 42.5 |
| Rod digging force (kN) | 28.5 |
| Travel speed (km/h) | 4.2/2.2 |
| Main overflow set pressure (Mpa) | 22 |
| Maximum flow of main pump (l/min) | 2*60.5+40.3+9.9 |
| Traveling Hydraulic Circuit (Mpa) | 22 |
| Rotary Hydraulic Circuit (Mpa) | 23 |
| Hydraulic crushing pipeline is standard | is |
| Main pump type | Rexroth |
| Pilot Oil Circuit (MPa) | 2.9 |
| Fuel Tank (L) | 110 |
| Hydraulic Tank (L) | 85 |
| Engine Oil changes (L) | 5.3 |
| Total transport length (mm) | 5850 |
| Total transport width (mm) | 1880/1920 |
| Total transport height (mm) | 2585 |
| Counterweight ground clearance (mm) | 694 |
| Minimum ground clearance (mm) | 369 |
| Minimum turning radius of front working device (mm) | 2450 |
| Back end turning radius (mm) | 1650 |
| Track gauge (mm) | 1480/1500 |
| Track plate width (mm) | 400 |
| Track ground length (mm) | 1985/1990 |
| Maximum digging radius (mm) | 6130 |
| Maximum digging depth (mm) | 3830 |
| Maximum excavation height (mm) | 5630 |
| Maximum unloading height (mm) | 3945 |
| Maximum vertical digging depth (mm) | 2680 |
| Dodging plate width × height (mm) | 1880*365/1920*340 |
